Star (Middleby) 748TCHSA Ultra-Max Electric Griddles
Description
Star Ultra-Max® 48" Electric Chrome Griddle
Model 748TCHSA | 48" W x 24" D cooking surfaceEngineered for demanding commercial kitchens, the Star Ultra-Max® 48" heavy-duty electric griddle delivers consistent, edge-to-edge heat on a mirror-smooth chrome plate that cleans up in seconds. Four powerful heating zones, each with a precise snap-action thermostat, give you the control you need to push out perfectly cooked orders all day long.
Why you’ll love it
- 4 independently-controlled zones – a 4.35 kW element & thermostat every 12" for true multi-menu versatility.

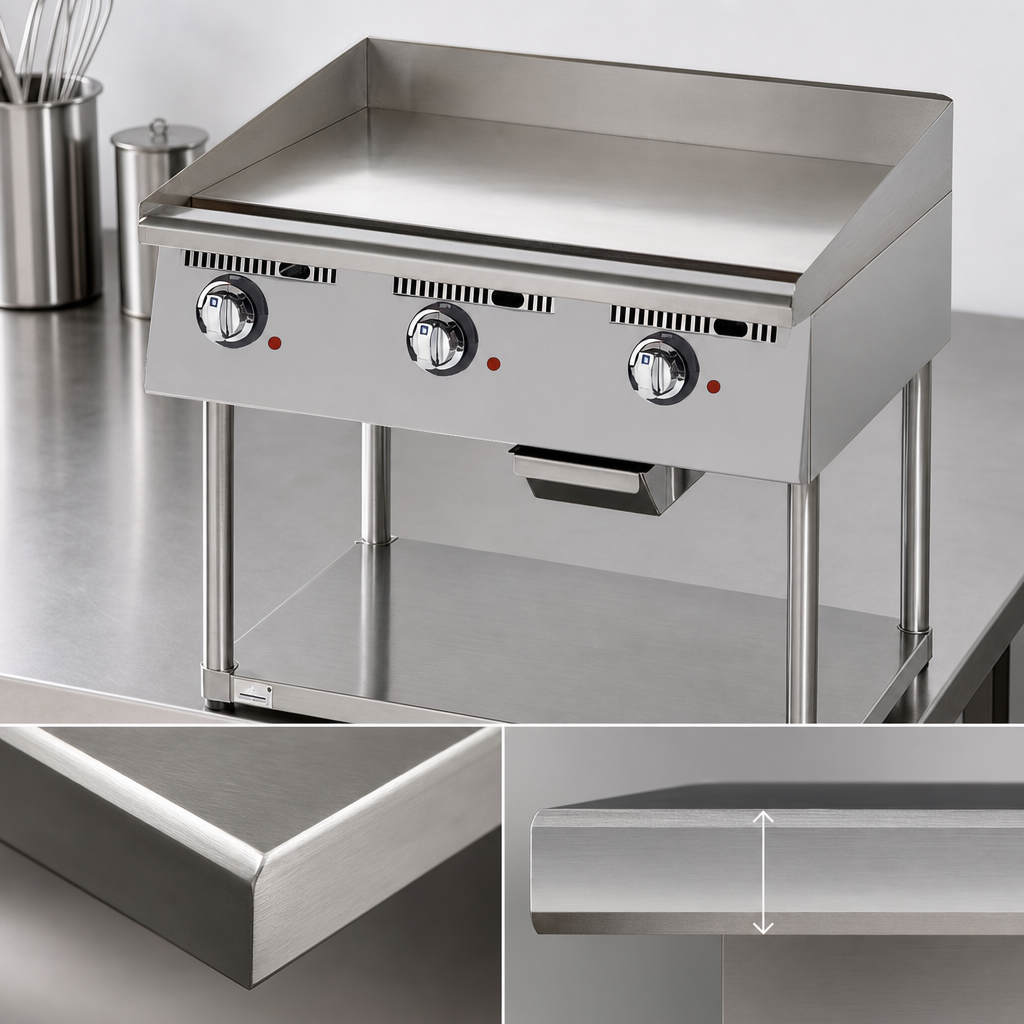

- Premium 1" thick chrome plate – 0.002" chrome over ultra-tough T1 steel locks in heat, minimizes sticking and wipes clean fast.
- Wide 150-450 °F range – accurate snap-action thermostats maintain set temps even during rushes.
- Operator-focused design – 5" tapered wrap-around splash guard, 3½" x 1" front grease trough and a 6 qt drawer keep workstations tidy.
- Built for punishment – welded steel frame, stainless exterior, heavy-duty metal knobs and 4" adjustable legs stand up to daily abuse.
- cULus & UL EPH Classified – meets ANSI sanitation & safety standards; proudly Made in USA.
At-a-glance specs
| Cooking surface | 48" W × 24" D (1,219 × 610 mm) |
|---|---|
| Plate material / thickness | Chrome-plated steel, 1" (25 mm) |
| Temperature range | 150 °F – 450 °F (66 °C – 232 °C) |
| Total power | 17.4 kW (4 × 4.35 kW zones) |
| Electrical | 208 V or 240 V, 1- or 3-phase, hard-wire connection |
| Overall dimensions (HxDxW) | 18" H × 33.6" D × 48" W (457 × 853 × 1,219 mm) |
| Grease capacity | 6 qt removable drawer |
| Certifications | cULus, UL EPH |
| Warranty | 2-year parts & labor |
Perfect for
- Diners & breakfast houses
- High-volume burger programs
- Hotel & resort kitchens
- Universities, stadiums & concessions
Requires hard-wired installation by a qualified electrician. Select voltage and phase when ordering.
