Star (Middleby)  |  Ultra-Max  |  SKU: 748TA

Star (Middleby) 748TA Ultra-Max Electric Griddles

$9,592.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Electric Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Star Ultra-Max® 48" Electric Countertop Griddle – Model 748TA

Heavy-duty, high-output performance for demanding kitchens

Crush the breakfast rush, turn out burger after burger, and keep tickets flying with the Star Ultra-Max® 748TA. This 48-inch electric griddle delivers rock-solid temperature accuracy, lightning-fast recovery, and the legendary durability food-service pros expect from Star.

Top Features
  • Spacious 48" W x 24" D cooking surface (8 sq. ft.)—feed a crowd on one piece of equipment.
  • 1" (25 mm) polished steel plate stores heat & resists warping for a lifetime of service.
  • Snap-action thermostats embedded 3⁄16" below the surface for ±10 °F precision every 12".
  • Wide 150 °F–450 °F range handles delicate eggs to steakhouse sears.
  • Four 4,350 W elements (17.4 kW total) for rapid pre-heat and quick recovery.
  • 5" tapered wrap-around splash guard plus extra-wide 3-1⁄2" grease trough keep the line clean.
  • Front-mounted 6 qt. grease drawer glides out for lightning-quick emptying.
  • Rugged welded steel frame & stainless exterior paired with heavy-duty metal control knobs.
  • 4" adjustable legs (1-5⁄8" travel) level the unit on uneven counters.
  • cULus & UL EPH Classified; proudly Made in the USA.
Specifications
Model 748TA
Cooking surface 48" W × 24" D (1.22 m × 610 mm)
Plate material / thickness Polished steel, 1" (25 mm)
Heating zones 4 independent zones (12" each)
Temperature range 150 °F – 450 °F (66 °C – 232 °C)
Total power 17.4 kW (4 × 4.35 kW elements)
Electrical 208 V or 240 V, 1 Ø or 3 Ø, hard-wire connection
Overall dimensions (H × W × D) 18" × 48" × 33.6"
Ship / installed weight 520 lb / 440 lb (236 kg / 200 kg)
Grease capacity 6 qt. drawer
Certifications cULus, UL EPH
Warranty 2-year parts & labor
Why Operators Love Ultra-Max®

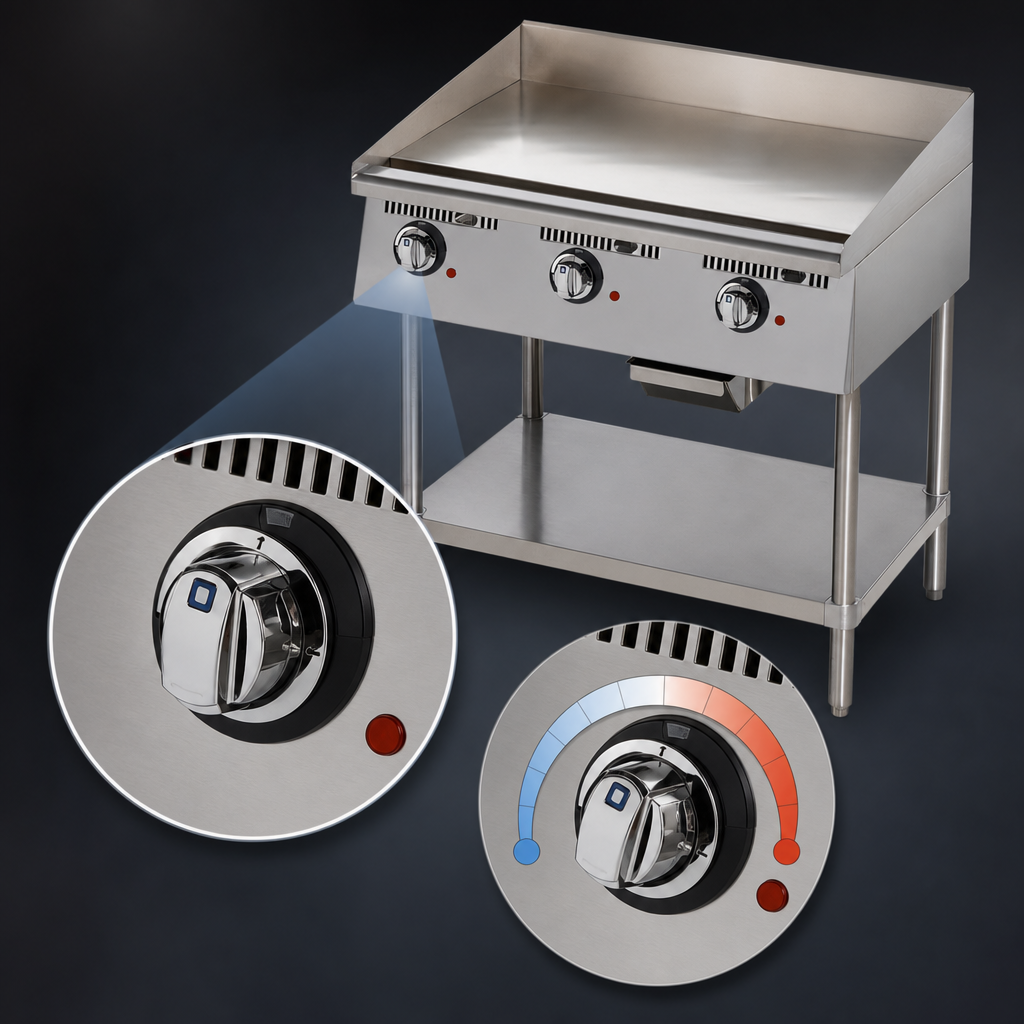

  • Snap-action controls sense and correct temperature changes instantly—no more cycling swings.
  • Modular footprint pairs perfectly with Ultra-Max® charbroilers, hotplates, and fryers for a seamless cookline.
  • Built in Smithville, TN by Star Manufacturing—a Middleby brand trusted for over 95 years.

Need a matching stand, caster kit, or chrome plate upgrade? Contact our team for customized options and lead times.

Electrical notice: This unit ships without a cord and must be hard-wired by a qualified electrician to the specified voltage and phase. Always follow local codes.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Ultra-Max

Certifications

cULus, UL EPH Classified, Made in USA

Height

18.0in

Width

48.0in

Depth

33.6in

Shipping Weight

520.0lbs

Cooking Surface Width (side - side)

37" - 48"

Control Type

thermostatic

Exterior Finish

all stainless steel exterior

Cooking Surface Depth (front - back)

24" - 30"

Griddle Plate Finish

smooth steel

Specifications

Ultra-Max® Heavy Duty Griddle, electric, countertop, 48" W x 24" D cooking surface, 1" thick polished steel griddle plate, 150°-450°F snap-action thermostat and 4350 watt element every 12", 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. grease drawer, heavy-duty metal knobs, welded steel frame with stainless steel exterior, 4" legs with 1-5/8" adjustment, cULus, UL EPH Classified, Made in USA
