Star (Middleby) 736TCHSA Ultra-Max Electric Griddles
Description
Star Ultra-Max® 36" Chrome Electric Countertop Griddle
Model 736TCHSA | 13.05 kW | Made in USABuilt for the busiest kitchens, the Star Ultra-Max® puts 36 inches of precision-heated chrome at your command. Independent snap-action thermostats, a 1-inch thick T1 steel plate, and rugged stainless construction deliver the speed, consistency, and durability demanded by high-volume operations—from breakfast rush to late-night service.
Why You’ll Love It
- High-capacity surface: 36" W × 24" D (864 × 610 mm) plate handles burgers, eggs, pancakes and more—simultaneously.

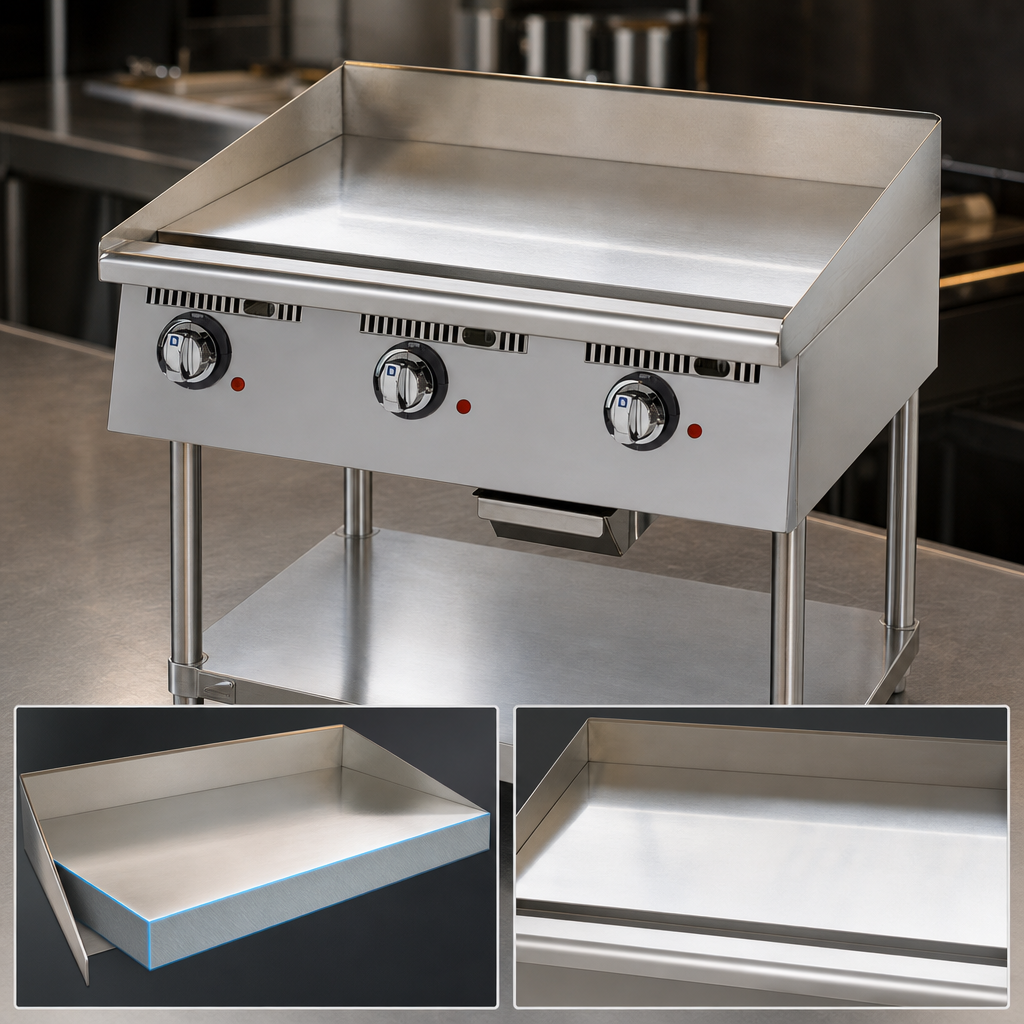

- Energy-saving chrome: 0.002" mirror-finish chrome reduces radiant heat loss and cuts clean-up time.

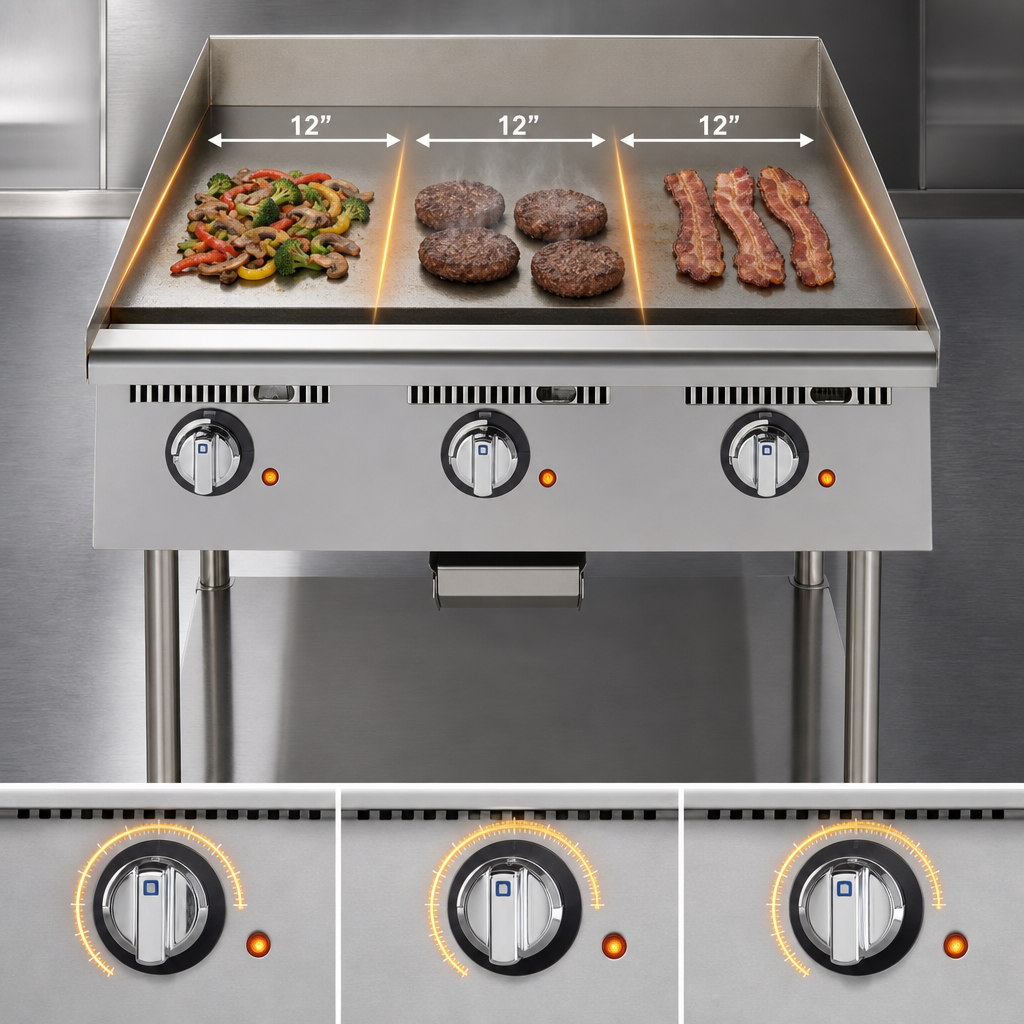

- Precise zone control: Snap-action thermostats every 12" sense temperature just 3⁄16" below the surface for ±10 °F accuracy.
- Rapid recovery: 4.35 kW element under each zone (total 13.05 kW) keeps up with heavy loads.
- Cleaner workstation: 5" wrap-around splash guard plus 3 ½"-wide trough channel grease into a 6-qt drawer.
- Built like a tank: Welded steel frame, stainless exterior and heavy-duty metal control knobs stand up to years of abuse.
- Easy placement: 4" adjustable legs (1 ⅝" travel) simplify leveling on any counter.
- Certified & safe: cULus, UL EPH Classified, and fully NSF-compliant for open-kitchen installation.
Technical Specs
| Cooking surface | 36" W × 24" D (864 × 610 mm) |
|---|---|
| Plate material | 1" (25 mm) T1 steel with 0.002" chrome finish |
| Temperature range | 150 °F – 450 °F (66 °C – 232 °C) |
| Controls | Three independent snap-action thermostats (one per 12") |
| Total wattage | 13.05 kW (4.35 kW per zone) |
| Voltage / Phase | 208 V or 240 V, 1- or 3-phase, hard-wired |
| Amps (208 V) | 1 φ 62.7 A | 3 φ 36.2 A/leg |
| Amps (240 V) | 1 φ 54.4 A | 3 φ 31.4 A/leg |
| Grease drawer | 6 qt capacity, front-mount, removable |
| Overall dimensions (H×W×D) | 18" H × 36" W × 33.6" D (457 × 914 × 853 mm) |
| Ship / Installed weight | 389 lb / 330 lb (176 / 150 kg) |
| Certifications | cULus, UL EPH Classified |
| Warranty | 2 years parts & labor |
Electrical connection is field-wired 2.2" (56 mm) from the right side. A minimum 1" (25 mm) clearance is required at the sides and rear.
Upgrade your line with American-built performance that pays for itself in speed, yield, and consistency—order your Star Ultra-Max® 36" chrome griddle today, and ask us about flexible equipment financing!
