Star (Middleby) 736TA Ultra-Max Electric Griddles
$7,341.00
Unit price
/
Unavailable
Description

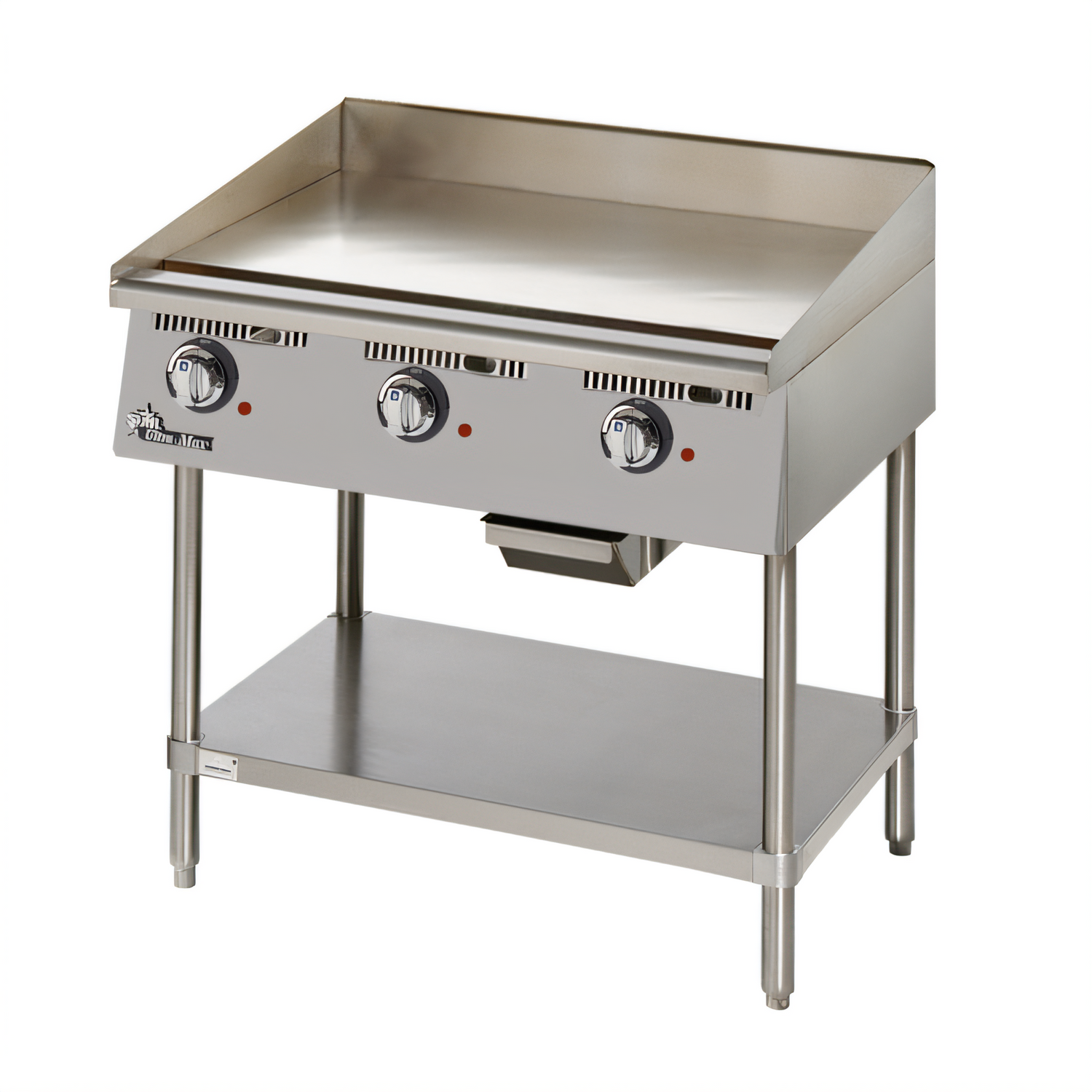

Star Ultra-Max 736TA 36" Electric Countertop Griddle
Heavy-duty polished-steel plate | 13 kW of even heat | Made in the USAEngineered for the busiest kitchens, the Ultra-Max 736TA delivers precision temperature control, rock-solid construction, and fast, effortless cleanup—all in a space-saving countertop design.
Key features
- 36" W × 24" D 1" thick polished steel plate for superior heat retention

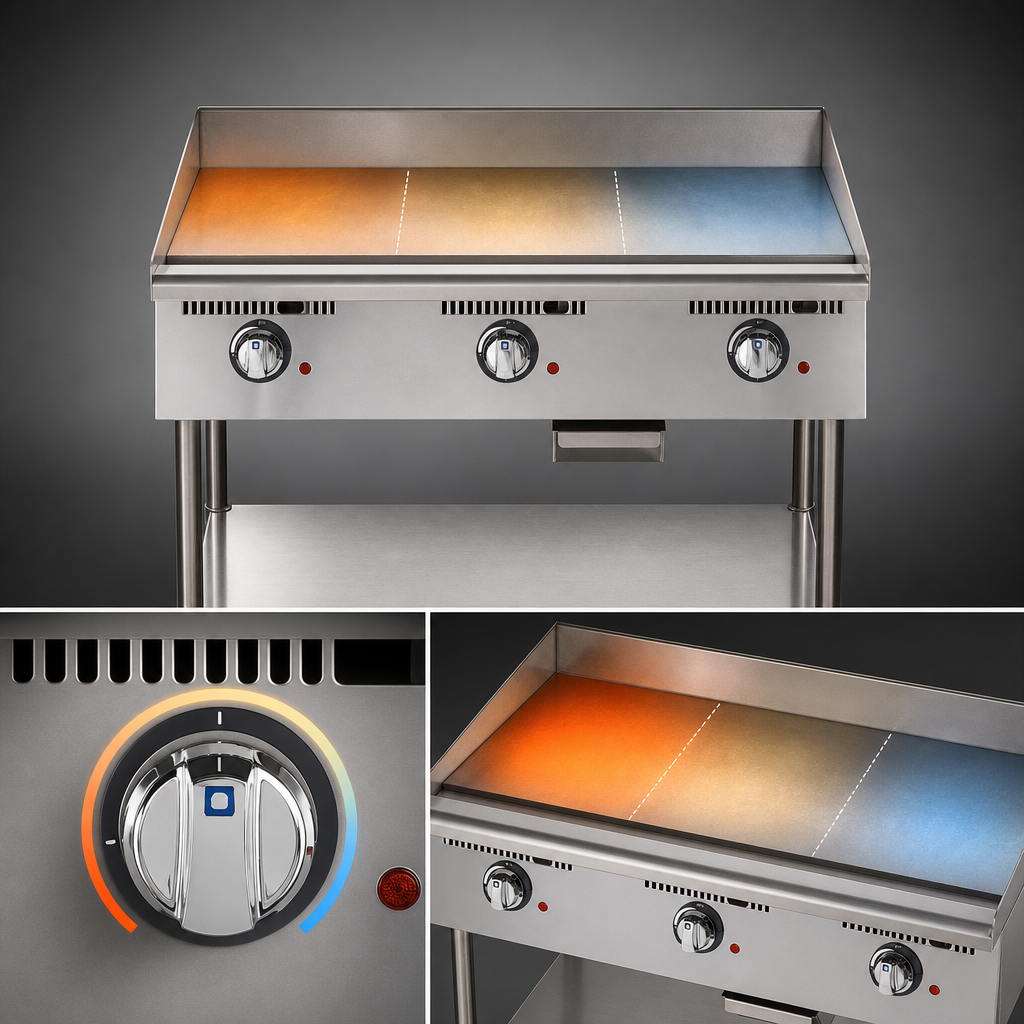

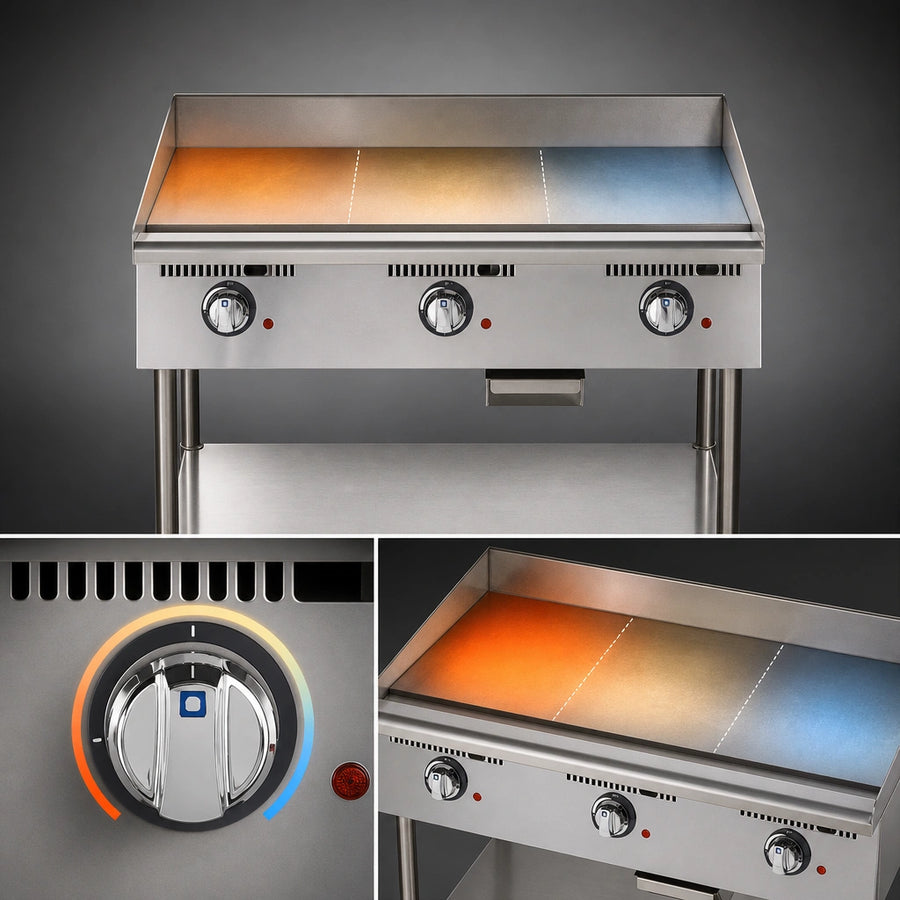

- Three independent 4.35 kW zones (one every 12")—total 13.05 kW

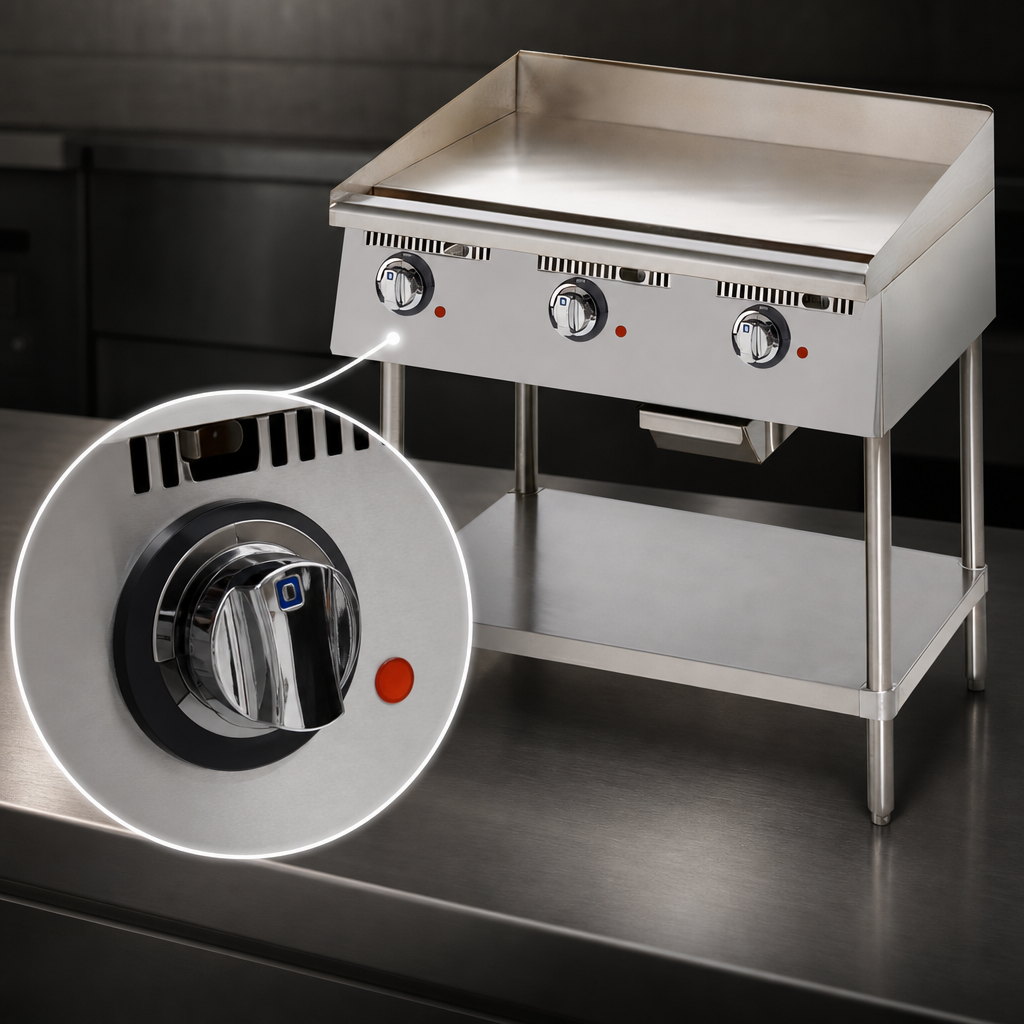

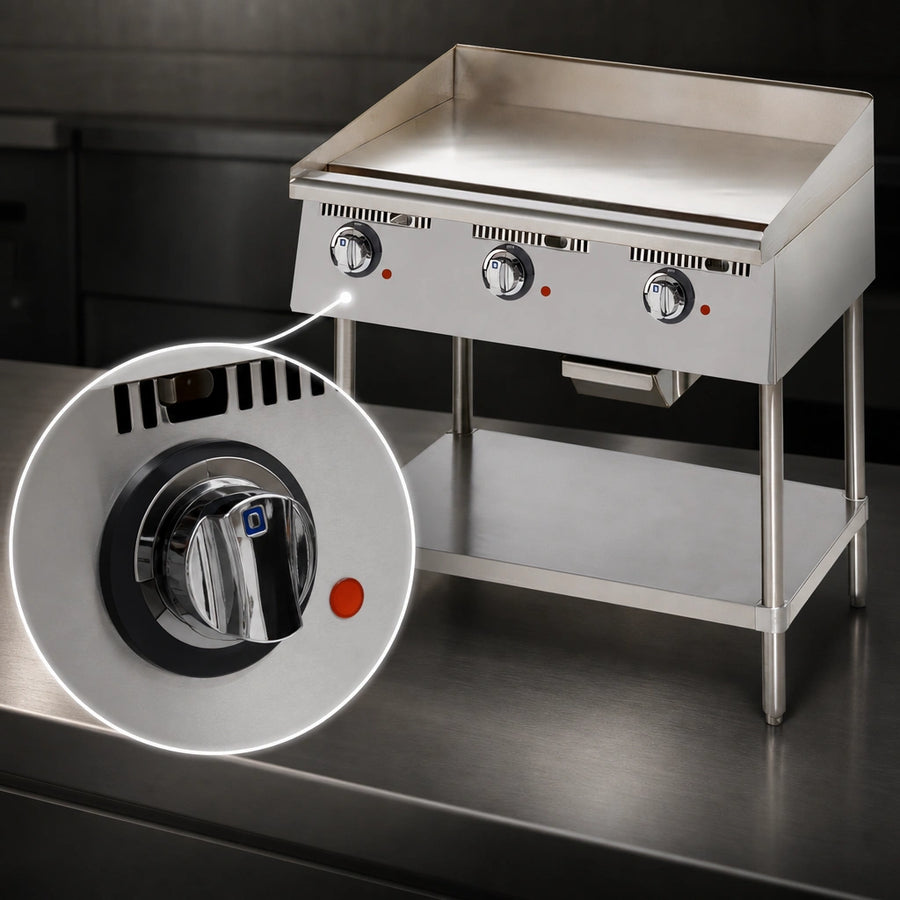

- Rapid-response snap-action thermostats (150–450 °F)
- 5" tapered wrap-around splash guard keeps grease where it belongs
- 3 ½" wide front trough and removable 6 qt grease drawer for quick service-side cleaning
- Heavy-duty metal control knobs with bezel guards
- Welded steel frame, stainless exterior, and 4" legs with 1 5⁄8" adjustment
- cULus & UL EPH Classified · NSF compliant · Made in USA
Performance advantages
- Even heat from edge to edge—elements embedded just 3⁄16" below the surface eradicate cold spots.
- Temperature stability—snap-action thermostats hold set points within ±10 °F, reducing product waste.
- Energy-smart design—1" plate stores heat so elements cycle less, lowering utility costs.
- Faster ticket times—wide grease trough & rear/side guards slash cleanup pauses during rushes.
Specifications
| Model | 736TA (polished steel) |
|---|---|
| Cooking surface | 36" W × 24" D |
| Plate thickness | 1" (25 mm) |
| Temperature range | 150 °F – 450 °F |
| Heating zones | 3 (one per 12" section) |
| Total power | 13.05 kW (4.35 kW per zone) |
| Electrical | 208 V or 240 V, single- or 3-phase, hard-wired |
| Overall dimensions | 36" W × 33.6" D × 18" H |
| Grease drawer | 6 qt capacity, removable |
| Shipping / installed weight | 389 lb / 330 lb |
| Certifications | cULus, UL EPH Classified |
| Warranty | 2-year parts & labor (Ultra-Max series) |
Included & optional accessories
- 4" adjustable stainless legs (included)
- Stainless equipment stand with legs or casters (optional)
- Factory chrome-plated surface (model 736TCHSA, optional)
Installation note: Unit ships without cord and must be hard-wired. Voltage or phase conversions should be
performed only by a qualified electrician.
Need financing? Ask about Middleby Equipment Financing for low monthly payments.
Features & Specs
Features & Specs
Manufacturer
Star (Middleby)
Brand_name
Ultra-Max
Certifications
cULus, UL EPH Classified, Made in USA
Height
18.0in
Width
36.0in
Depth
33.6in
Shipping Weight
389.0lbs
Exterior Finish
all stainless steel exterior
Cooking Surface Width (side - side)
25" - 36"
Griddle Plate Finish
smooth steel
Control Type
thermostatic
Cooking Surface Depth (front - back)
24" - 30"
Specifications
Ultra-Max® Heavy Duty Griddle, electric, countertop, 36" W x 24" D cooking surface, 1" thick polished steel griddle plate, 150°-450°F snap-action thermostat and 4350 watt element every 12", 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. grease drawer, heavy-duty metal knobs, welded steel frame with stainless steel exterior, 4" legs with 1-5/8" adjustment, cULus, UL EPH Classified, Made in USA
