Star (Middleby)  |  Ultra-Max  |  SKU: 724TA

Star (Middleby) 724TA Ultra-Max Electric Griddles

$5,645.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Electric Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

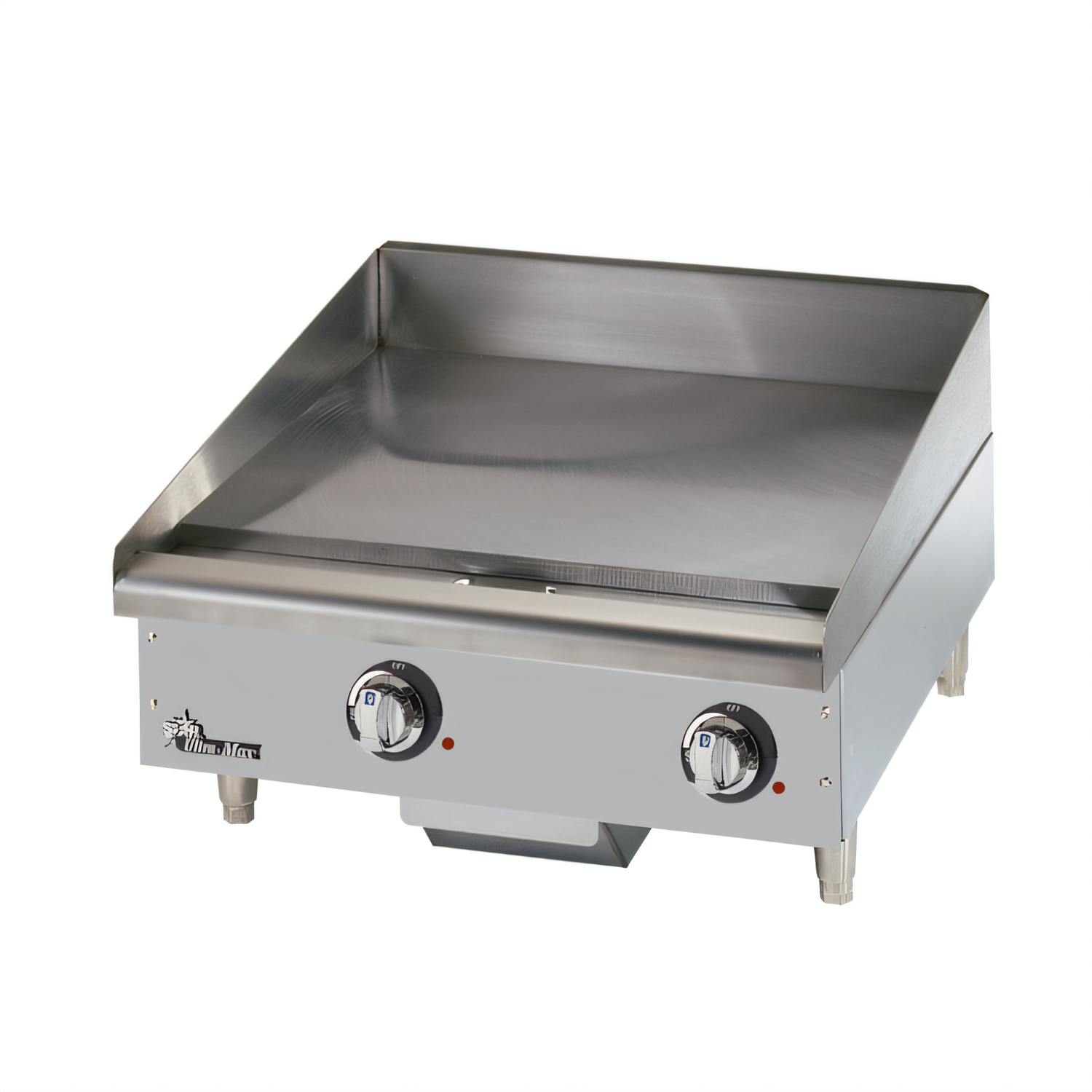

Star Ultra-Max® 24" Electric Heavy-Duty Griddle – Model 724TA

24" W × 24" D cooking surface • 1" polished steel plate • 8.7 kW total load

Engineered for the busiest kitchens, the Ultra-Max® 724TA delivers fast recovery, precision temperature control and all-day durability in a compact 24-inch footprint.

Key advantages

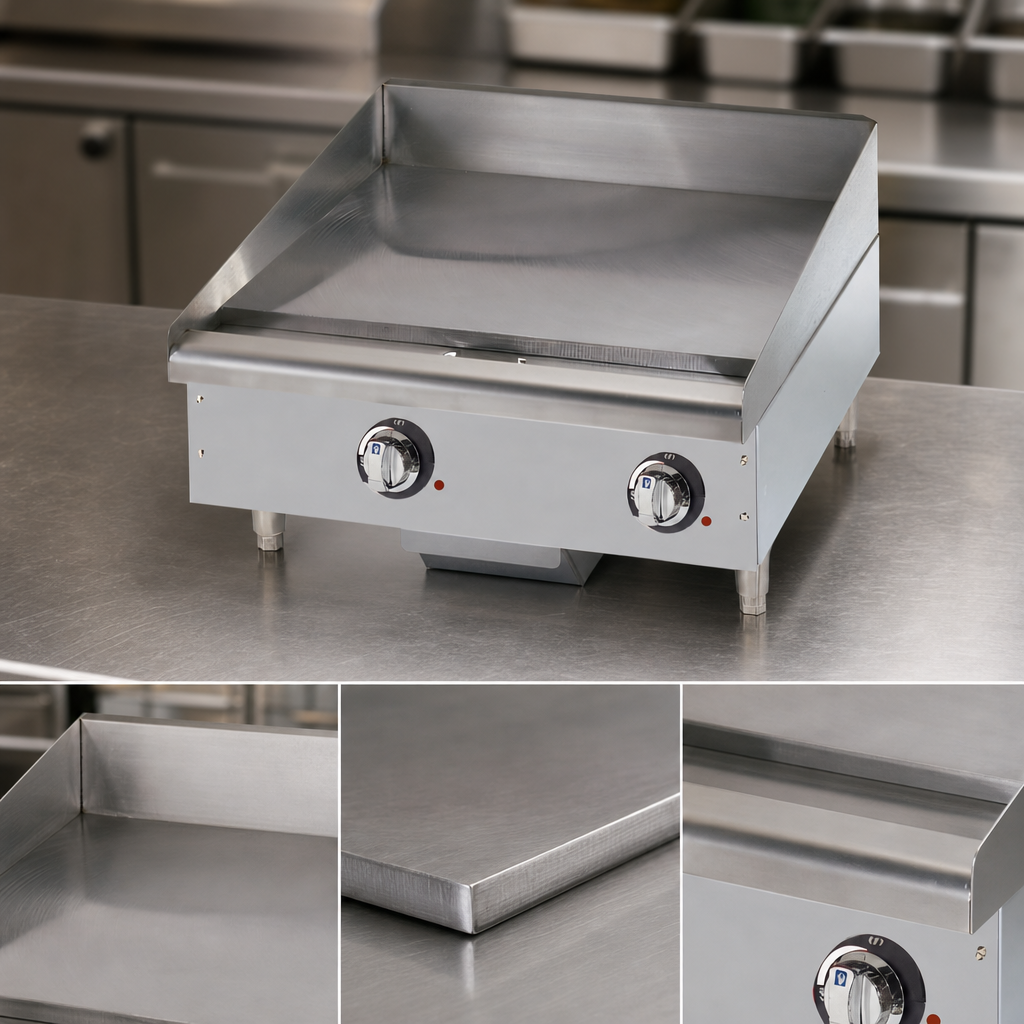

  • True heavy-duty 1" (25 mm) polished steel plate stores heat for superior searing and recovery.

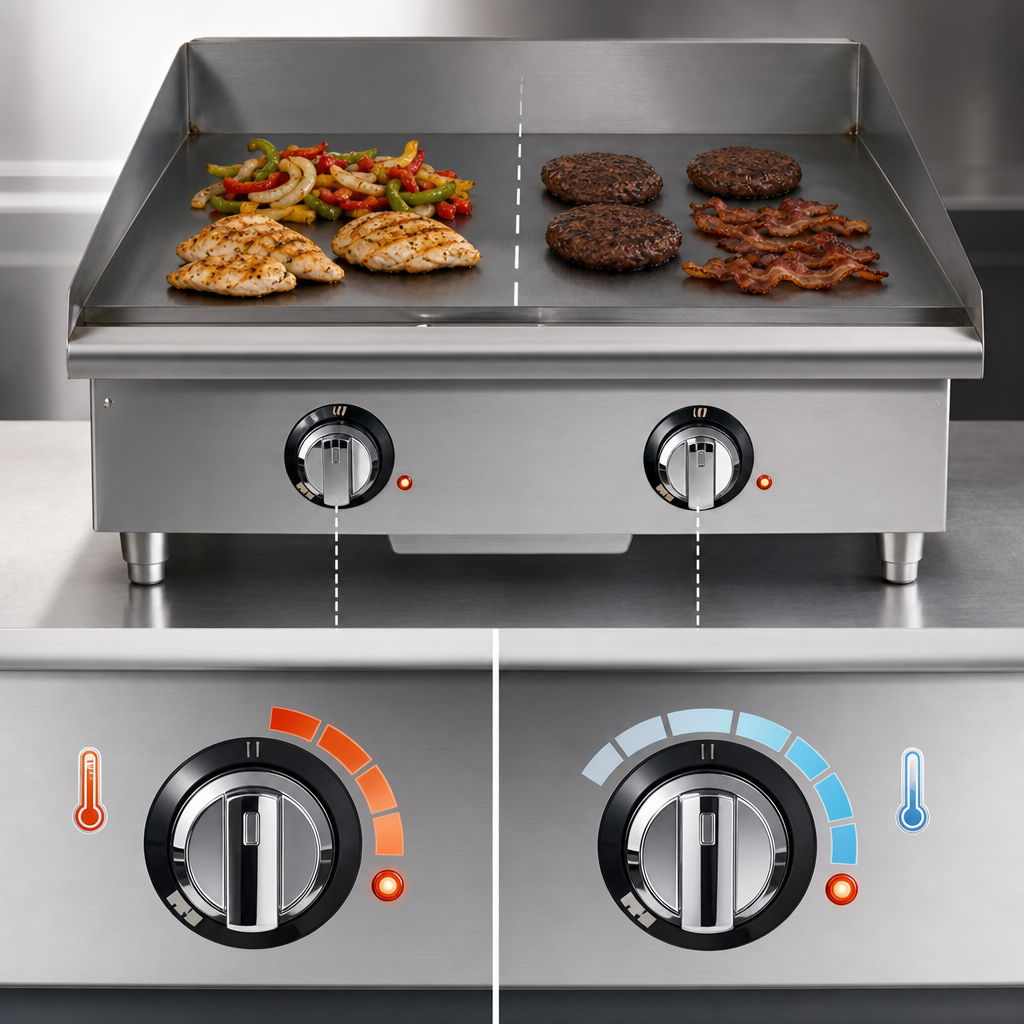

  • Snap-action thermostats with sensors only 3⁄16" (5 mm) from the plate regulate each 12" zone independently from 150 °F to 450 °F (66 °C – 232 °C).
  • High-density heating—4.35 kW element under every 12" section (total 8.7 kW) for edge-to-edge consistency.
  • 5" wrap-around splash guard plus 3.5" × 1" grease trough funnel residue into a 6 qt drawer for quick cleanup.
  • Welded steel frame with stainless exterior stands up to daily wear and tear.
  • Heavy-duty metal control knobs resist stripping and stay cool to the touch.
  • 4" legs adjust an extra 1-5⁄8" to level the unit on any counter.
  • cULus & UL EPH Classified and proudly Made in the USA.

Specifications

Model 724TA (polished steel plate)
Cooking surface 24" W × 24" D (576 sq in / 0.37 m²)
Plate thickness 1" (25 mm)
Temperature range 150 °F – 450 °F (66 °C – 232 °C)
Heating zones 2 independent zones, 4.35 kW each
Total load 8.7 kW @ 208/240 V, single or three phase, hard-wired
Overall dimensions 24" W × 33.6" D × 18" H (610 × 853 × 457 mm)
Grease drawer capacity 6 qt (5.7 L)
Installed weight ≈ 220 lb (99.8 kg)
Shipping weight ≈ 290 lb (131.5 kg)
Certifications cULus, UL EPH Classified
Country of origin Smithville, TN USA

Looking for a low-stick chrome plate or a mobile equipment stand? Ask our team about factory options and accessories.

Peace-of-mind warranty

Every Ultra-Max® griddle comes with a 2-year parts & labor warranty—double the industry standard— so you can cook with confidence.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Ultra-Max

Certifications

cULus, UL EPH Classified, Made in USA

Height

18.0in

Width

24.0in

Depth

33.6in

Shipping Weight

290.0lbs

Cooking Surface Depth (front - back)

24" - 30"

Exterior Finish

all stainless steel exterior

Cooking Surface Width (side - side)

11" - 24"

Griddle Plate Finish

smooth steel

Control Type

thermostatic

Specifications

Ultra-Max® Heavy Duty Griddle, electric, countertop, 24" W x 24" D cooking surface, 1" thick polished steel griddle plate, 150°-450°F snap-action thermostat and 4350 watt element every 12", 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. grease drawer, heavy-duty metal knobs, welded steel frame with stainless steel exterior, 4" legs with 1-5/8" adjustment, cULus, UL EPH Classified, Made in USA
