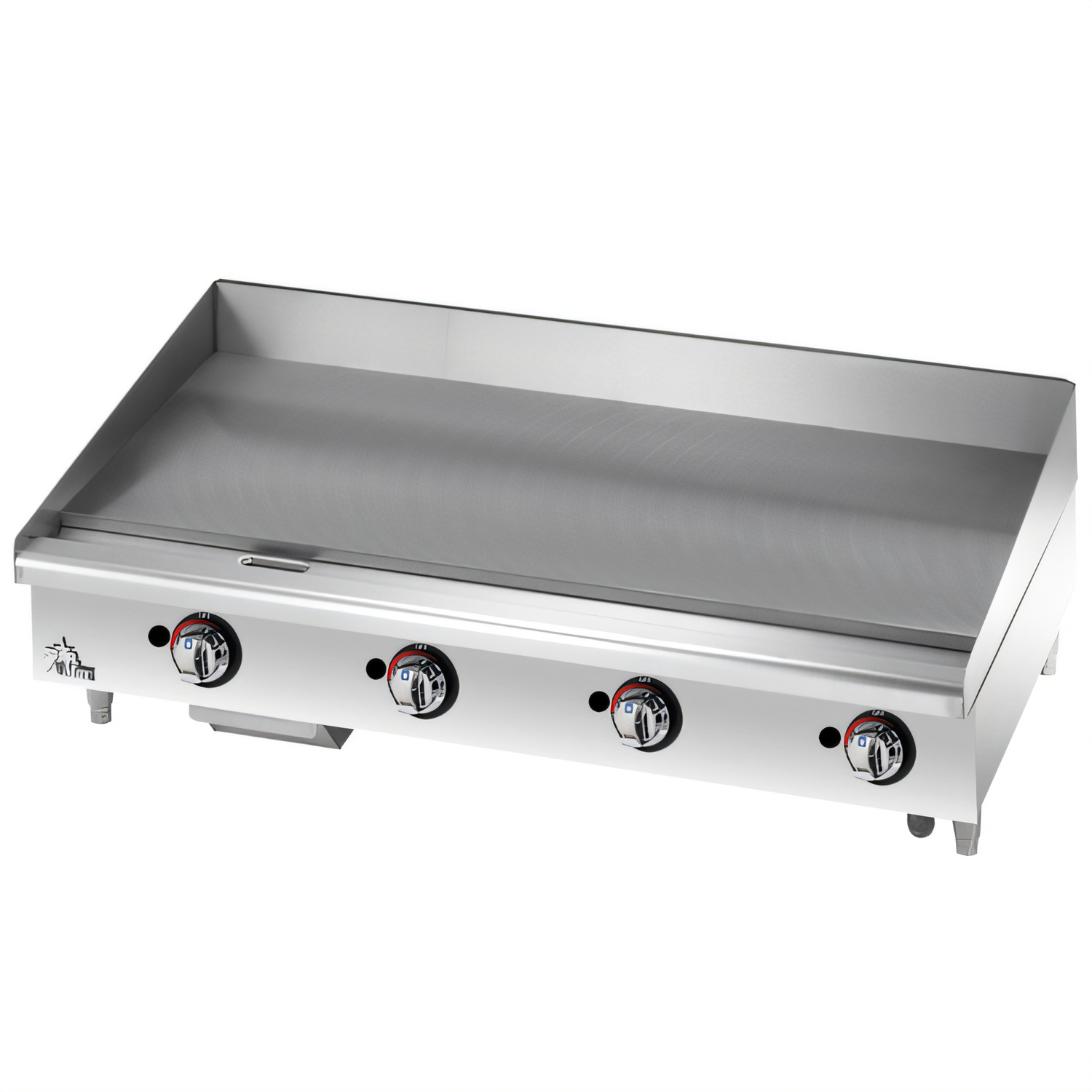

Star-Max Heavy Duty 48-Inch Countertop Gas Griddle with Polished Steel Plate and Embedded Thermostatic Controls

48 x 21-Inch Cooking Surface, 113,200 BTU, Natural Gas with LP Conversion Kit Included

Built for high-volume kitchens, this 48-inch gas griddle pairs a polished steel plate with responsive embedded thermostatic control for even, consistent heat.

  • 48-inch countertop gas griddle with a 48 x 21-inch cooking surface
  • 1-inch polished steel plate promotes even heat transfer and fast recovery
  • Embedded modulating thermostat controls the surface every 12 inches for precise temperature management
  • 113,200 BTU output supports high-volume breakfast, lunch, and dinner service
  • Stainless steel splash guard, grease trough, and drawer help simplify cleanup
  • Ships for natural gas service with LP conversion kit included

Overall Dimensions:

48.0"W x 29.0"D x 15.5"H

Product Weight:

350.0 lb

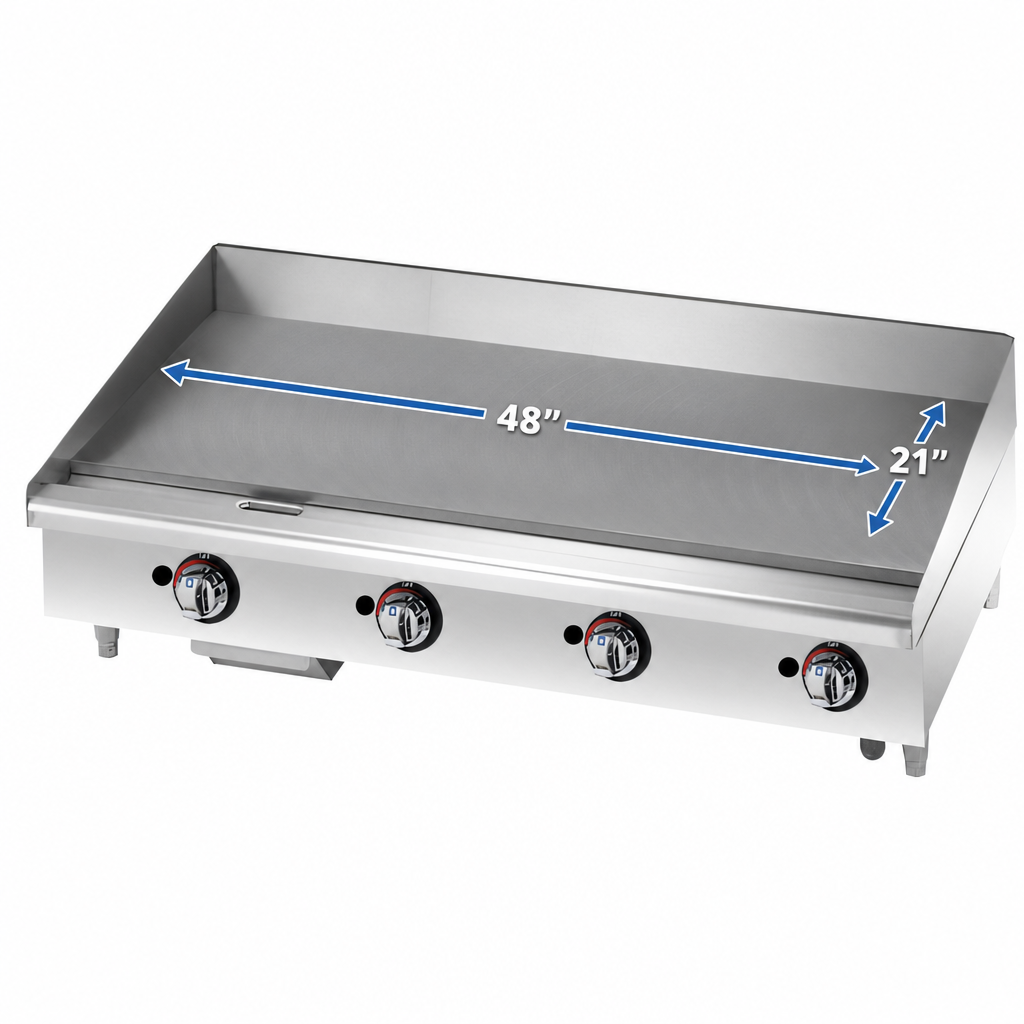

48-Inch Cooking Surface

Large 48-inch wide by 21-inch deep cooktop provides plenty of space for high-volume production.

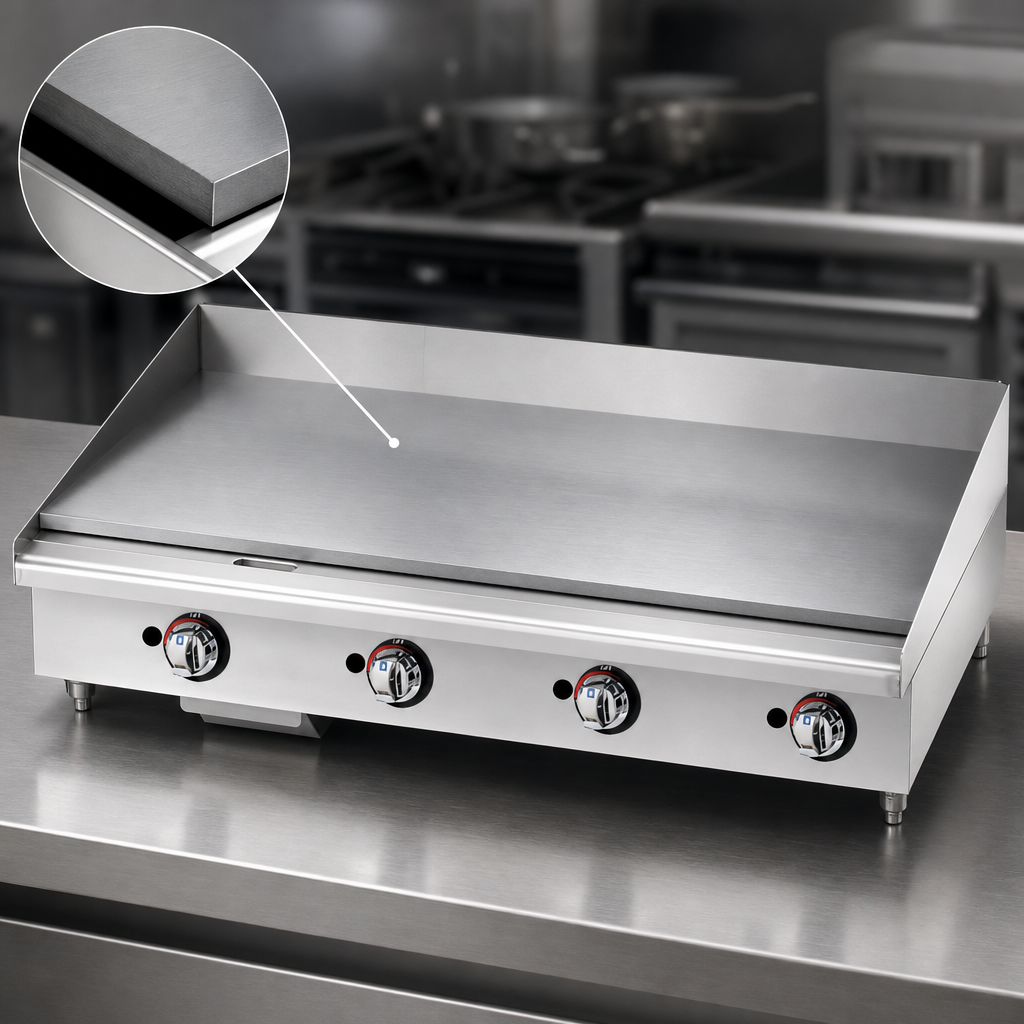

1-Inch Polished Steel Plate

Smooth polished steel cooking plate helps deliver even heat and dependable cooking performance.

Embedded Modulating Thermostat

Thermostat is embedded into the griddle plate every 12 inches and adjusts from 150°F to 450°F.

113,200 BTU Burner System

High-output burner sections provide strong, even heat across the full width of the griddle.

Heavy-Duty Welded Construction

All-welded steel body construction is paired with a stainless steel front and wrap-around splash guard.

Grease Management System

Includes a front grease trough, grease chute, and stainless steel grease drawer for easier cleanup.

Natural Gas Service with LP Conversion Kit

Ships set up for natural gas and includes an LP conversion kit and reversible pressure regulator.

4-Inch Adjustable Legs and Safety Pilots

Supplied with 4-inch adjustable legs and an automatic safety pilot for each burner.

Type Griddle
Style Heavy Duty
Installation Type Countertop
Controls Embedded Modulating Thermostat
Temperature Range 150°F to 450°F
Cooking Surface Width 48 Inches
Cooking Surface Depth 21 Inches
Plate Thickness 1 Inch
Material Steel
Finish Polished Steel
BTU 113,200 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch N.P.T. Male
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 29 Inches
Shipping Height 16 Inches
Shipping Weight 350 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 48 inches wide by 21 inches deep.
It uses an embedded modulating thermostat positioned every 12 inches, with an adjustable range from 150°F to 450°F.
It ships set up for natural gas service and includes an LP conversion kit. The documentation also notes it can operate on natural or propane gas.
It includes a 3-1/4-inch front grease trough with grease chute and a 4-1/2 quart stainless steel grease drawer.
It can be installed on non-combustible countertops using the provided 4-inch legs. If placed on a combustible floor, a minimum 27-inch stand is required.
The unit comes with a two-year warranty for parts and labor.
