Star (Middleby)  |  Star-Max  |  SKU: 636TF

Star (Middleby) 636TF Star-Max Gas Griddles

$4,245.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

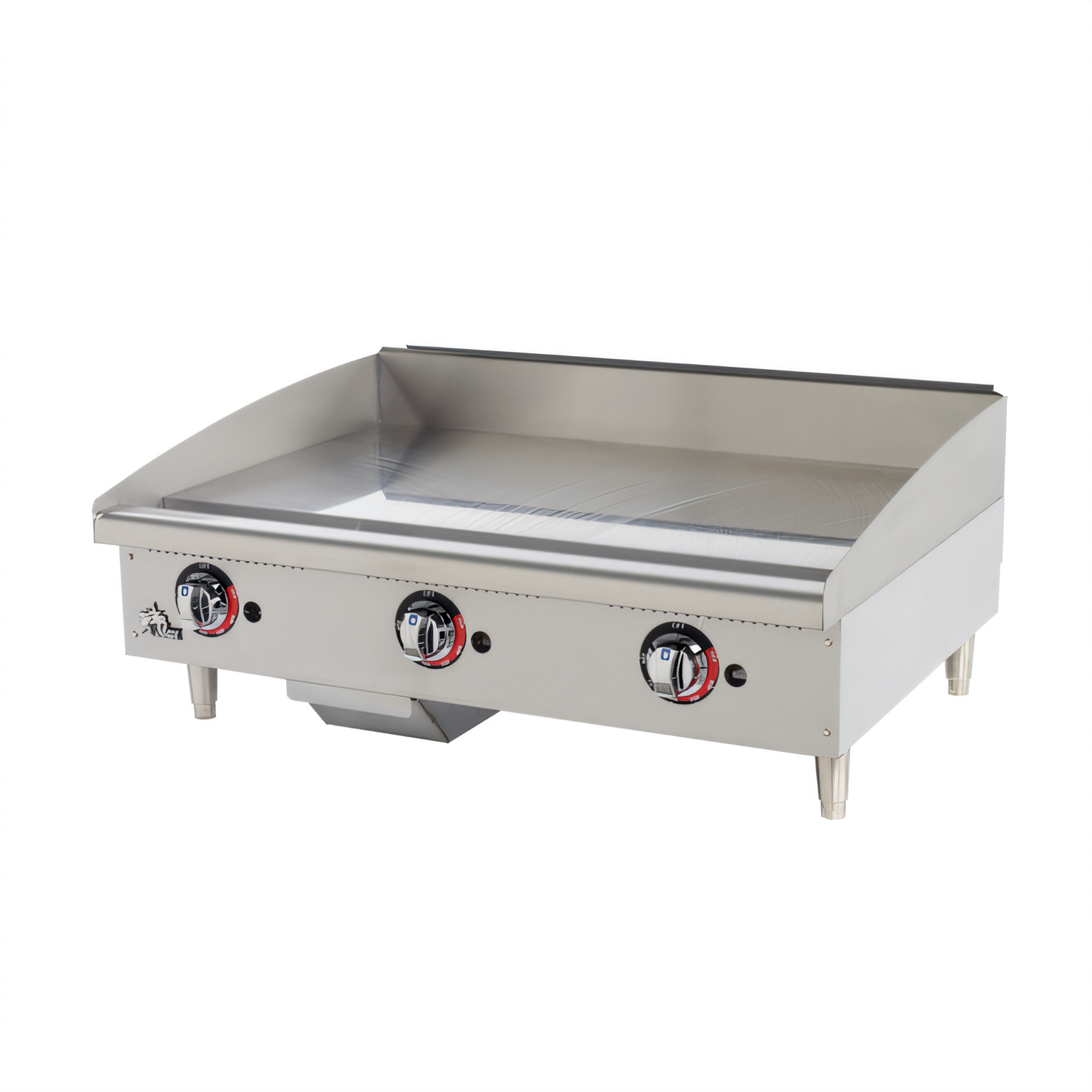

Star-Max® 36" Heavy-Duty Countertop Gas Griddle – Model 636TF

1" Polished Steel Plate • 84,900 BTU • Embedded Modulating Thermostat

Designed for demanding kitchens that run from sunrise to last call, the Star-Max 636TF packs high-output performance, precision temperature control and rock-solid construction into a space-saving countertop footprint.

Key Advantages

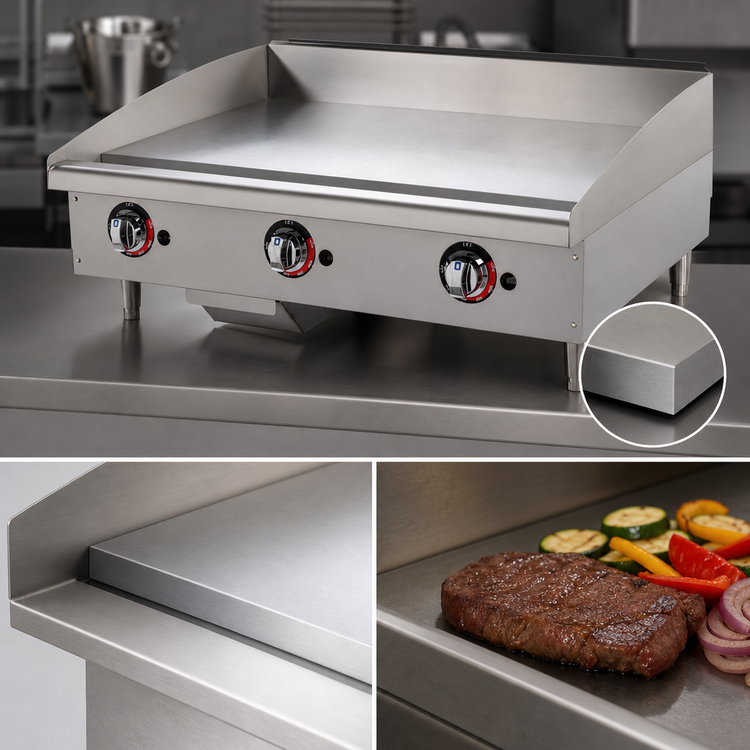

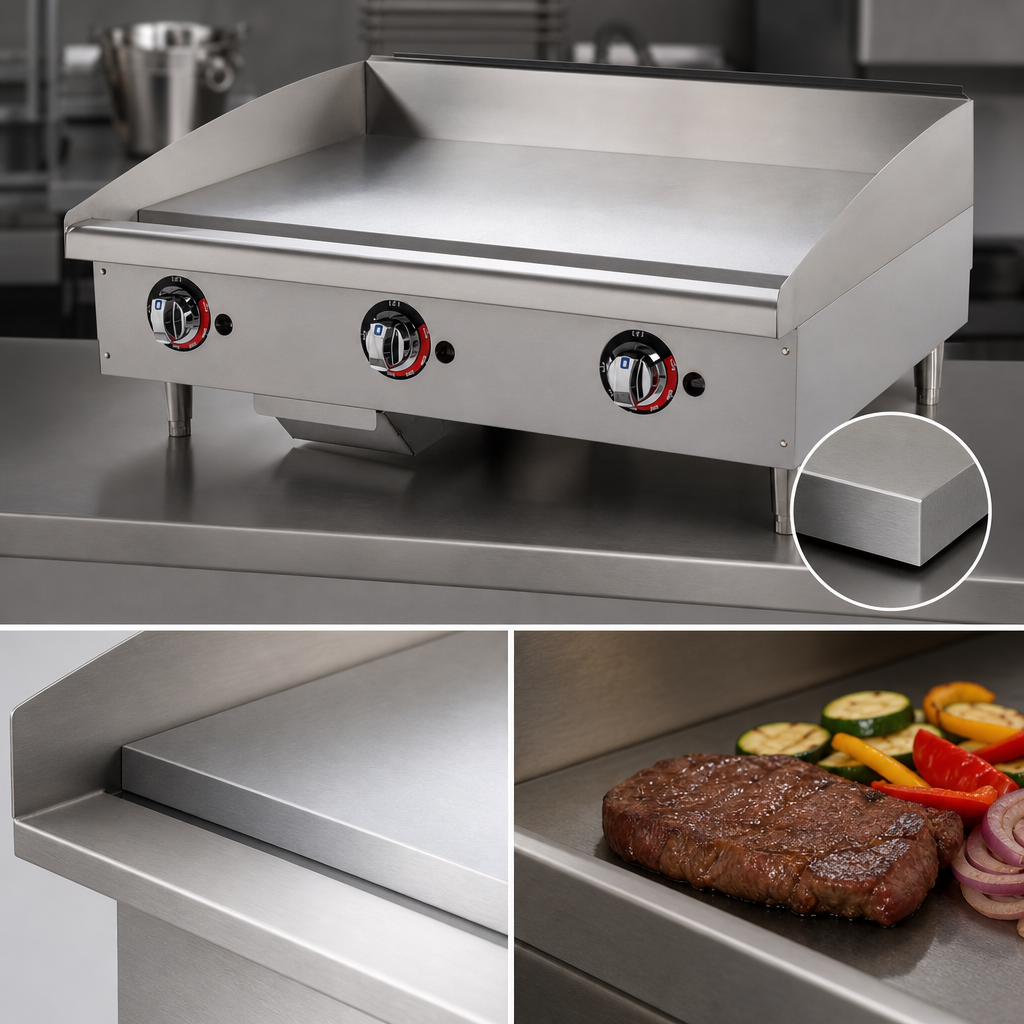

  • Rugged 1" polished steel plate retains heat and resists warping for consistent searing.

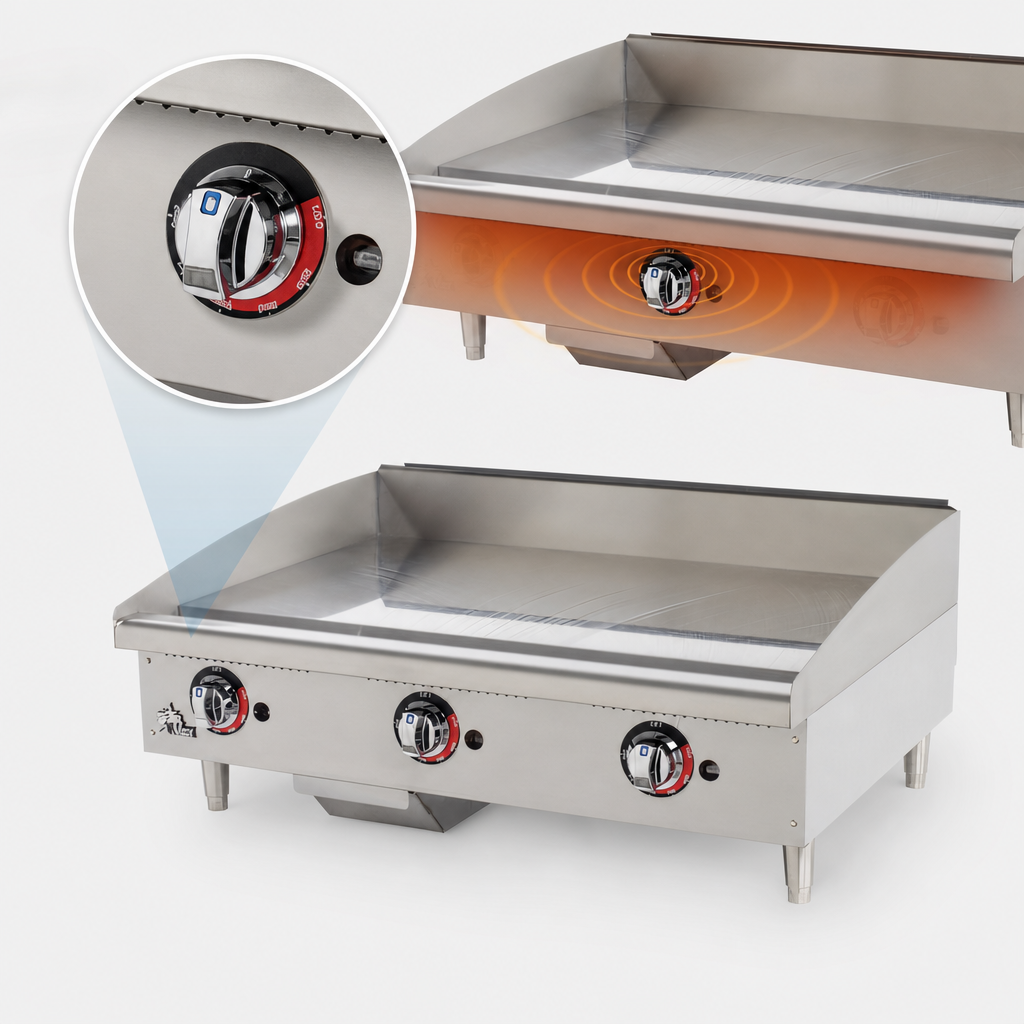

  • Embedded modulating thermostats every 12" (3 independent zones) maintain 150 – 450 °F with lightning-fast recovery.
  • Three 28,300 BTU U-shaped aluminized burners blanket the entire 36" x 21" surface in even heat.
  • Cool-touch stainless bull-nose shields heavy-duty cast-zinc knobs from heat & splatter.
  • 4 ½" wrap-around splash guard, 3 ¼" grease trough and 4.5-quart stainless drawer make cleanup quick and safe.
  • Ships ready for Natural Gas; LP conversion kit & reversible pressure regulator included.
  • Built in Smithville, TN - USA and listed UL Gas & EPH for peace of mind.

Specifications

Model 636TF (Star-Max® Series)
Cooking Surface (W × D) 36" × 21" (914 × 533 mm)
Plate Thickness 1" polished steel
Thermostat Range 150 – 450 °F (66 – 232 °C)
Heating Zones 3 (one every 12")
Total Input 84,900 BTU/hr
Gas Inlet ¾" NPT (rear) – NG/LP convertible
Overall Dimensions (W × D × H) 36" × 29" × 15.5" (914 × 737 × 394 mm)
Weight 262 lb ship / 247 lb installed (119 kg / 112 kg)
Certifications cULus, UL EPH, Made in USA
Warranty 2 years parts & labor

Installation: maintain 6" (152 mm) clearance from combustible surfaces. Use supplied 4" legs on a non-combustible countertop or a minimum 27" (686 mm) tall stand.

Need a different width? Star-Max griddles are also available in 15", 24" and 48" models – contact us for details.

Easy Financing

Preserve cash flow and take advantage of potential Section 179 tax savings with Middleby Equipment Financing – quick approvals, fixed monthly payments, and flexible terms.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Star-Max

Certifications

cULus, UL EPH Classified, Made in USA

Height

15.5in

Width

36.0in

Depth

29.0in

Shipping Weight

262.0lbs

Cooking Surface Depth (front - back)

20" - 23"

Griddle Plate Finish

smooth steel

Cooking Surface Width (side - side)

31" - 36"

Plate Thickness

1"

Controls

thermostat / solid state controls

Exterior Finish

stainless steel front & sides

Specifications

(MIDDLEBY ESSENTIALS ITEM) Star-Max® Heavy Duty Griddle, gas, countertop, 36" W x 21" D cooking surface, 1" thick polished steel griddle plate, embedded modulating thermostat every 12", heavy duty knob, wrap-around stainless steel splash guard, grease trough & stainless steel drawers, welded steel frame with stainless steel front, 4" legs, 84,900 BTU, cULus, UL EPH Classified, Made in USA, (ships Natural gas includes LP conversion kit)
