Star (Middleby)

Star-Max Heavy Duty 30 lb. Underfired Countertop Gas Fryer, Stainless Steel

SKU: 630FF
$5,002.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Deep Fryers Countertop Gas Fryers Fryer Configurations Fryers Gas Fryers New Arrivals Restaurant Equipment Star (Middleby)

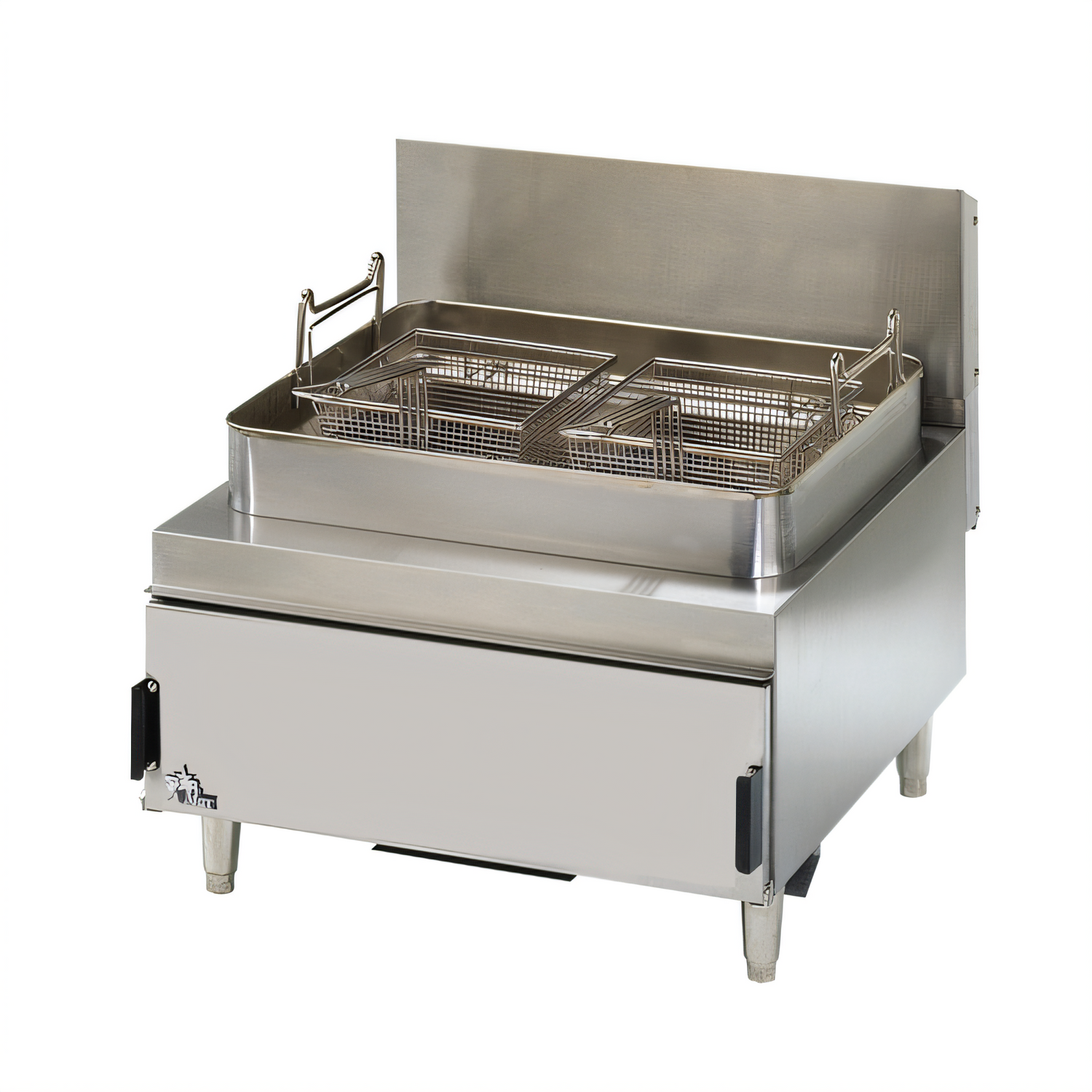

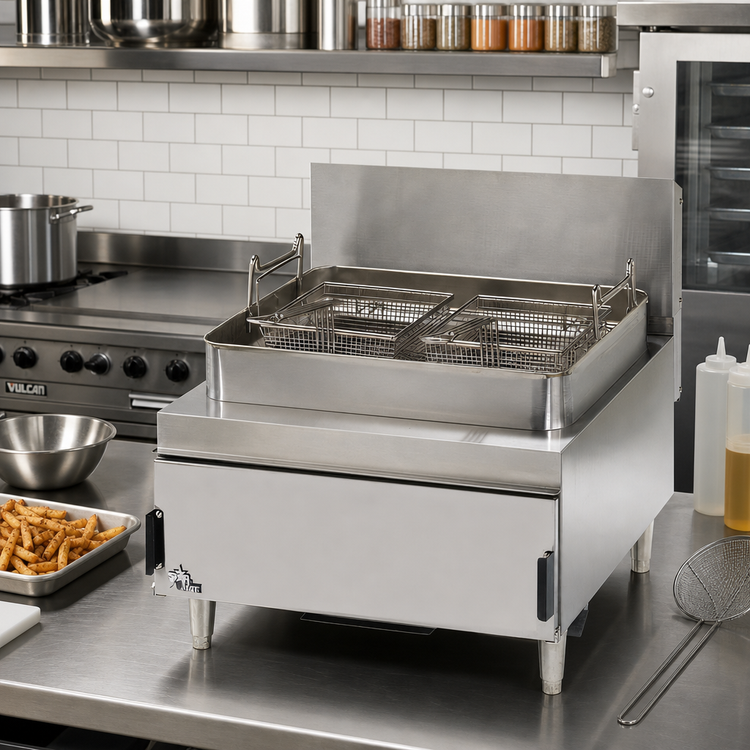

Star-Max Heavy Duty 30 lb. Underfired Countertop Gas Fryer, Stainless Steel

Single Nickel-Plated Steel Frypot, Snap-Action Thermostat, 70,000 BTU

Built for steady kitchen throughput, this countertop gas fryer combines a 30-lb. capacity, underfired heat, and snap-action thermostatic control in a rugged stainless steel cabinet.

  • 30-lb. single-pot capacity is a strong fit for medium-volume frying.
  • Underfired burners and in-shot design support fast recovery and even heat transfer.
  • Snap-action thermostatic control ranges from 200°F to 375°F.
  • Safety valve, high-limit thermostat, and automatic pilot light help protect operation.
  • Stainless steel exterior, nickel-plated steel frypot, and adjustable 4-inch legs add durability and flexibility.
  • Natural gas or propane service is available; optional basket accessories are sold separately.

Overall Dimensions:

24.0"W x 25.13"D x 23.38"H

Product Weight:

118.0 lb

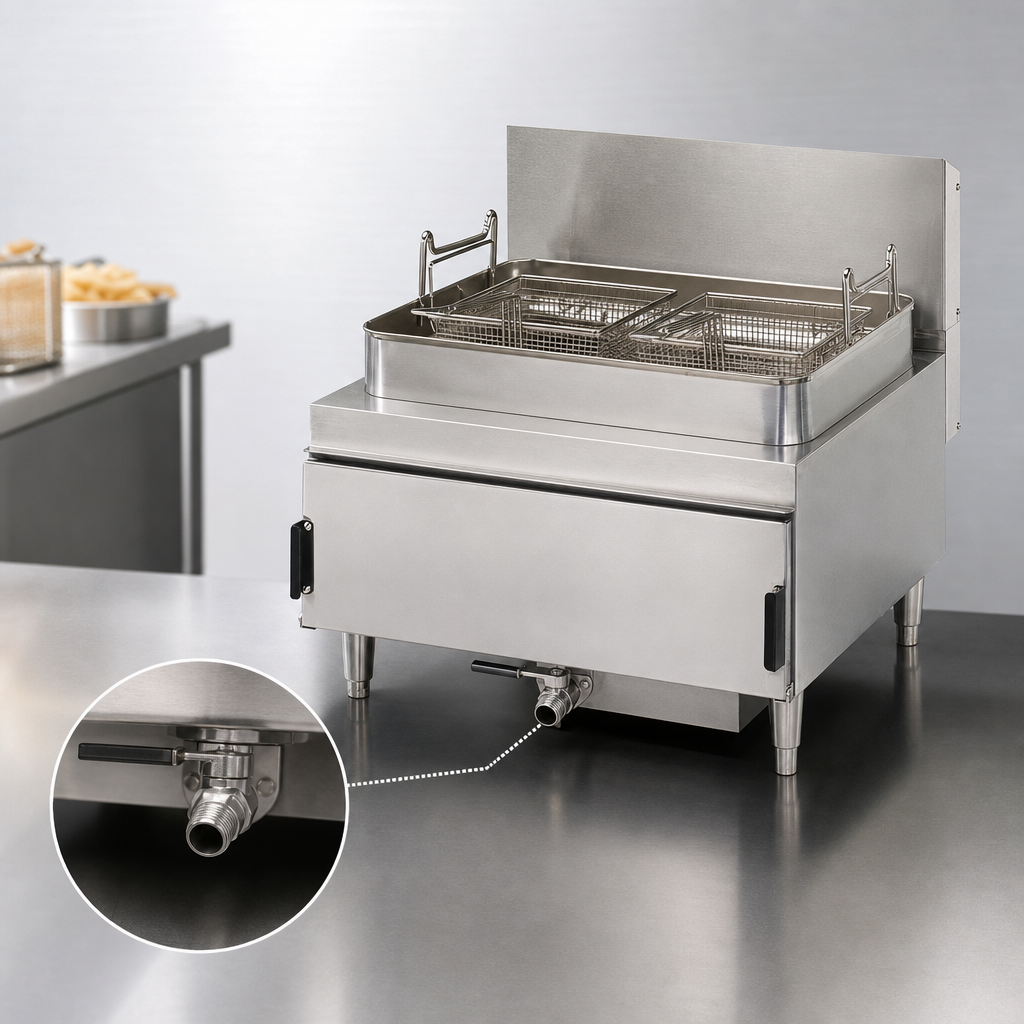

30-Lb. Nickel-Plated Steel Frypot

Single-pot kettle design with a front access drain valve for easier oil handling and cleanup.

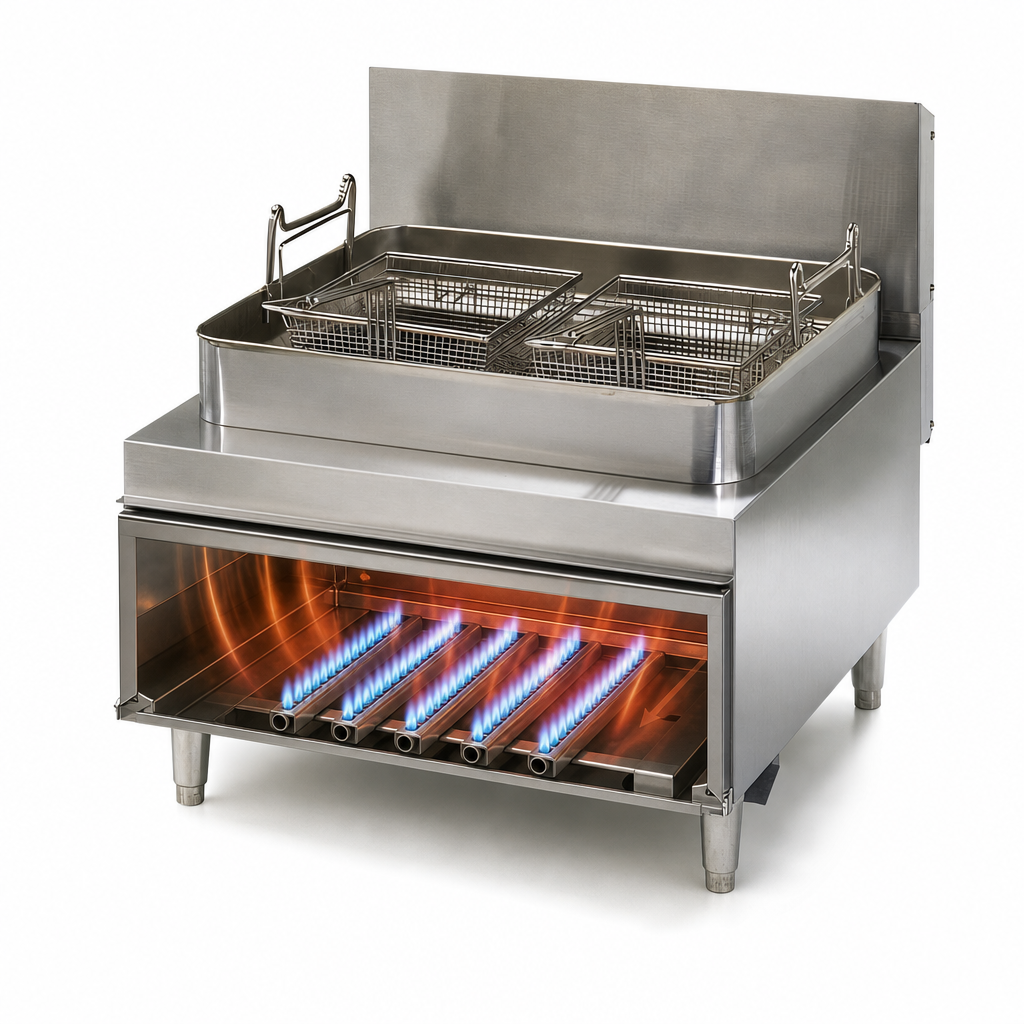

Underfired High-Power Burners

In-shot burner design promotes fast recovery and even heat distribution for consistent frying.

Snap-Action Temperature Control

Thermostatic control ranges from 200°F to 375°F for responsive temperature adjustment.

Safety System

Includes an automatic pilot light, safety valve, and high-limit safety thermostat.

Heavy-Duty Stainless Steel Cabinet

Polished stainless steel exterior is built for demanding commercial kitchen use.

Standard Legs And Basket Setup

Nickel-plated 4-inch legs with 1-3/8-inch adjustment are standard, and chrome-plated steel mesh side-hanging baskets are included.

Flexible Gas Service

Specify natural gas or propane service when ordering; LP service operates at 65,000 BTU.

Type Gas Fryer
Style Underfired
Installation Type Countertop
Controls Snap Action Thermostat
Temperature Range 200°F to 375°F
Capacity 30 lb.
BTU 70,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1/2 Inch N.P.T. Female
Material Stainless Steel
Interior Finish Nickel Plated Steel
Finish Polished
Country Of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 26 Inches
Shipping Height 24 Inches
Shipping Weight 118 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The fryer has a 30-lb. oil capacity.
It can be ordered for natural gas or propane service; specify the service when ordering.
The snap-action thermostat ranges from 200°F to 375°F.
It includes a high-limit safety thermostat, safety valve, and automatic pilot light.
It can be installed on a non-combustible countertop using the provided 4-inch legs, or on a combustible floor using a minimum 27-inch stand. Keep the back and both sides at least 3 inches from combustible surfaces.
The cutsheet states a two-year warranty for parts and labor.
