Star (Middleby)  |  Star-Max  |  SKU: 624TF

Star (Middleby) 624TF Star-Max Gas Griddles

$2,137.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

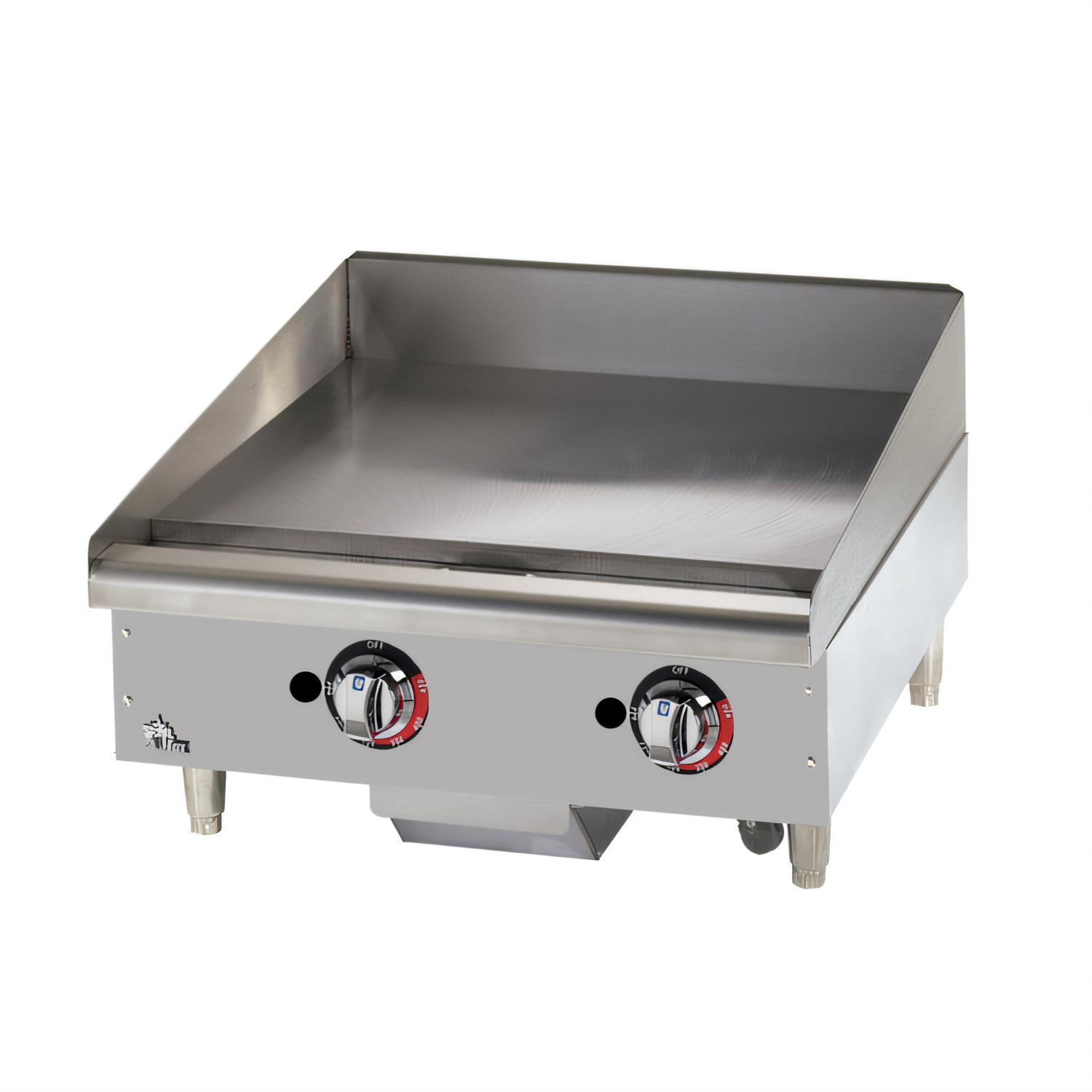

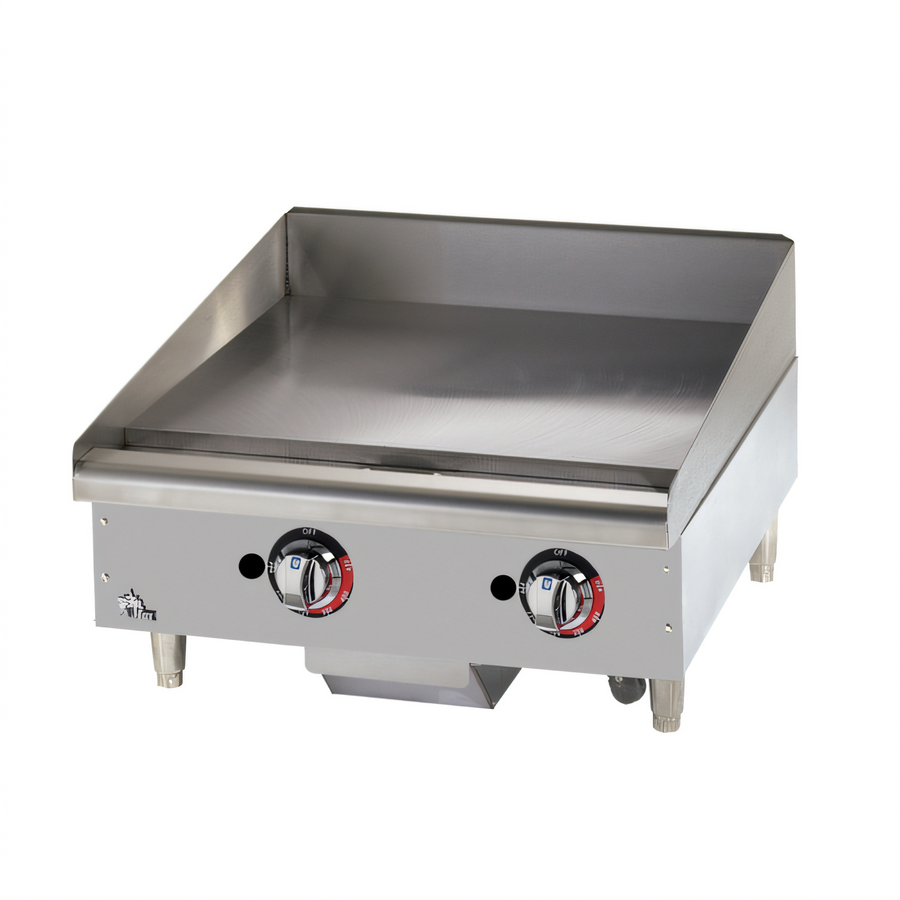

Star-Max® 24" Heavy-Duty Countertop Gas Griddle

Model 624TF – 56,600 BTU – Embedded Modulating Thermostat

Built for the busiest kitchens, the Star-Max 624TF delivers steak-house sear power, lightning-fast recovery and all-day reliability in a compact 24" footprint. With a full 1" thick polished steel plate and thermostatic control every 12", this U.S-made workhorse goes from pancakes at dawn to burgers at night without breaking a sweat.

Why You’ll Love It

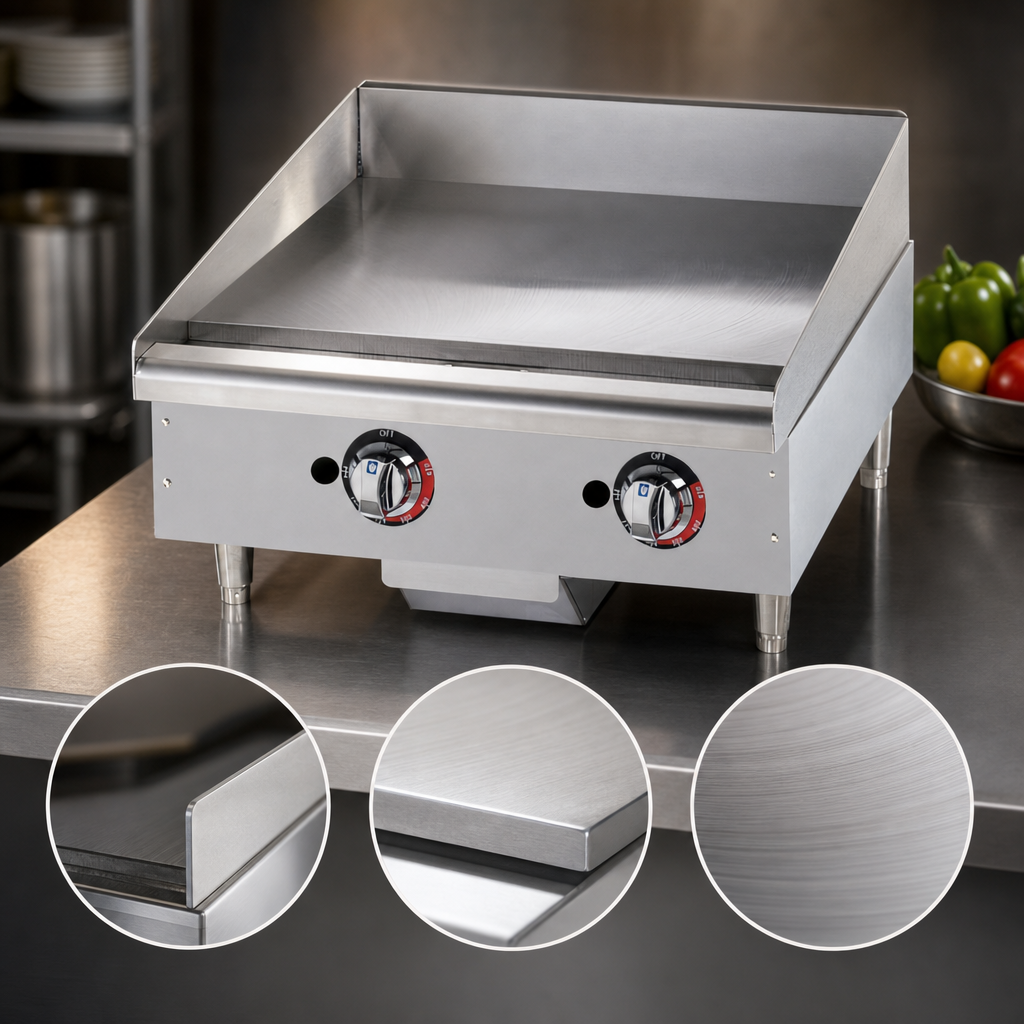

  • 1" thick polished steel cooking plate retains heat and resists warping.

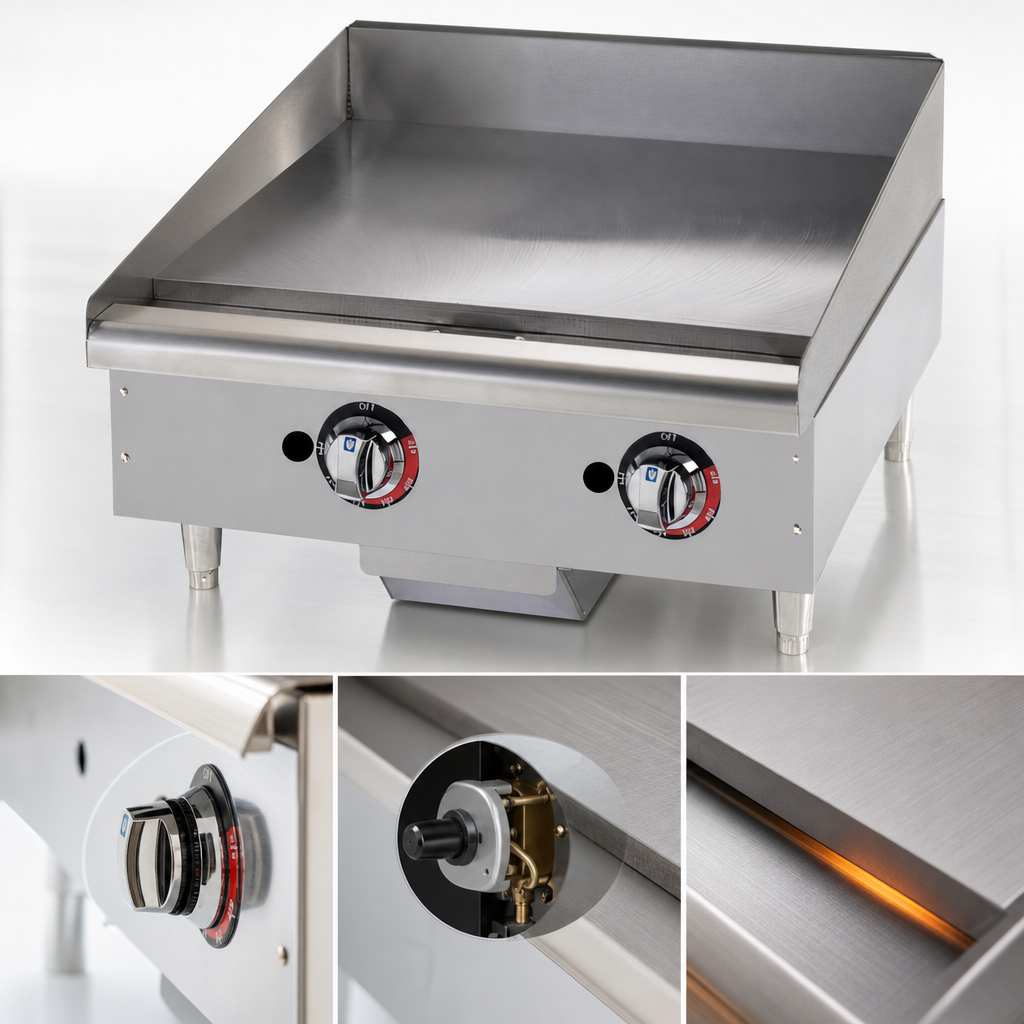

  • Embedded modulating thermostat (150 – 450 °F) only 3/16" from the surface for ultra-fast temperature response.
  • Dual 28,300 BTU U-shaped burners (one every 12") ensure even heat across the entire 24" width.
  • Heavy-duty chrome-plated cast-zinc knobs protected by a cool-touch stainless bull-nose.
  • 4-½" wrap-around stainless splash guard keeps grease where it belongs.
  • Extra-wide 3-¼" front trough and a generous 4-½ qt. stainless grease drawer for quick clean-ups.
  • All-welded steel chassis with stainless front panel and adjustable 4" legs.
  • Ships ready for Natural Gas; LP conversion kit & reversible regulator included.
  • cULus & UL EPH Classified for safety and sanitation — Made in the USA.
Technical Specs
Cooking surface 24" W × 20.5" D (610 × 521 mm)
Overall dimensions 24" W × 29" D × 15.5" H (610 × 737 × 394 mm)
Heat input 56,600 BTU/hr (two 28,300 BTU burners)
Temperature range 150 °F – 450 °F (65 °C – 232 °C)
Gas connection 3/4" NPT male, convertible regulator included
Shipping / installed weight 175 lb / 165 lb (79.4 kg / 74.8 kg)
Certifications cULus, UL EPH Classified
Warranty 2-year parts & labor (Star-Max program)
Installation Note: Unit must be installed on non-combustible countertops using the provided 4" legs
– or – on a 27" minimum tall stand. Maintain 6" clearance from combustible surfaces on all sides.

Need hassle-free financing? Ask us about flexible equipment financing through Middleby Culinary Finance, or apply online here.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Star-Max

Certifications

cULus, UL EPH Classified, Made in USA

Height

15.5in

Width

24.0in

Depth

29.0in

Shipping Weight

175.0lbs

Cooking Surface Depth (front - back)

20" - 23"

Griddle Plate Finish

smooth steel

Cooking Surface Width (side - side)

19" - 24"

Plate Thickness

1"

Controls

thermostat / solid state controls

Exterior Finish

stainless steel front & sides

Specifications

(MIDDLEBY ESSENTIALS ITEM) Star-Max® Heavy Duty Griddle, gas, countertop, 24" W x 21" D cooking surface, 1" thick polished steel griddle plate, embedded modulating thermostat every 12", heavy duty knobs, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, welded steel frame with stainless steel front, 4" legs, 56,600 BTU, cULus, UL EPH Classified, Made in USA, (ships Natural gas includes LP conversion kit)
