Star (Middleby)

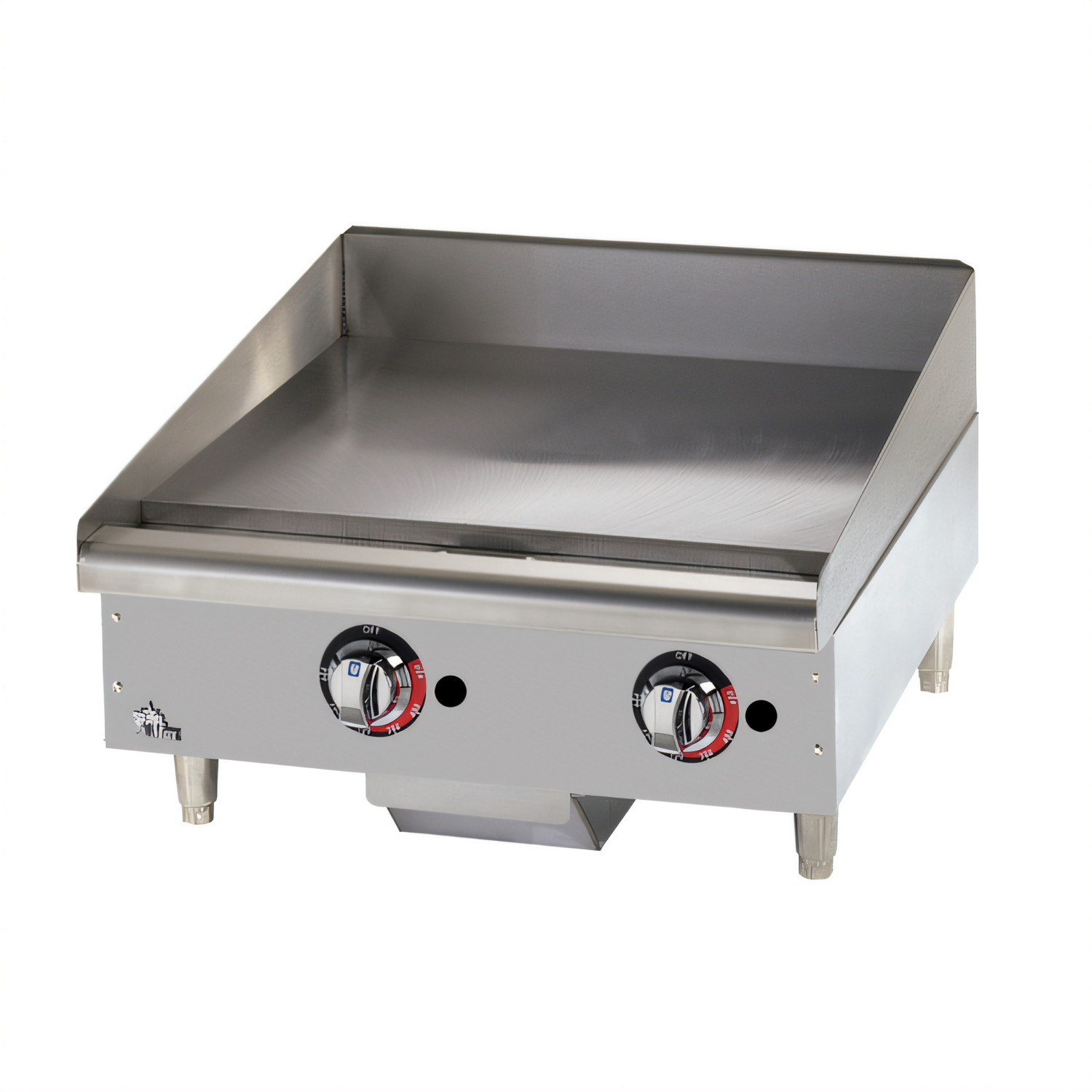

Star-Max Heavy Duty 24-Inch Manual Gas Countertop Griddle with 1-Inch Polished Steel Plate

SKU: 624MF
$1,715.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Star (Middleby)

Star-Max Heavy Duty 24-Inch Manual Gas Countertop Griddle with 1-Inch Polished Steel Plate

24-Inch W x 21-Inch D Cooking Surface, Natural Gas Service with LP Conversion Kit

Built for busy breakfast lines, this rugged countertop griddle delivers strong heat, simple manual zone control, and easy-clean grease management.

  • 24-inch wide cooking surface with a 1-inch polished steel plate for fast, even heat transfer.
  • Manual controls every 12 inches help create hot and cool zones across the griddle.
  • 56,600 BTU output supports high-volume service throughout the day.
  • Wrap-around stainless steel splash guard, grease trough, and stainless steel drawer simplify cleanup.
  • Ships for natural gas service and includes an LP conversion kit; made in the USA.

Overall Dimensions:

24.0"W x 29.0"D x 15.5"H

Product Weight:

175.0 lb

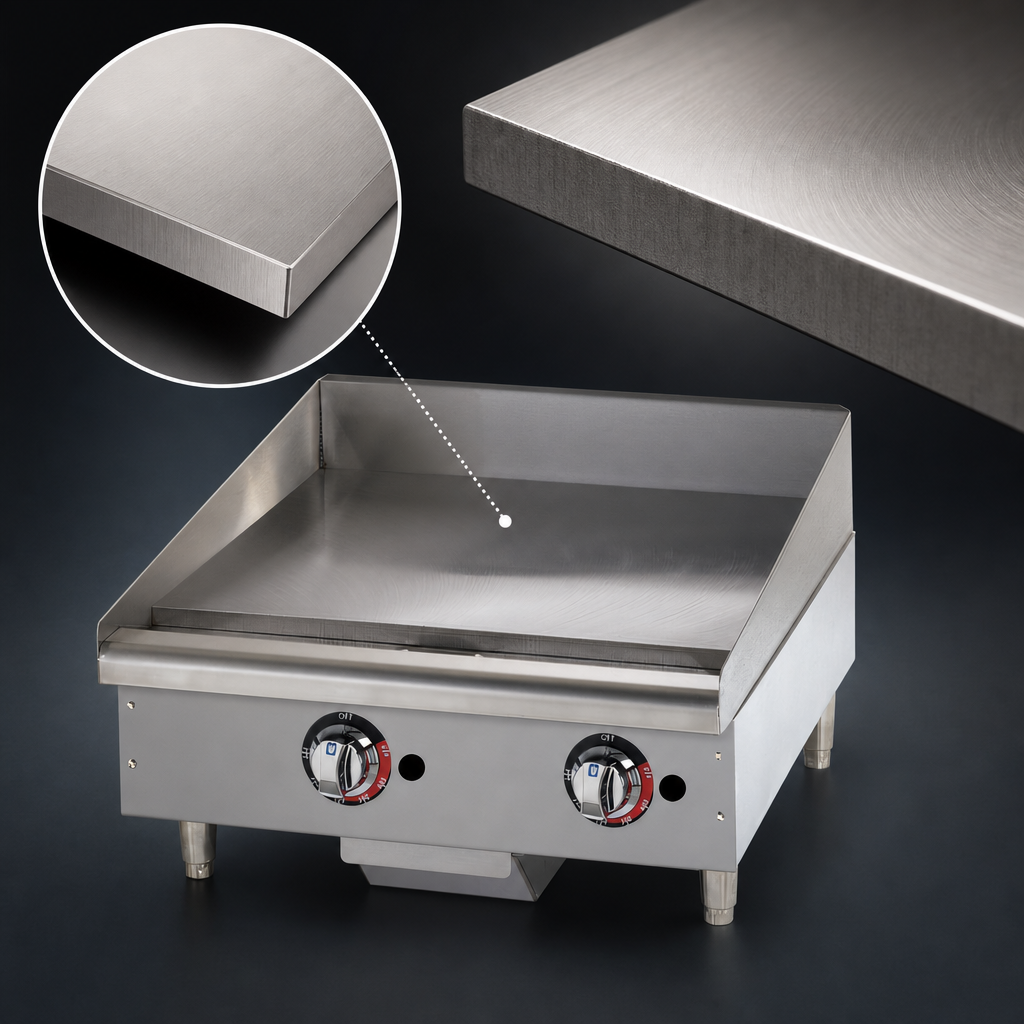

1-Inch Polished Steel Griddle Plate

Heavy-duty plate delivers strong heat retention and responsive cooking performance.

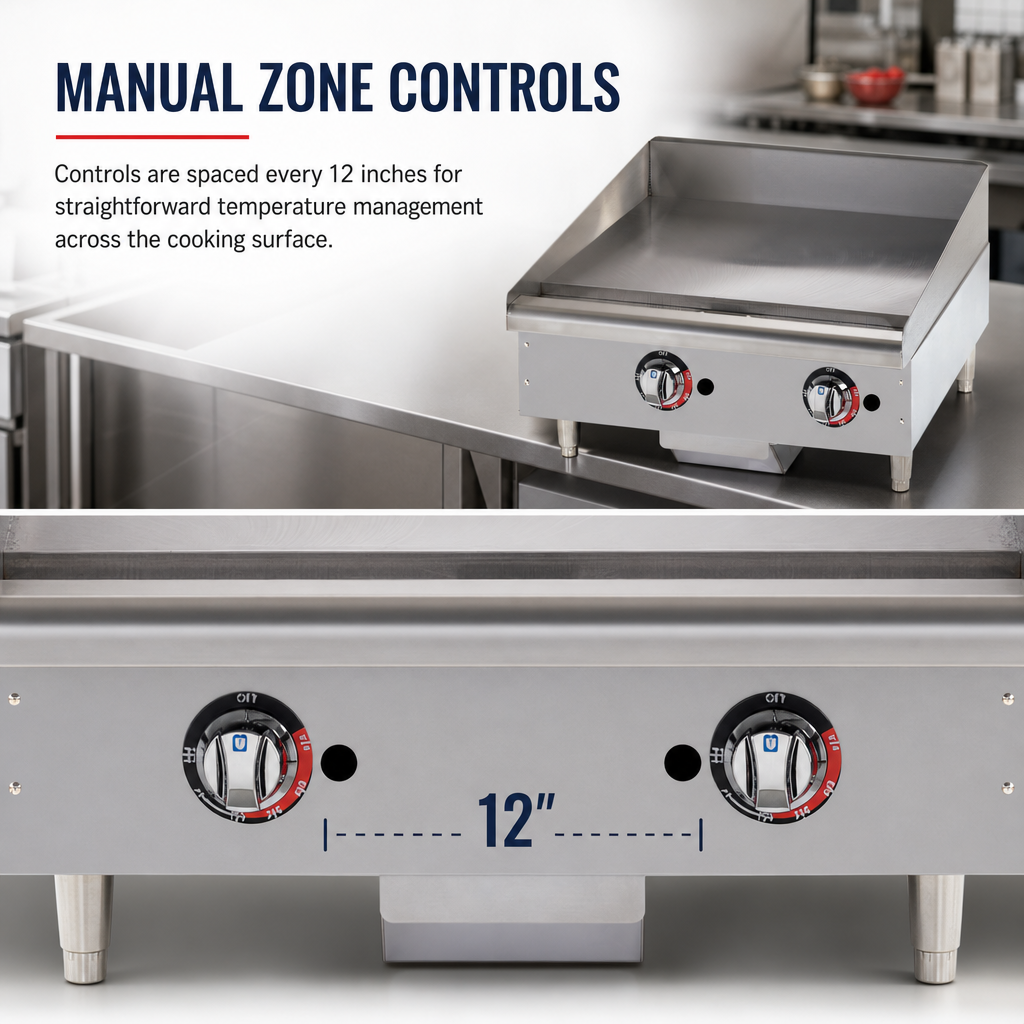

Manual Zone Controls

Controls are spaced every 12 inches for straightforward temperature management across the cooking surface.

56,600 BTU Output

High output helps maintain recovery during peak breakfast, lunch, and dinner service.

All-Welded Steel Construction

Rugged welded body construction is built for long-term commercial use.

Stainless Steel Splash Guard

Wrap-around guard helps contain splatter and protect the surrounding work area.

Grease Management System

Front grease trough, grease chute, and stainless steel drawer support faster cleanup.

Heavy-Duty Knobs and Bull Nose Front

Protects the control area and provides a rugged, operator-friendly front edge.

Natural Gas Service with LP Conversion Kit

Ships set up for natural gas and includes conversion hardware for propane use.

Countertop Installation with Adjustable Legs

Provided 4-inch adjustable legs support countertop installation; combustible floor setups require a 27-inch stand.

Type Gas Griddle
Style Manual
Installation Type Countertop
Material Steel
Finish Stainless Steel
Cooking Surface Width 24 Inches
Cooking Surface Depth 21 Inches
Plate Thickness 1 Inch
Controls Manual
BTU 56,600 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch N.P.T. Male
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It ships for natural gas service and includes an LP conversion kit, so it can also be converted for propane use.
The cooking surface measures 24 inches wide by 21 inches deep.
The griddle uses manual controls spaced every 12 inches across the cooking surface.
Yes. The documentation says it can be installed on a non-combustible countertop using the provided 4-inch legs, or on a combustible floor with a minimum 27-inch stand.
These units come with a two-year warranty for parts and labor.
