Star (Middleby) 615MF Star-Max Gas Griddles
Description

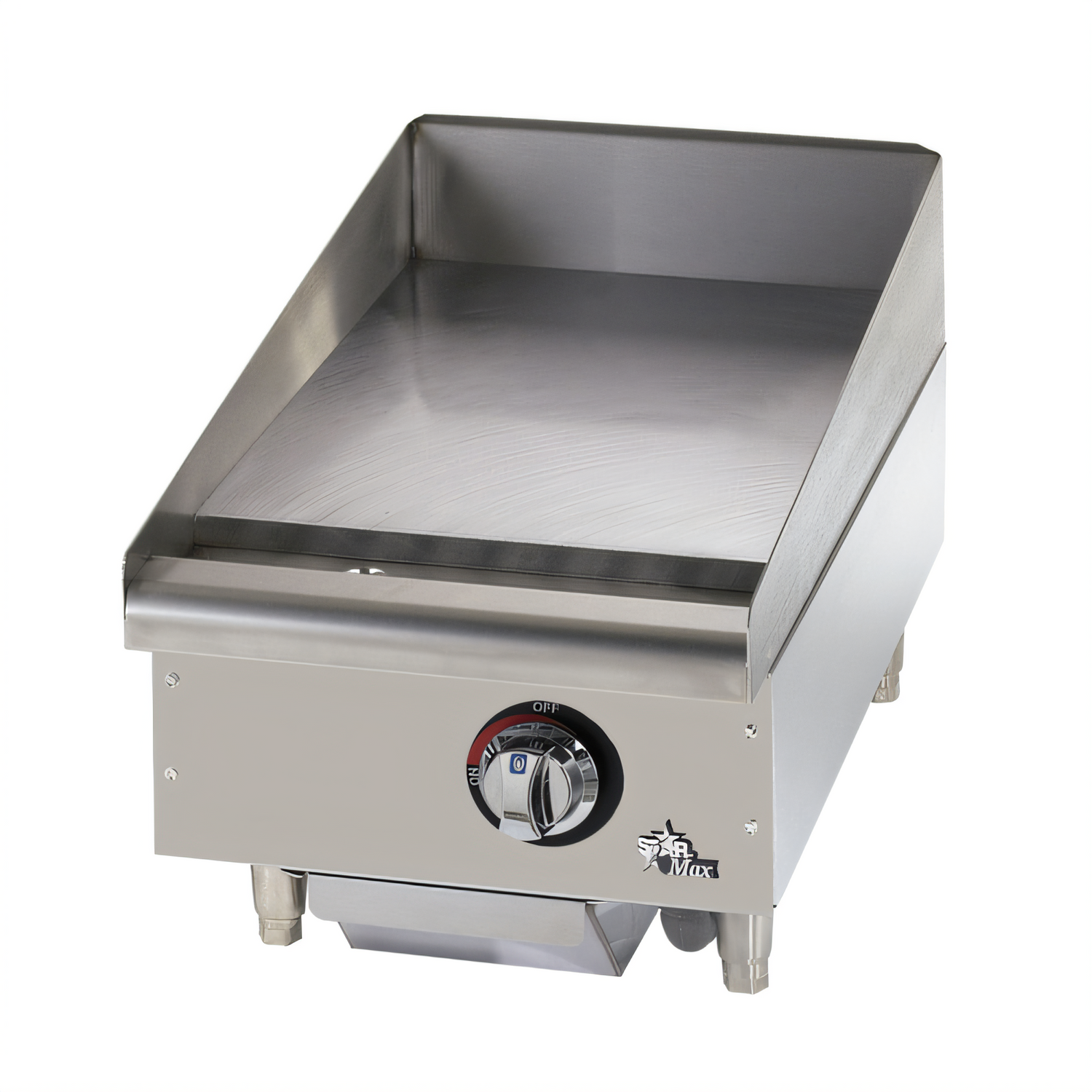

Star-Max® 15" Countertop Gas Griddle – 28,300 BTU
Model 615MF | Made in USABring heavy-duty performance to even the smallest cooklines. The Star-Max® 15 inch gas griddle delivers the searing power, durability, and easy cleanup you expect from a professional griddle in a compact, countertop-friendly package that’s perfect for diners, food trucks, hotel breakfast areas, and satellite cooking stations.
Key Features

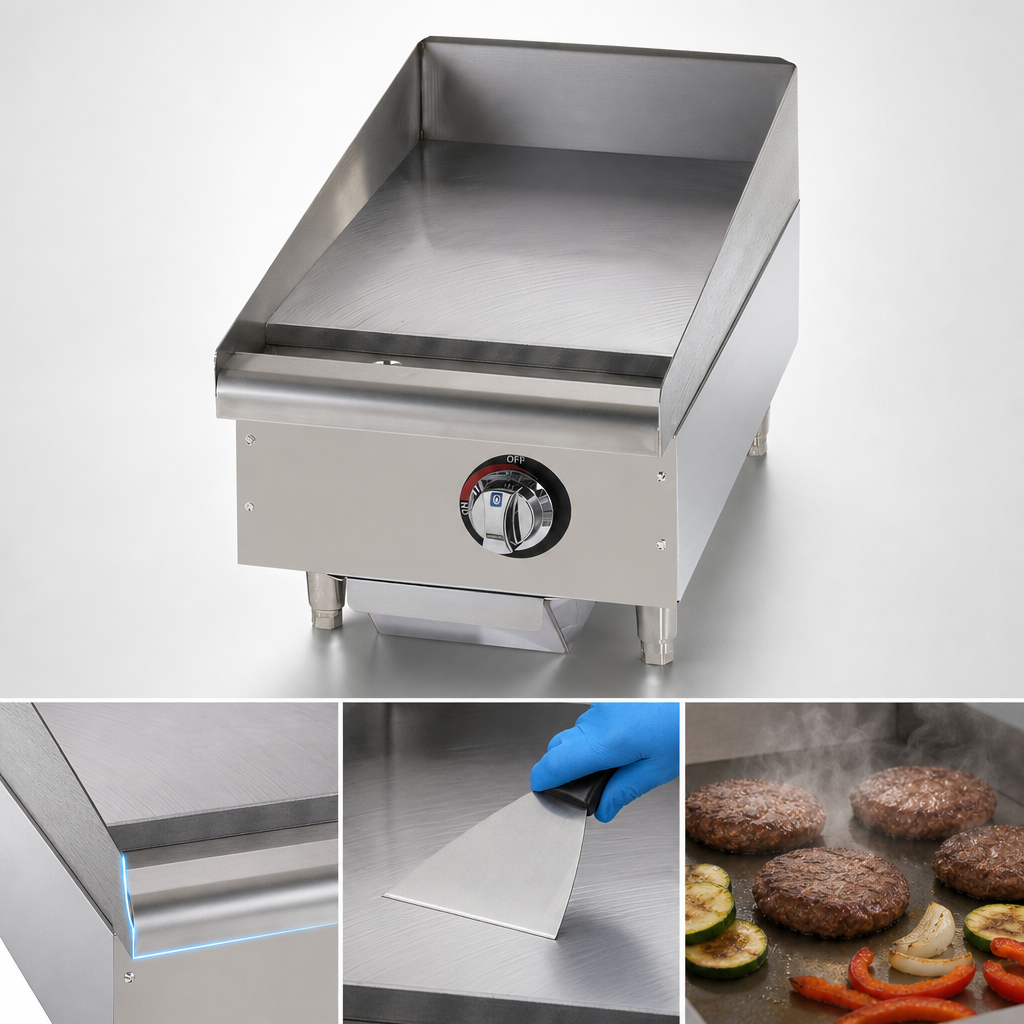

- 1" thick polished steel plate locks in heat for consistent caramelization and quick recovery.
- 28,300 BTU aluminized U-shaped burner fully blankets the 15" surface for even heating.

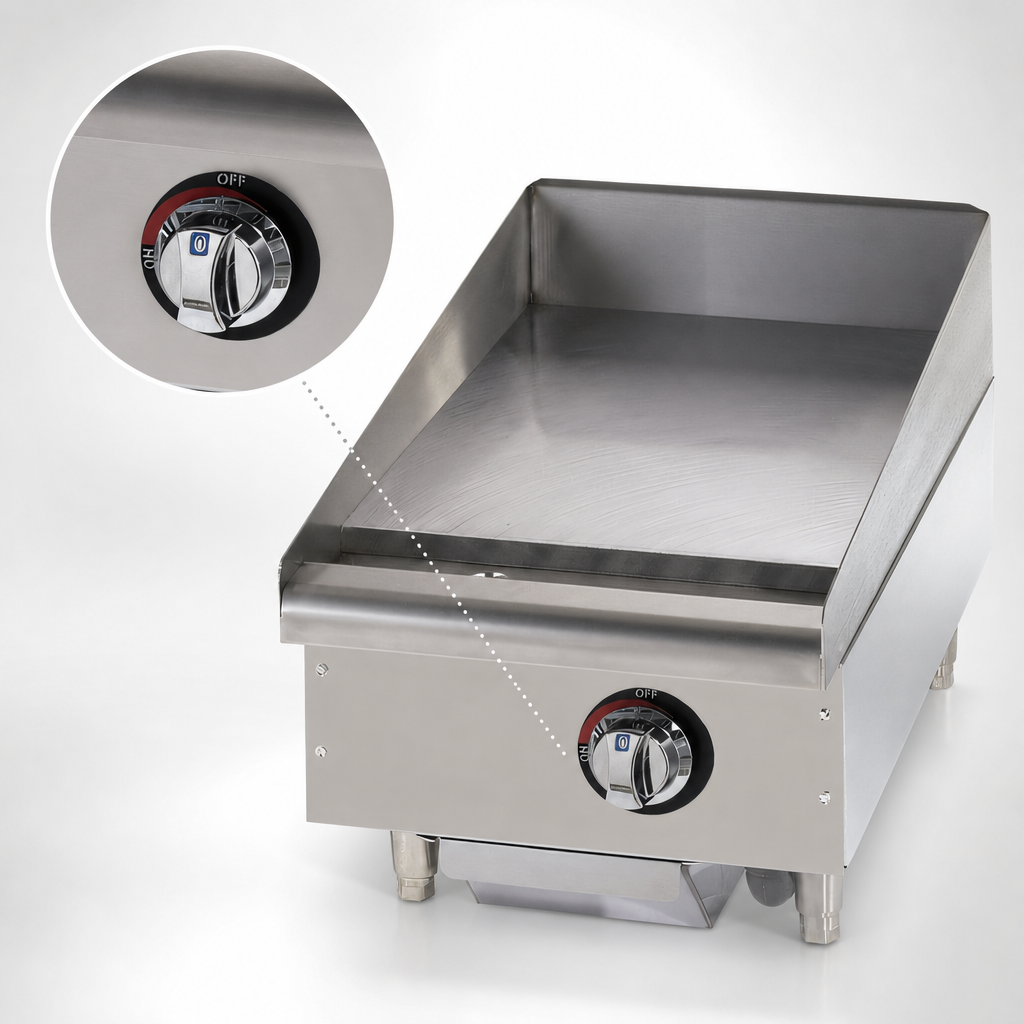

- Manual infinite-position control every 12" with heavy-duty chrome-plated knob.
- 4-1/2" wrap-around stainless splash guard protects surrounding equipment.
- Cool-to-the-touch stainless bull-nose front keeps the operator safe and comfortable.
- Extra-wide 3-1/4" front grease trough feeds a 4.5-qt stainless drawer to speed cleanup.
- All-welded steel chassis with stainless front panel stands up to high-volume use.
- 4" adjustable nickel-plated legs for easy leveling on any countertop.
- Ships for Natural Gas and includes LP conversion kit with reversible regulator.
- Certified cULus & UL EPH Classified for gas and sanitation.
Perfect For
- Diners & cafés expanding breakfast menus
- Food trucks and concession trailers with tight line space
- Hotel or resort continental breakfast stations
- Made-to-order action stations & catering setups
Specifications
| Cooking surface | 15" W × 21" D (381 mm × 533 mm) |
|---|---|
| Overall dimensions | 15" W × 29" D × 15.5" H (381 mm × 737 mm × 394 mm) |
| Plate thickness / material | 1" (25 mm) polished steel |
| Burner configuration | 1 × U-shaped aluminized steel burner |
| Total BTU | 28,300 BTU/hr |
| Controls | Manual infinite-position gas valve (1 knob) |
| Gas connection | 3/4" NPT male (rear) |
| Gas type | Natural gas (field convertible to LP – kit included) |
| Grease management | 3-1/4" trough with 4.5-qt stainless drawer |
| Certifications | cULus, UL EPH Classified |
| Shipping weight | 90 lb (40.8 kg) |
| Installed weight | 83 lb (37.7 kg) |
| Clearances | 6" (152 mm) sides & rear from combustible surfaces |
| Warranty | 2-year parts & labor (Star Max® series) |
Looking for more throughput? Star-Max® griddles are also available in 24", 36", and 48" widths.
