Description

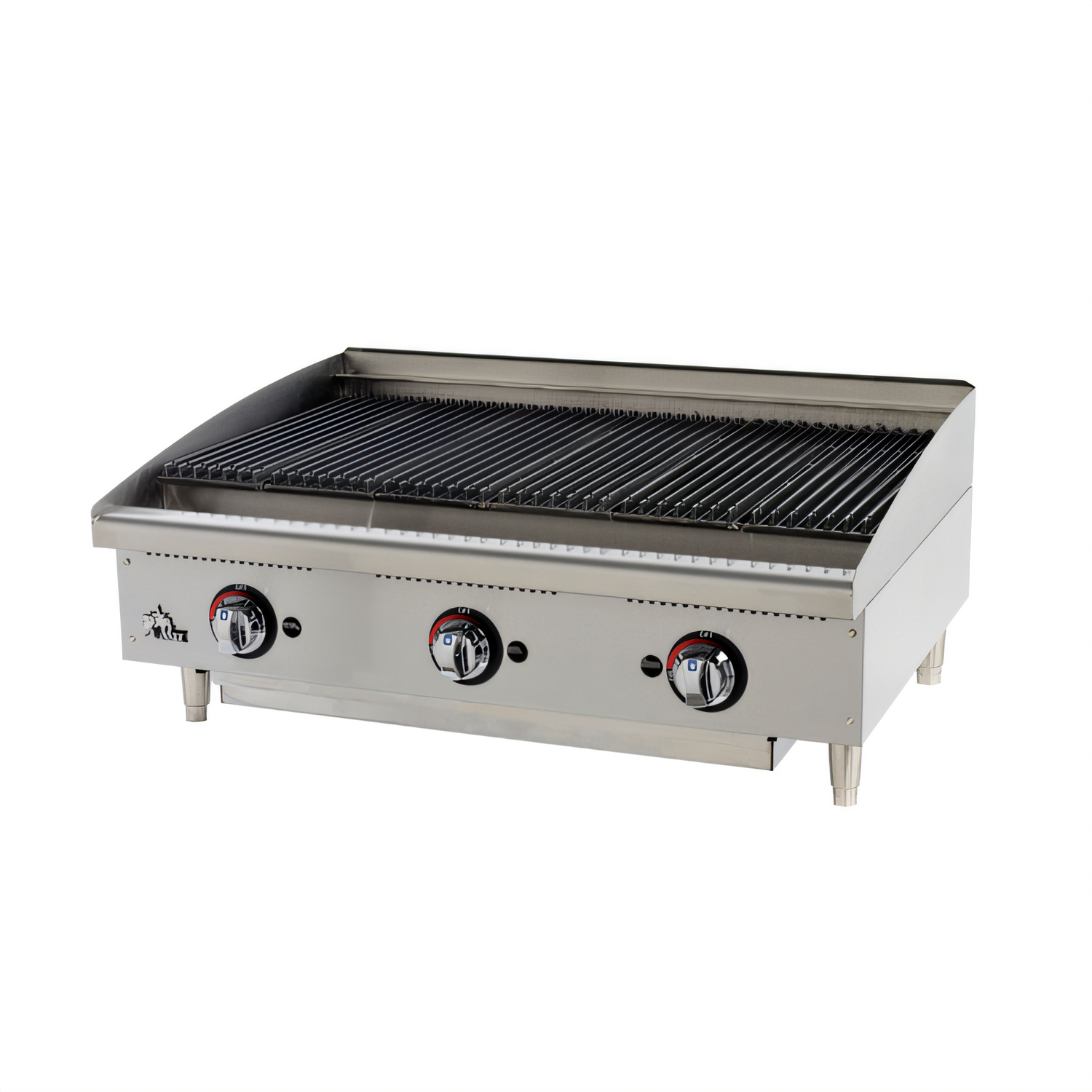

Star-Max 36" Radiant Gas Countertop Charbroiler – 120,000 BTU

Model 6136RCBF | ships Natural Gas (LP conversion kit included)

Built in the U.S.A. for busy commercial kitchens, the Star-Max 600 Series charbroiler delivers the authentic char-grilled flavor you want without sacrificing valuable floor space. Three powerful 40,000 BTU cast-iron burners, heavy stainless-steel radiants and reversible cast-iron grates give you unbeatable heat consistency, fast recovery and picture-perfect sear marks shift after shift.

Key features

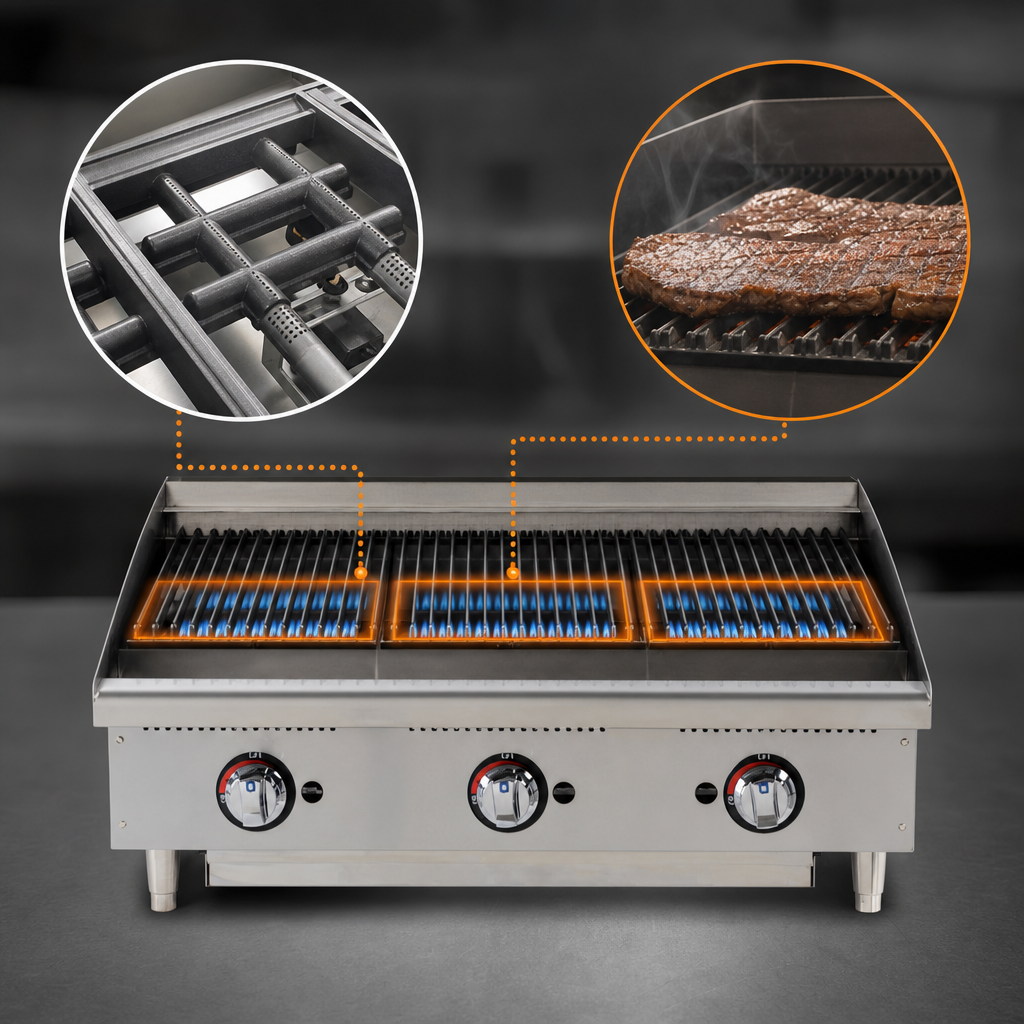

  • 120,000 BTU total output – three 40,000 BTU H-style burners (one every 12").

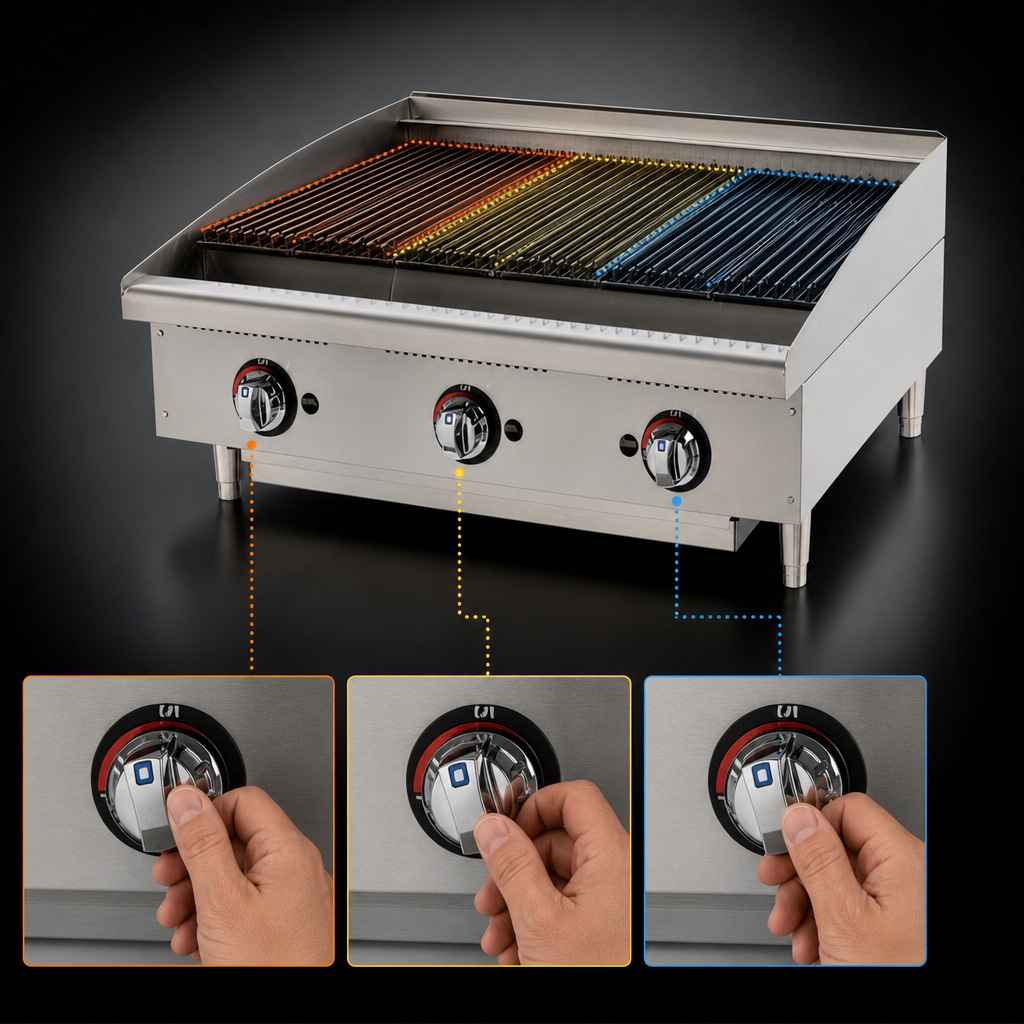

  • Independent manual controls create up to three distinct temperature zones.
  • Heavy-gauge stainless radiants contour heat evenly across the full 36" cooking surface.
  • Reversible cast-iron grates adjust in 6" sections – thin side for steakhouse sear, thick side for delicate foods.
  • Cool-to-the-touch stainless bullnose protects knobs and operators alike.
  • 2.75" high tapered splash guard, full-width water pan & grease trough simplify cleanup and help tame flare-ups.
  • Rugged welded steel frame with stainless top & front; aluminized steel sides for maximum durability.
  • Four 4" nickel-plated adjustable legs allow quick leveling on any countertop.
  • Ships ready for Natural Gas; 3/4" NPT connection and LP conversion kit included.
  • cULus & UL EPH listed; proudly Made in the USA.

Specifications

Model 6136RCBF
Cooking surface 36" W × 20.7" D (743 in² / 4,794 cm²)
Total BTU 120,000 BTU/hr NG | 105,000 BTU/hr LP
Burners 3 cast-iron H-style (40,000 BTU each)
Controls Manual valve, one per burner
Overall size 36" W × 28.1" D × 15.4" H (legs adjust +1.3")
Gas connection 3/4" NPT (rear)
Construction Stainless front, top & bullnose; aluminized steel sides; welded steel frame
Grates Cast iron, reversible, adjustable flat or inclined
Certifications cULus, UL EPH
Warranty 2 years parts & labor

Ideal applications

  • Steak & burger programs
  • Chicken, pork & seafood
  • Grilled vegetables & kabobs
  • Food trucks, ghost kitchens & any operation where floor space is tight

Optional accessories

  • Stainless equipment stand (various heights)
  • Replacement stainless radiants & cast-iron grates
Gas installation required: Unit must be installed by a licensed professional in accordance with local codes. Maintain a minimum 6" clearance to combustible surfaces at back and sides.

Ask about Middleby Equipment Financing to turn your purchase into affordable monthly payments.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Star-Max

Certifications

cULus, UL EPH

Height

15.5in

Width

36.0in

Depth

29.0in

Shipping Weight

211.0lbs

Control Type

manual controls

Heating Source

radiant

Width (side - side) OA

31 - 36"

Specifications

(MIDDLEBY ESSENTIALS ITEM) Star-Max® Charbroiler, gas, countertop, 36" W, cast iron 40,000 BTU burners with adjustable manual controls every 12", heavy stainless steel radiants, welded steel frame with stainless steel top and front, aluminized steel sides, cast iron broiling grates, stainless steel water pan, splash guard & grease trough, 4" legs, 120,000 BTU, cULus, UL EPH (ships Natural gas includes LP converstion kit)
