Description

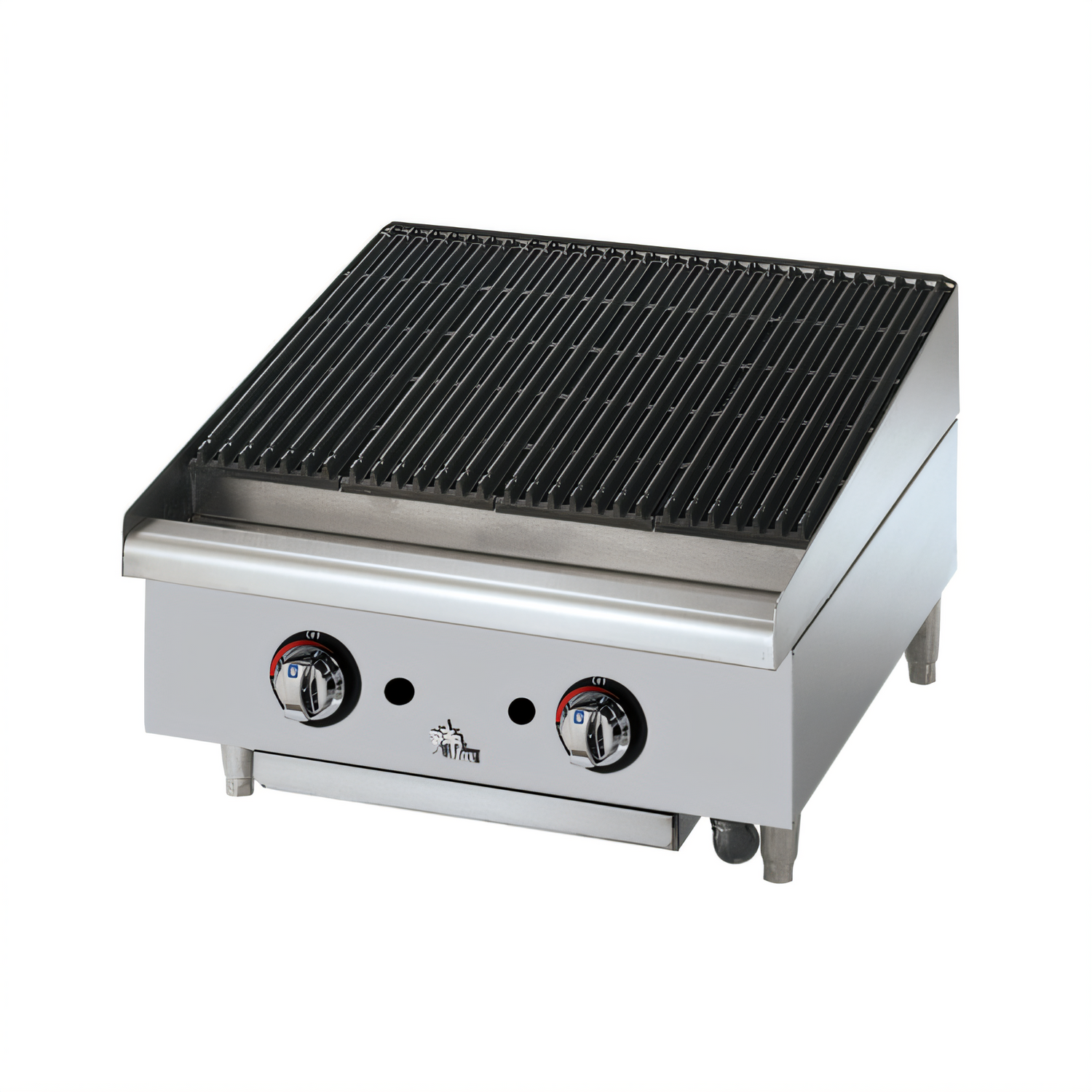

Star-Max® 24" Radiant Gas Charbroiler – 80,000 BTU

Model 6124RCBF | Countertop | Natural Gas with LP Conversion Kit

Built in the USA for kitchens that demand speed, consistency, and rugged durability, the Star-Max 6124RCBF delivers steak-house quality char marks in a compact 24" footprint. Two powerful cast-iron burners and heavy-gauge stainless steel radiants put 80,000 BTU of even heat right where you need it—on a reversible cast-iron grate that flips from delicate to searing side in seconds.

Key advantages

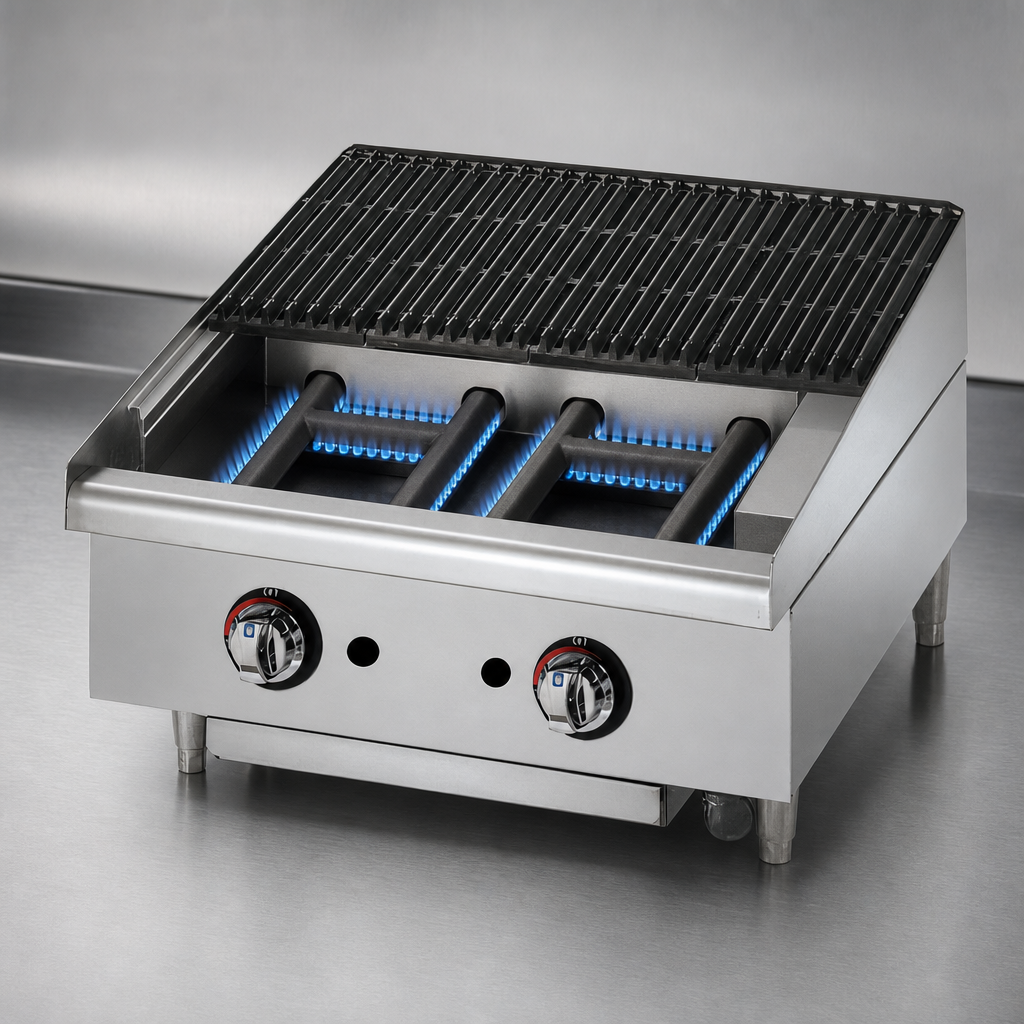

  • Two 40,000 BTU H-style cast-iron burners (one every 12") for precise sectional control.

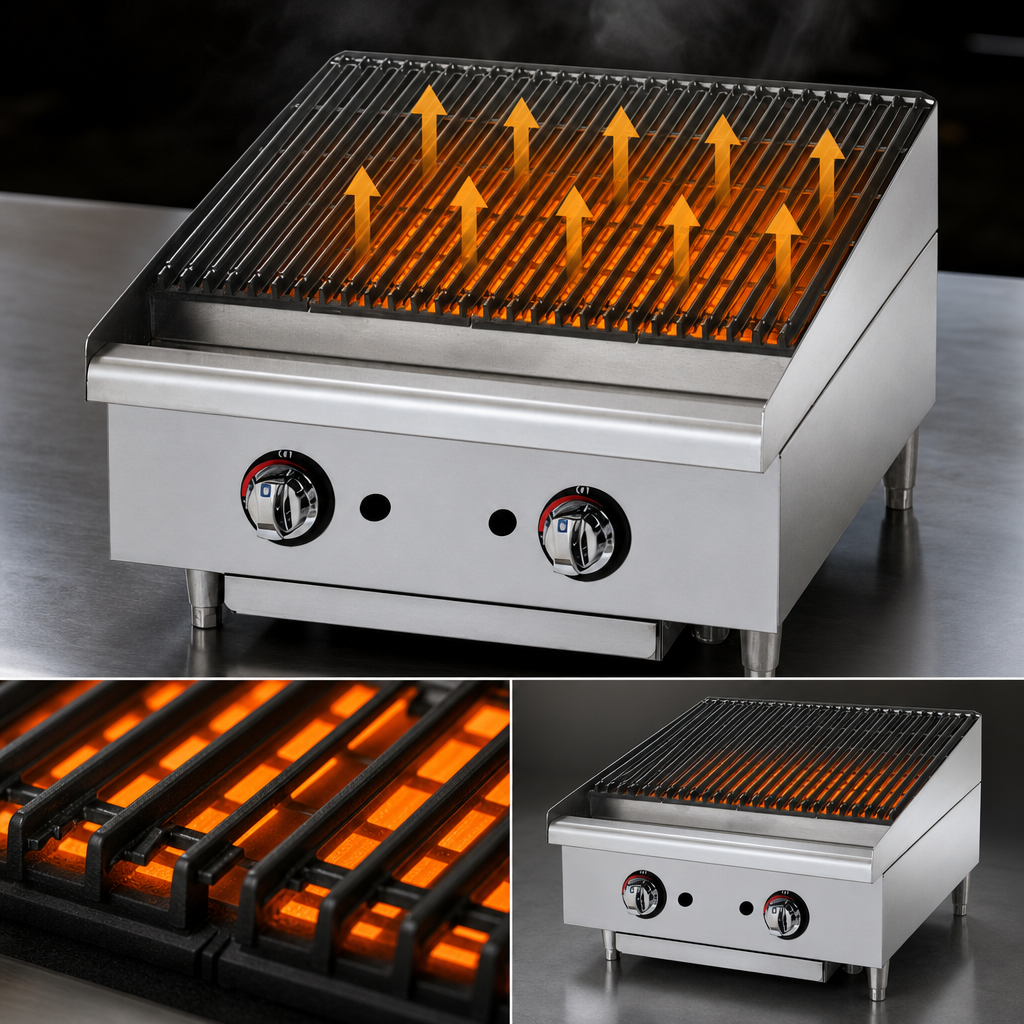

  • Heavy stainless-steel radiants are contoured to blanket the cooking surface with even heat.
  • Reversible cast-iron grates—thin edge for aggressive sear, thick edge for fish & veggies; each 6" section tilts flat or inclined.
  • Cool-to-the-touch stainless bullnose guards controls and keeps the line comfortable.
  • Integrated 2.75" splash guard, extra-deep water pan, and full-width grease trough for fast clean-up & flare-up control.
  • Rugged welded steel frame with stainless top & front; aluminized steel sides for long life in high-heat areas.
  • Ships Natural Gas ready; field conversion kit for LP included at no extra cost.
  • Adjustable 4" nickel-plated legs level the unit and protect refrigerated bases.
  • cULus & UL EPH listed; backed by Star’s robust 2-year parts & labor warranty.

Technical specifications

Cooking method Radiant gas charbroiler, countertop
Overall width 24" (610 mm)
Overall depth 28.1" (736 mm) before regulator
Overall height 15.4" (391 mm)   +1.325" leg adjustment
Cooking surface 496 in² (3,200 cm²)
Total BTU (Natural) 80,000 BTU/hr
Total BTU (LP) 70,000 BTU/hr
Burners 2 × 40,000 BTU cast-iron, each with individual manual control
Gas inlet ¾" NPT (rear)
Clearance 6" (152 mm) sides & rear to combustibles when used with provided legs
Shipping weight ≈ 166 lb (75 kg)
Certifications cULus, UL EPH, NSF/ANSI Std 4
Country of origin Made in the USA

Ideal for

  • Steakhouses, sports bars & pubs
  • Food trucks & concession trailers that need big power in a small footprint
  • C-stores, ghost kitchens, and any operation upgrading from electric hot plates or compact grills
Installation note: A licensed gas professional must connect the unit. Verify local codes, provide proper ventilation, and maintain clearances listed above.

Need flexible payment options? Ask about Middleby Equipment Financing to turn this purchase into low, fixed monthly payments.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Star-Max

Certifications

cULus, UL EPH

Height

15.5in

Width

24.0in

Depth

29.0in

Shipping Weight

166.0lbs

Control Type

manual controls

Width (side - side) OA

19 - 24"

Heating Source

radiant

Specifications

(MIDDLEBY ESSENTIALS ITEM) Star-Max® Charbroiler, gas, countertop, 24" W, cast iron 40,000 BTU burners with adjustable manual controls every 12", heavy stainless steel radiants, welded steel frame with stainless steel top and front, aluminized steel sides, cast iron broiling grates, stainless steel water pan, splash guard & grease trough, 4" legs, 80,000 BTU, cULus, UL EPH (ships Natural gas includes LP converstion kit)
