Star (Middleby)  |  Star-Max  |  SKU: 606HF

Star (Middleby) 606HF Star-Max Hot Plates

$3,068.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Commercial Hot Plates Commercial Ranges Hot Plates Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

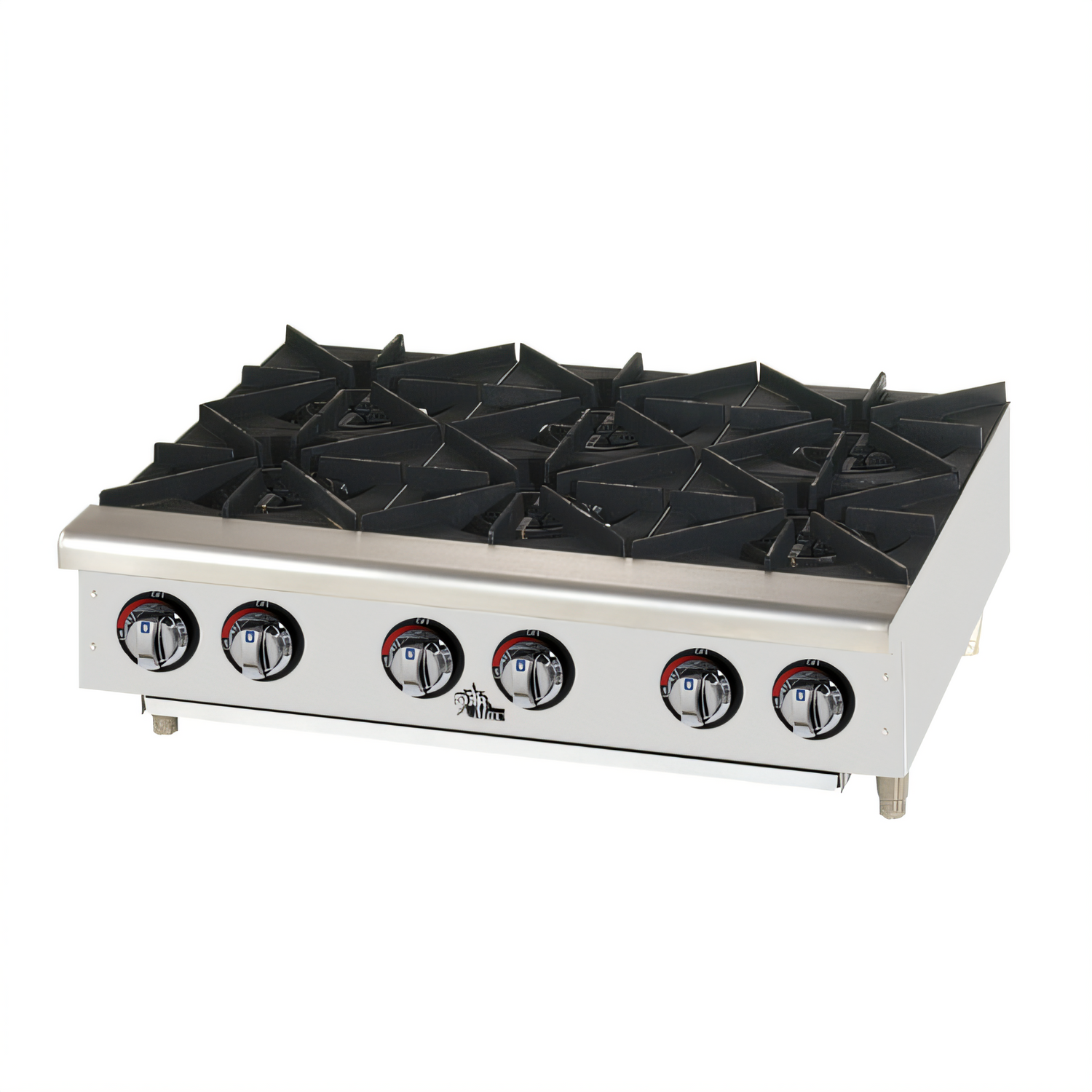

Star-Max® 36" Countertop Gas Hot Plate – 6 Burners

Model 606HF | 150,000 BTU Total Output

Built for high-volume kitchens that demand reliability, the Star-Max® 606HF delivers the power of a full range in a space-saving countertop footprint. Six rugged 25,000 BTU cast-iron burners, all-stainless front styling and easy-clean components make it the go-to choice for diners, concessions, catering lines and anywhere rapid, even heat is a must.

Why You’ll Love It

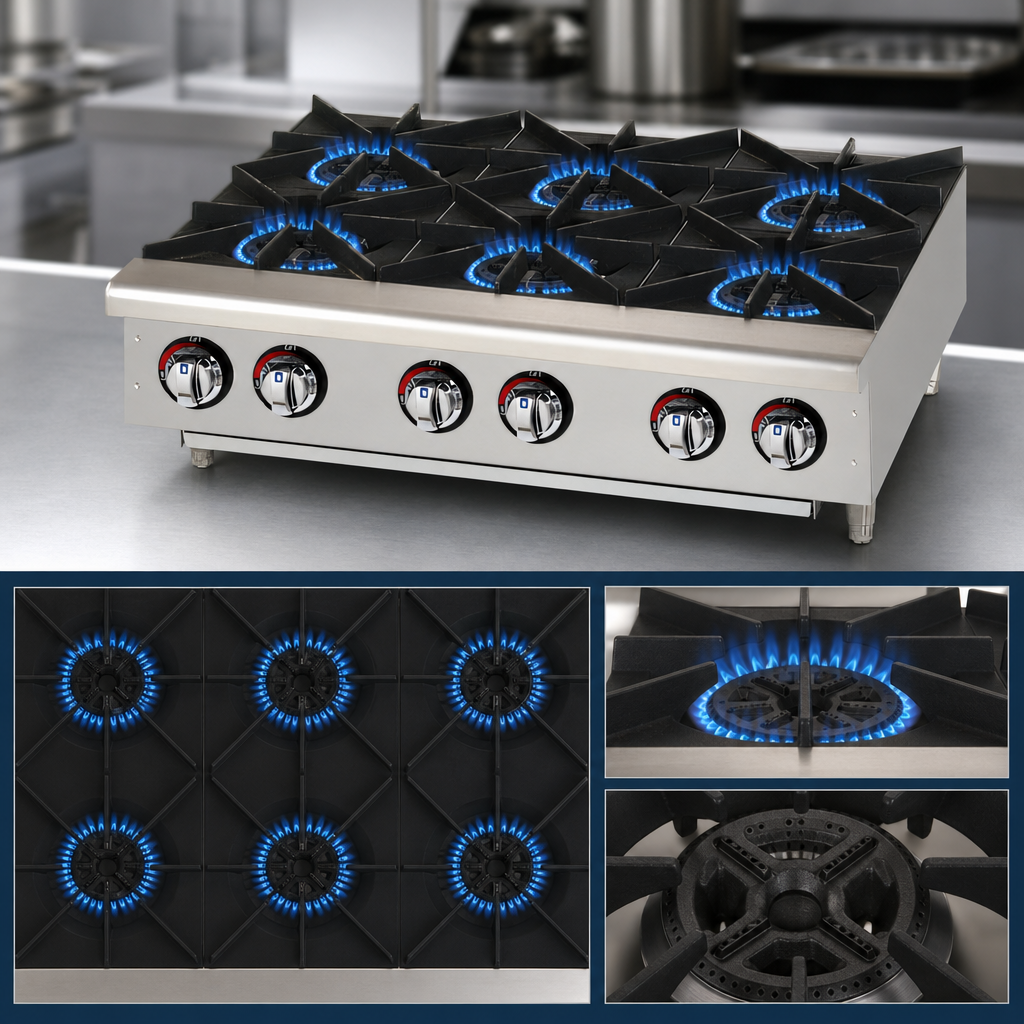

  • Six high-performance 25,000 BTU cast-iron burners for fast, even heat distribution

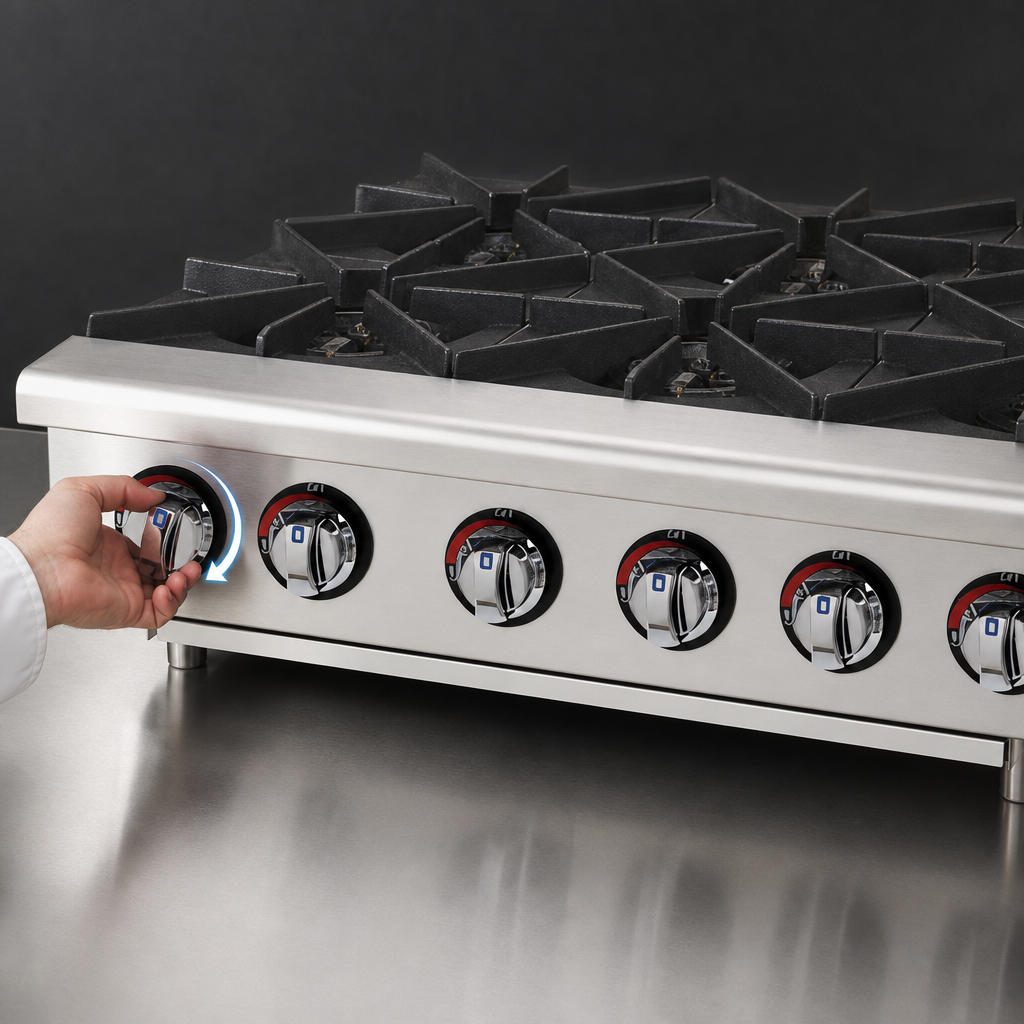

  • Independent ¼-turn manual valves with standing pilots for instant ignition & precise control
  • Heavy-duty cast-iron grates withstand constant pot movement and high temperatures
  • Cool-to-the-touch stainless bull-nose protects knobs and keeps the cookline comfortable
  • Removable aluminized steel drip tray catches crumbs & spills for quick nightly cleanup
  • Ships ready for Natural Gas and includes LP conversion kit—no extra parts to order
  • 4" adjustable steel legs for leveling on any non-combustible countertop
  • NSF & cULus listed; Made in the USA
  • Backed by a 2-year parts & labor warranty

At-a-Glance Specs

Cooking Surface 36" W x 28.9" D (914 mm x 734 mm)
Burners (6) Cast iron – 25,000 BTU each
Total BTU 150,000 BTU/hr
Gas Connection 3/4" NPT male (rear)
Gas Type Natural Gas (LP orifices & regulator spring included)
Controls Manual on/off, ¼-turn valves; standing pilot per burner
Body Construction Stainless steel front & bull-nose, aluminized steel sides/bottom
Grates Heavy-duty, lift-off cast iron sections
Overall Height 11.9" (302 mm) – adjustable to 13.5" with legs
Shipping / Installed Weight 176 lb / 200 lb (80 kg / 91 kg)
Certifications NSF, CSA, UL EPH (sanitation), cULus
Clearance & Mounting: Maintain at least 3" (76 mm) between the unit and any combustible surface. Install on a non-combustible countertop using the supplied 4" legs, or on a 27" (686 mm) minimum equipment stand.

Optional Accessory

  • HP-WR Wok Ring – converts a standard grate to a wok-friendly cradle

Star-Max® hot plates include a 2-year parts & labor warranty; cast-iron grates and burners are covered for one year.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Star-Max

Certifications

NSF, CSA

Height

11.94in

Width

36.19in

Depth

28.88in

Shipping Weight

200.0lbs

Width (side - side)

36 - 47"

Top and Front Finish

stainless steel front

Legs

with legs

Burner Qty

6 burners

Specifications

Star-Max® Hotplate, countertop, gas, 36" wide, (6) cast iron burners, manual controls, heavy duty cast iron grates, drip tray, heavy duty knobs, stainless steel front with aluminized steel body, 4" adjustable legs, 150,000 BTU (ships Natural gas includes LP conversion kit), NSF, CSA, CGA
