Star (Middleby) 604HF Star-Max Hot Plates
Description

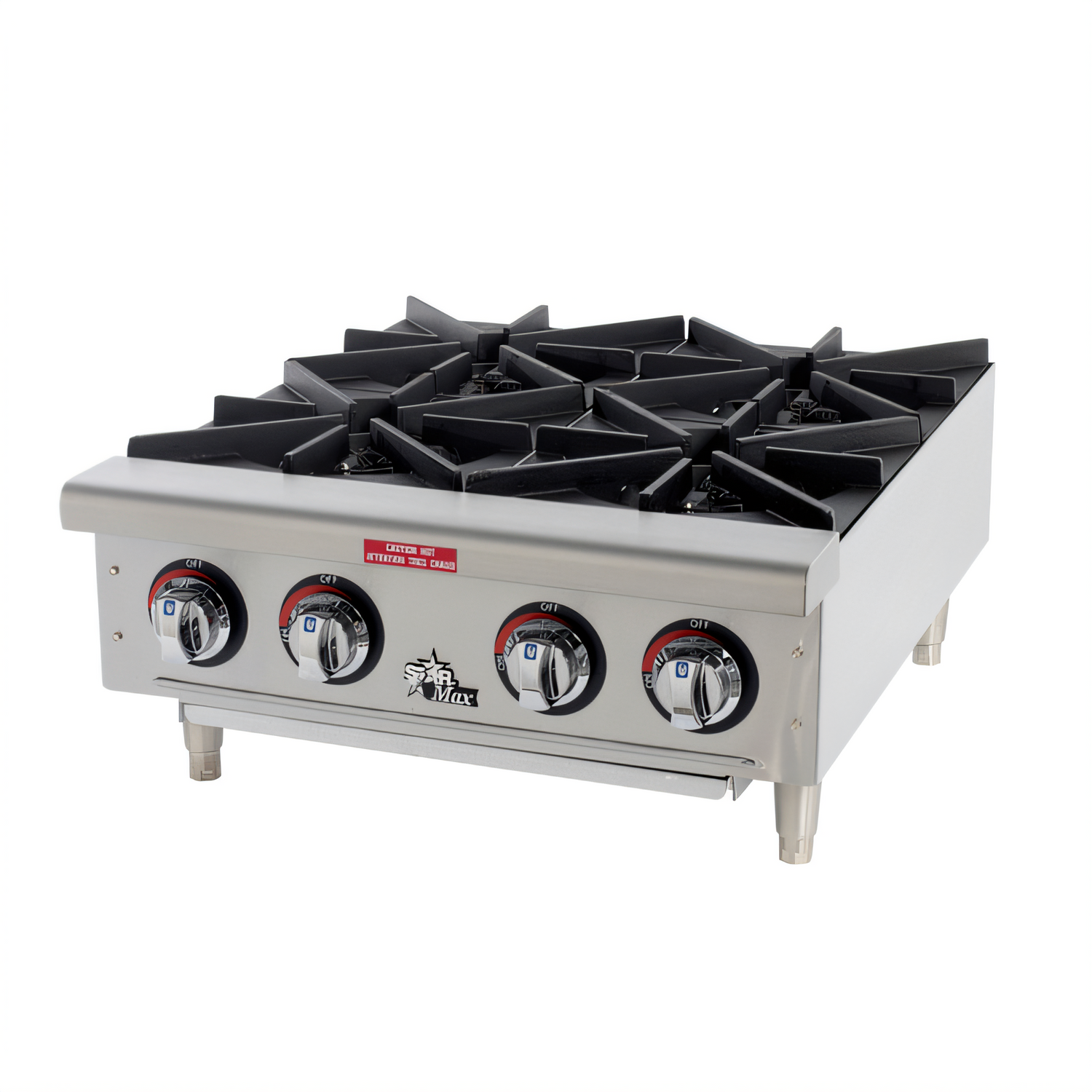

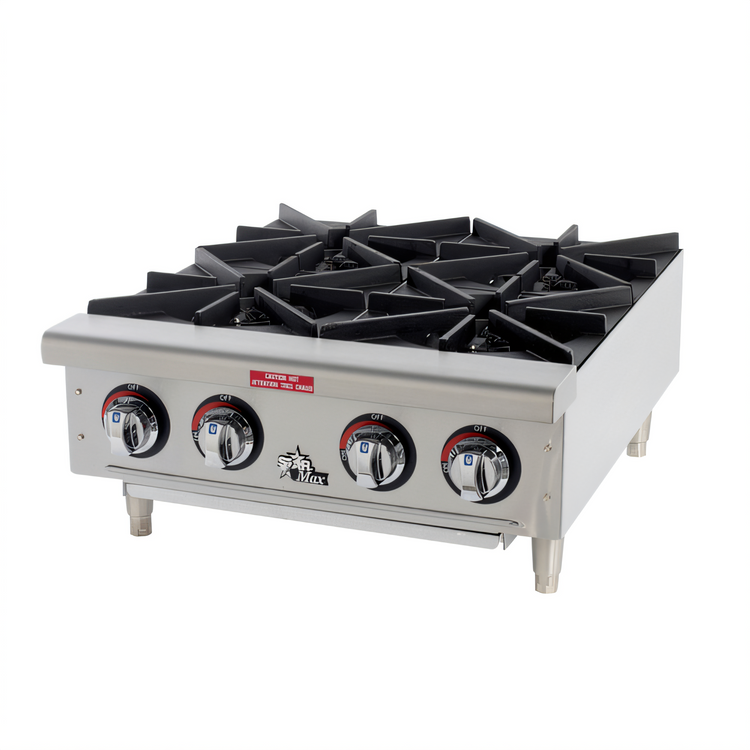

Star-Max® 604HF 24" Countertop Gas Hotplate
4 Cast-Iron Burners • 100,000 BTU • Ships Natural Gas with LP KitBuilt for the demanding pace of commercial kitchens, the Star-Max® 604HF delivers reliable, high-output performance in a compact 24-inch footprint. Four 25,000 BTU cast-iron burners, rugged construction, and simple manual controls make this U.S-made hotplate the dependable workhorse every line chef needs.
Why you’ll love it

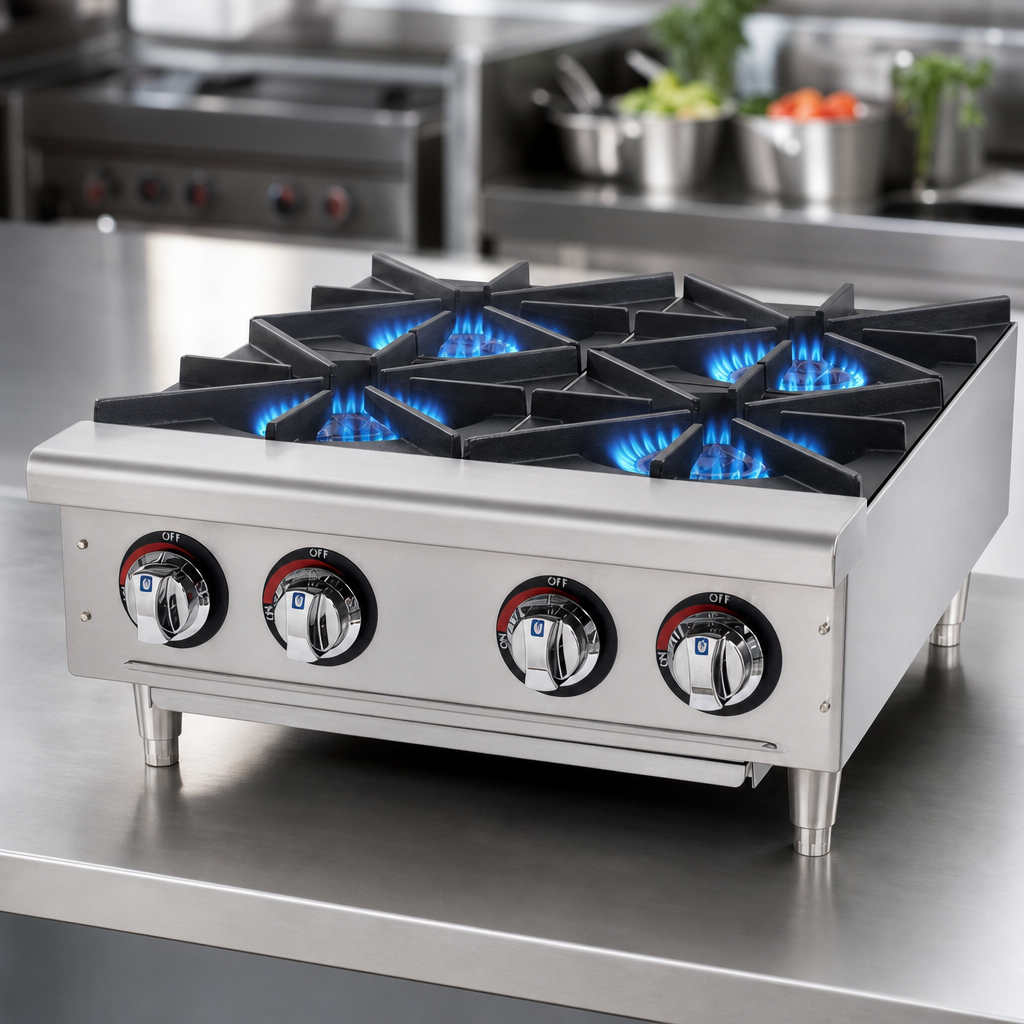

- High-performance burners: 25,000 BTU each for fast recovery and even heat distribution.
- Heavy-duty cast-iron grates stand up to constant use and let pans slide smoothly from zone to zone.

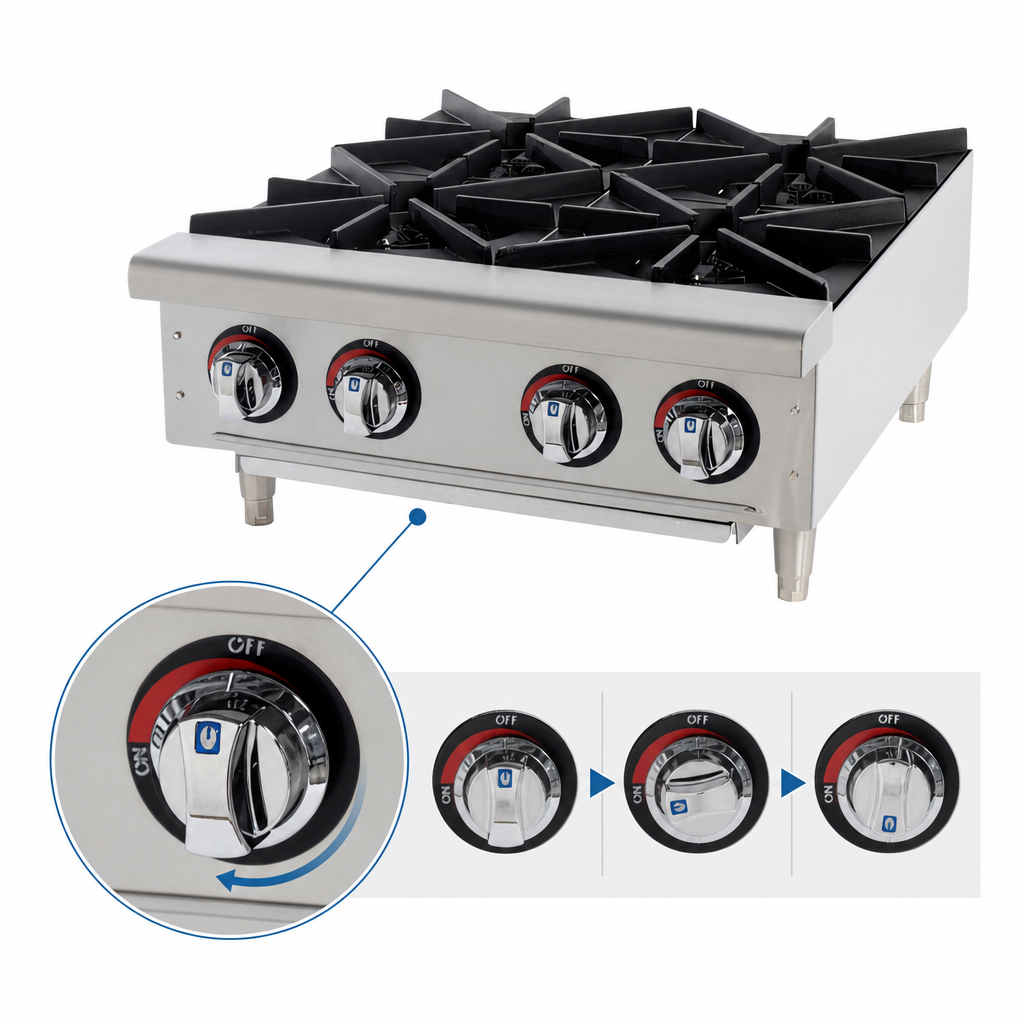

- Individual standing pilot & ¼-turn manual valve on every burner for instant ignition and precise flame control.
- Cool-to-the-touch stainless steel bull-nose protects the heavy-duty metal knobs and keeps operators comfortable.
- Full-width aluminized-steel drip tray removes in seconds for effortless cleanup.
- 4" adjustable legs for quick leveling on any non-combustible countertop.
- Ships ready for Natural Gas; LP (propane) conversion kit included at no extra charge.
- NSF-listed, cULus gas-certified, and made in the USA for total peace of mind.
Perfect for
- Line cooking in busy diners, cafés, and food trucks
- Finishing sauces, sautés, and stocks while the range is full
- Temporary or seasonal pop-ups that need big-range power in a small space
Specifications
| Model | 604HF |
|---|---|
| Total BTU | 100,000 BTU/hr (4 × 25,000) |
| Burners | 4 cast-iron, open-top |
| Controls | Manual on/off ¼-turn valves & standing pilots (one per burner) |
| Gas type / inlet | Natural Gas (LP convertible) | ¾" NPT male |
| Dimensions (W × D × H) | 24.0" × 28.9" × 11.9" (610 × 734 × 302 mm) – height adjustable +1.625" |
| Clearances | 3" (76 mm) rear & sides from combustibles |
| Installed weight | 125 lb (56.8 kg) |
| Construction | Stainless steel front & bull-nose, aluminized-steel chassis & drip tray, cast-iron grates |
| Certifications | NSF, UL EPH Sanitation, cULus Gas |
| Warranty | 2-year parts & labor (1-year on cast-iron grates & burners) |
Need flexible financing? Ask us about Middleby Equipment Financing to turn this purchase into low, fixed monthly payments.

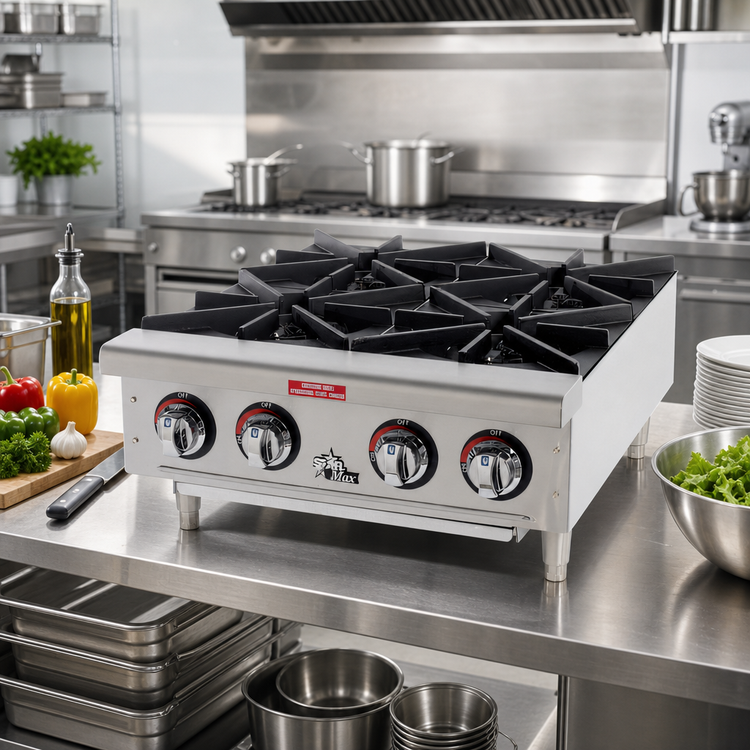

Image may show a similar Star-Max hotplate; please refer to the specifications above for exact configuration.
