Star (Middleby)  |  Star-Max  |  SKU: 602HWF

Star (Middleby) 602HWF Star-Max Hot Plates

$1,427.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

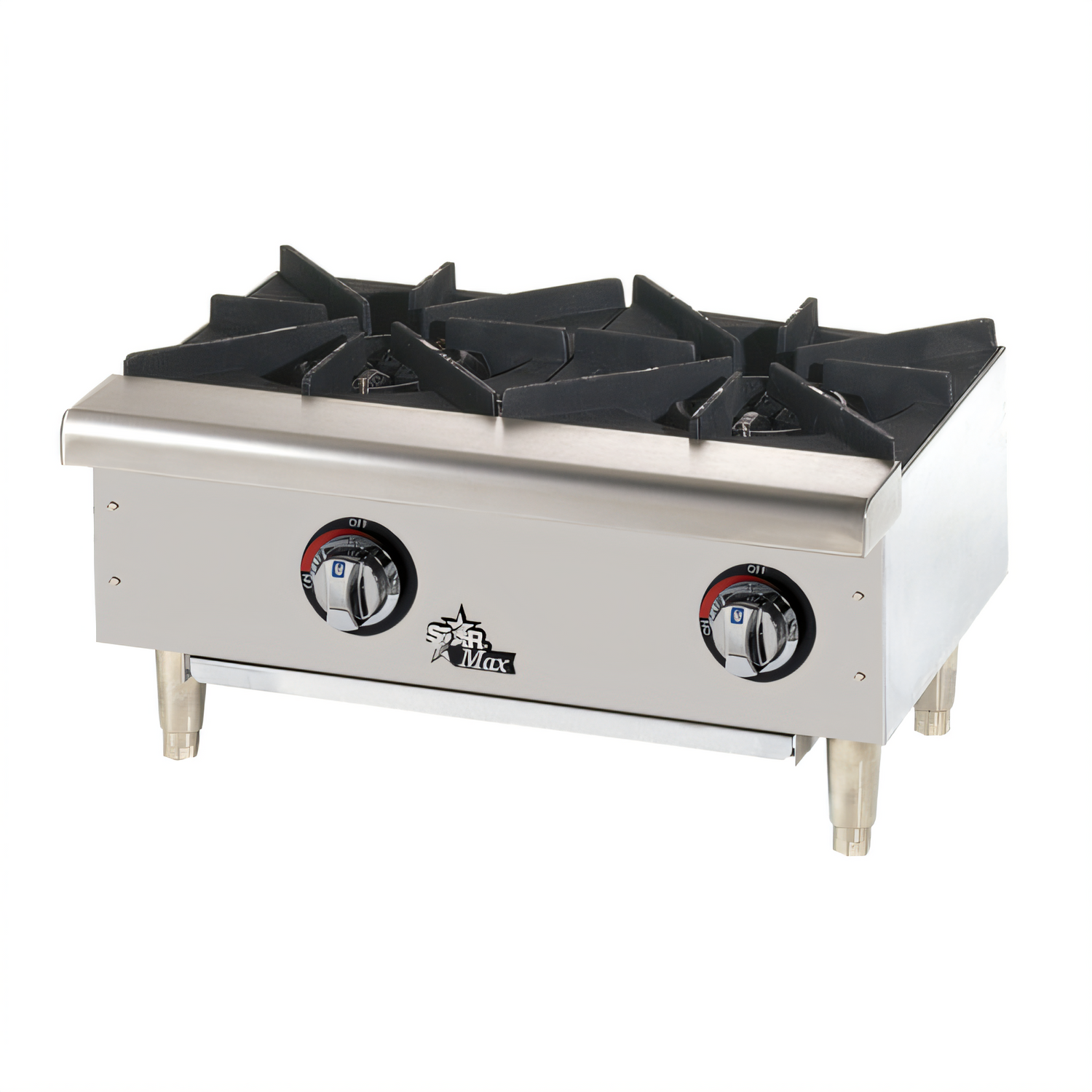

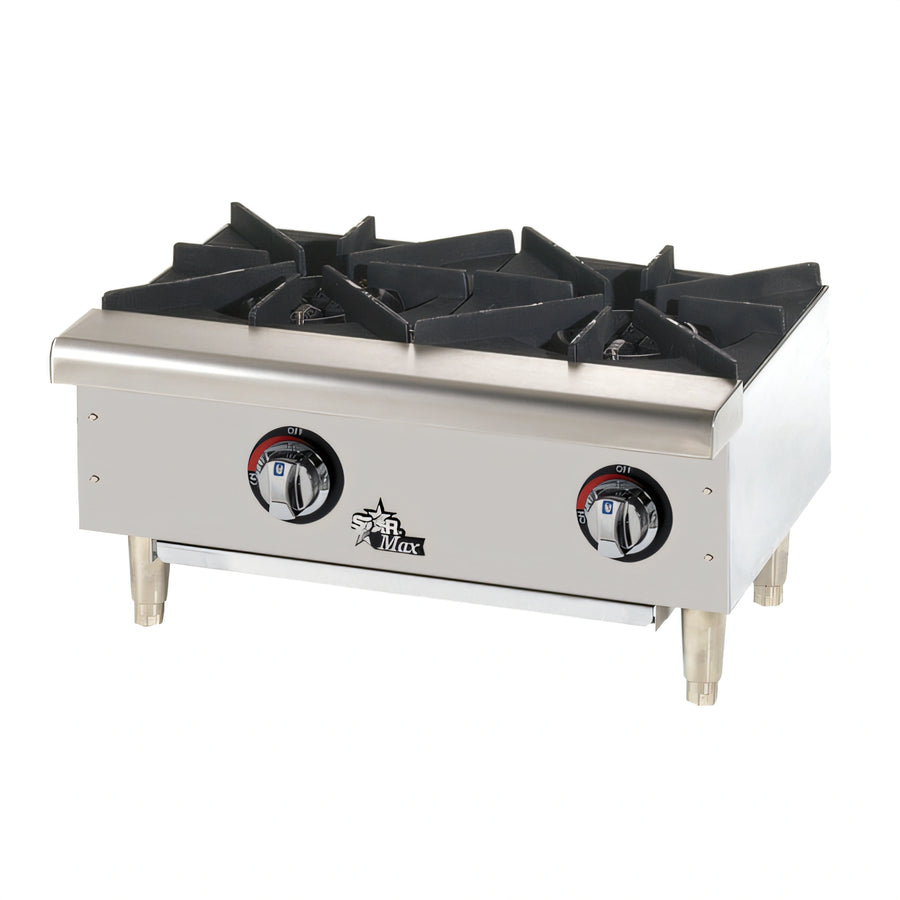

Star-Max 24" Countertop Gas Hotplate – 2 Burners, Side-By-Side

Model 602HWF | 50,000 BTU | Natural Gas with LP Kit

Engineered for high-volume cooking in tight spaces, the Star-Max 24" side-by-side hotplate delivers a combined 50,000 BTU of controllable heat in a compact, easy-to-clean package. Perfect for diners, concession trailers, ghost kitchens and anywhere you need big power without a full range.

Key Features & Benefits

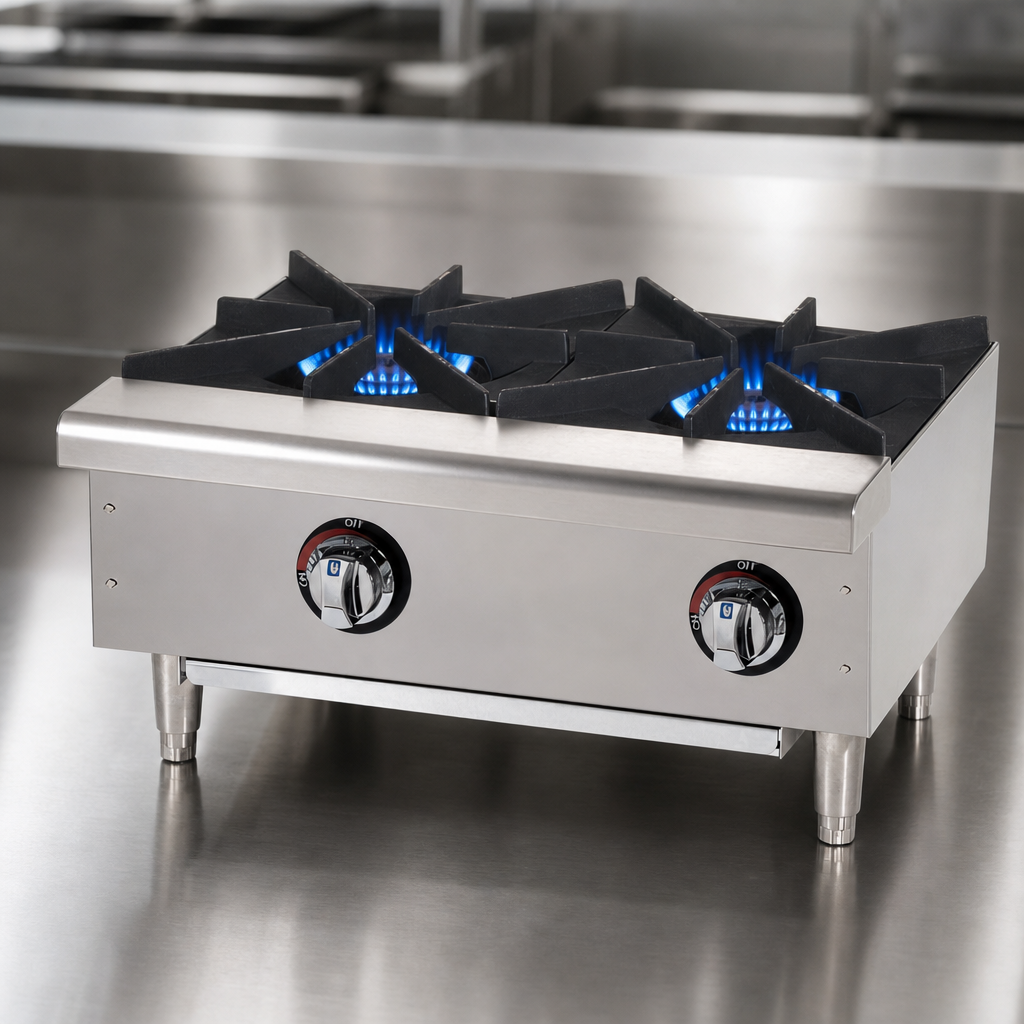

  • Two 25,000 BTU cast-iron burners provide fast recovery and even heat distribution.
  • Independent standing pilots and ¼-turn manual gas valves for quick ignition and precise flame control.
  • Heavy-duty cast-iron grates withstand constant high-heat use and slide out for sink-side cleaning.
  • Cool-touch stainless-steel bull-nose keeps operators safe and protects the rugged metal knobs.
  • Removable aluminized-steel drip tray catches spills for effortless clean-up.
  • Ships ready for Natural Gas; complete LP conversion kit included at no extra charge.
  • 4" adjustable stainless legs level the unit on any non-combustible counter.
  • NSF, CSA & UL EPH Listed for code-compliant installation.
  • Made in the USA and backed by a 2-year parts & labor warranty.

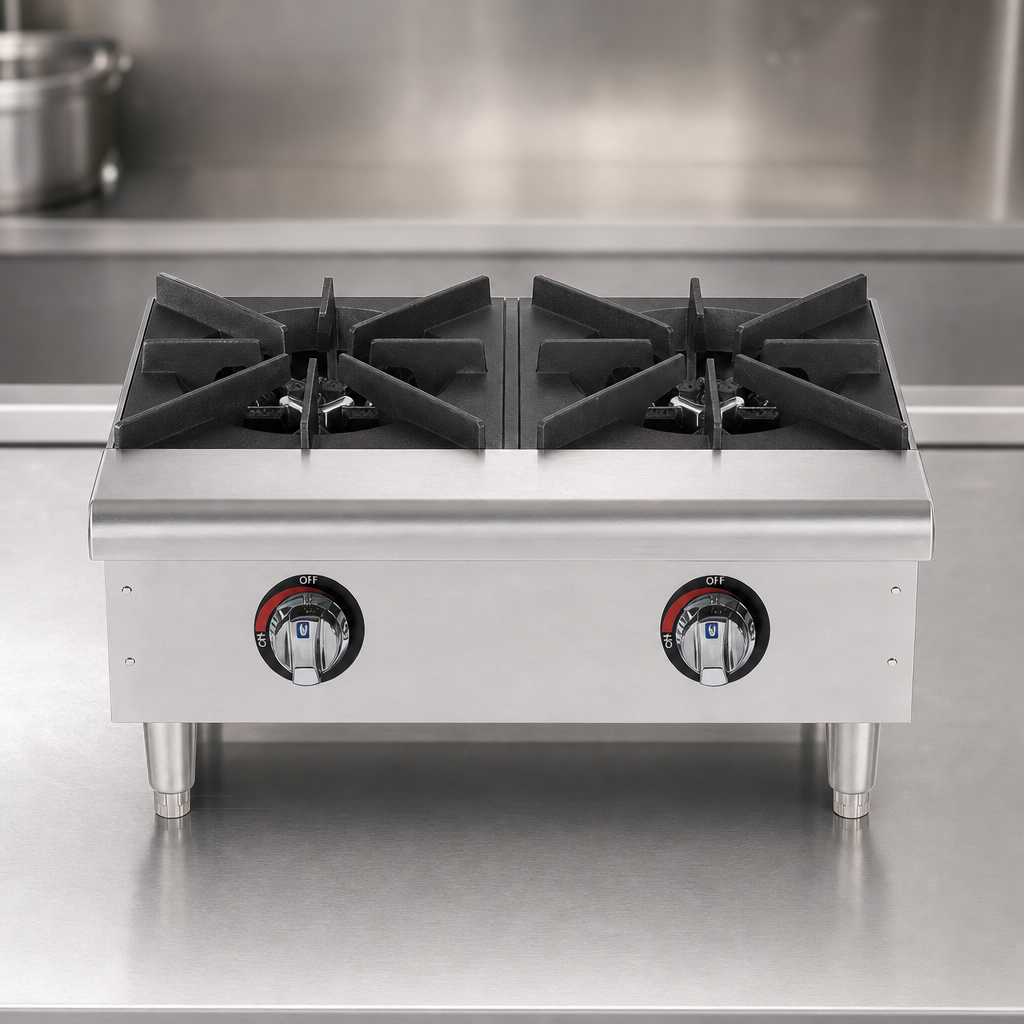

Compact Footprint, Serious Output

The side-by-side layout keeps depth to just 17", freeing up valuable line space while still accommodating large stock pots and woks—ideal for food trucks, chef’s counters and satellite kitchens.

Specifications

Burners / Output 2 cast-iron burners | 25,000 BTU each (50,000 BTU total)
Gas Type Natural Gas (field-convertible to LP with included kit)
Gas Connection ¾" NPT male (rear)
Dimensions (W × D × H) 24" × 17" × 11.9" (adjustable to 13.5" with legs)
Clearances 3" back & sides from combustible surfaces
Construction Stainless-steel front & bull-nose, aluminized-steel body & drip pan, cast-iron grates
Weight 70 lb shipping | 80 lb installed
Certifications NSF, CSA, UL EPH, Made in USA
Warranty 2-year parts & labor (1-year on grates & burners)

Optional Accessories

  • HP-WR Wok Ring—secures round-bottom woks for high-heat stir-fry.
  • 27" floor stand for combustible floor installations.

Need multiple units or flexible payments? Ask about Middleby Equipment Financing for fast credit decisions and affordable monthly terms.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Star-Max

Certifications

NSF, CSA

Height

11.94in

Width

24.19in

Depth

17.0in

Shipping Weight

75.0lbs

Burner Qty

2 burners

Width (side - side)

24 - 35"

Top and Front Finish

stainless steel front

Legs

with legs

Specifications

Star-Max® Hotplate, countertop, gas, 24" wide, (2) cast iron burners side-by-side, manual controls, heavy duty cast iron grates, drip tray, heavy duty knobs, stainless steel front with aluminized steel body, 4" adjustable legs, 50,000 BTU (ships Natural gas includes LP conversion kit), NSF, CSA, CGA
