Star (Middleby) 602HF Star-Max Hot Plates
$1,427.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Star (Middleby) 602HF Star-Max Hot Plates is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Star (Middleby) 602HF Star-Max Hot Plates
$1,427.00
Unit price
/
Unavailable
Description

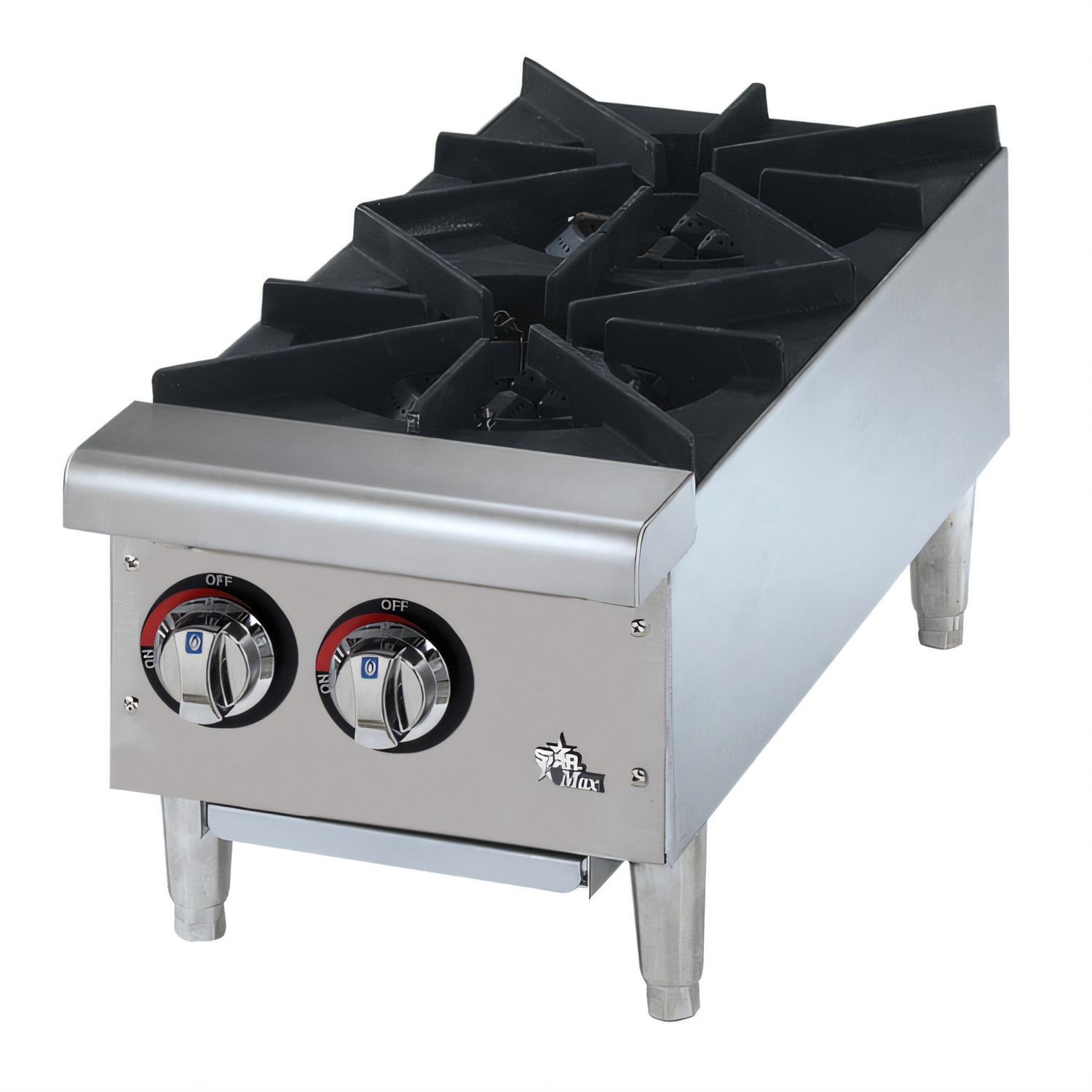

Star-Max® 12" Countertop Gas Hot Plate – 2 Burners
Model 602HF | 50,000 BTU | Natural Gas with LP Conversion KitSqueeze powerful, even heat into the tightest cooklines with the Star-Max® 602HF. This heavy-duty, two-burner hot plate delivers the muscle of a range without giving up the counter space you need for prep, plating, and service.
Why You’ll Love It
- Compact 12 in. footprint frees up prime line real estate.

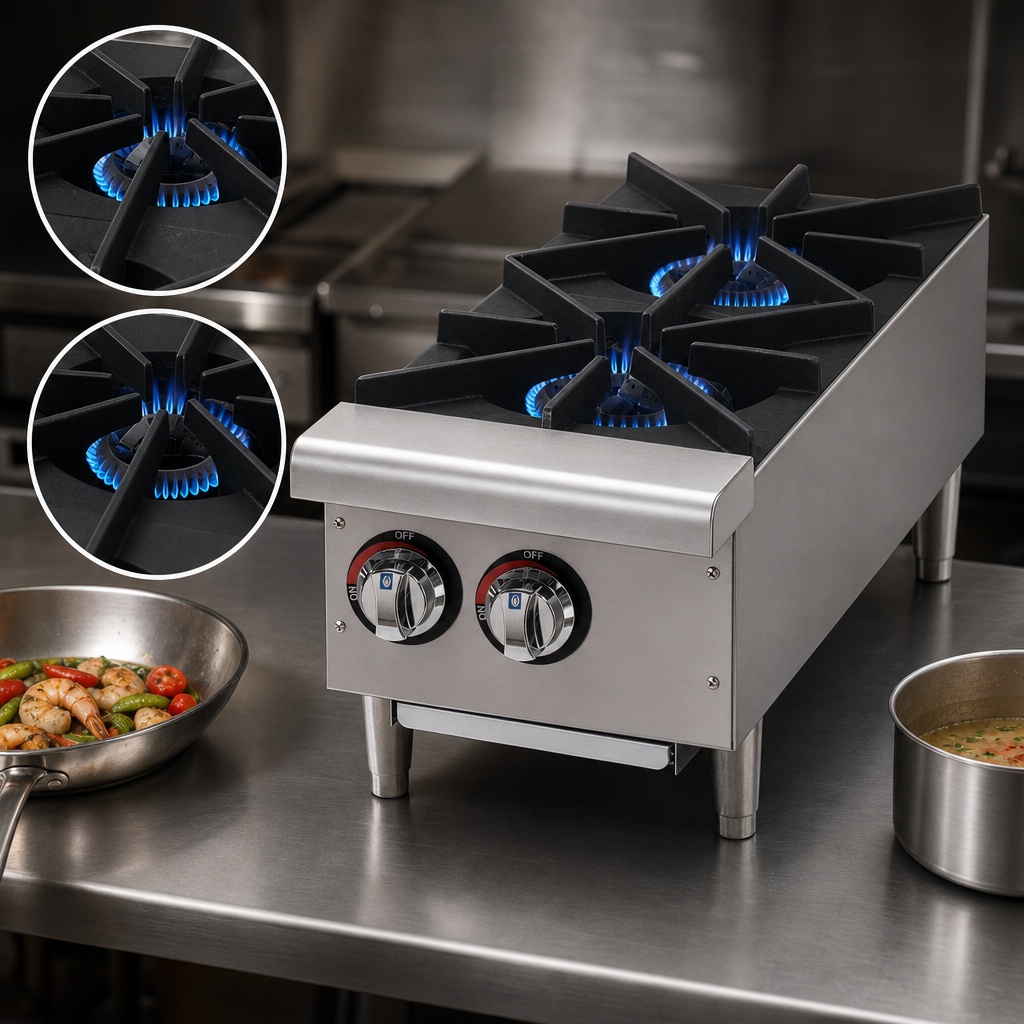

- Two 25,000 BTU cast-iron burners (50,000 BTU total) power everything from stockpots to 10″ sauté pans.
- Quarter-turn manual gas valves give fast, precise flame control.
- Individual standing pilots—light once, cook all shift.
- Rugged cast-iron grates hold up to constant sliding, banging, and high heat.
- Cool-touch stainless bull-nose protects operators and keeps knobs safe.
- Field convertible to propane in minutes—LP orifices & regulator kit included.
- Removable aluminized steel drip tray makes end-of-day cleanup simple.
- 4″ adjustable legs meet health-code clearance and level the unit on uneven counters.
- NSF & CSA certified; proudly made in the USA.
At-a-Glance Specs
| Footprint (W × D × H) | 12.2″ × 28.9″ × 11.9″ (310 × 734 × 302 mm) Height adjustable +1.6″ (41 mm) |
|---|---|
| Burners | 2 × 25,000 BTU cast iron |

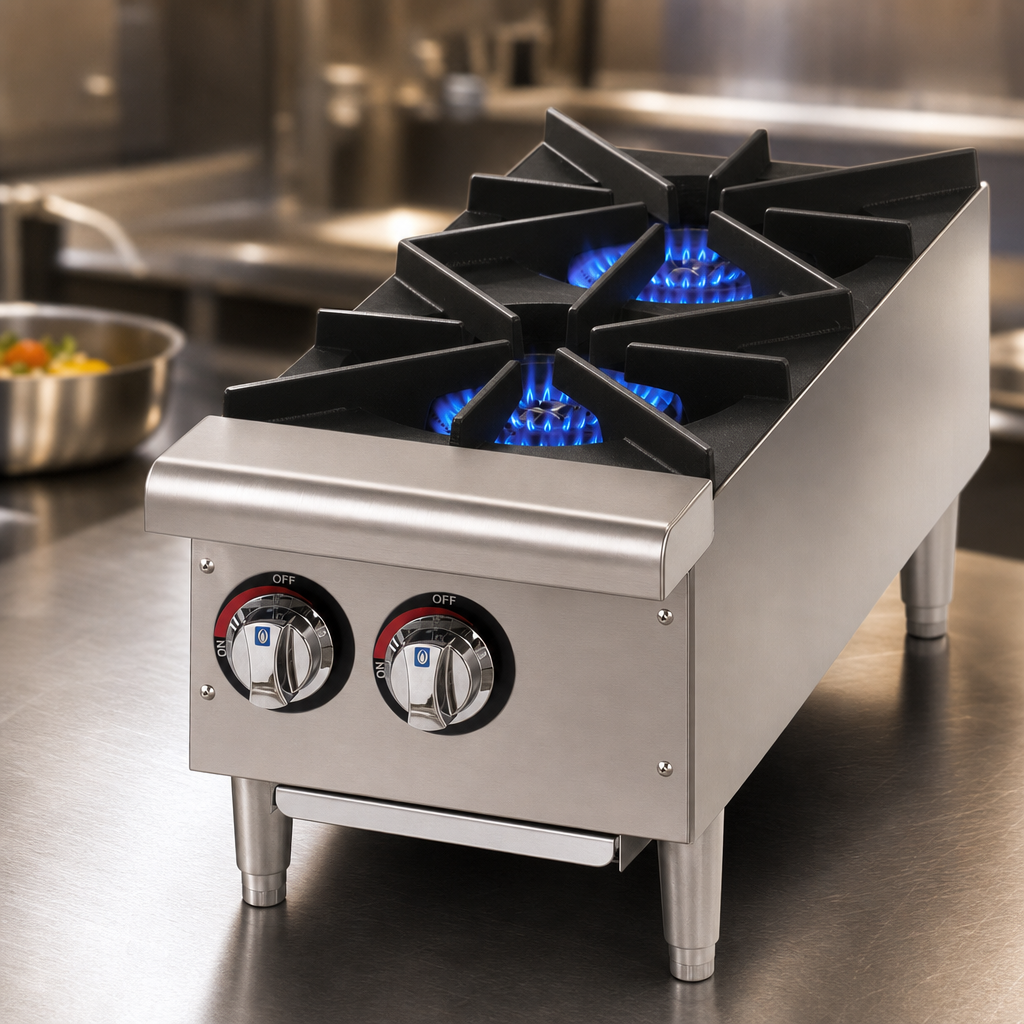

| Total Heat Output | 50,000 BTU/hr |
| Controls | Manual on/off, ¼-turn gas valves |
| Ignition | Standing pilot for each burner |
| Gas Connection | ¾″ NPT (male), rear |
| Gas Type | Ships Natural Gas – LP conversion kit included |
| Body Construction | Stainless steel front & bull-nose, aluminized steel sides & drip tray |
| Grates | Heavy-duty, removable cast iron |
| Legs | 4″ steel, adjustable |
| Certifications | NSF, CSA (CGA), UL EPH |
| Approx. Ship / Installed Weight | 66 lb / 75 lb (30 / 34 kg) |
| Warranty | 2 years parts & labor (1 year on cast-iron grates/burners) |
Installation note: Maintain a minimum 3 in. clearance on the back and sides from combustible surfaces.
Unit must sit on included 4″ legs or a 27″ stand for proper ventilation.
Professional gas connection and start-up calibration are strongly recommended.
Need Easy Monthly Payments?
Apply in minutes and have a credit decision fast. Click here to explore equipment financing.
Features & Specs
Features & Specs
Manufacturer
Star (Middleby)
Brand_name
Star-Max
Certifications
NSF, CSA
Height
11.94in
Width
12.19in
Depth
28.88in
Shipping Weight
75.0lbs
Width (side - side)
12 - 23"
Burner Qty
2 burners
Top and Front Finish
stainless steel front
Legs
with legs
Specifications
Star-Max® Hotplate, countertop, gas, 12" wide, (2) cast iron burners, manual controls, heavy duty cast iron grates, drip tray, heavy duty knobs, stainless steel front with aluminized steel body, 4" adjustable legs, 50,000 BTU (ships Natural gas includes LP conversion kit), NSF, CSA, CGA
