Star (Middleby) 548CHSF Star-Max Electric Griddles
Description

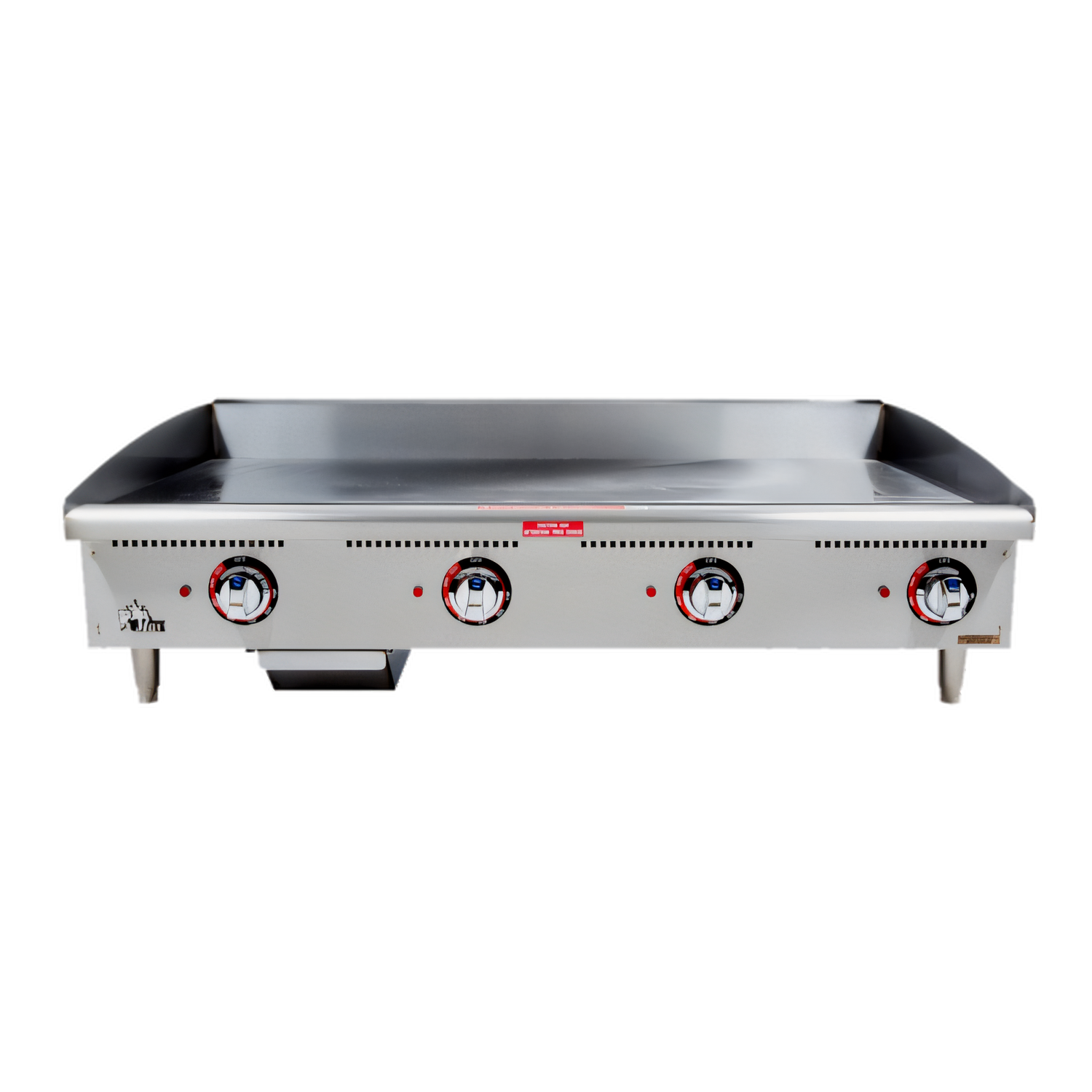

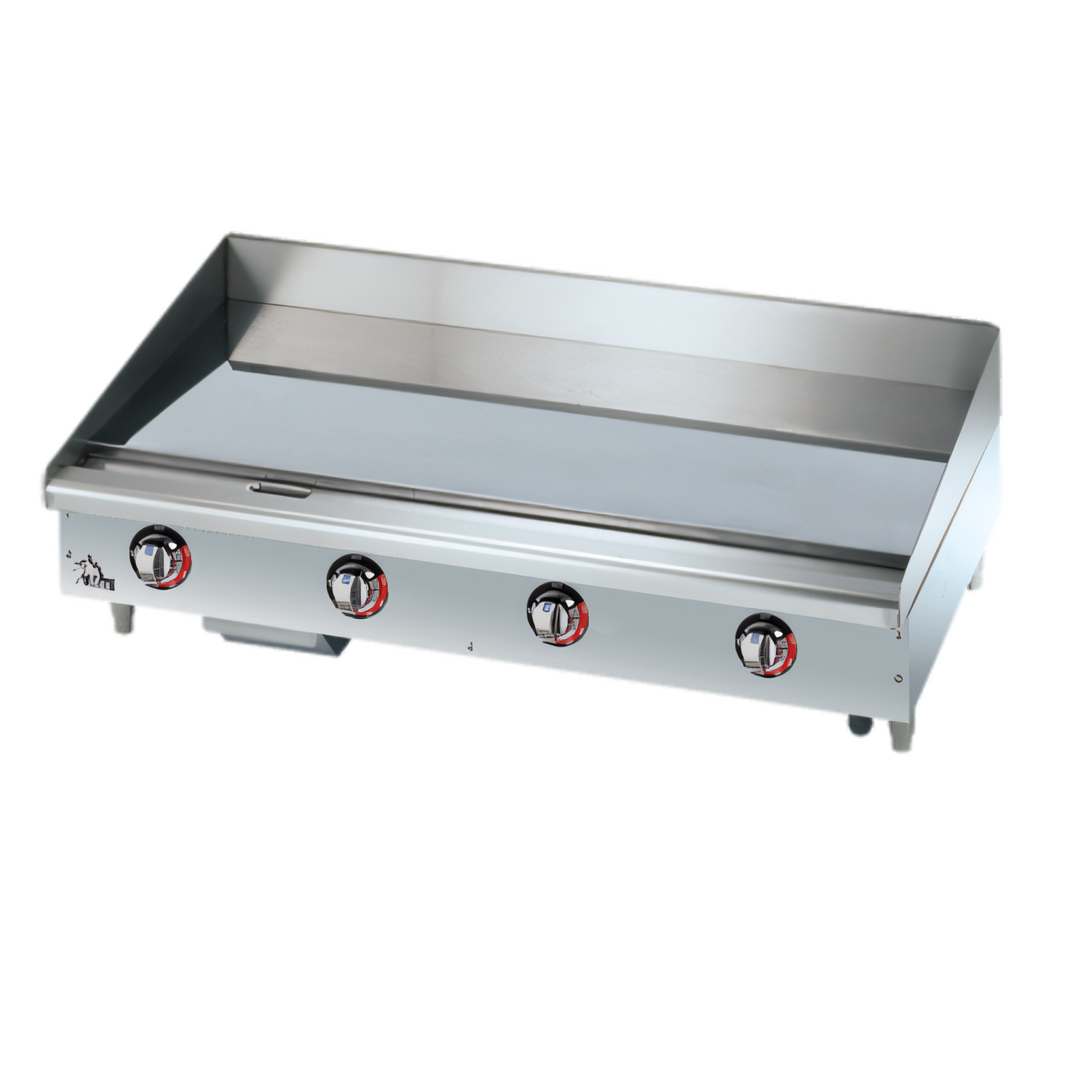

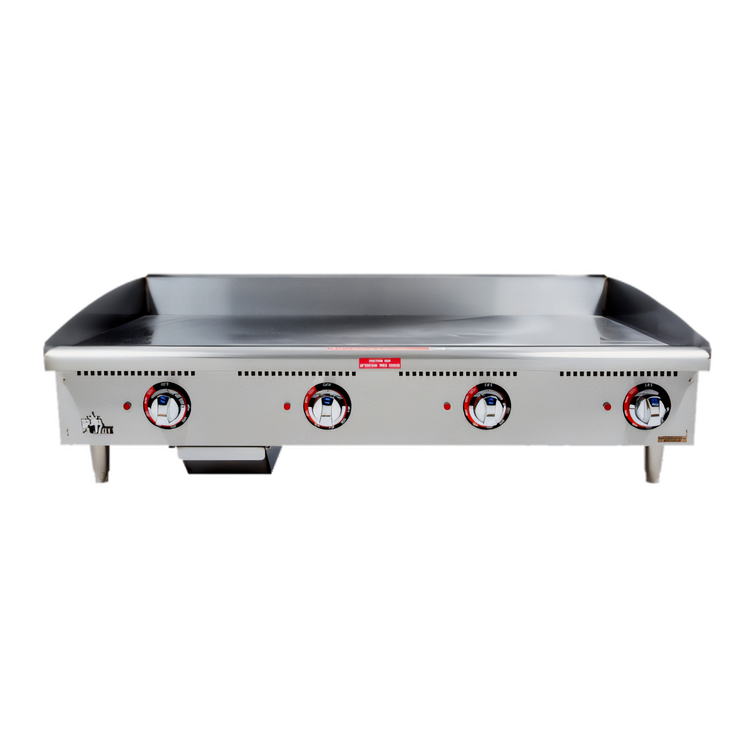

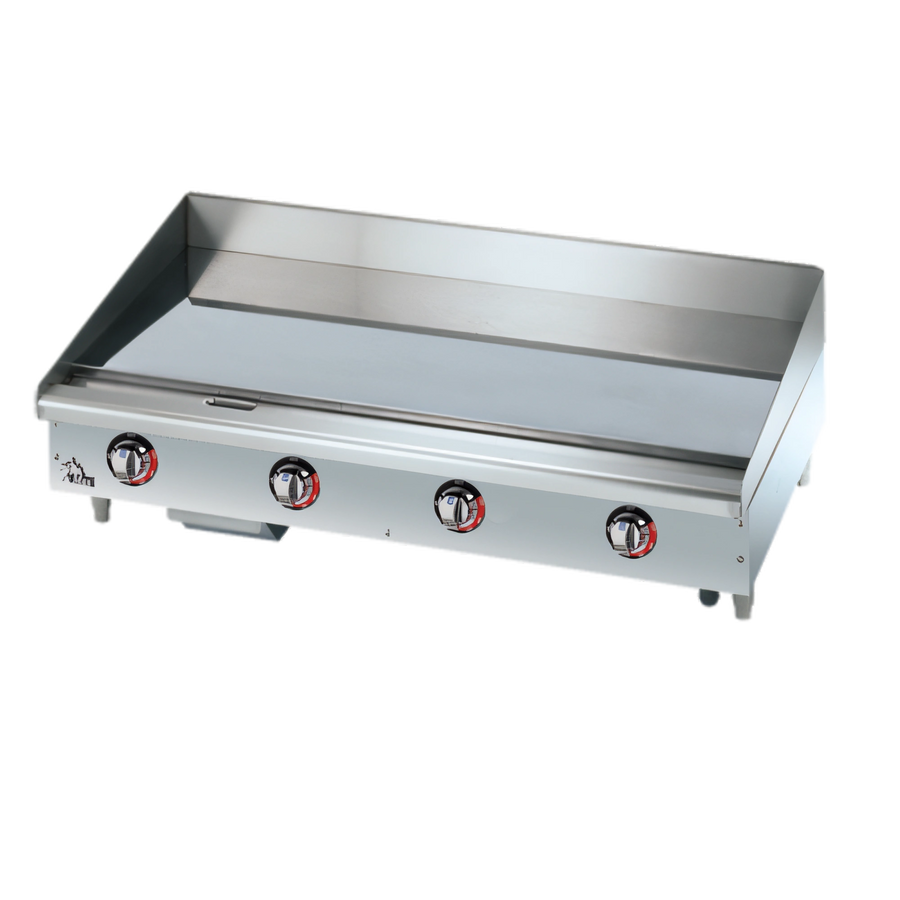

Star-Max® 48" Heavy-Duty Electric Griddle – Chrome Plate
Model 548CHSF | Made in the USAWhen your menu demands flawless sear lines at breakfast, lunch and dinner, the Star-Max 548CHSF steps up. A 1" thick chrome plate, rapid-response snap-action controls and a massive 16 kW heater bank deliver the production capacity and temperature consistency serious kitchens need—all in a countertop footprint.
Key advantages

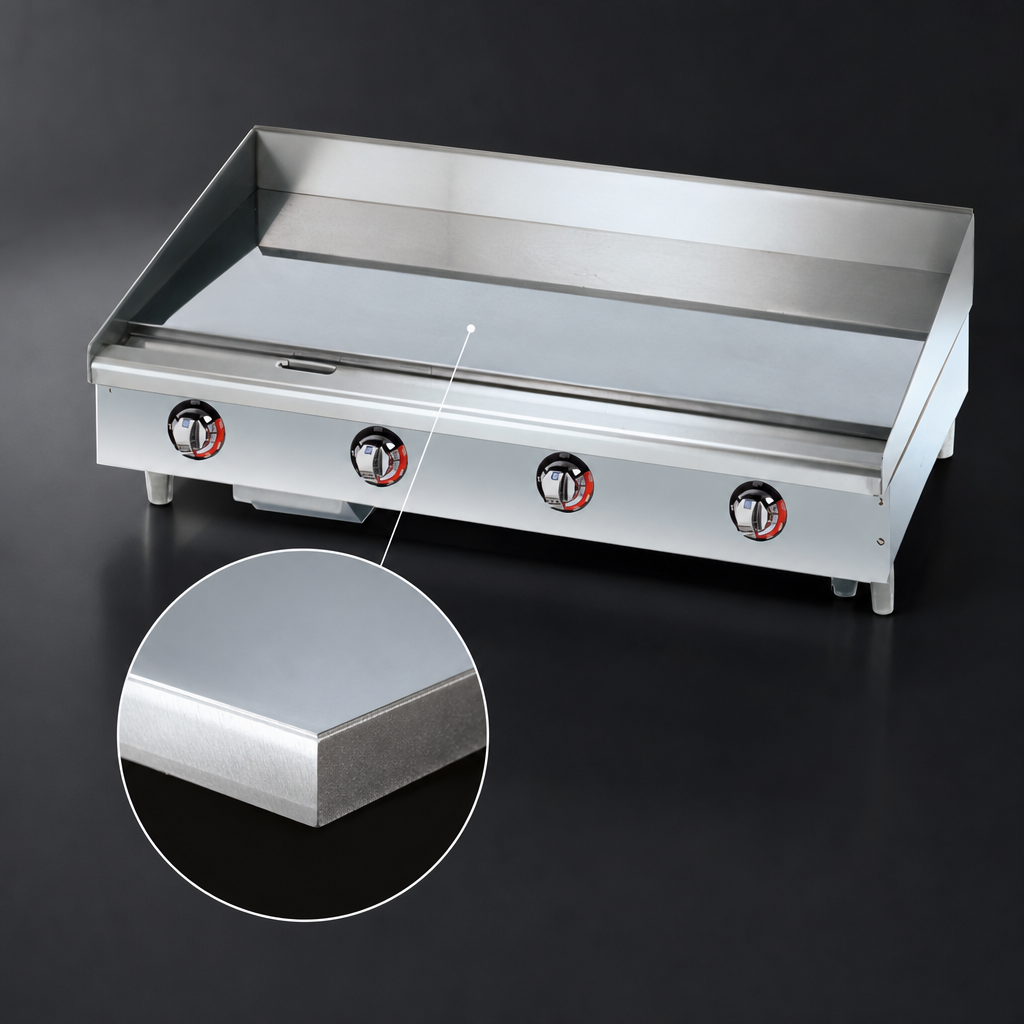

- Premium 1" mirror-finished chrome plate reduces sticking, speeds cleanup and minimizes flavor transfer.
- 4000 W incoloy element every 12" (4 total) for even edge-to-edge heat.

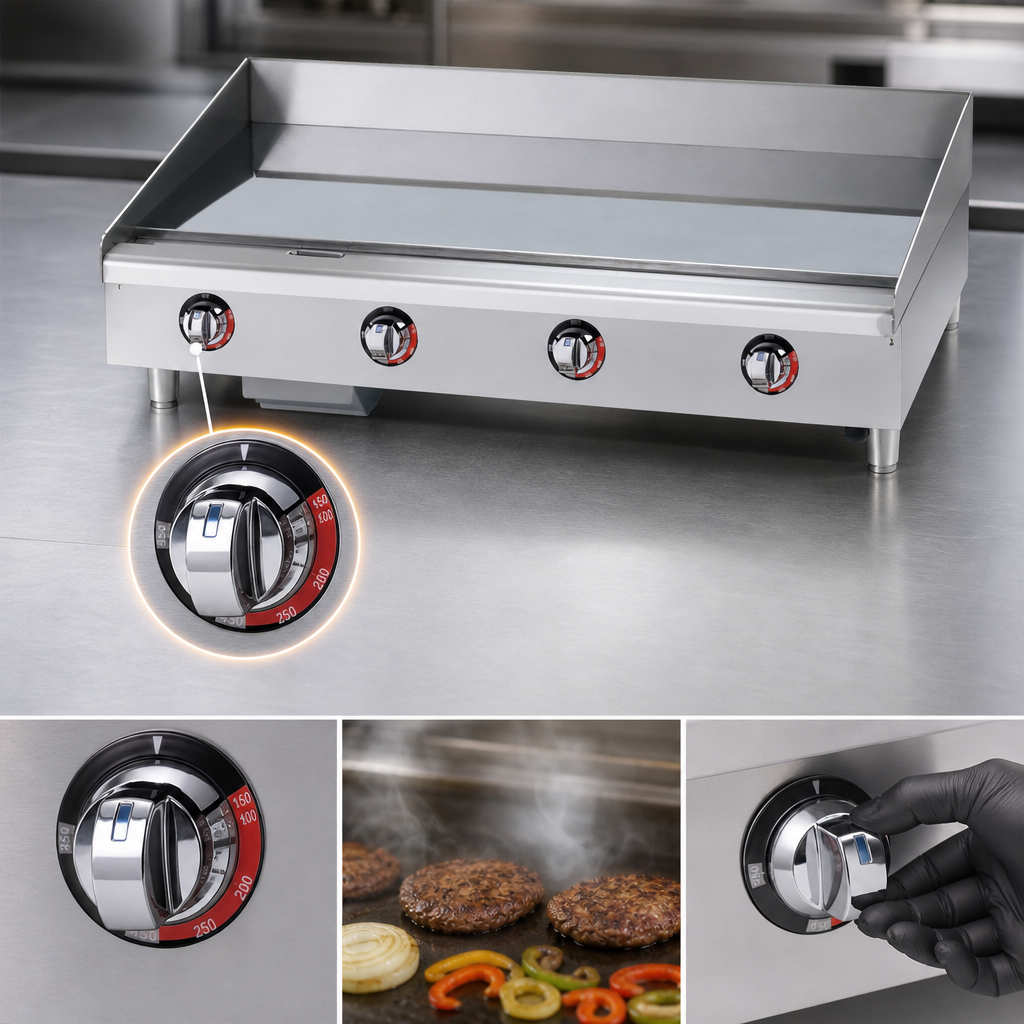

- Snap-action thermostat embedded just 3⁄16" from the surface reacts instantly to load changes—keep temps locked between 150 – 450 °F.
- Cool-to-the-touch stainless bull-nose protects controls while giving chefs a comfortable lean-in zone.
- 4½" wrap-around splash guard plus 3¼" wide trough channel grease into a 4½-qt. stainless drawer for fast, safe disposal.
- Rugged all-welded frame with stainless top/front and aluminized sides stands up to daily punishment.
- Chrome-plated metal knobs built for years of smooth, positive adjustment.
- Adjustable 4" steel legs allow easy leveling on any prep line.
Technical specifications
| Cooking surface | 48" W × 20 ¾" D (9.25 ft²) |
|---|---|
| Plate material | 1" (2.5 cm) thick chrome-plated steel |
| Temperature range | 150 °F – 450 °F (65 °C – 232 °C) |
| Heating elements | 4 × 4000 W incoloy sheath (one every 12") |
| Total wattage | 16,000 W @ 240 V | 12,016 W @ 208 V |
| Electrical | 208 / 240 V, 1- or 3-phase, hard-wire connection |
| Overall dimensions | 48" W × 27.9" D × 15.5" H |
| Shipping / installed weight | 350 lb / 330 lb |
| Clearances | 1" sides & rear from combustibles with supplied 4" legs |
| Certifications | cULus, UL EPH Classified, CSA |
| Warranty | 2 years parts & labor |
Ideal for
- Diners & brunch concepts needing split-zone breakfast service
- High-volume QSR griddle lines
- Institutional kitchens where recovery time and durability are non-negotiable
Need a matching equipment stand or financing options? Chat with our team—quick approvals keep your project moving.
