Star (Middleby) 530TF Star-Max (QUICK-SHIP) Electric Fryers
Description

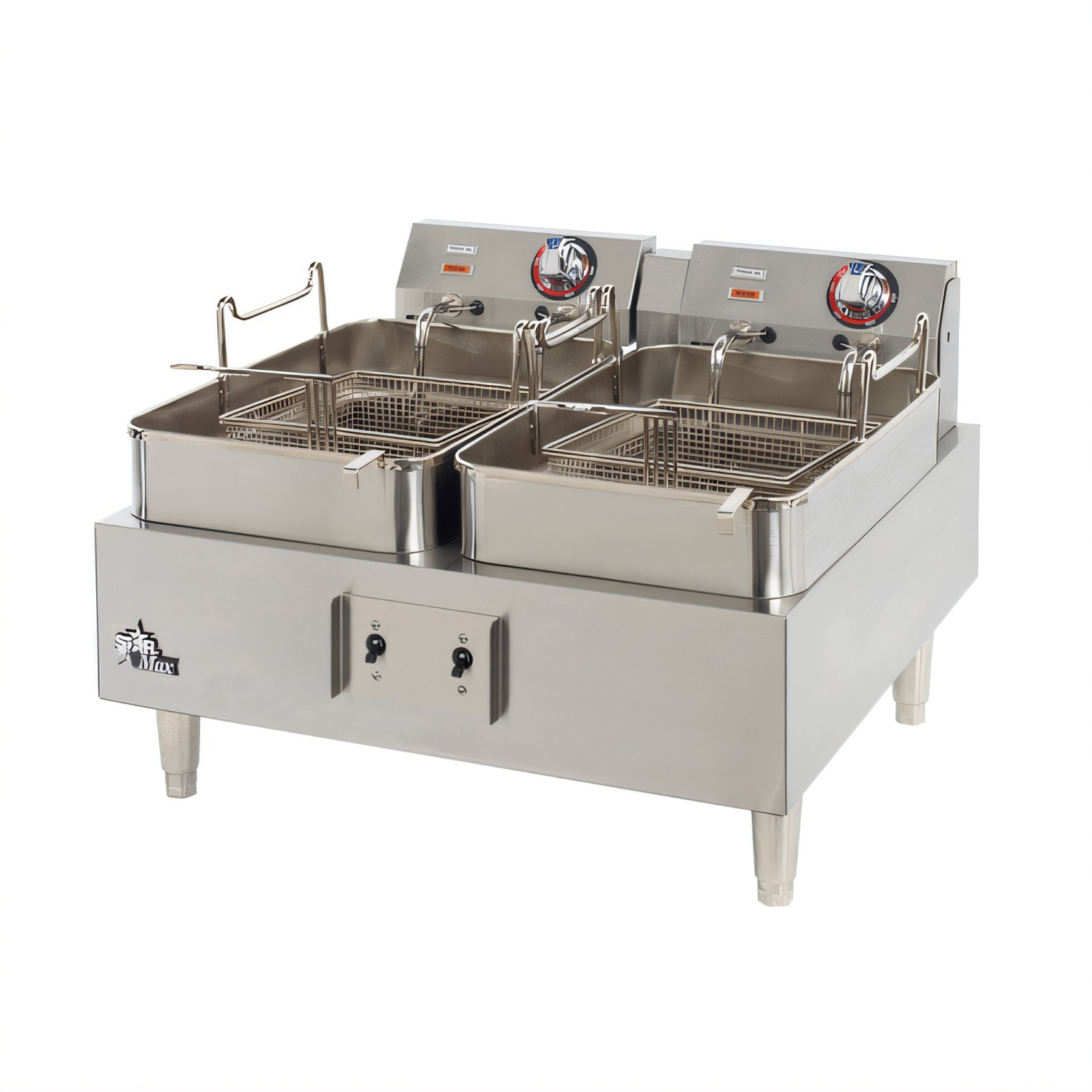

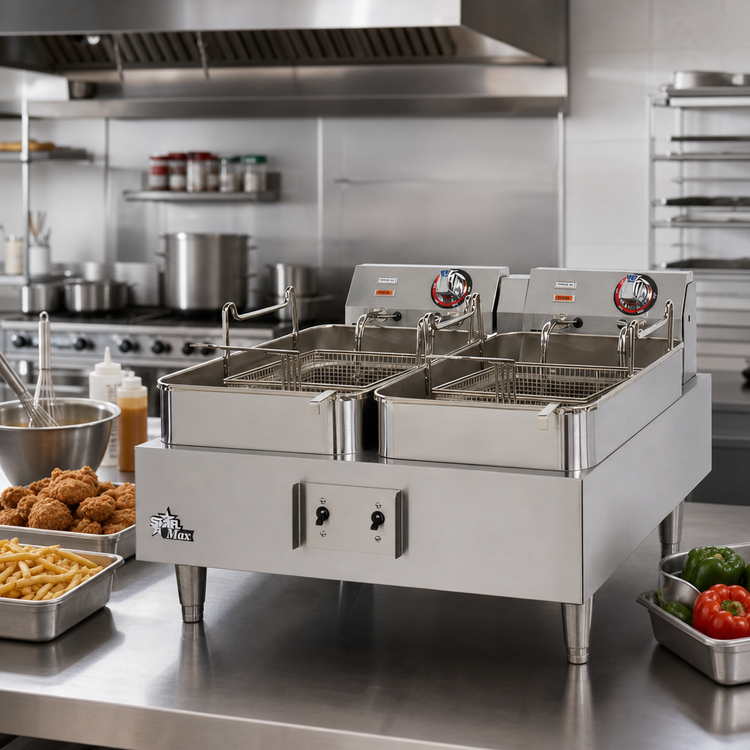

Star-Max® Countertop Electric Fryer – Twin 15 lb Frypots
(QUICK-SHIP) • Model 530TF • Made in USAKeep the fry station moving even during peak rushes. The Star-Max 530TF packs two independent 15 lb stainless-steel frypots into a compact 24" countertop footprint, giving you 30 lb total oil capacity without sacrificing valuable floor space. Order by 12 PM CST and it ships the same day*.
Performance & productivity

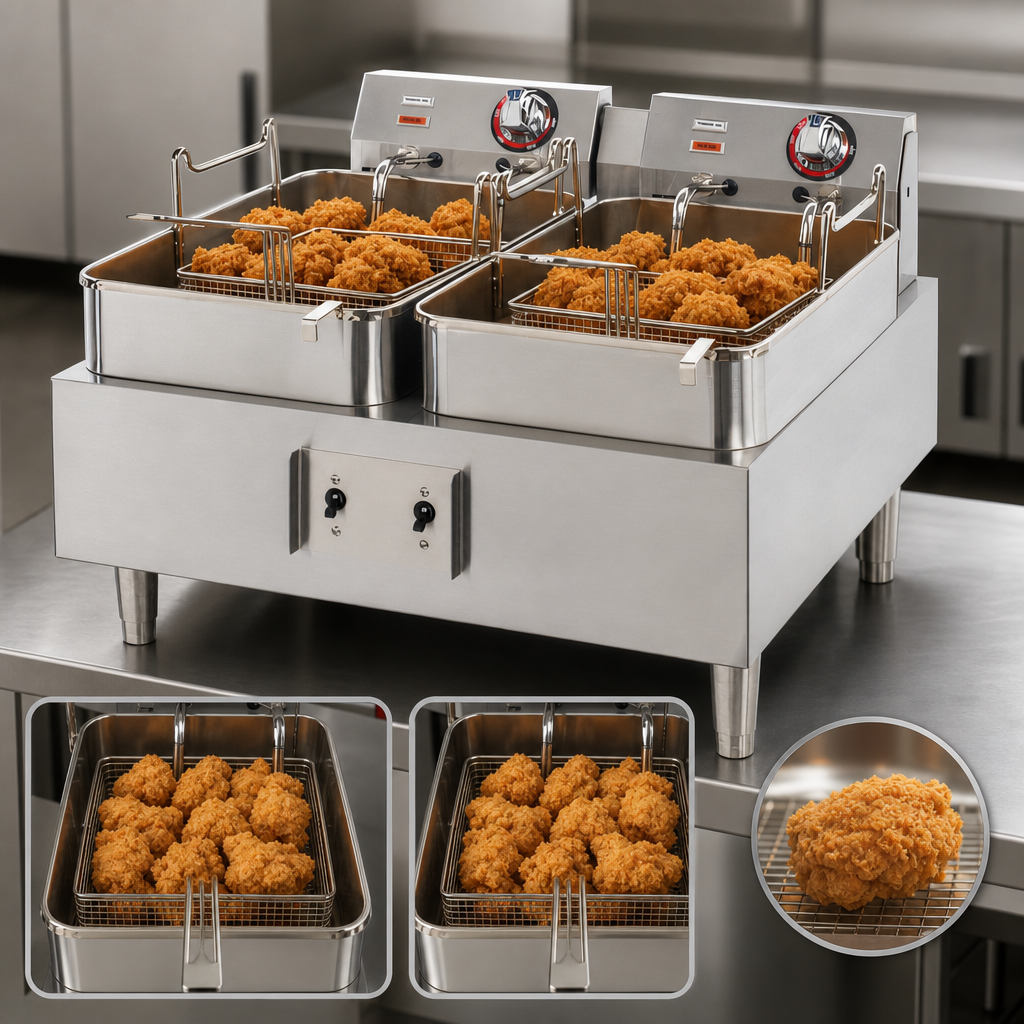

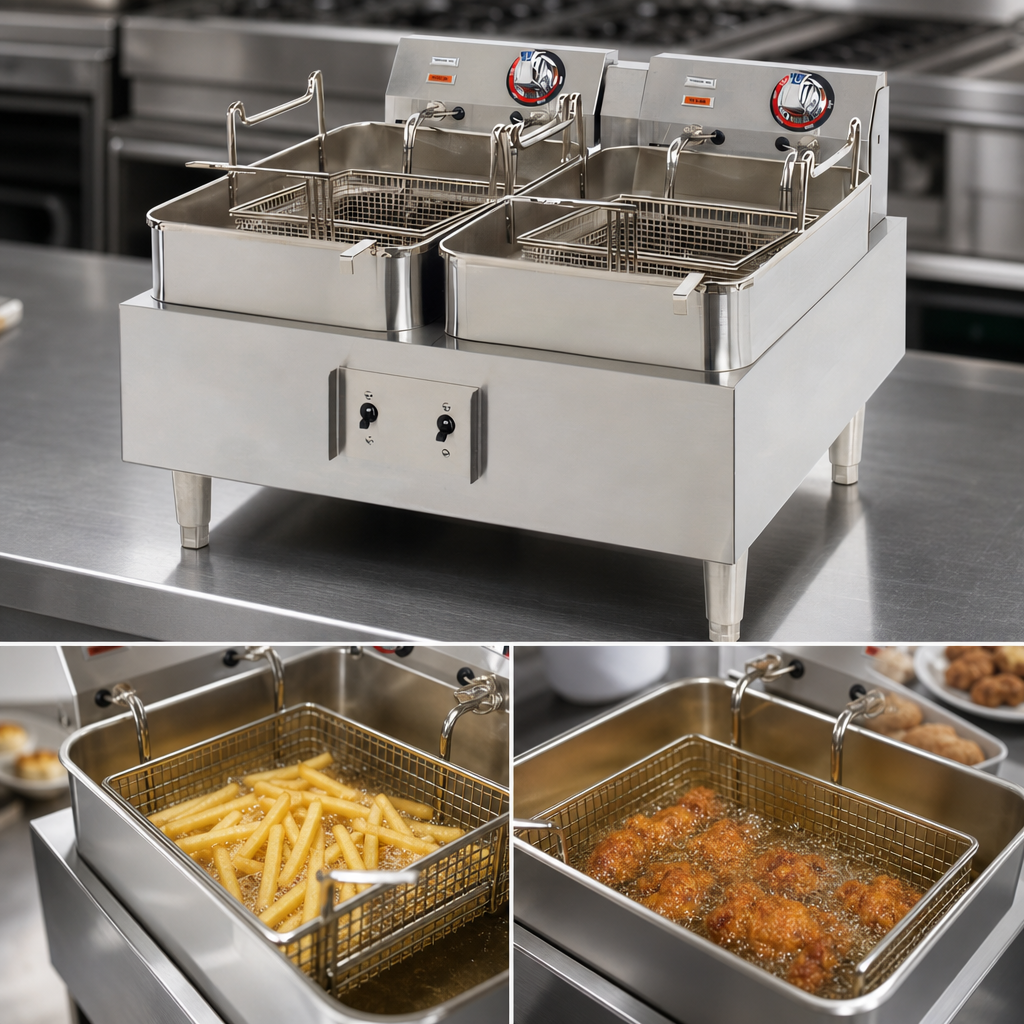

- Two 15 lb removable frypots let you run different menu items or stagger cook cycles.
- Immersion-type elements swing up for effortless kettle access and even heat distribution.
- Snap-action thermostats respond fast and hold set temps from 200 °F–375 °F (93 °C–191 °C).
- Built-in high-limit safety shuts elements down before oil reaches dangerous temperatures.
- Separate lighted On/Off power switches keep pre-heat and recovery times under control.
Built to last
- All-stainless exterior and frypots resist corrosion and wipe down quickly.
- Heavy-duty metal control knobs stand up to constant, high-heat use.
- 4" nickel-plated legs provide clearance for cleaning underneath.
- UL, cULus & UL EPH Classified for electrical and sanitation compliance.
Included in the box
- (2) Nickel-plated wire fry baskets with cool-touch handles (one per pot)
- Removable stainless drain/strainer screens
- Operator’s manual
Key specifications
| Oil capacity | 30 lb total (15 lb per frypot) |
|---|---|
| Overall width | 24 in (610 mm) |
| Overall depth | 24.8 in (630 mm) |
| Height | 16.6 in closed / 37.8 in open (422 mm / 960 mm) |
| Voltage | 208/240 V - single phase (230 V 3-phase field-convertible) |
| Power | 8.6 kW @ 208 V / 11.5 kW @ 240 V |
| Amps | 41.5 A @ 208 V / 47.9 A @ 240 V |
| Electrical connection | Hard-wire (no cord or plug supplied) |
| Shipping weight | 80 lb (36.3 kg) |
| Warranty | 2 years parts & labor |
Looking to spread out the cost? Middleby Equipment Financing offers fast credit decisions and fixed monthly payments. Contact us for details.
*Quick-Ship applies to orders of three (3) units or fewer and accounts in good credit standing. Specifications are subject to change without notice.
