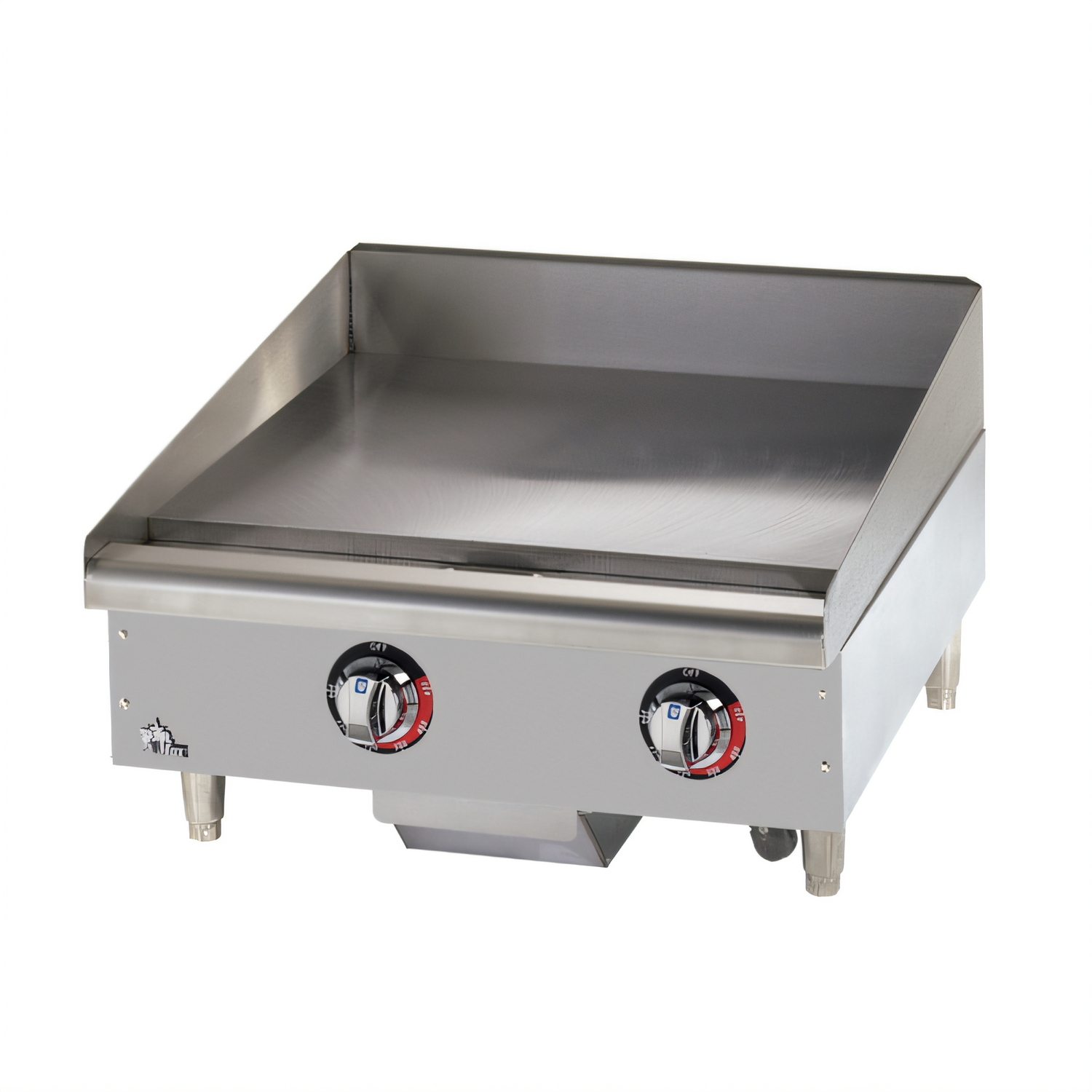

Star-Max Heavy-Duty 24-Inch Electric Countertop Griddle with 1-Inch Polished Steel Plate

SKU: 524TGF
$2,478.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Electric Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Star (Middleby)

Star-Max Heavy-Duty 24-Inch Electric Countertop Griddle with 1-Inch Polished Steel Plate

Snap-Action Thermostat, 150°F to 450°F, 208/240V

Built for busy kitchens, this 24-inch electric griddle delivers fast, even heat, precise thermostatic control, and durable stainless steel construction.

  • 24-inch countertop griddle with a 1-inch thick polished steel cooking plate for even heat distribution.
  • Snap-action thermostat adjusts from 150°F to 450°F for responsive temperature control.
  • 4000-watt heating element every 12 inches of griddle width supports consistent cooking performance.
  • Stainless steel front and top with aluminized steel side panels are built for heavy-duty use.
  • Front grease trough, grease chute, and stainless steel grease drawer help simplify cleanup.
  • Double-wall construction supports installation within 1 inch of combustible surfaces when space is tight.

Overall Dimensions:

24.0"W x 27.88"D x 15.5"H

Product Weight:

175.0 lb

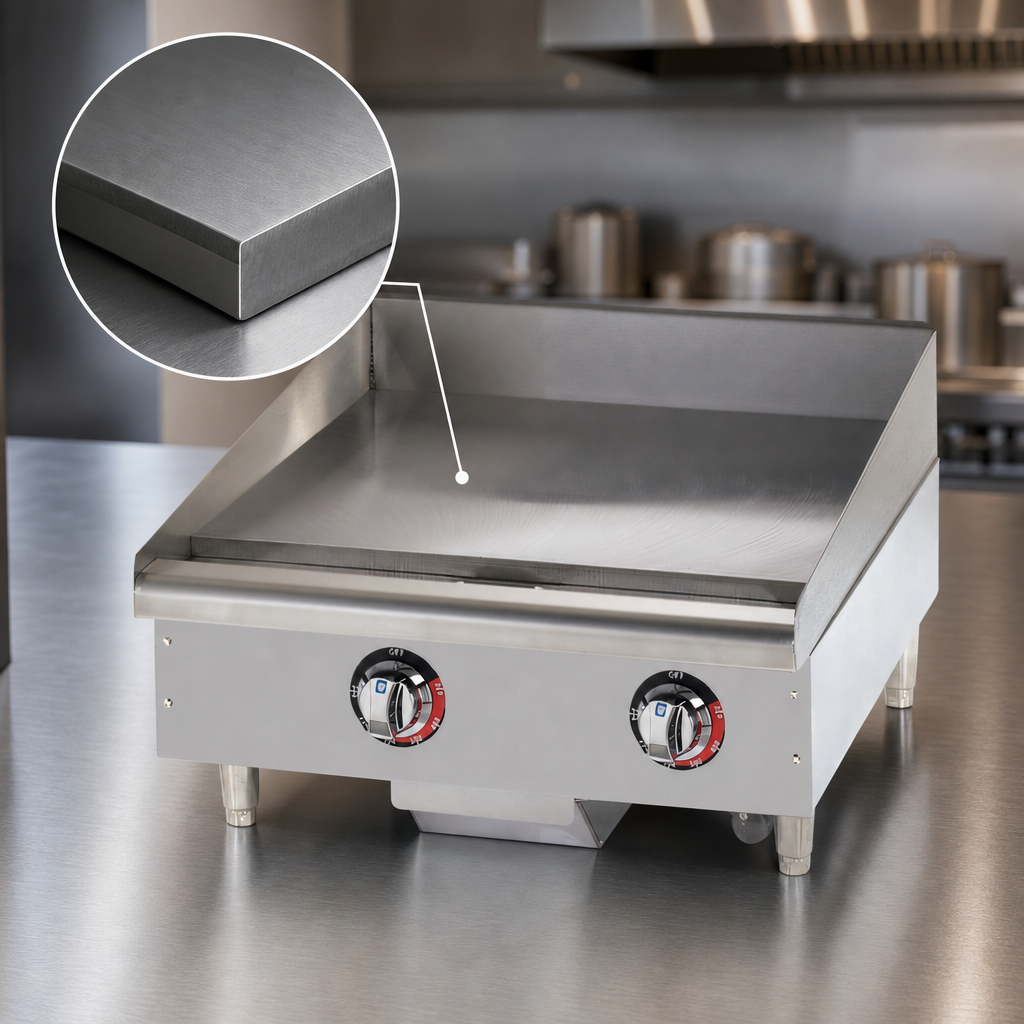

1-Inch Polished Steel Plate

Thick polished steel griddle plate supports excellent heat retention and even cooking.

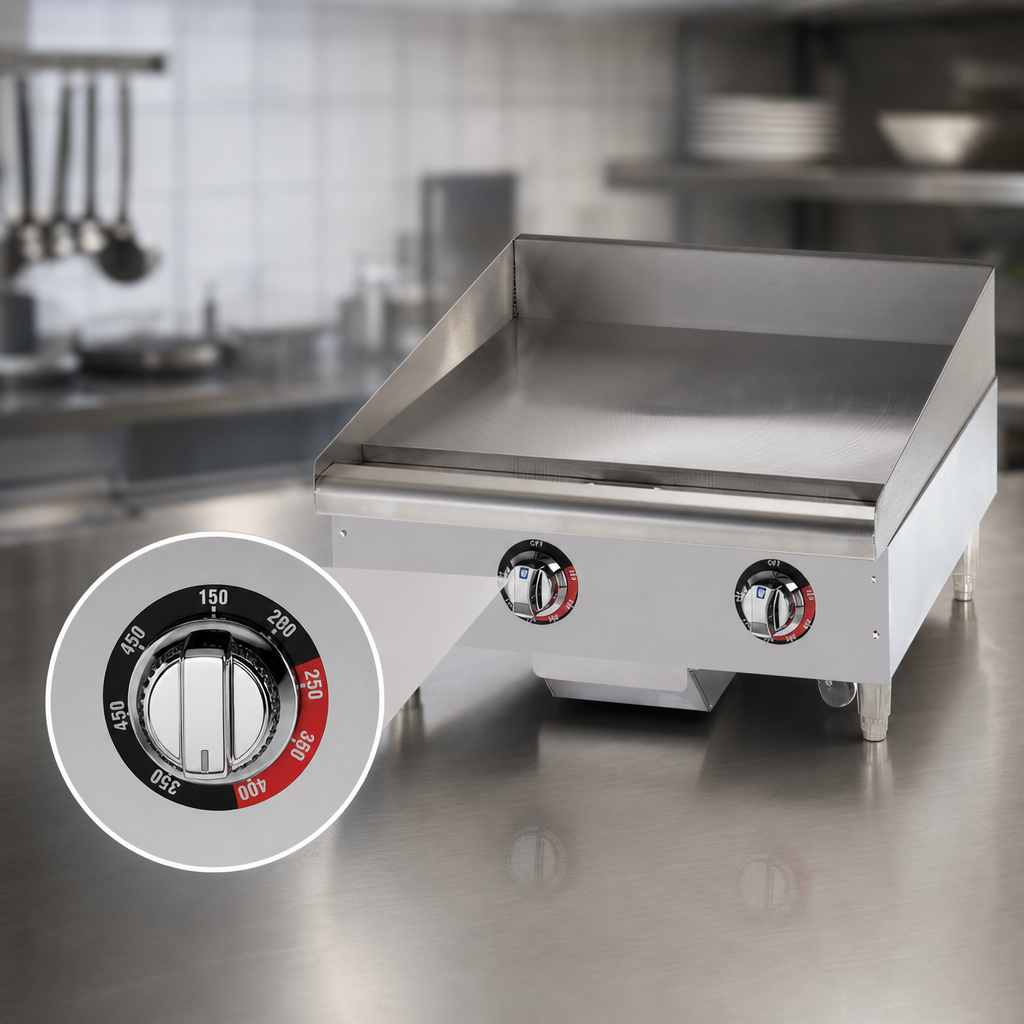

Snap-Action Thermostat

Adjusts from 150°F to 450°F for quick response to temperature changes.

4000-Watt Heating Elements

One 4000-watt element is used every 12 inches of griddle width for consistent heat output.

Stainless Steel Bull Nose Front

Protects the control knobs and creates a comfortable work zone.

Heavy-Duty Welded Construction

Built with a welded steel frame, stainless steel top and front, and aluminized steel side panels.

Grease Management System

Includes a 3-1/4-inch front grease trough, grease chute, and 4-1/2-quart stainless steel grease drawer.

Wrap-Around Splash Guard

4-1/2-inch stainless steel splash guard helps contain splatter during cooking.

Low-Clearance Installation

Double-wall construction allows installation within 1 inch of combustible surfaces.

Adjustable Die-Cast Legs

Heavy-duty 4-inch legs provide stability and include 1-3/8-inch adjustment.

Rear Junction Box

Junction box at the rear simplifies electrical connection.

Type Griddle
Style Countertop
Installation Type Countertop
Controls Snap-Action Thermostat
Temperature Range 150°F to 450°F
Cooking Surface Width 24 Inches
Cooking Surface Depth 20.75 Inches
Voltage 208/240 Volts
Watts 8 kW
Finish Stainless Steel Front, Aluminized Steel Sides
Shipping Width 24 Inches
Shipping Depth 28 Inches
Shipping Height 16 Inches
Shipping Weight 175 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

2 years parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface is 24 inches wide by 20-3/4 inches deep.
The snap-action thermostat adjusts from 150°F to 450°F.
It operates on 208 or 240 volts and uses a 4000-watt element every 12 inches of griddle width.
Yes. Double-wall construction allows installation within 1 inch of combustible surfaces, and combustible-floor installations require a minimum 27-inch stand.
It includes a front grease trough, grease chute, and a 4-1/2-quart stainless steel grease drawer.
