Star (Middleby)  |  Star-Max  |  SKU: 524CHSF

Star (Middleby) 524CHSF Star-Max Electric Griddles

$4,874.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Electric Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

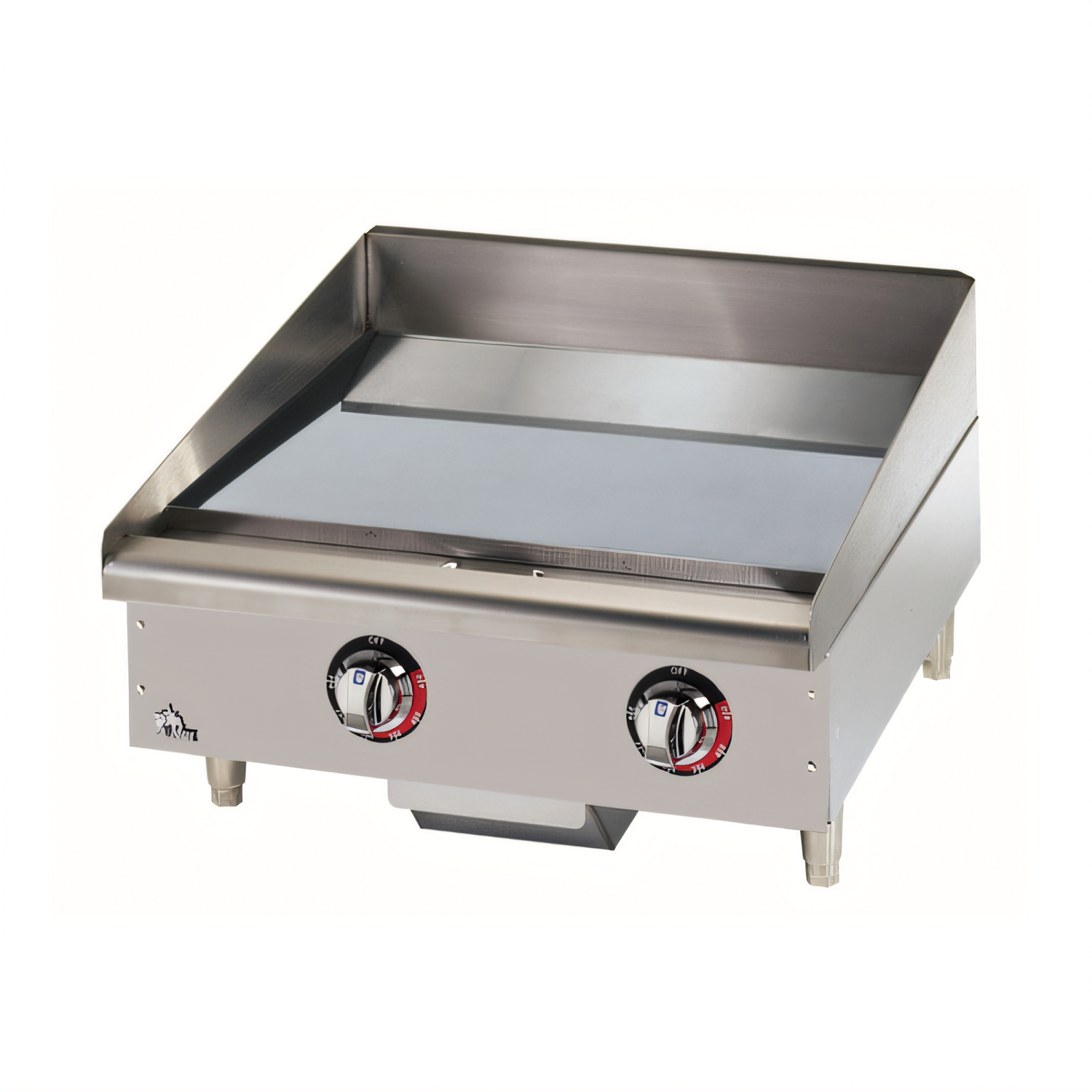

Star-Max® 24" Electric Chrome Griddle – Model 524CHSF

Heavy-duty countertop performance in a compact 24" footprint

When breakfast rush meets lunch service, the Star-Max 524CHSF keeps pace. A mirror-smooth 1" chrome plate, powerful incoloy elements and a fast-acting thermostat deliver even heat, lightning-quick recovery and effortless clean-up—shift after shift.

Why You’ll Love It

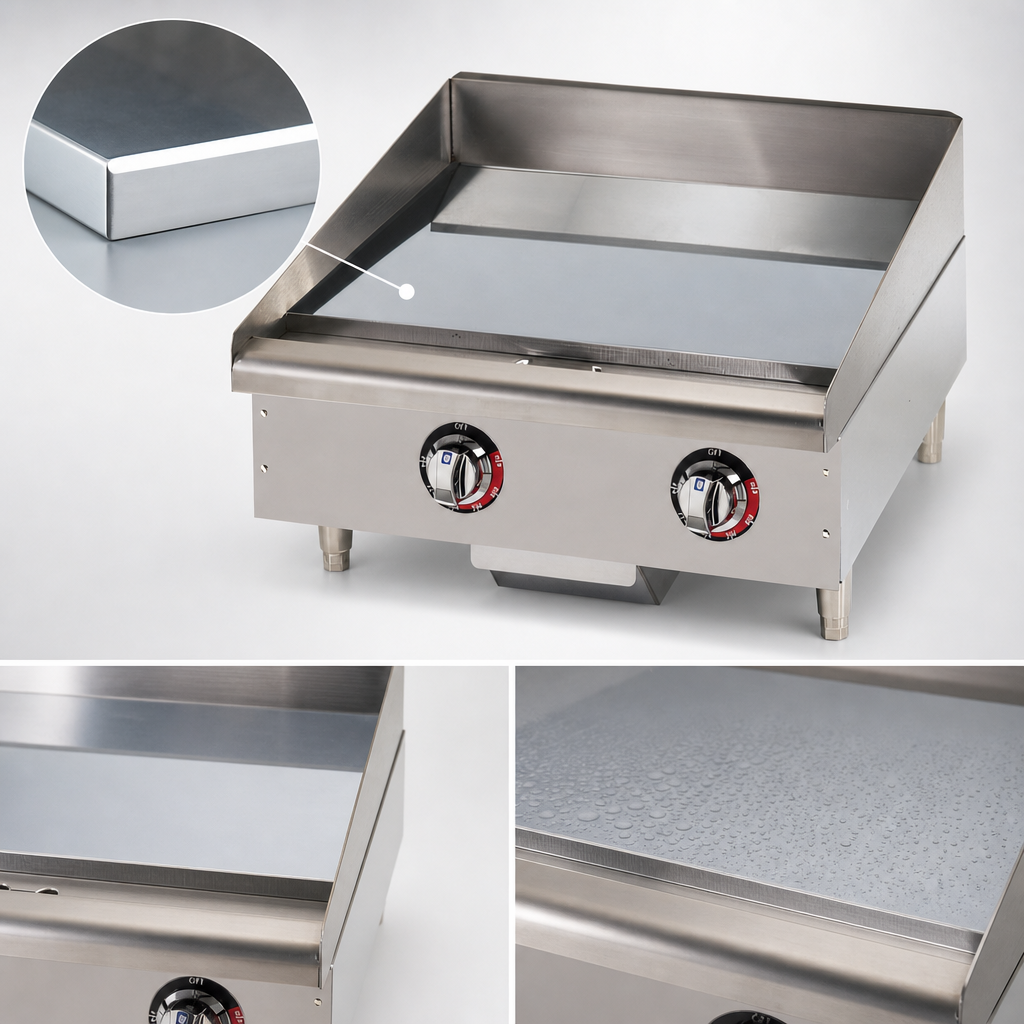

  • True chrome surface – 1" (2.5 cm) thick, highly polished chrome minimizes sticking and radiates less heat into the kitchen.

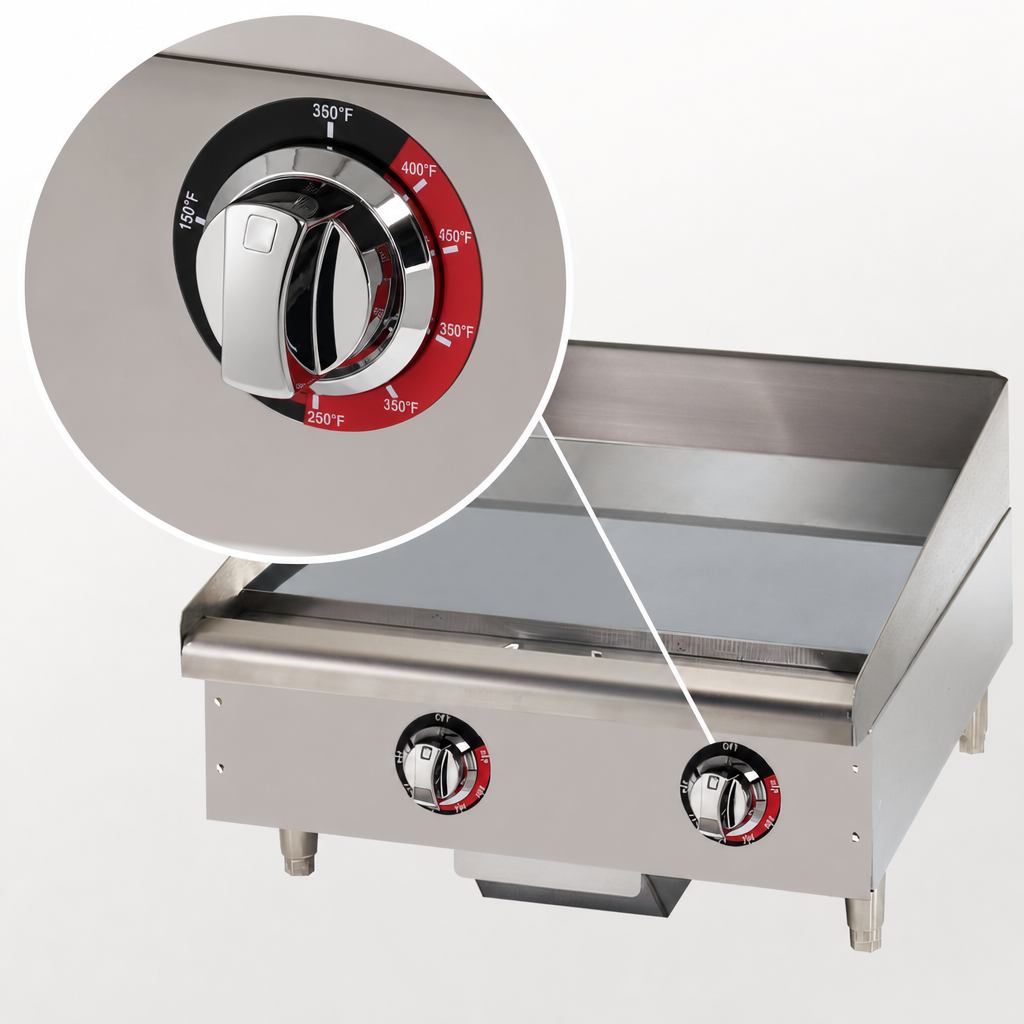

  • Precise snap-action control – Thermostats mounted 3⁄16" from the cooking surface respond instantly from 150-450 °F (65-232 °C).
  • Serious power – A 4 kW incoloy element every 12" supplies a total of 8 kW at 240 V (6.0 kW at 208 V) for rapid recovery when the line is stacked.
  • Built for the long haul – All-welded steel frame, stainless top & bull-nose, aluminized steel sides and die-cast 4" adjustable legs.
  • Cleaner, cooler station – 4½" wrap-around splash guard, 3¼" trough and 4½-qt. stainless drawer keep grease contained and off the floor.
  • Operator-friendly knobs – Oversized chrome-plated metal knobs stay cool and stand up to constant use.
  • Made in the USA and fully certified for commercial kitchens: cULus, UL EPH Classified & CSA.
Perfect For
  • Breakfast diners & cafés
  • Hotel & resort kitchens
  • C-stores and concession stands
  • Catering commissaries
  • Food trucks needing low radiant heat
Technical Specifications
Cooking surface (W × D) 24" × 20 3⁄4" (610 × 527 mm)
Overall dimensions (W × D × H) 24" × 27.9" × 15.5" (610 × 709 × 394 mm)
Plate material / thickness Chrome-plated steel, 1" (25 mm)
Temperature range 150 °F – 450 °F (65 °C – 232 °C)
Heating elements 2 × 4 kW incoloy sheath; embedded
Total wattage 8 kW @ 240 V | 6.008 kW @ 208 V
Electrical 208/240 V, 1 ø or 3 ø, hard-wired
Amps (1 ø) 28.9 A @ 208 V | 33.3 A @ 240 V
Grease drawer capacity 4.5 qt. (4.26 L) stainless steel
Ship / installed weight 175 lb (79 kg) / 165 lb (75 kg)
Certifications cULus, UL EPH, CSA
Warranty 2-year parts & labor (Star-Max line)
Electrical connection required: This unit ships without a cord and must be hard-wired by a qualified electrician to a 208 V or 240 V supply. Field convertible for single- or three-phase service.
What’s Included
  • Star-Max 524CHSF countertop griddle
  • 4 × 4" adjustable steel legs
  • Stainless steel grease drawer
  • Owner’s/installation manual
Popular Accessories (sold separately)
  • 27" equipment stand to meet clearance codes
  • Spare chrome control knobs
  • Scraper & squeegee kit for chrome plates

Need to spread out the cost? Ask about Middleby | Centra financing for fast credit decisions and affordable monthly payments.

Specifications and design are subject to change without notice.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Star-Max

Certifications

cULus, UL EPH Classified, CSA, Made in USA

Height

15.5in

Width

24.0in

Depth

27.88in

Shipping Weight

175.0lbs

Exterior Finish

aluminized steel, stainless steel front

Griddle Plate Finish

chrome plated

Control Type

thermostatic

Cooking Surface Width (side - side)

11" - 24"

Cooking Surface Depth (front - back)

17" - 23"

Specifications

Star-Max® Heavy Duty Griddle, electric, countertop, 24" W x 20-3/4" D cooking surface, 1" thick chrome griddle plate, 150°-450°F snap-action thermostat and 4000 watt element every 12", welded steel frame with stainless steel top and front, splash guard & grease trough, aluminized steel sides, chrome metal knobs, grease drawer, 4" steel legs, cULus, UL EPH Classified, CSA, Made in USA
