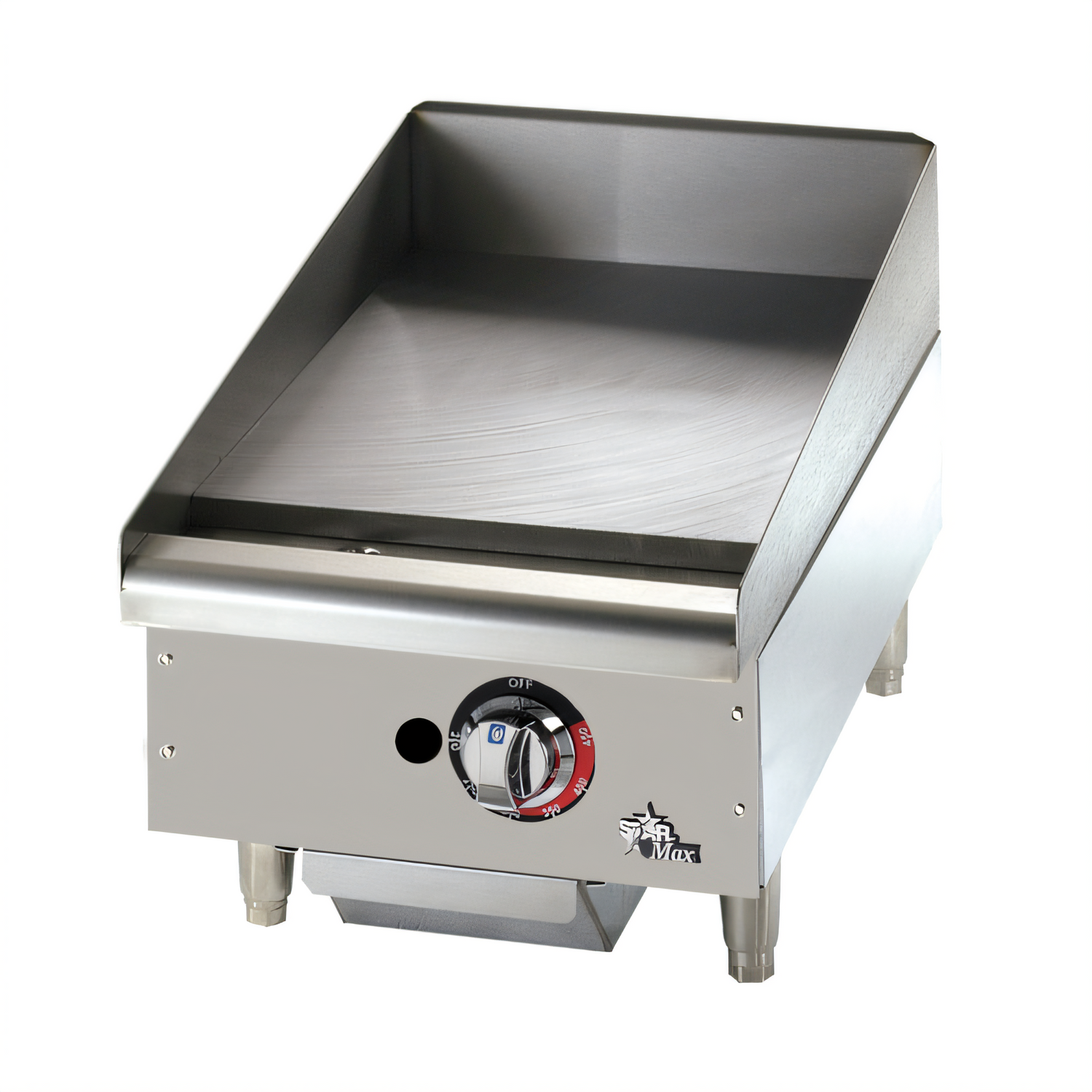

Star-Max® 15" Electric Countertop Griddle – Model 515TGF
Heavy-Duty Snap-Action Performance, Made in the USAWhen every inch of cookline space matters, the Star-Max® 515TGF delivers full-size griddle muscle in a compact 15" footprint. A 1" thick polished steel plate powered by a 4 kW incoloy element reacts instantly to temperature changes, letting you sear, sauté, and finish with precision from breakfast rush through late-night snacks.
Why you’ll love it

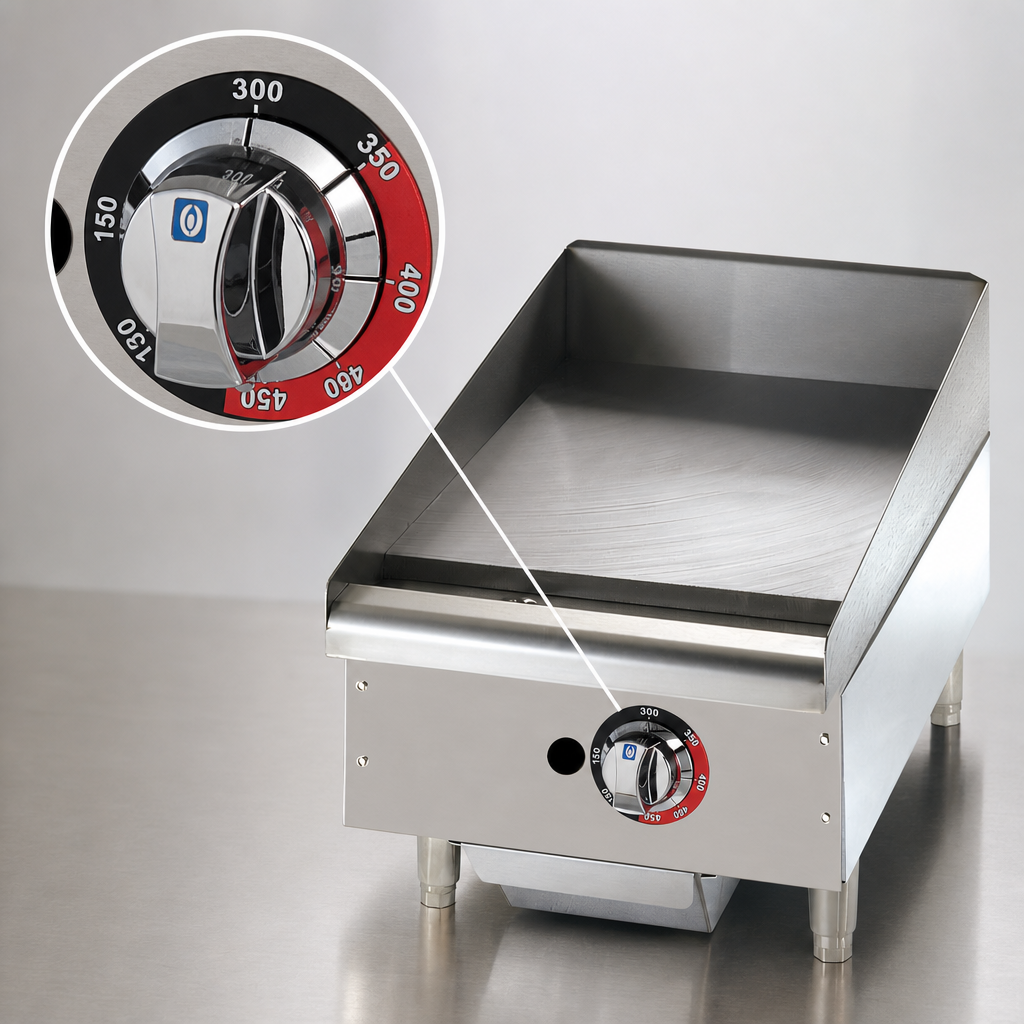

- Rapid-response heat – Snap-action thermostat embedded 3/16" from the surface maintains 150 – 450 °F with minimal swing.

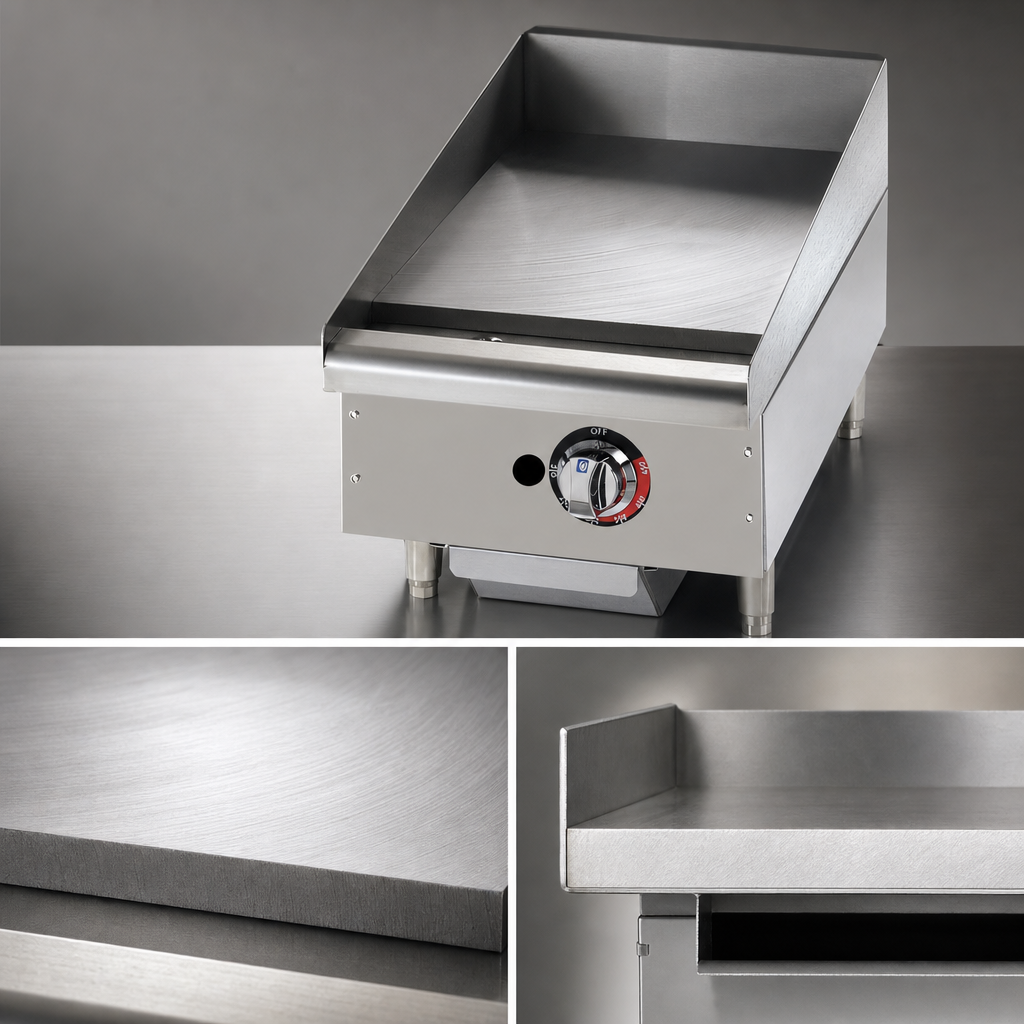

- True 1" plate – Heavy, highly polished steel distributes heat evenly and recovers fast when fully loaded.
- Built to take a beating – All-welded steel frame, stainless bull-nose, and chrome metal knobs withstand the busiest kitchens.
- Cleaner cookline – 4½" wrap-around splash guard, 3¼" grease trough and 4½-quart drawer keep mess under control.
- Plug-free countertop install – Supplied 4" adjustable legs and 1" side/back clearance rating make placement simple.
- Certified & warranted – cULus, UL EPH, CSA listings plus a 2-year parts & labor warranty for worry-free ownership.
Ideal applications
- Food trucks & kiosks needing high output in tight quarters
- C-stores and concession stands adding made-to-order breakfast or burgers
- Bars looking for a quick late-night menu without a full cookline
- Satellite or prep kitchens that demand precise, repeatable results
Technical specifications
| Cooking surface | 15" W × 20 ¾" D (381 × 527 mm) |
|---|---|
| Plate material / thickness | Polished steel, 1" (25 mm) |
| Temperature range | 150 – 450 °F (66 – 232 °C) snap-action control |
| Heating element | 4 kW incoloy sheath (one element / 12") |
| Electrical | 208 V / 14.4 A / 1-ph | 240 V / 16.7 A / 1-ph (hard-wired) |
| Overall dimensions (W × D × H) | 15" × 27.9" × 15.5" (381 × 709 × 394 mm) |
| Shipping / installed weight | 125 lb (56.7 kg) / 83 lb (37.6 kg) |
| Clearances | 1" sides & back from combustible surfaces |
| Certifications | cULus Listed, UL EPH Classified, CSA |
| Origin & warranty | Made in USA | 2-year parts & labor |
Installation required: This unit ships without cord or plug and must be hard-wired by a
qualified electrician. Follow all local codes and Star installation instructions.
Need to spread out payments? Ask us about easy equipment financing through Middleby Finance.
$2,083.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Heavy-duty Star-Max 15" electric countertop griddle: 1" polished plate, 150–450°F thermostat, 4000W, stainless front, grease trough, Made in USA.
Manufacturer
Star (Middleby)
Brand name
Star-Max
Certifications
cULus, UL EPH Classified, CSA, Made in USA
Height
15.5in
Width
15.0in
Depth
27.88in
Shipping Weight
125.0lbs
Cooking Surface Width (side - side)
11" - 24"
Exterior Finish
aluminized steel, stainless steel front
Control Type
thermostatic
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
17" - 23"
Specifications
(QUICK SHIP) Star-Max® Heavy Duty Griddle, electric, countertop, 15" W x 20-3/4" D cooking surface, 1" thick polished steel griddle plate, 150°-450°F snap-action thermostat and 4000 watt element every 12", welded steel frame with stainless steel top and front, splash guard & grease trough, aluminized steel sides, chrome metal knobs, grease drawer, 4" steel legs, cULus, UL EPH Classified, CSA, Made in USA
