Star (Middleby) 515F Star-Max Electric Fryers
Description

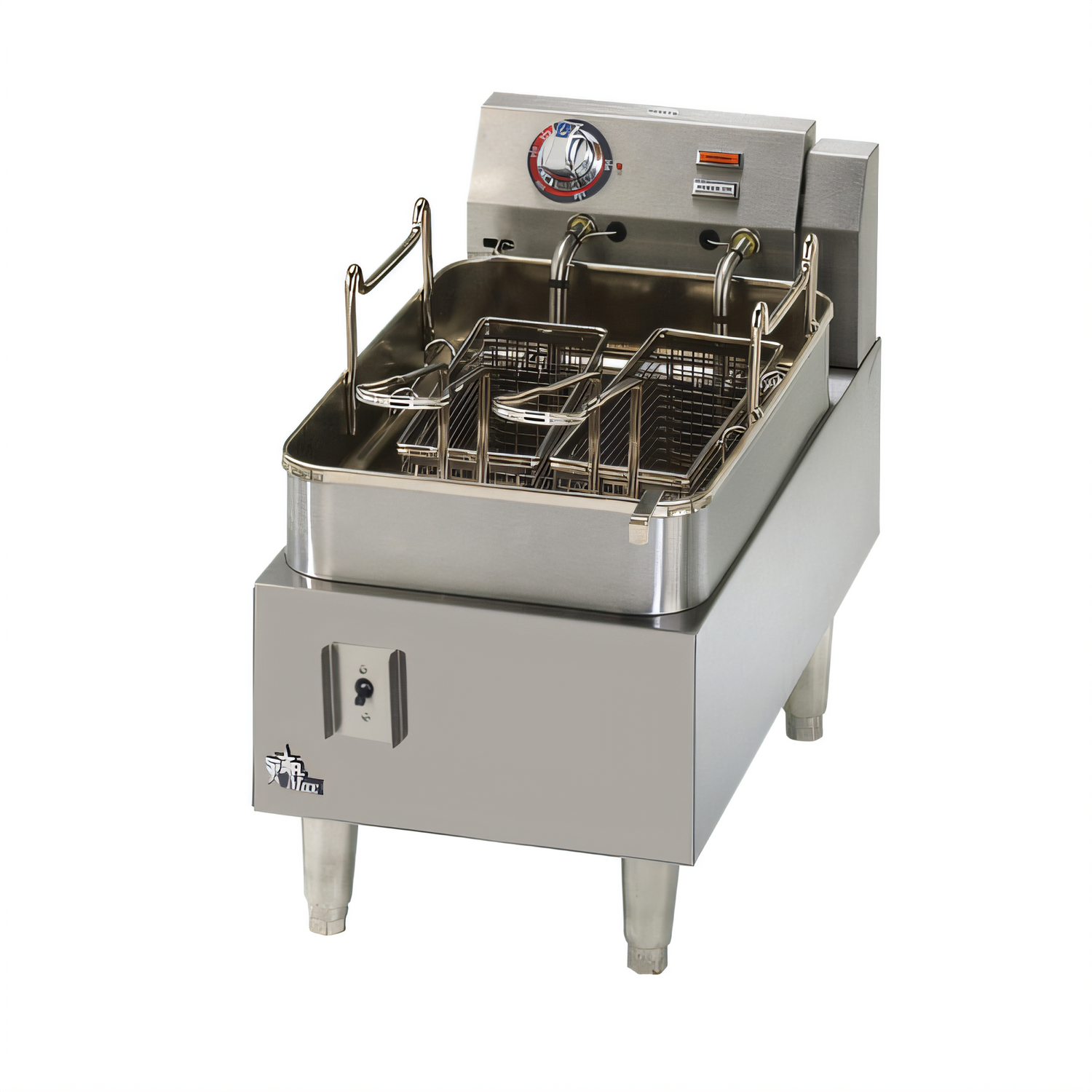

Star-Max® 15 lb Countertop Electric Fryer
Model 301HLF – Made in the USADesigned for quick turn-around and rock-solid reliability, the Star-Max® 301HLF gives you full-size frying performance in a space-saving countertop footprint. A 15 lb stainless-steel frypot, twin fry baskets and swing-up immersion elements make it the perfect everyday fryer for cafés, concession stands and satellite kitchens alike.
Why You’ll Love It
- 15 lb oil capacity in a single stainless-steel frypot – ideal for fries, wings, donuts & more.
- Snap-action thermostat lets you dial in temperatures from 200 °F – 375 °F (93 – 191 °C) with fast recovery and built-in high-limit safety.
- Swing-up, immersion-type heating elements provide even heat distribution and lift clear of the kettle for quick cleaning & filtration.
- Twin nickel-plated fry baskets with cool-touch vinyl handles for safe, efficient batch rotation.
- Separate lighted On/Off power switch and heavy-duty metal control knobs stand up to daily commercial use.
- All-stainless exterior, 4 in. adjustable legs and removable frypot keep maintenance simple.
- cULus & UL EPH Classified for electrical & sanitation compliance — no additional field approvals needed.
Technical Specifications
| Oil Capacity | 15 lb (6.8 kg) |
|---|---|
| Temperature Range | 200 °F – 375 °F (93 – 191 °C) |
| Overall Dimensions | 17.9 in W × 21.2 in D × 17.1 in H (455 mm × 538 mm × 434 mm) 32.2 in (818 mm) height with elements raised |
| Leg Height | 4 in (102 mm) |
| Electrical | 208/240 V, 1-phase, 4.1/5.5 kW, 19.9/22.9 A, NEMA 6-30P cord & plug supplied |
| Construction | Stainless-steel body & removable frypot, nickel-plated baskets, metal control knobs |
| Certifications | cULus, UL EPH Classified |
| Shipping / Installed Weight | 50 lb / 40 lb (22.7 kg / 18.1 kg) |
| Warranty | 2 years parts & labor |
Pro Tips for Best Results
- Maintain oil at 350 °F for most fried foods; allow full recovery between loads.
- Skim debris and filter oil daily to prolong oil life and preserve flavor.
- Raise heating elements and remove the frypot for complete cleaning at the end of each shift.
Covered by Star-Max’s industry-leading 2-year parts & labor warranty. Register your fryer on arrival to ensure fast, hassle-free support.
