Key specifications

Phase
1-Phase or 3-Phase
Dimensions
24.0"W × 25.63"D × 14.25"H
Type
Charbroiler
Style
Radiant
Installation Type
Countertop
Material
Steel
Spec sheet
Star SKU: 5124CF

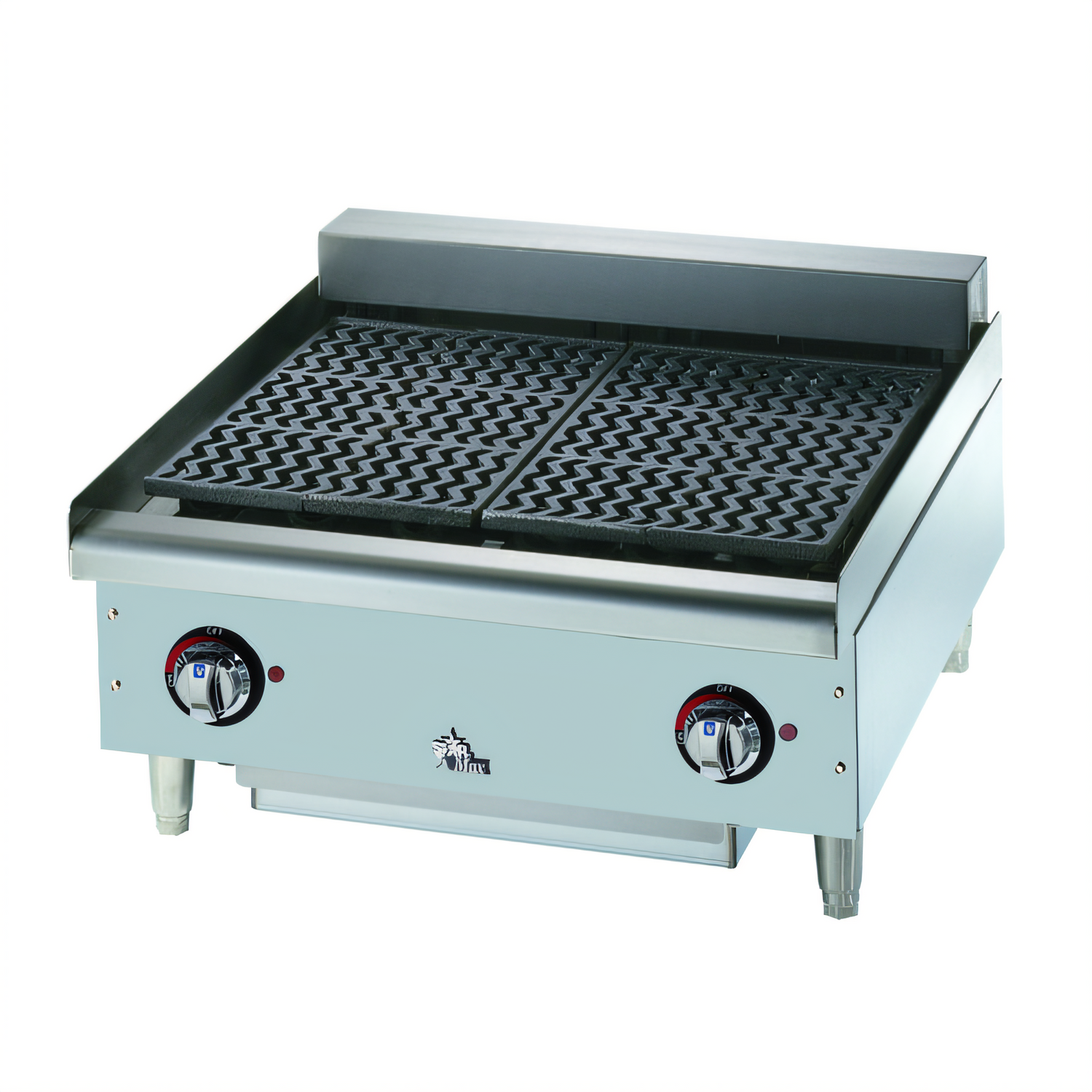

Star-Max 5124CF 24-Inch Electric Charbroiler with Cast Iron Grids

$4,768.00
/each
Estimated to ship in 16–19 business days
Width
ElectricalRequired
Included: Star warranty Two-year parts and labor warranty for Star-Max charbroilers

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $441/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Style Radiant
Installation Type Countertop
Material Steel
Frame Material Welded Steel
Top Material Stainless Steel
Side Material Aluminized Steel
Country of Origin USA
Size 24 in
Grate Type Cast Iron
Water Pan Capacity 6 qt
Voltage 208/240 Volts
Watts 6,600 Watts
Phase 1-Phase or 3-Phase
Controls Infinite
Control Sections 12 in
Electrical Connection Hardwired
Heating Element Count 4
Heating Element Type Incoloy Sheath-Type
Leg Height 4 in

Description

The Star-Max 5124CF is a 24-inch electric countertop charbroiler with heavy-duty removable cast iron grids. Its heating system uses radiant heat from the elements and conduction through the grids.

Infinite controls provide one control knob for each 12-inch cooking section. Swing-up heating elements support cleaning, while the unit includes a grease drawer, stainless steel top and front, stainless steel grease trough, aluminized steel sides, and 4-inch legs.

Overall Dimensions:

24.0"W x 25.63"D x 14.25"H

Product Weight:

129.0 lb

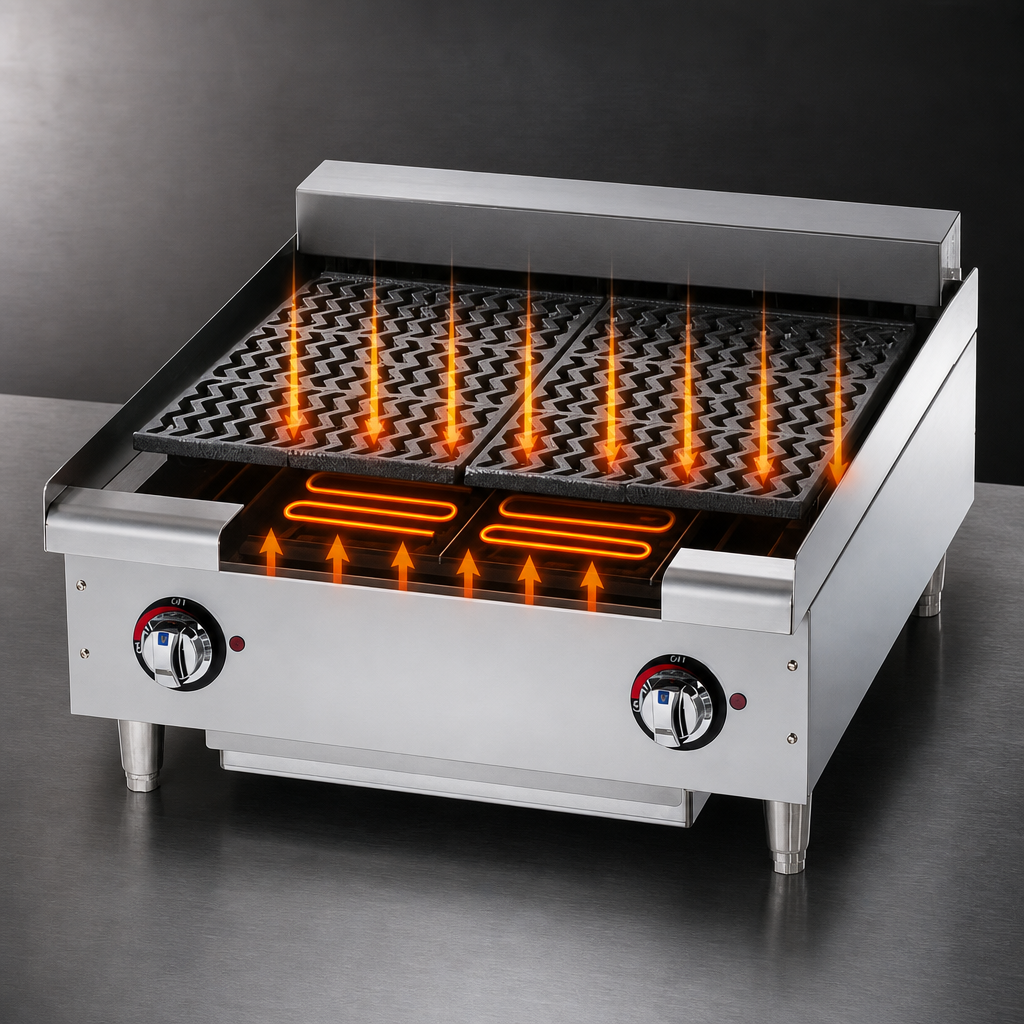

Radiant and conduction heating

Heat transfers directly from the electric elements and through the cast iron grids.

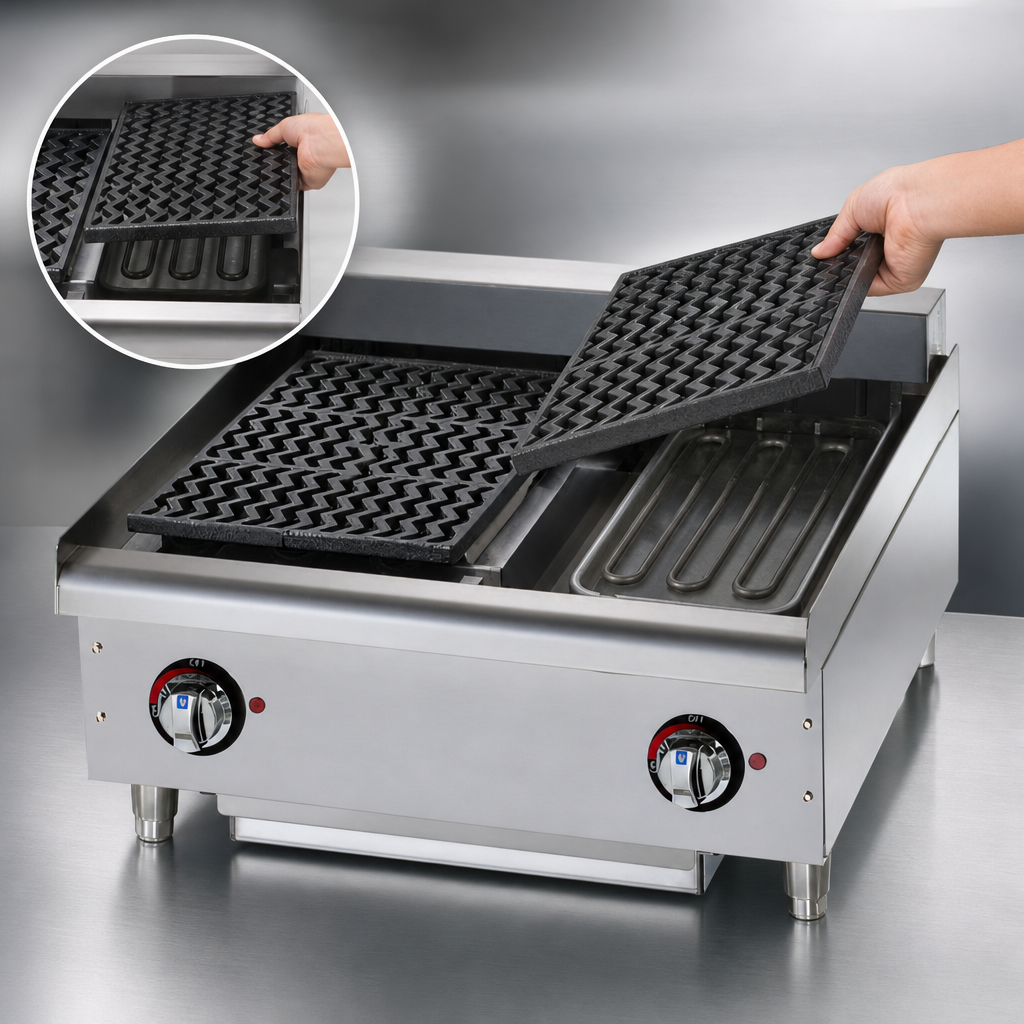

Removable cast iron grids

Heavy-duty cast iron grids are removable for cleaning.

Sectional infinite controls

One control knob provides infinite control for each 12-inch section of cooking surface.

Swing-up heating elements

The heating element assembly swings up and can be locked in a vertical position for cleaning.

Grease management

The unit includes a grease drawer and stainless steel grease trough.

Stainless steel work surfaces

The top, front, and grease trough are stainless steel.

Adjustable legs

The unit is supplied with 4-inch die-cast nickel-plated legs with 1-3/8-inch adjustment.

Frequently Asked Questions

Yes. The heavy-duty cast iron grids are removable for cleaning.
The charbroiler has an infinite control knob for each 12-inch cooking section.
It operates at 208 or 240 volts, with 6,600 watts, and supports 1-phase or 3-phase service. The unit is hardwired at installation.
The product is 24.0 inches wide, 25.63 inches deep, and 14.25 inches high, with a listed weight of 129 pounds.
The Star-Max charbroiler warranty is listed as two years for parts and labor, subject to Star's warranty terms and conditions.
The 5124CF is made in the USA.
