Star (Middleby)

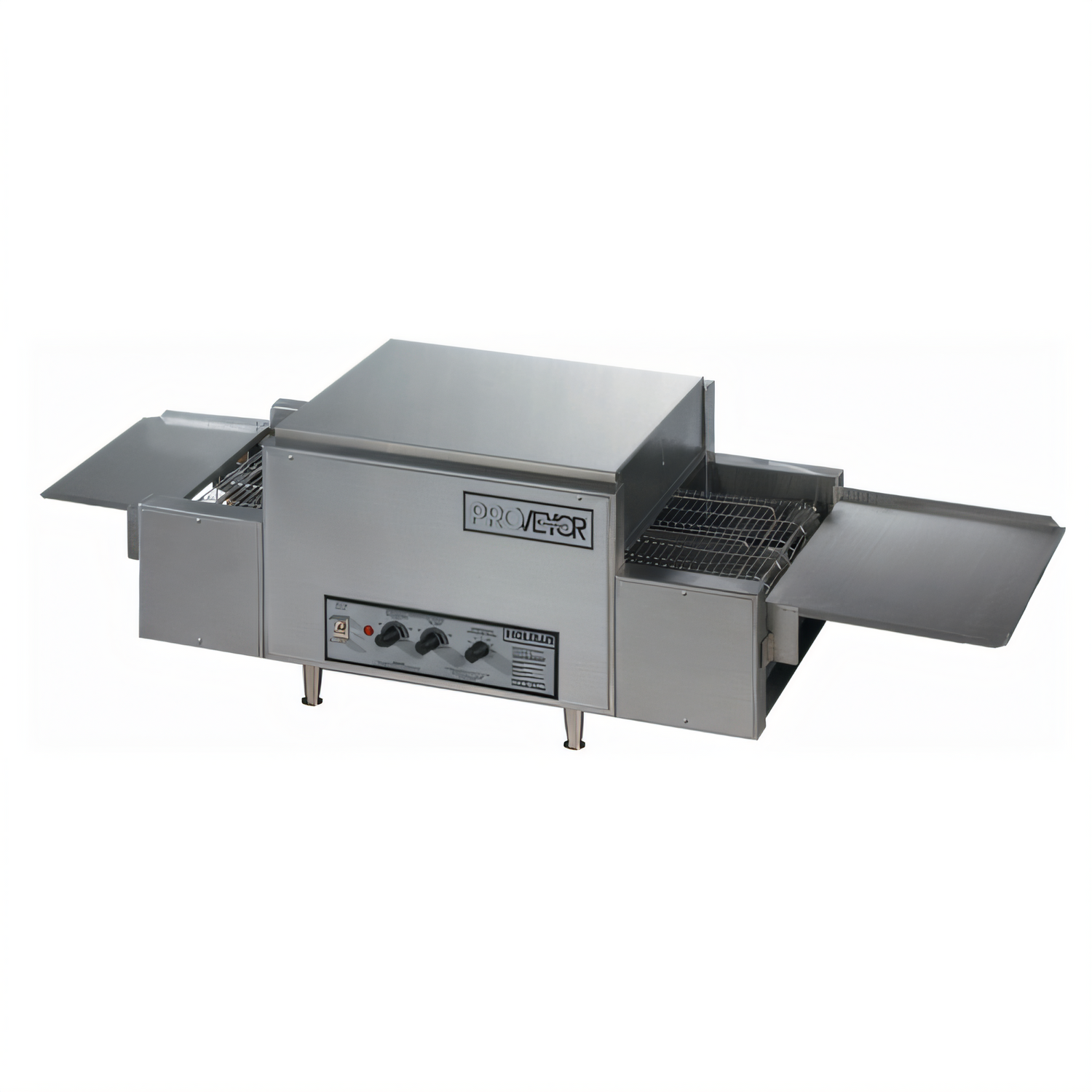

Star Proveyor 314HX Countertop Electric Quartz Conveyor Oven, 14-Inch Belt, Analog Controls

SKU: 314HX
$11,081.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ovens Commercial Pizza Ovens Conveyor Ovens Conveyor Ovens New Arrivals Ovens Restaurant Equipment Star (Middleby)

Star Proveyor 314HX Countertop Electric Quartz Conveyor Oven, 14-Inch Belt, Analog Controls

Left-to-Right Conveyor, Adjustable 1-1/2" to 4" Openings, Stainless Steel

This compact quartz infrared conveyor oven delivers fast, even heating with simple analog controls and a durable stainless steel build.

  • Quartz infrared elements above and below the belt provide even, precise heating.
  • Analog controls let operators adjust conveyor speed and top/bottom heat.
  • Adjustable 1-1/2" to 4" inlet/exit openings accommodate a range of products.
  • 14-inch belt with left-to-right conveyor travel supports efficient workflow.
  • Stainless steel construction is built for demanding commercial kitchens.
  • Removable crumb tray and extended load/unload area simplify cleanup and handling.
  • Optional stacking kit supports three-high installation for added capacity.

Overall Dimensions:

60.0"W x 21.25"D x 16.13"H

Product Weight:

115.0 lb

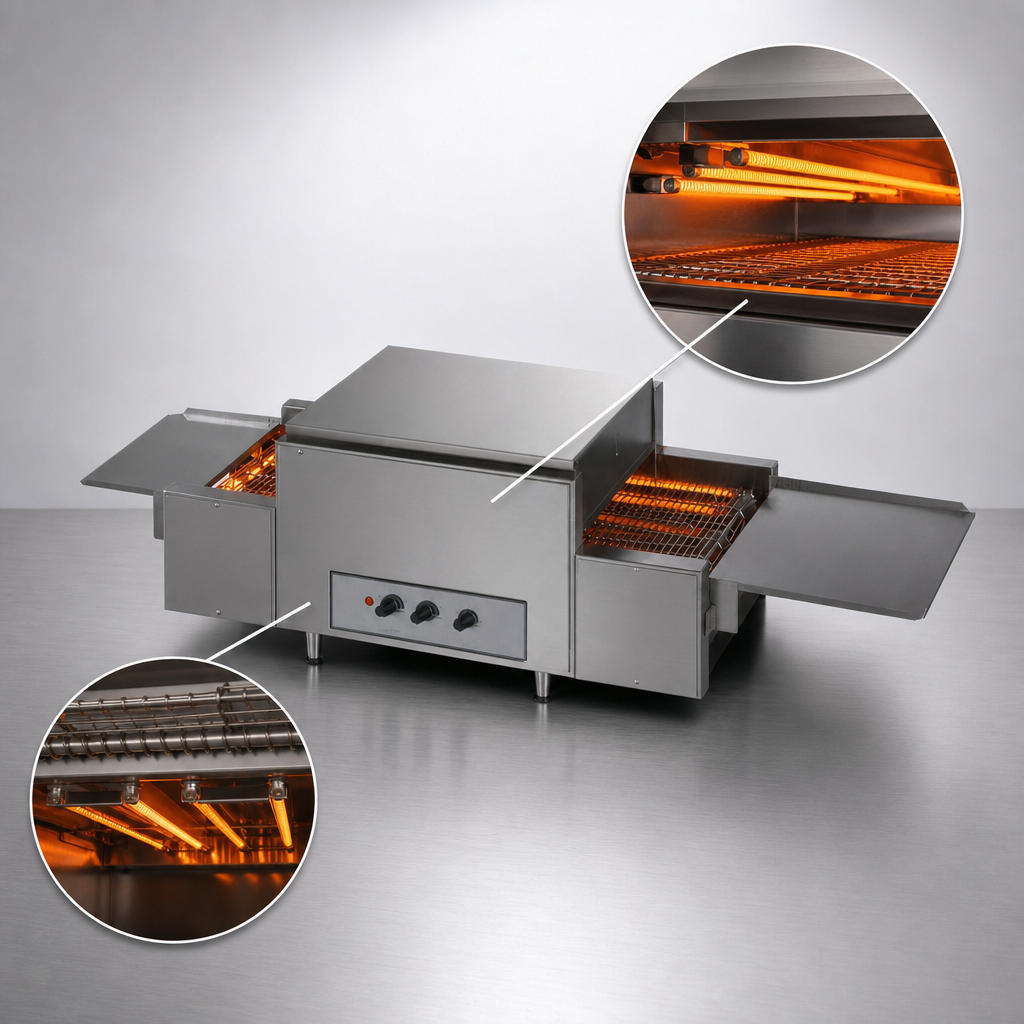

Quartz Infrared Heating

High-power quartz sheathed elements are positioned above and below the conveyor belt for even heating and fast recovery.

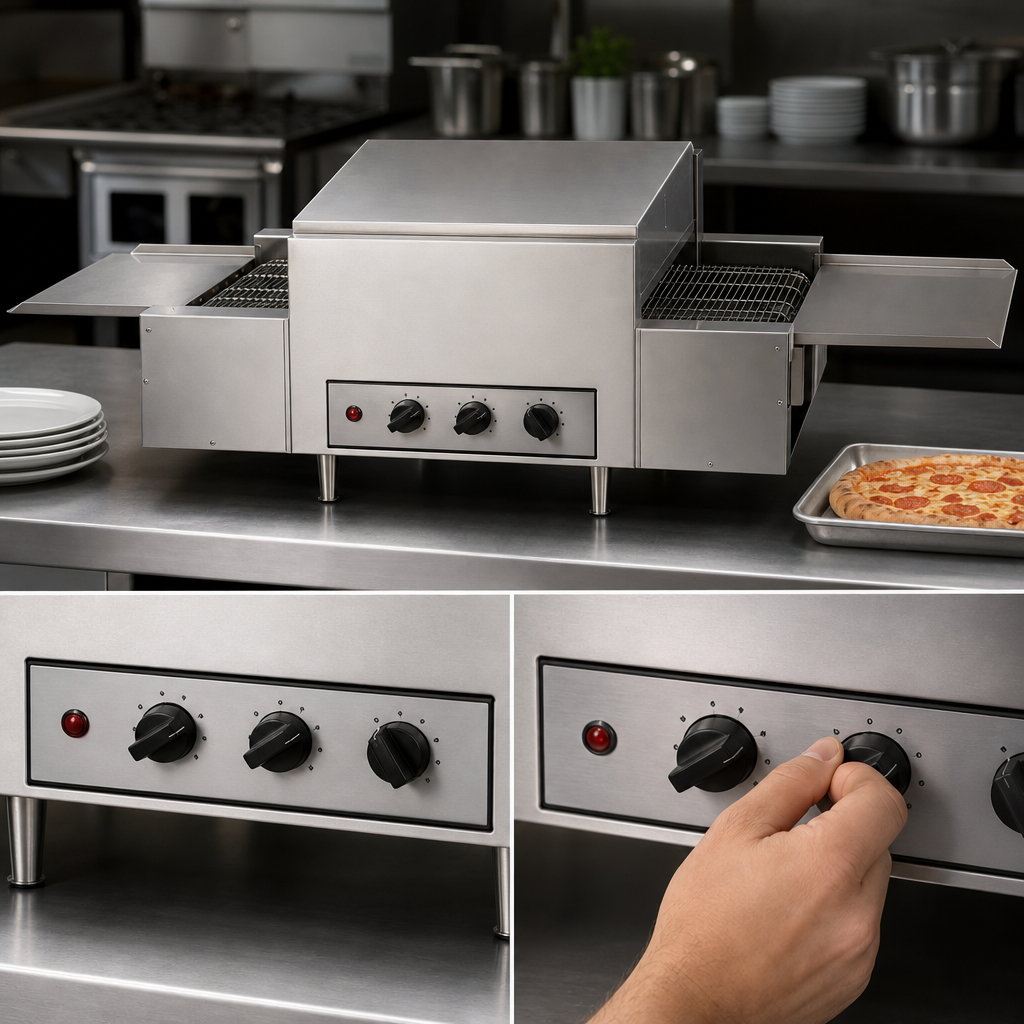

Analog Control System

Simple analog controls manage conveyor speed and top/bottom heat for straightforward operation.

Adjustable Product Openings

The inlet and exit openings adjust from 1-1/2" to 4" on the 314HX to handle different menu items.

Left-to-Right Conveyor Travel

The conveyor belt moves left to right to fit common production line workflows.

Stainless Steel Construction

Durable stainless steel construction stands up to daily commercial use.

Forced Convection Cooling

The convection system helps keep the conveyor cool-to-the-touch and supports longer component life.

Easy Cleanup Design

A removable crumb tray and removable 6-1/2" extended load/unload area help simplify maintenance.

Stackable Design

The compact oven can be stacked up to three high with the optional stacking kit.

Type Conveyor Oven
Style Quartz Infrared
Installation Type Countertop
Controls Analog
Material Stainless Steel
Capacity Approx. 14 16-Inch Pizzas/Hour; 56-60 5-Inch Pizzas/Hour
Voltage 208/240 Volts
Amps 26.4/22.9 Amps
Watts 5.4 kW
Hertz 50/60 Hz
Shipping Width 60 Inches
Shipping Depth 22 Inches
Shipping Height 17 Inches
Shipping Weight 115 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The product entry and exit openings are adjustable from 1-1/2" to 4".
The conveyor belt travels left to right.
Yes. It has analog controls for conveyor speed, plus separate top and bottom heat control.
Yes. The compact design can be stacked up to three high with the optional stacking kit.
It includes a 1-year warranty for parts and labor.
