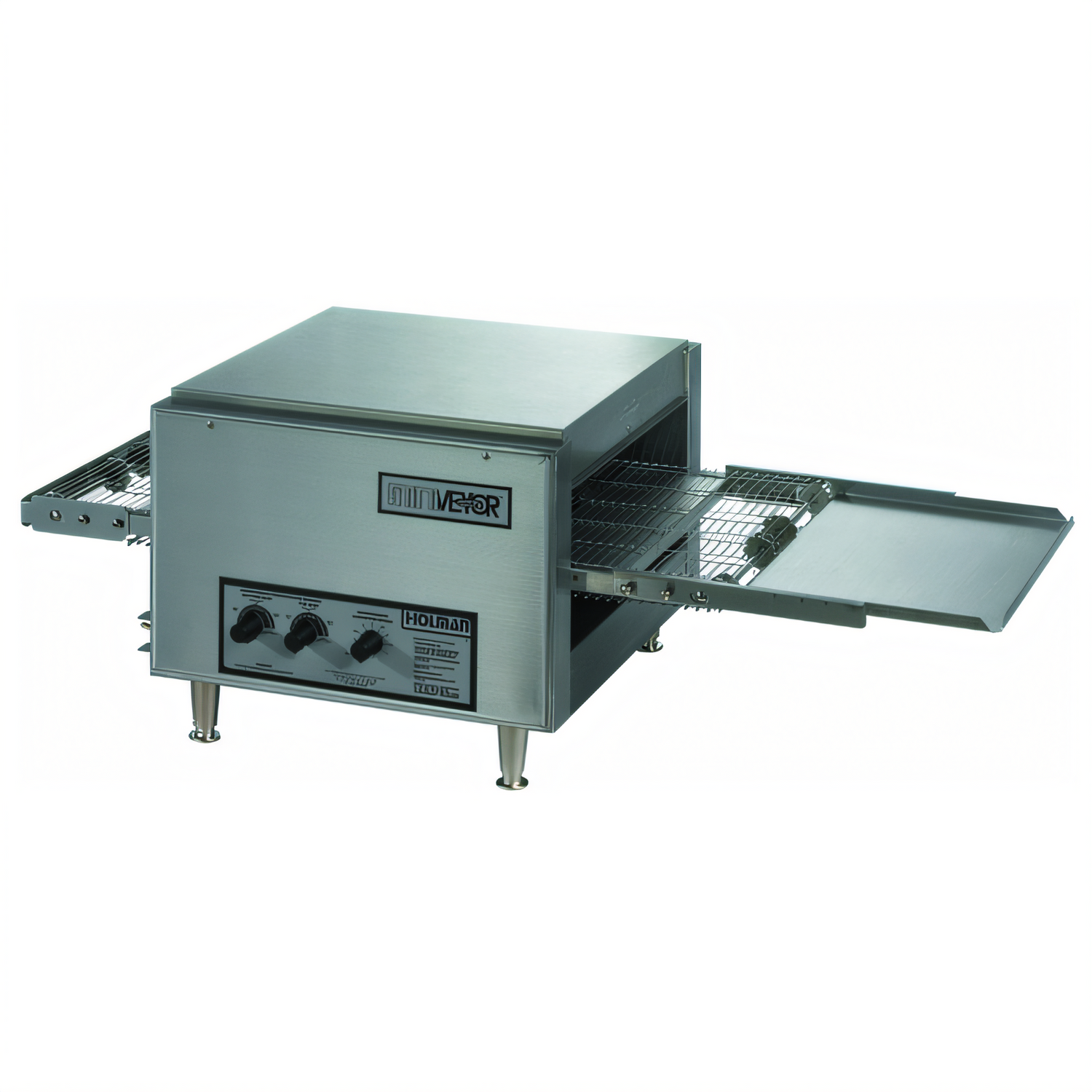

Star Miniveyor 214HX Countertop Electric Quartz Conveyor Oven, 14.3-Inch Belt

Analog controls, independent top/bottom heat, left-to-right conveyor

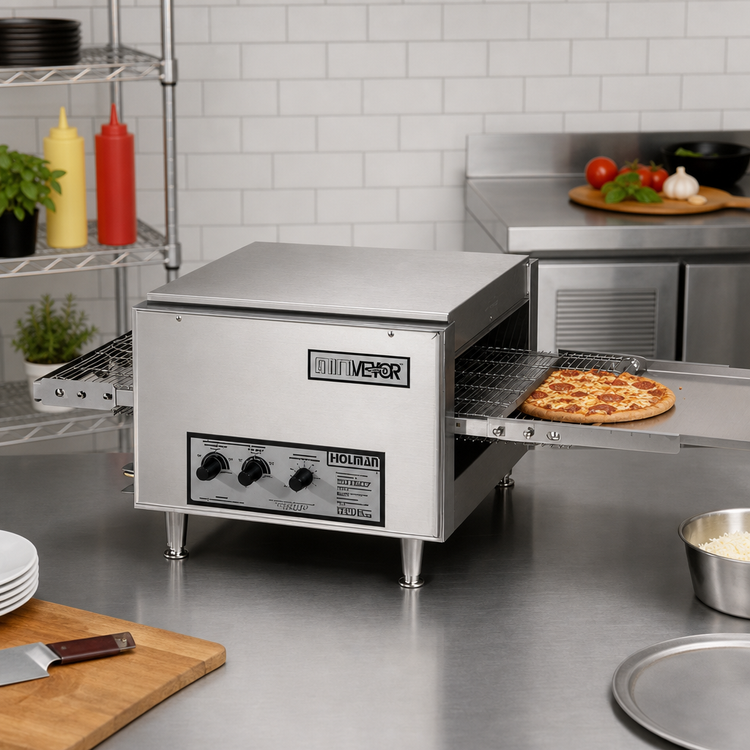

A compact countertop conveyor oven that combines quartz infrared heat with independent top and bottom controls for fast, even results.

  • Countertop electric conveyor oven designed for pizza, subs, cookies, fish, and other quick-service menu items.
  • Quartz infrared heaters above and below the belt deliver precise, even heating.
  • Analog controls adjust conveyor speed plus top and bottom heat independently.
  • Adjustable 1-1/2" to 3" openings help handle different product sizes.
  • Stainless steel construction, removable crumb tray, and extended load/unload area simplify daily operation.
  • Stackable two high with the optional kit for added output in a compact footprint.

Overall Dimensions:

46.68"W x 19.44"D x 14.0"H

Product Weight:

66.0 lb

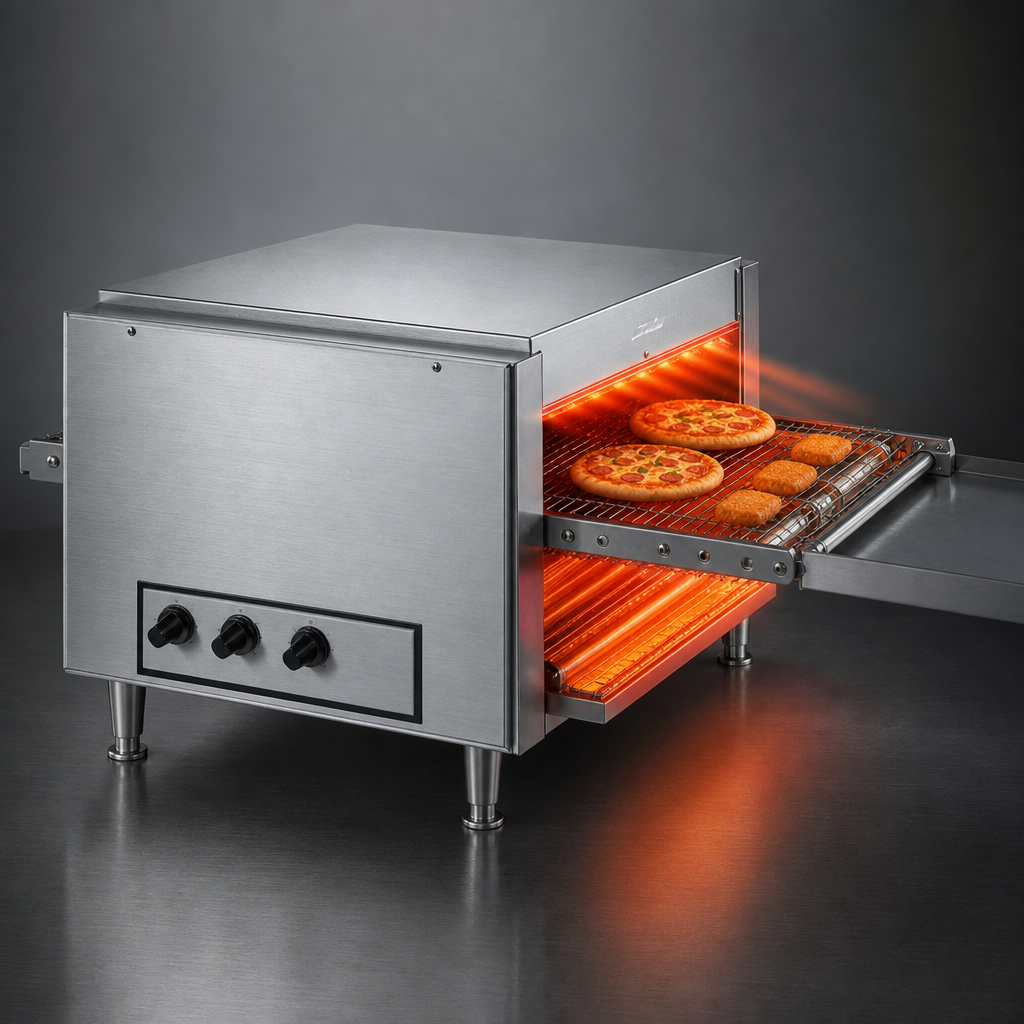

Quartz Infrared Heating

High-power quartz elements are located above and below the conveyor belt for fast, even cooking.

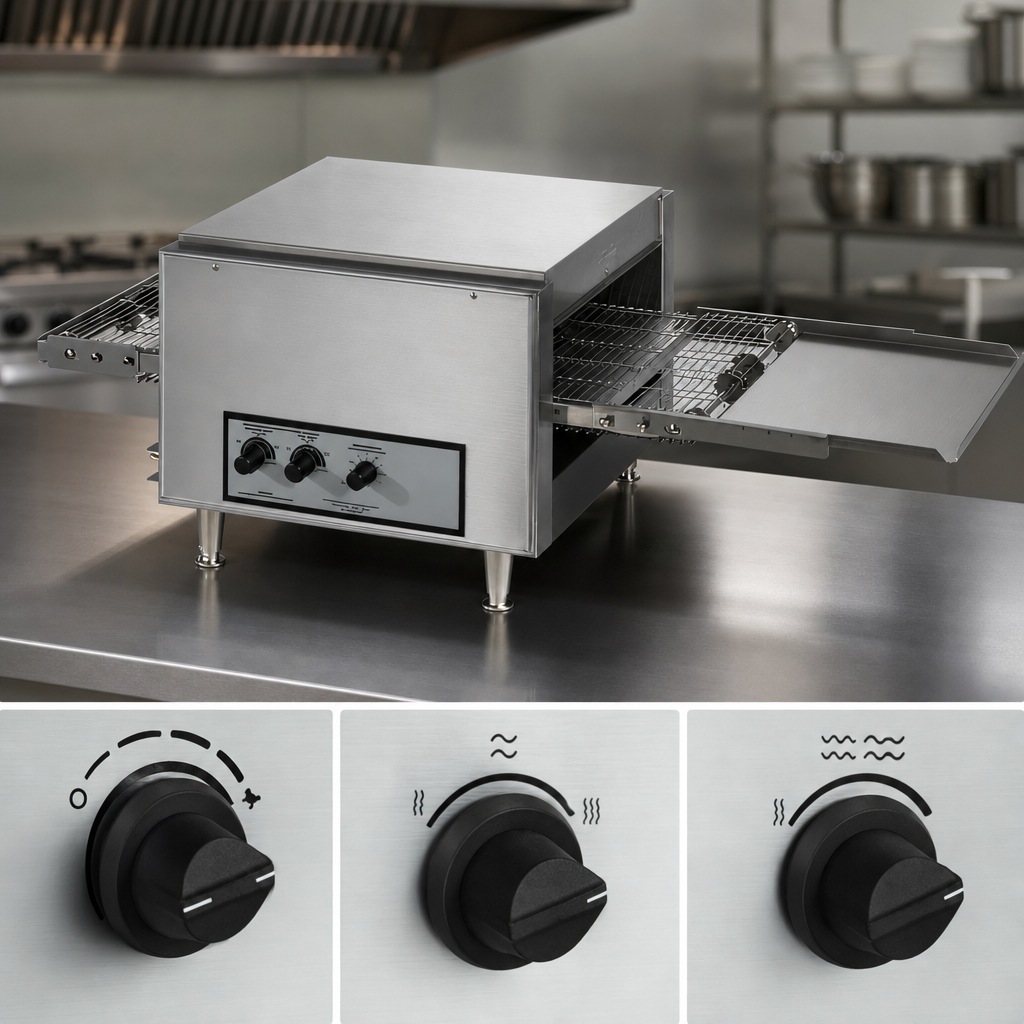

Analog Independent Controls

Analog controls let operators adjust conveyor speed and independently set top and bottom heat.

Forced Convection Cooling

Convection airflow helps keep the conveyor cool-to-touch and supports longer component life.

Adjustable Openings

Product entry and exit openings adjust from 1-1/2" to 3" to accommodate different menu items.

Left-To-Right Conveyor

The conveyor belt travels left to right as the standard configuration.

Stainless Steel Construction

Durable stainless steel construction is built for commercial countertop use.

Removable Cleanout Components

A removable crumb tray and 6-1/2" extended load/unload area make cleanup and loading easier.

Stackable Design

The compact cabinet can be stacked two high with the optional stacking kit.

Low-Maintenance Drive Components

Permanently lubricated motors and long-lasting Teflon bearings help reduce maintenance.

Type Conveyor Oven
Style Single Deck
Installation Type Countertop
Controls Analog
Material Stainless Steel
Capacity Approx. 31 9-Inch Pizzas Per Hour
Cooking Surface Width 14.3 Inches
Cooking Surface Depth 16.9 Inches
Voltage 208/220/240 Volts
Amps 19.3 Amps at 208 Volts / 18.2 Amps at 220 Volts / 16.7 Amps at 240 Volts
Watts 4 kW
Hertz 50/60 Hz
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 47 Inches
Shipping Depth 20 Inches
Shipping Height 14 Inches
Shipping Weight 66 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses high-power quartz infrared elements above and below the conveyor belt, with forced convection to help keep the conveyor cool.
Yes. The product entry and exit openings adjust from 1-1/2" to 3".
The belt travels left to right as standard.
Yes. The compact design can be stacked two high with the optional stacking kit.
These units come with a 1-year warranty for parts and labor.
