Star (Middleby) 210HX Miniveyor Conveyor Ovens
Star (Middleby) 210HX Miniveyor Conveyor Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

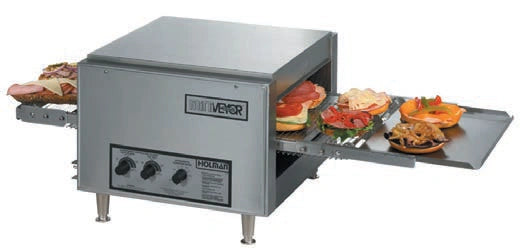

Star Miniveyor™ 210HX Countertop Conveyor Oven
Quartz Infrared • 10 in. Belt • Analog ControlsServe piping-hot pizzas, toasted subs, cookies and more—without surrendering precious kitchen space. The Miniveyor 210HX packs the speed and consistency of a full-size conveyor oven into a compact, stackable footprint that’s perfect for cafés, bars, kiosks and ghost kitchens.
Why You’ll Love It
- Dual quartz infrared elements above & below the belt for rapid, even heat transfer.
- Independent analog dials for conveyor speed plus top & bottom heater intensity.
- Adjustable product opening from 1 ½ – 3 in. handles everything from nachos to deep-dish personal pizzas.
- Forced-air convection cooling keeps exterior surfaces cool-to-the-touch and prolongs component life.
- Removable 6 ½ in. load/unload extension & crumb tray for easy cleaning.
- Stainless-steel construction—built to survive the rush and wipe down fast.
- Stack two units high with the optional SSK-210HX kit to double production without adding floor space.
- cULus Listed, UL EPH Classified & proudly Made in the USA.
Throughput*
- 30 – 45 × 6 in. pizzas per hour
- 26 – 31 × 9 in. pizzas per hour (blanched shell)
*Factory test figures at 480 °F. Results vary with recipe & loading.
Technical Specs
| Model | 210HX “Miniveyor” |
|---|---|
| Exterior (H × W × D) | 14.0 × 36.4 × 15.4 in. (356 × 925 × 392 mm) |
| Belt Width / Length | 10.3 in. / 31 in. |
| Opening Height | 1.5 – 3 in. adjustable |
| Electrical Options |
120 V / 1 ph / 14.2 A / 1.7 kW (NEMA 5-15P) 208 V / 1 ph / 13.5 A / 2.8 kW (NEMA 6-20P) 240 V / 1 ph / 11.7 A / 2.8 kW (NEMA 6-20P) |
| Shipping Weight | ≈ 60 lb. (28 kg) |
| Included Items | Entry ramp, exit tray, crumb tray, 2.5 in. adjustable legs |
| Optional | SSK-210HX stacking kit |
| Warranty | 1-year parts & labor |
Installation Note: Maintain a minimum 6 in. clearance from all combustible materials. Follow the supplied installation & operation manual for complete guidelines.
Boost speed, consistency and profits—add the Star Miniveyor 210HX to your lineup today.
