SPG International Universal Stainless 2N1620-LD18 2-Compartment Stainless Steel Sink, 18" Left Drainboard, 20" x 16" Compartments, 9" Backsplash

SKU: 2N1620-LD18
$4,035.60
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations SPG International

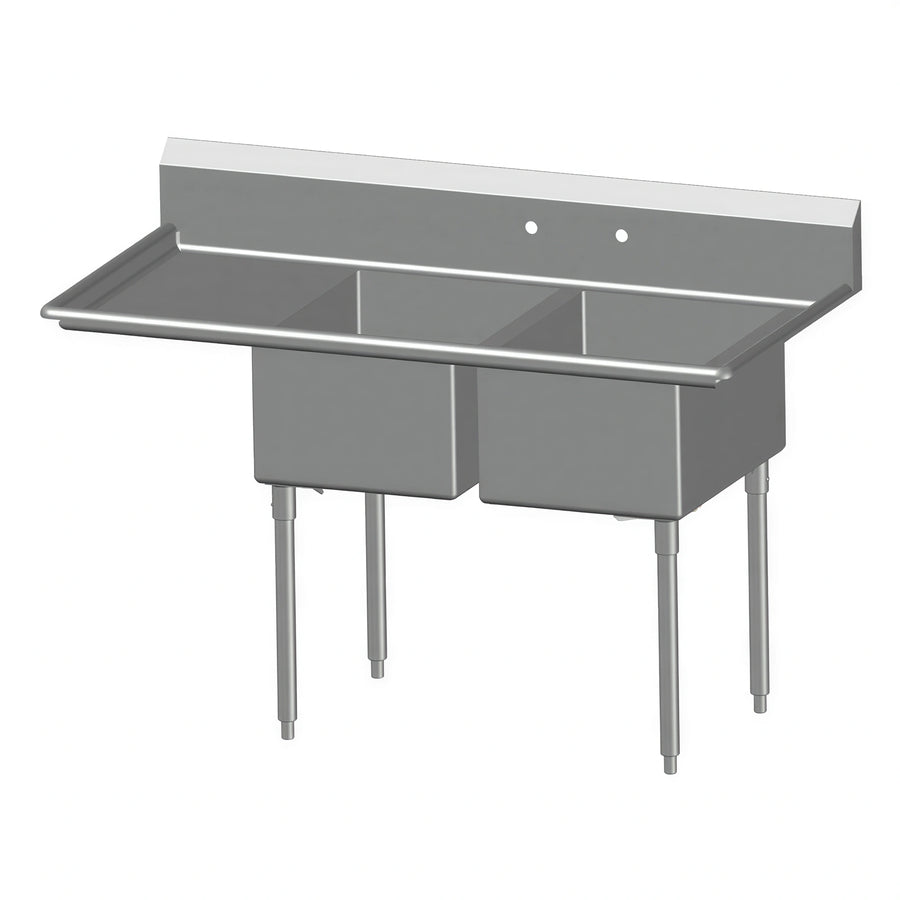

2N1620-LD18 is a Universal Stainless two-compartment sink with an 18-inch left-hand drainboard, 20-inch front-to-back by 16-inch-wide compartments, and a 9-inch integrally formed backsplash.

  • Constructed from 16-gauge 300-series stainless steel with stainless steel legs.
  • Includes basket drains and 1-1/8-inch faucet holes punched in the backsplash on 8-inch centers.
  • NSF listed and CSA certified.

Overall Dimensions:

54.5"W x 25.5"D x 36.0"H

Product Weight:

85.0 lb

Two-compartment design

Provides two sink compartments measuring 20 inches front-to-back by 16 inches wide.

Left-hand drainboard

Includes an 18-inch drainboard positioned on the left side.

Stainless steel construction

Uses 16-gauge 300-series stainless steel.

Integrally formed backsplash

Includes a 9-inch-high backsplash with a 2-inch return to the wall at 45 degrees.

Sanitary rolled rim

Features a 2-1/2-inch-high, 180-degree sanitary rolled rim at free edges.

Leg assembly placement

Leg assemblies are located directly under the sink bowls.

Drain and faucet provisions

Includes basket drains and 1-1/8-inch faucet holes punched in the backsplash on 8-inch centers.

Certifications

NSF listed and CSA certified.

Compartment configuration Two compartments
Compartment size 20 in front-to-back x 16 in wide
Drainboard position Left-hand
Drainboard length 18 in
Top construction 16-gauge 300-series stainless steel
Base construction Stainless steel
Base type Legs
Backsplash height 9 in
Backsplash wall return 2 in at 45 degrees
Rolled rim 2-1/2 in high, 180 degrees
Drain type Basket drains
Faucet hole size 1-1/8 in
Faucet hole spacing 8 in centers
Overall width 54.5 in
Overall depth 25.5 in
Overall height 36 in
Product weight 85 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Limited one-year warranty against defects in material and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty PDF Download

Frequently Asked Questions

The 2N1620-LD18 has two sink compartments.
The 18-inch drainboard is located on the left-hand side.
The compartments measure 20 inches front-to-back by 16 inches wide.
The overall dimensions are 54.5 inches wide, 25.5 inches deep, and 36 inches high.
The sink uses 16-gauge 300-series stainless steel and has stainless steel legs.
The sink is NSF listed and CSA certified.
SPG International provides a limited one-year warranty from the date of original purchase against defects in material and workmanship.
