Southbend (Middleby) TVGS/32SC TruVection Convection Ovens
Description

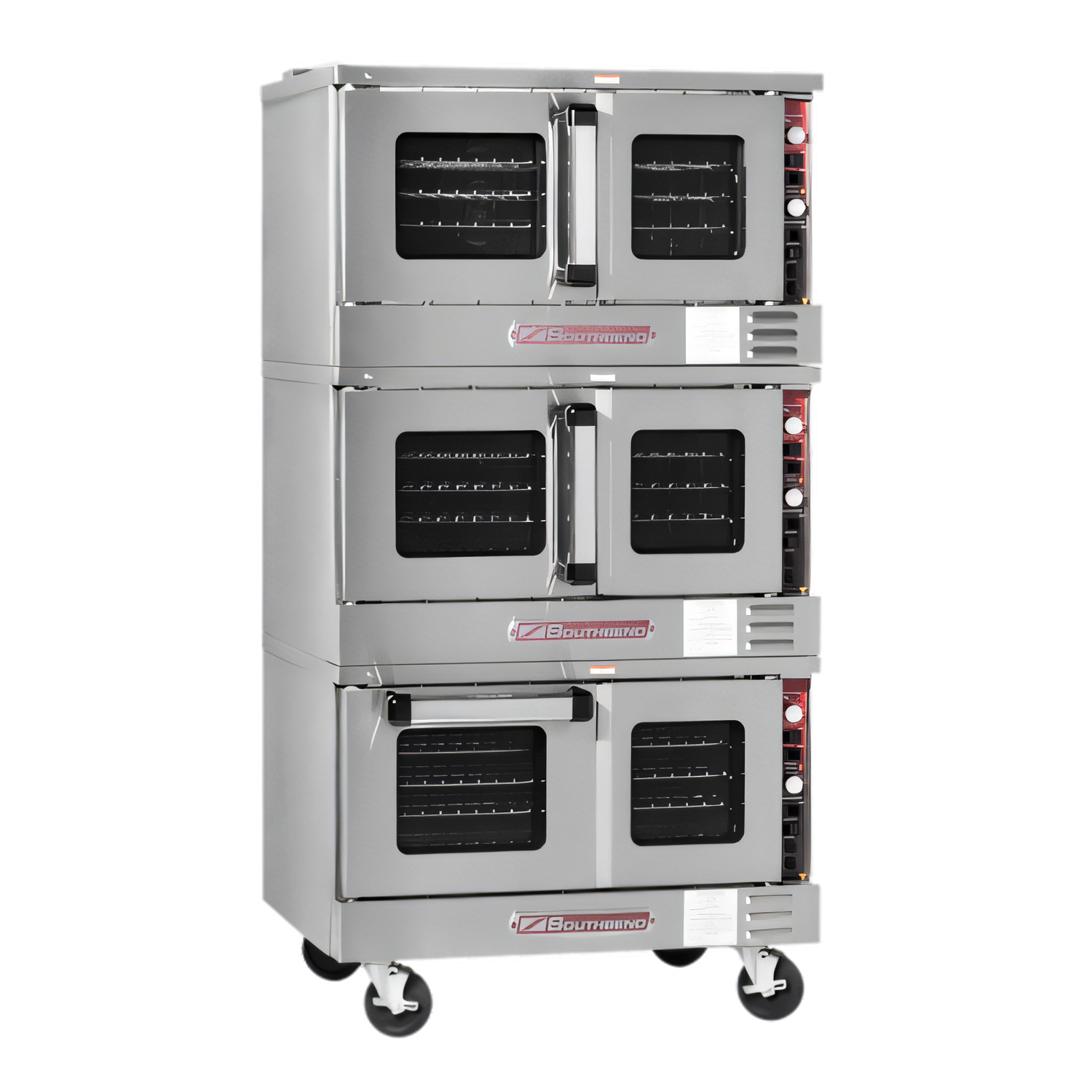

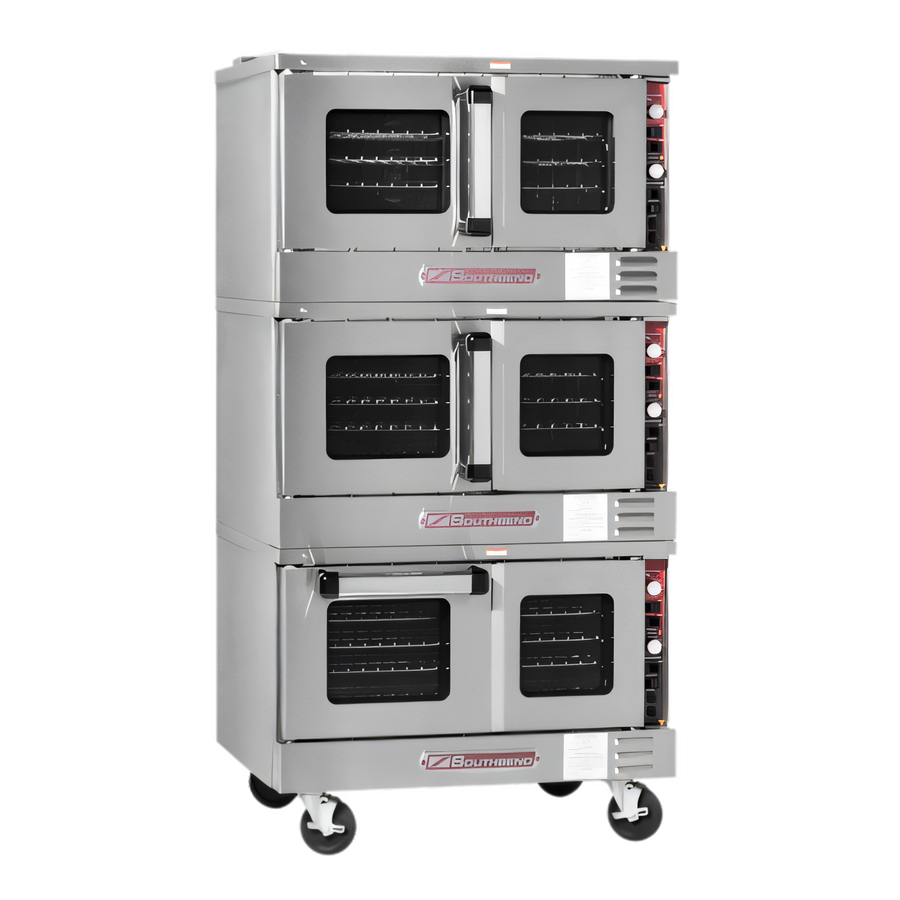

TruVection TVGS/32SC Triple-Deck Gas Convection Oven
Low-Profile • 156,000 BTU • Commercial-GradeGive your kitchen three times the capacity in nearly the same footprint. Southbend’s TruVection TVGS/32SC stacks three full convection ovens in a 70-inch low-profile cabinet, delivering the throughput you need without sacrificing consistency, speed, or serviceability.
Why Operators Choose TruVection

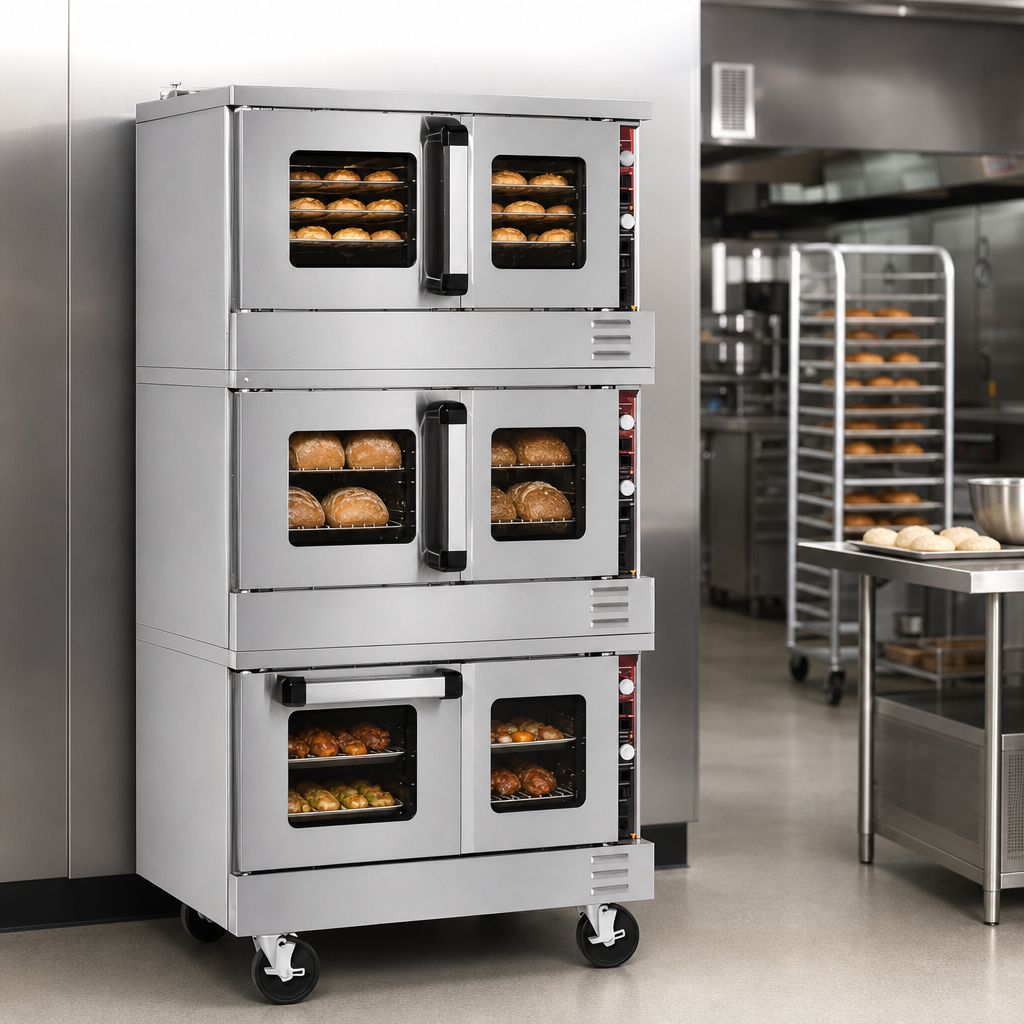

- Triple-deck design = 3× 52,000 BTU patented non-clog Inshot burners (156,000 BTU total).
- Electronic ignition with flame safety and plug-in / slide-out control module for fast service.

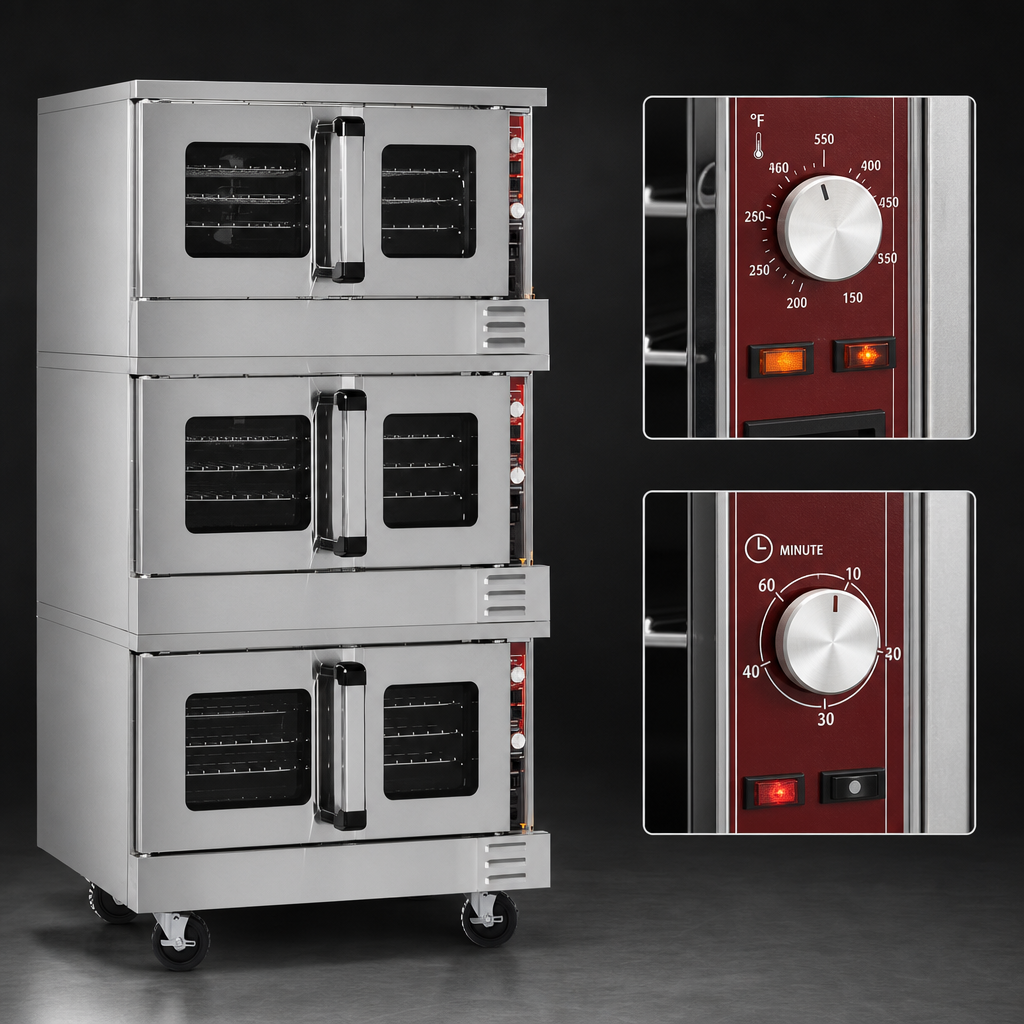

- Solid-state thermostat 150 – 550 °F plus 60-minute mechanical cook timer on each deck.
- Soft-Air two-speed ½ HP blower motor per deck for even baking & rapid recovery.
- Forced cool-down fan mode protects product and saves prep time between loads.
- Dependent glass doors (180° opening) with low-emission windows & dual seal system.
- Coved, fastener-free porcelain enamel interior; 5-position guides & 3 plated racks per deck.
- Stay-cool heavy-duty handles plus stainless front, sides, top & 6-inch legs (casters optional).
- Two 40 W interior lights and cycling “heat” indicator on every deck.
- Certified CSA Gas & NSF for commercial installations.
Technical Specifications
| Model | TVGS/32SC (TruVection Series) |
|---|---|
| Oven Decks | 3 (independent) |
| Heat Source | Natural or LP gas, Inshot burners |
| Total Input | 156,000 BTU/hr (52,000 BTU per deck) |
| Temperature Range | 150 – 550 °F (66 – 288 °C) |
| Controls | Solid-state thermostat & 60-min mechanical timer |
| Fan System | (3) ½ HP, 2-speed motors; oven cannot operate without fan |
| Interior (per deck) | 29" W × 21.5" D × 14" H (737 × 546 × 356 mm) |
| Rack Capacity | 5 positions; 3 plated racks included per deck |
| Overall Height | 70" (72.5" with flue) |
| Gas Connection | 1" NPT female; min. pressure 7" W.C. Nat / 11" W.C. LP |
| Electrical | 120 V / 60 Hz / 1-ph, 7.9 A per deck, 6′ cord with NEMA 5-15P |
| Shipping Weight | ≈ 900 lb (408 kg) |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (commercial use) |
Popular Options & Accessories (sold separately)
- 4" or 6" locking swivel casters
- Stainless steel oven interior
- Quick-disconnect gas hose with restraining device
- Marine-edge top (3 ft, 4 ft, or 5 ft)
- Stainless rear jacket or export crating
Intended for commercial use only. Specifications subject to change without notice. Contact your Southbend representative for utility requirements, lead-times, or information about flexible financing from Middleby.
