Southbend (Middleby) TVGS/22SC TruVection Convection Ovens
Description

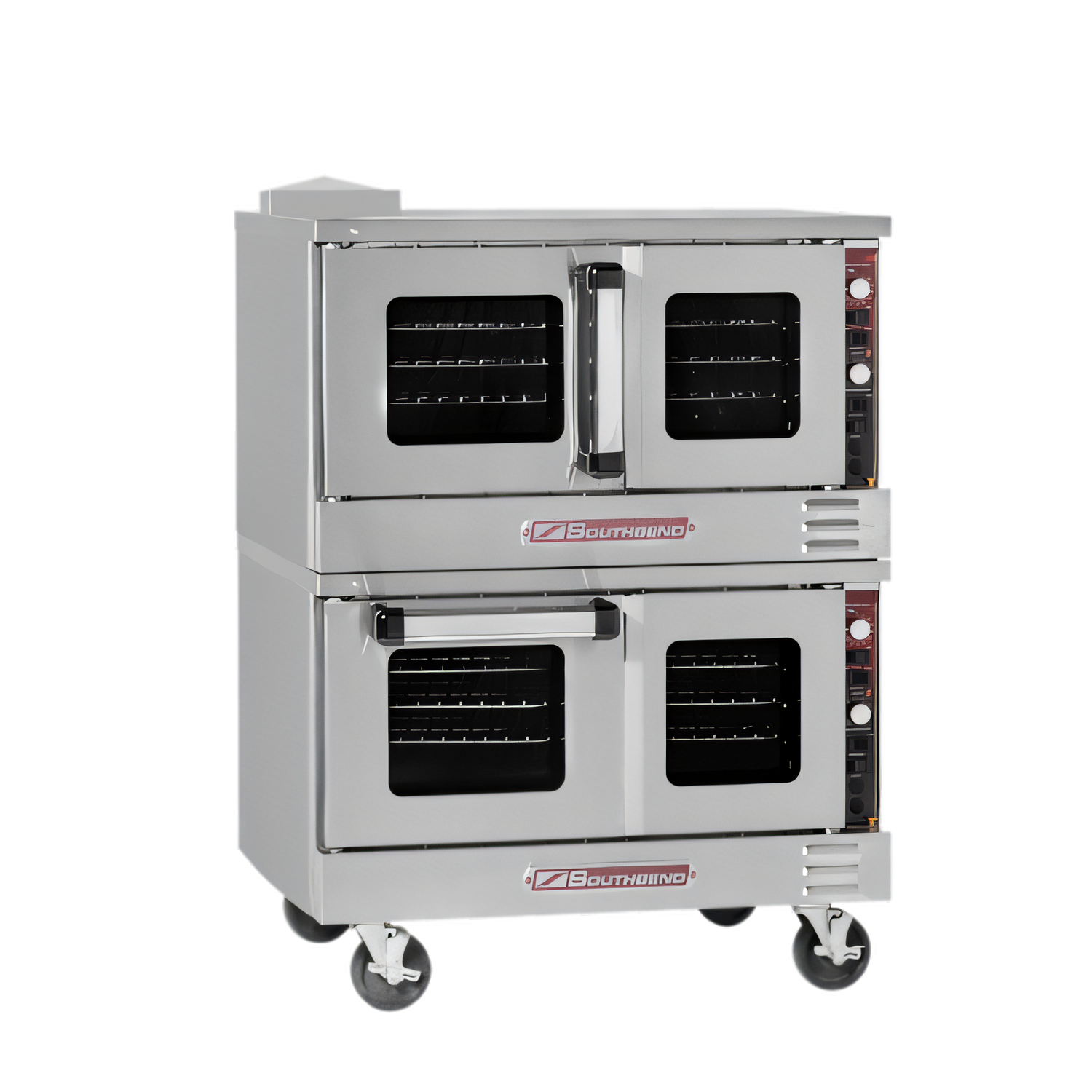

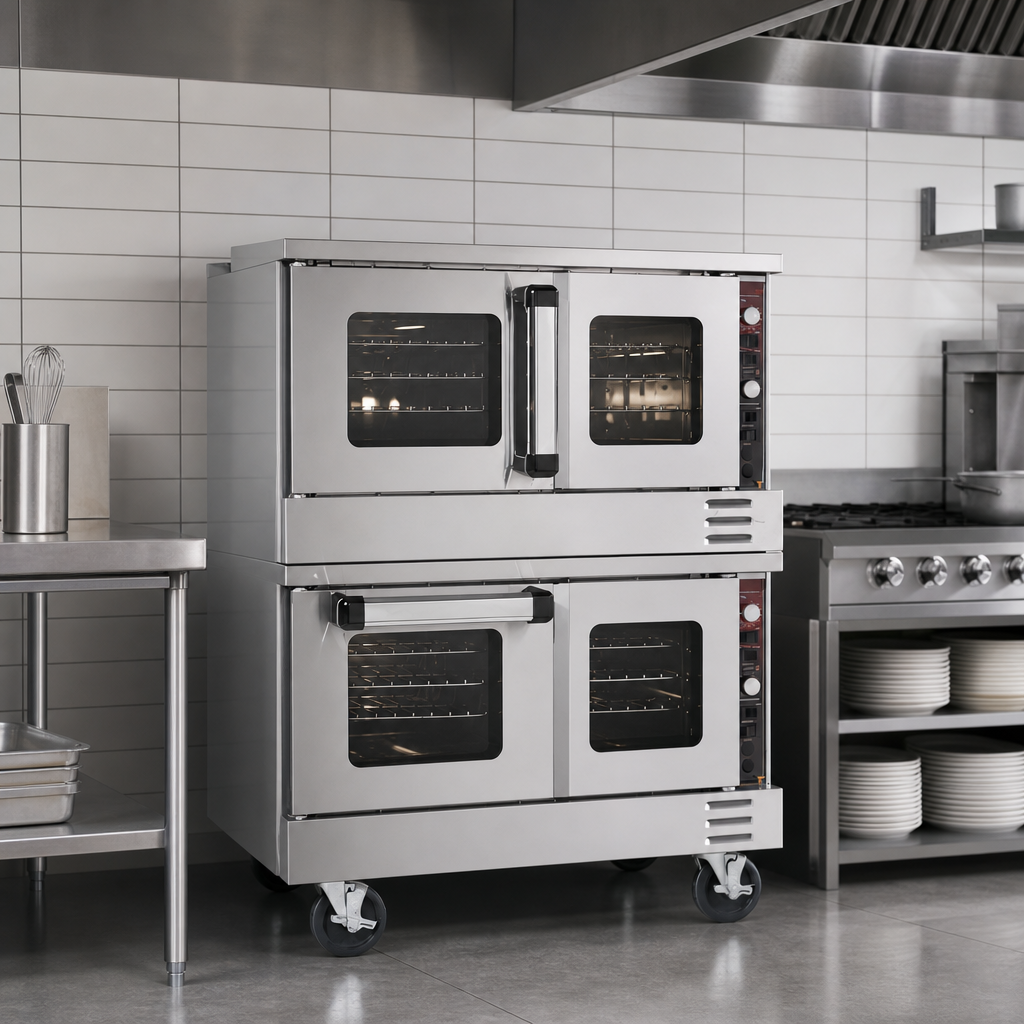

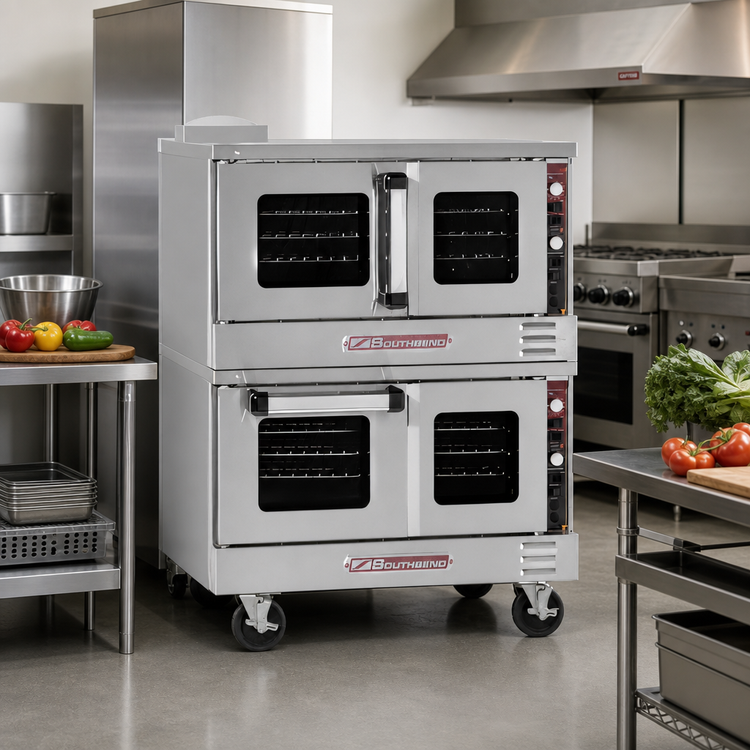

Southbend TruVection™ Low-Profile Double-Deck Gas Convection Oven
Model TVGS/22SC · 104,000 BTU · CSA & NSF ListedPut two full-size convection ovens in just 47-½ inches of height. The Southbend TruVection™ TVGS/22SC delivers the high-volume output, even baking and rugged reliability chefs expect—while saving precious line space and lowering operating costs.
Why TruVection?
- Patented high-efficiency inshot burners – 52,000 BTU per deck (104,000 BTU total)

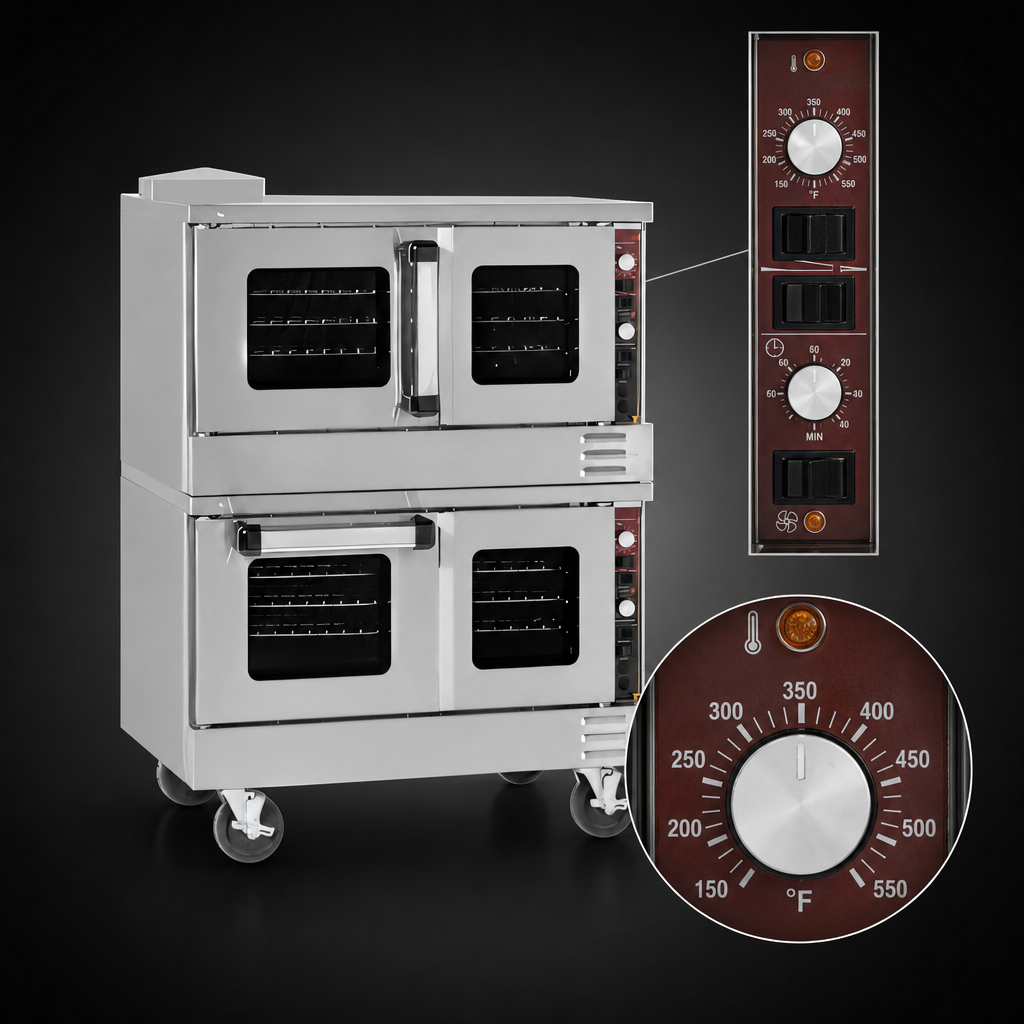

- 150 °F – 550 °F solid-state thermostat plus 60-minute mechanical cook timer
- Electronic hot-surface ignition with built-in flame safety device
- Soft-Air two-speed ½ HP blower motor in each deck for gentle, even heat
- Forced cool-down fan mode speeds turn-around between batches
- Dependent, low-emission glass doors swing open a full 180° for unobstructed loading
- Heat-keeping dual door-seal system slashes energy loss
- Coved, fastener-free porcelain interior wipes clean in seconds
- 5-position rack guides with 3 plated racks provided per oven
- Slide-out “plug-in / plug-out” control panel—service from the front, not the back line
- Stay-cool, heavy-duty stainless steel door handles & all-stainless exterior
- Interior oven lights cycle with burners for instant product checks
Technical Specifications
| Model | TVGS/22SC (Double-Deck) |
|---|---|
| Oven Capacity | 3 full-size sheet pans per deck (3 racks included) |
| Interior Dimensions (per deck) | 29" W × 21.5" D × 14" H (737 × 546 × 356 mm) |
| Exterior Height | 47.5" (51" with flue) |
| Heat Source | 2 × 52,000 BTU inshot burners (Natural or LP Gas) |
| Total BTU Input | 104,000 BTU/hr |
| Fan Motors | 2 × ½ HP, 2-speed (1710 / 1120 RPM) |
| Temperature Range | 150 °F – 550 °F (66 °C – 288 °C) |
| Gas Connection | 1" NPT female; min. inlet 7" W.C. Nat / 11" W.C. LP |
| Electrical | 120 V / 60 Hz / 1 ph, 7.9 A (6' cord & NEMA 5-15P plug per deck) |
| Certifications | CSA, NSF |
| Construction | Stainless steel front, sides, top & 6" adjustable legs; coved porcelain interior |
Alternate voltages (208 V or 240 V single/three phase) and optional 4" or 6" casters are available by special order.
