Southbend (Middleby) TVES/30SC-V TruVection Convection Ovens
Description

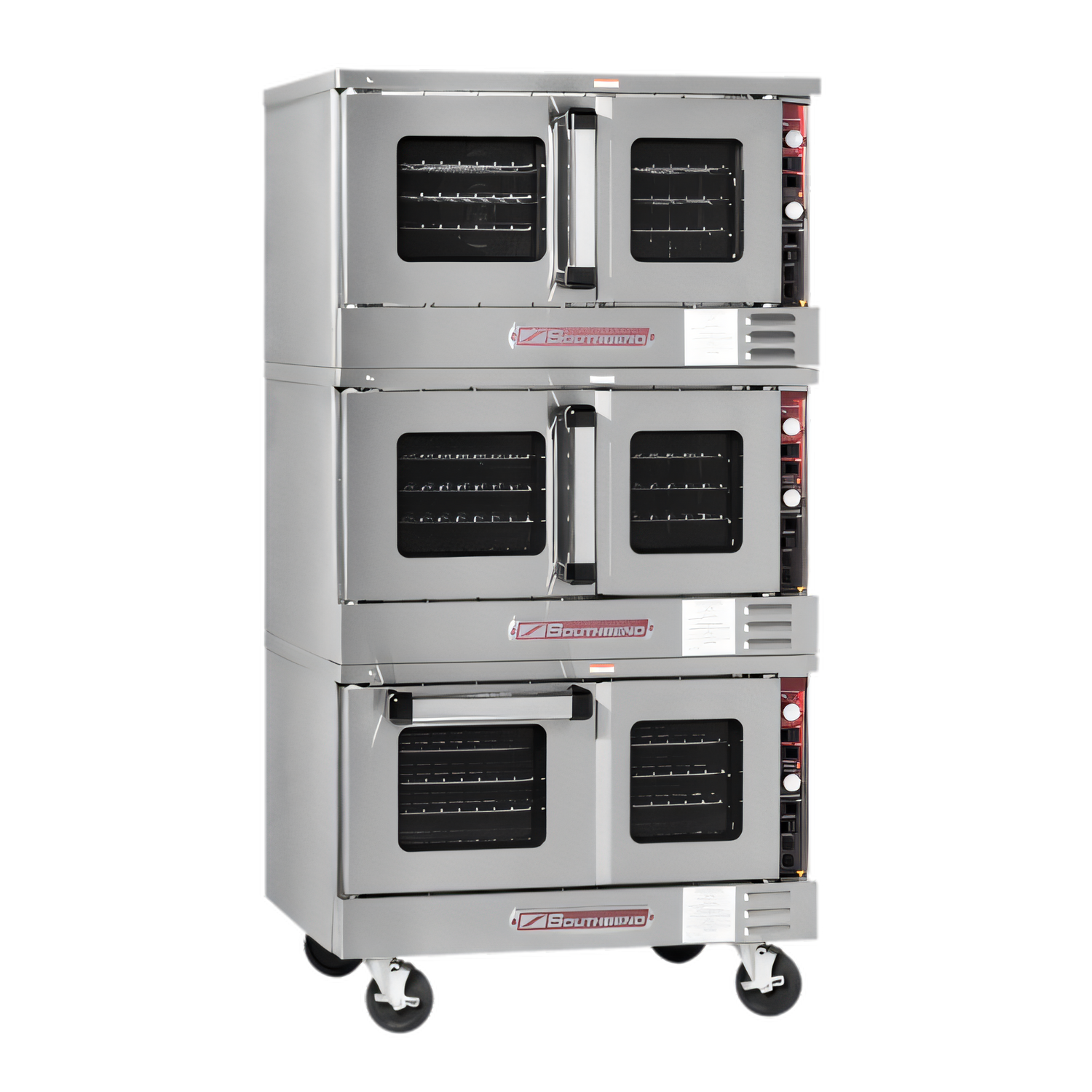

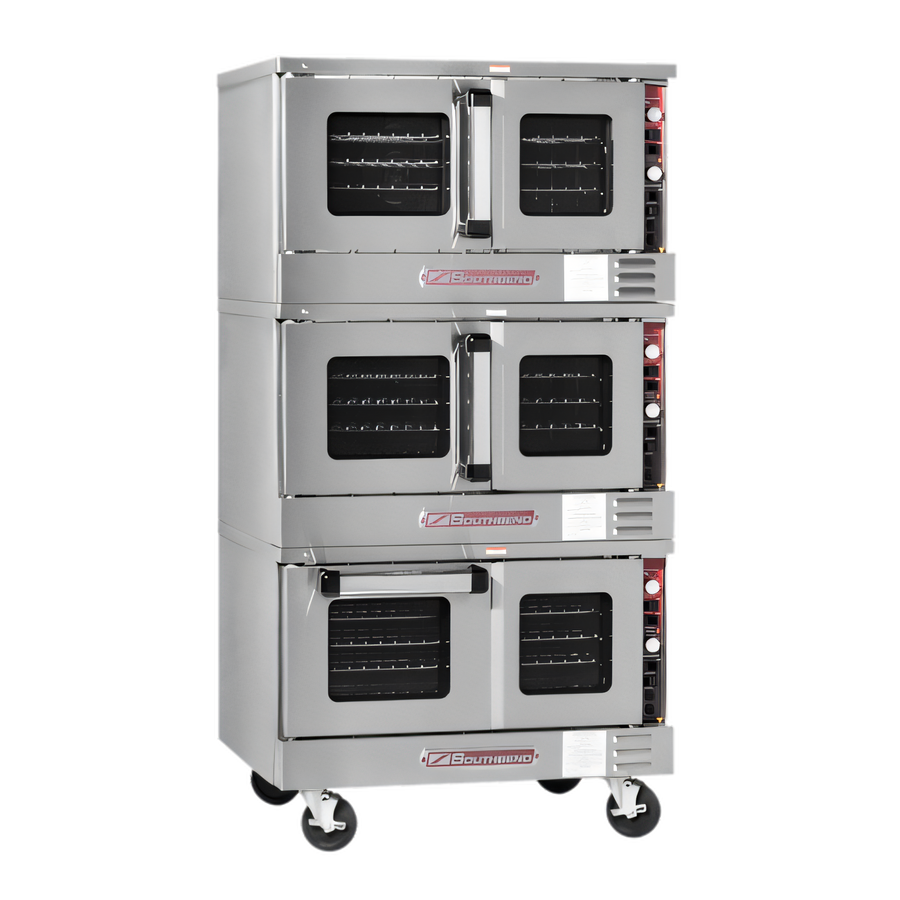

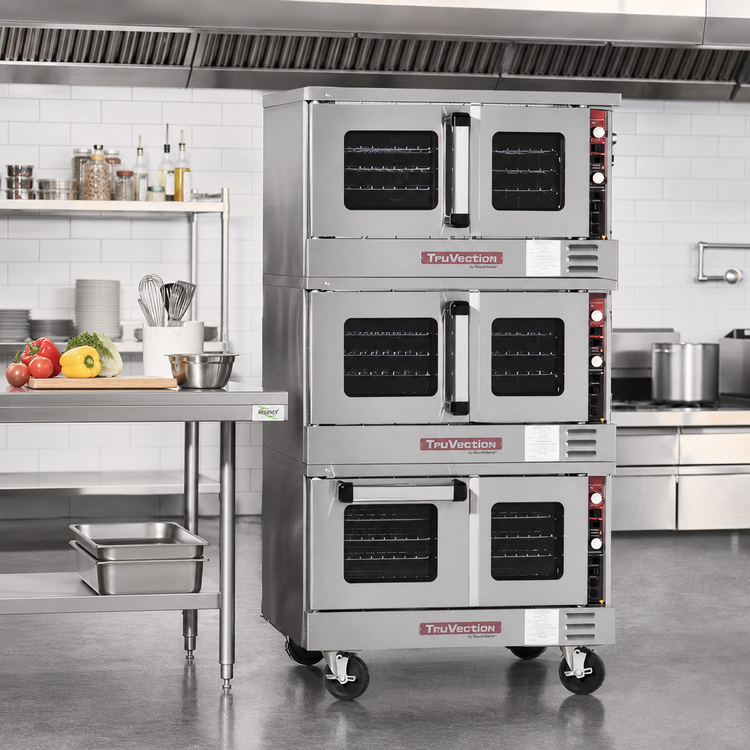

Southbend TruVection TVES/30SC Triple-Deck Ventless Electric Convection Oven
Low-Profile Series • 70" H (72.5" with flue)Pack three full-size convection ovens into a single, space-saving footprint. The ventless TruVection TVES/30SC delivers high-volume baking, roasting, and rethermalizing power where a traditional hood or stack just won’t fit—perfect for bakeries, cafés, ghost kitchens, and QSRs.
Key Features

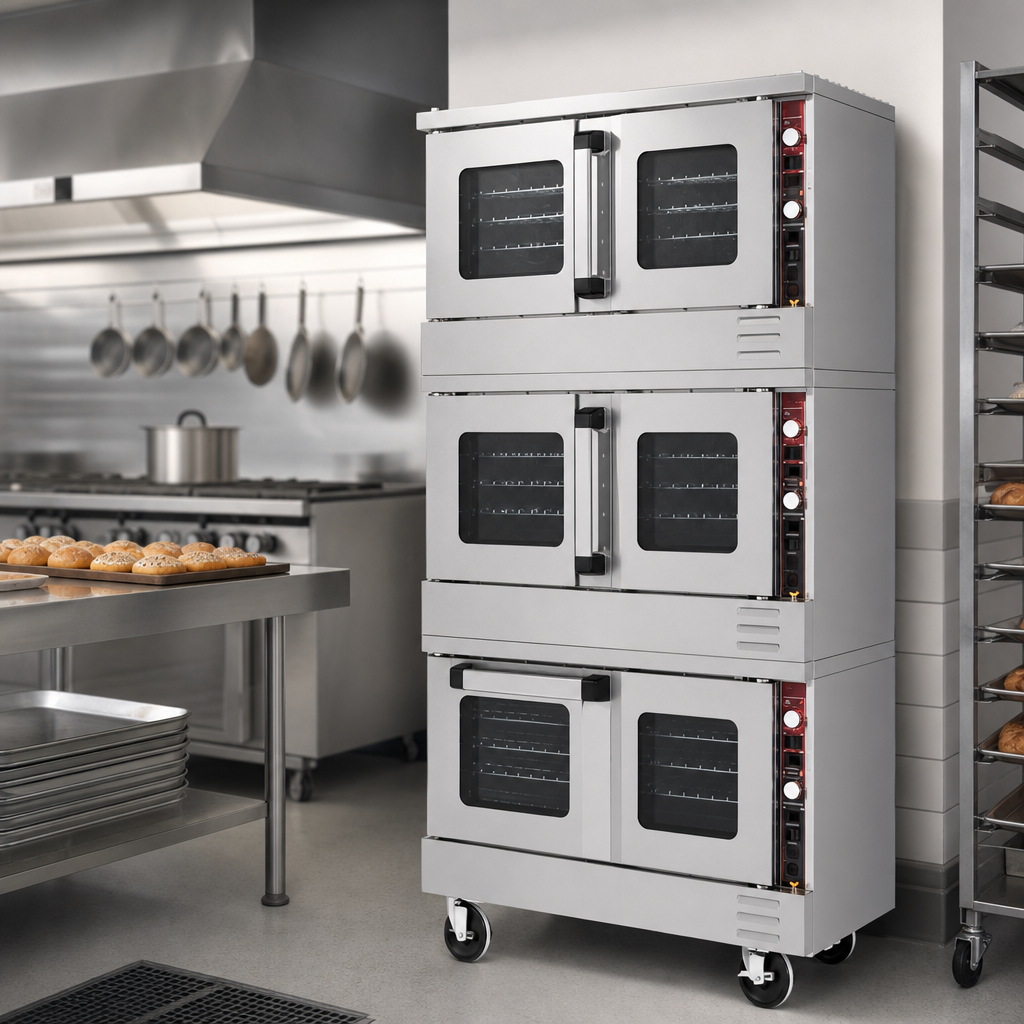

- Triple-deck, ventless design – no dedicated hood required*
- 7.5 kW high-efficiency heating element in each deck (22.5 kW total)

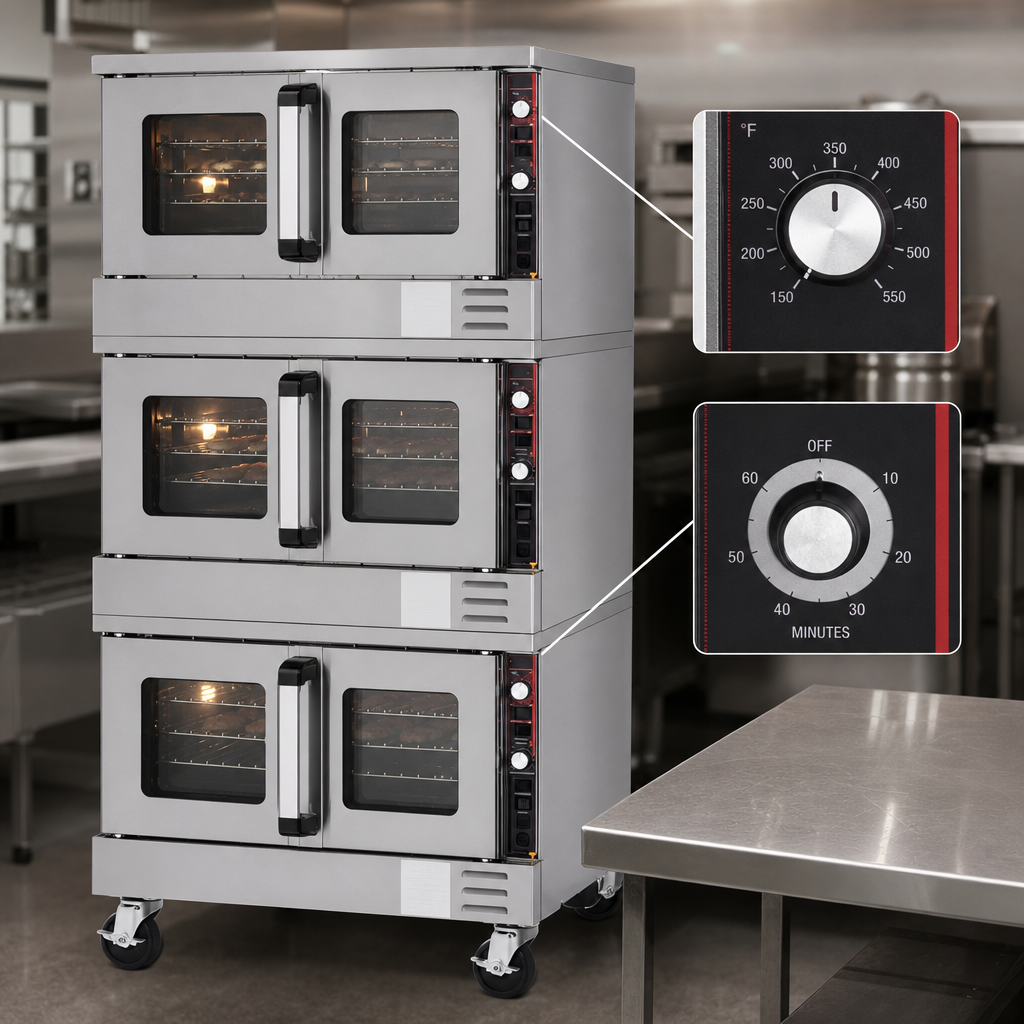

- 150 – 550 °F solid-state thermostat with 60-minute mechanical timer
- Two-speed ½ HP blower motor for even, consistent baking
- Forced cool-down fan mode for quick turn-around between batches
- Energy-saving, full 180° glass doors with dual door-seal system
- Coved porcelain interiors – fastener-free and easy to wipe clean
- Five rack positions & three heavy-duty plated racks per oven (9 total)
- Interior halogen lights and “heat” cycle indicator
- All-stainless front, sides, top, stay-cool door handles & 6" legs
- CSA & NSF listed for commercial kitchens
At-a-Glance Specifications
| Oven type | Triple-deck, ventless, electric convection |
|---|---|
| Model | TVES/30SC (TruVection Series) |
| Cook temperature range | 150 °F – 550 °F / 65 °C – 288 °C |
| Heating element | 7.5 kW per deck | 22.5 kW total |
| Fan motor | ½ HP, 2-speed (1710 / 1120 RPM) per deck |
| Interior (per deck) | 29" W × 21.5" D × 14" H (737 × 546 × 356 mm) |
| Overall height | 70" on 6" legs (72.5" with flue) |
| Electrical (per deck) add 4.3 A for control panel |
208 V / 1φ 36.1 A | 208 V / 3φ 20.9 A 240 V / 1φ 31.3 A | 240 V / 3φ 18.1 A 480 V / 1φ 15.7 A | 480 V / 3φ 9.1 A |
| Shipping weight | ≈ 900 lb (408 kg) |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (commercial use) |
*Ventless certification eliminates the need for a Type I hood in many jurisdictions. Always verify compliance with your local authority.
Why Choose TruVection?
- Maximum output, minimal footprint — three separate ovens stacked in only 70" of height.
- Labor-friendly controls — simple dials, bright lights, and audible timer keep crews on track.
- Built to last — stainless steel exterior, heavy-duty hinge pins, and cool-touch handles stand up to daily commercial abuse.
- Flexible power options — factory-wired for the voltage & phase you specify.
Upgrade your line-up with Southbend’s proven reliability and Middleby’s unmatched service network—order the TruVection TVES/30SC today and start turning tables faster tomorrow.
