Southbend (Middleby) TVES/30SC TruVection Convection Ovens
Description

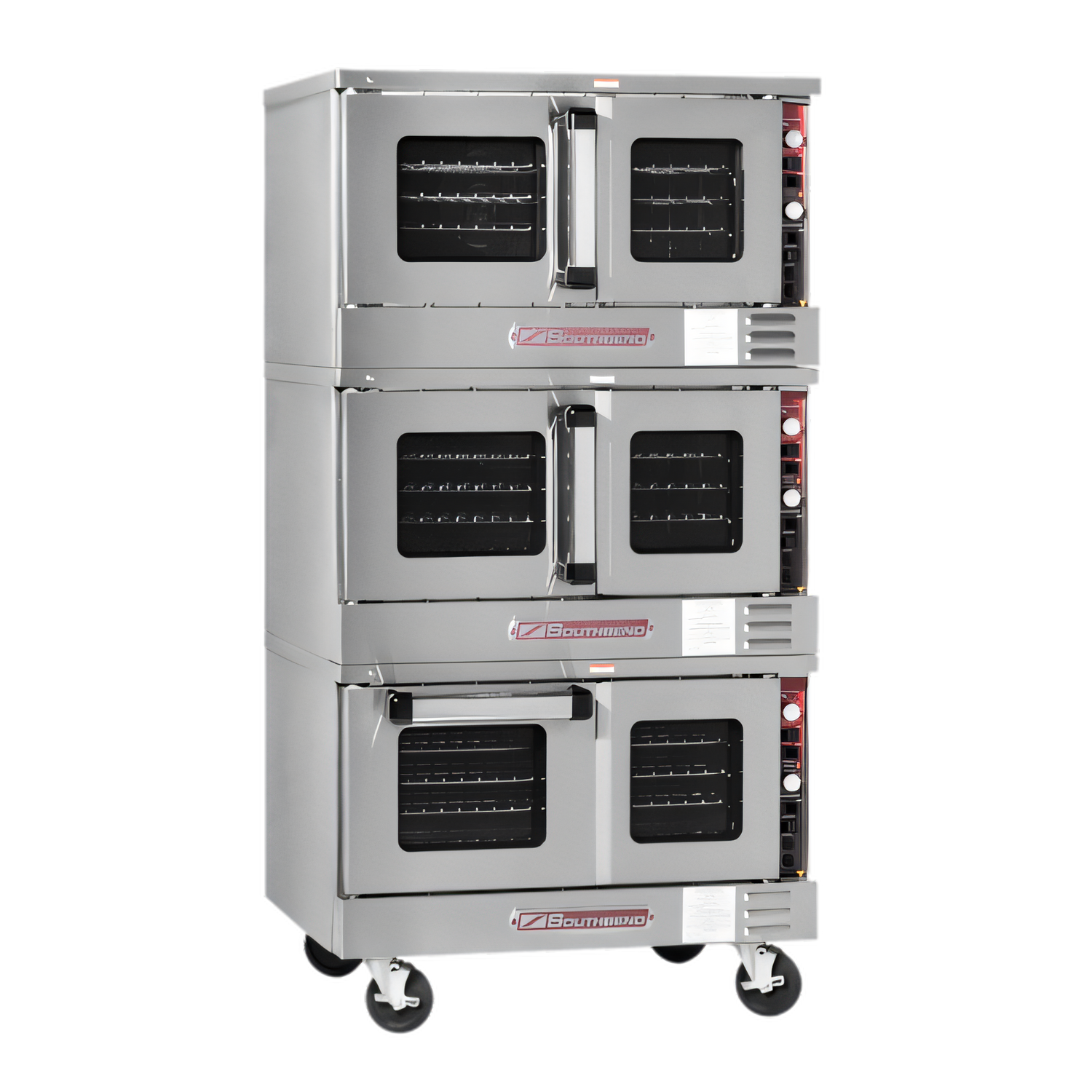

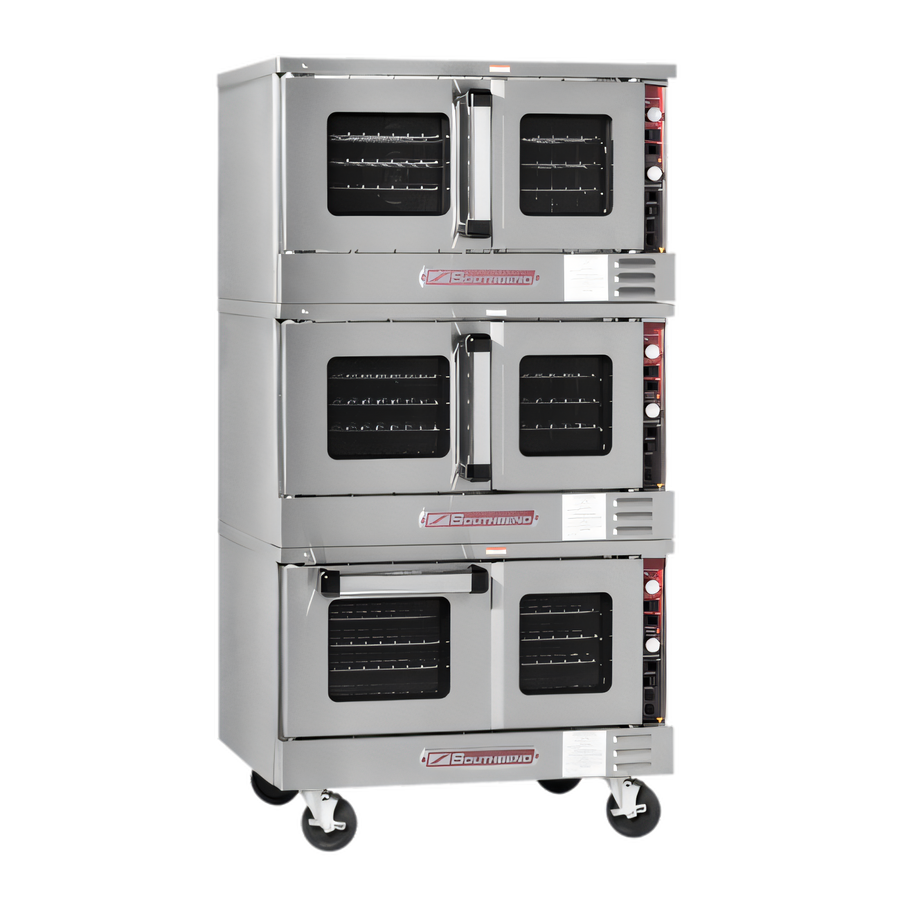

Southbend TruVection TVES/30SC Triple-Deck Electric Convection Oven
Low-profile – 7.5 kW per deck – Solid-state 150-550 °F controlsMaximize throughput without adding hood height. The TruVection TVES/30SC stacks three independent convection ovens in a compact 70-inch cabinet, giving busy restaurants, bakeries, cafeterias and caterers the power to bake, roast and reheat three different menu items—simultaneously and consistently.
Performance & Construction Highlights
- (3) 7.5 kW high-efficiency electric heating elements—22.5 kW total.
- 150 °F – 550 °F solid-state thermostat and 60-minute mechanical timer on each deck.
- Two-speed ½ HP fan motors actively “scrub” heat for even color and texture.
- Forced cool-down mode speeds change-over between batches.
- Dependent glass doors swing a full 180° and feature dual door-seal system.
- Coved, fastener-free porcelain interiors for easy wipe-down cleaning.
- Five rack positions & three plated racks per deck—nine racks included.
- Bright interior lights let you check product without opening the doors.
- Stainless-steel front, sides, top, stay-cool door handles & 6 in. legs (casters optional).

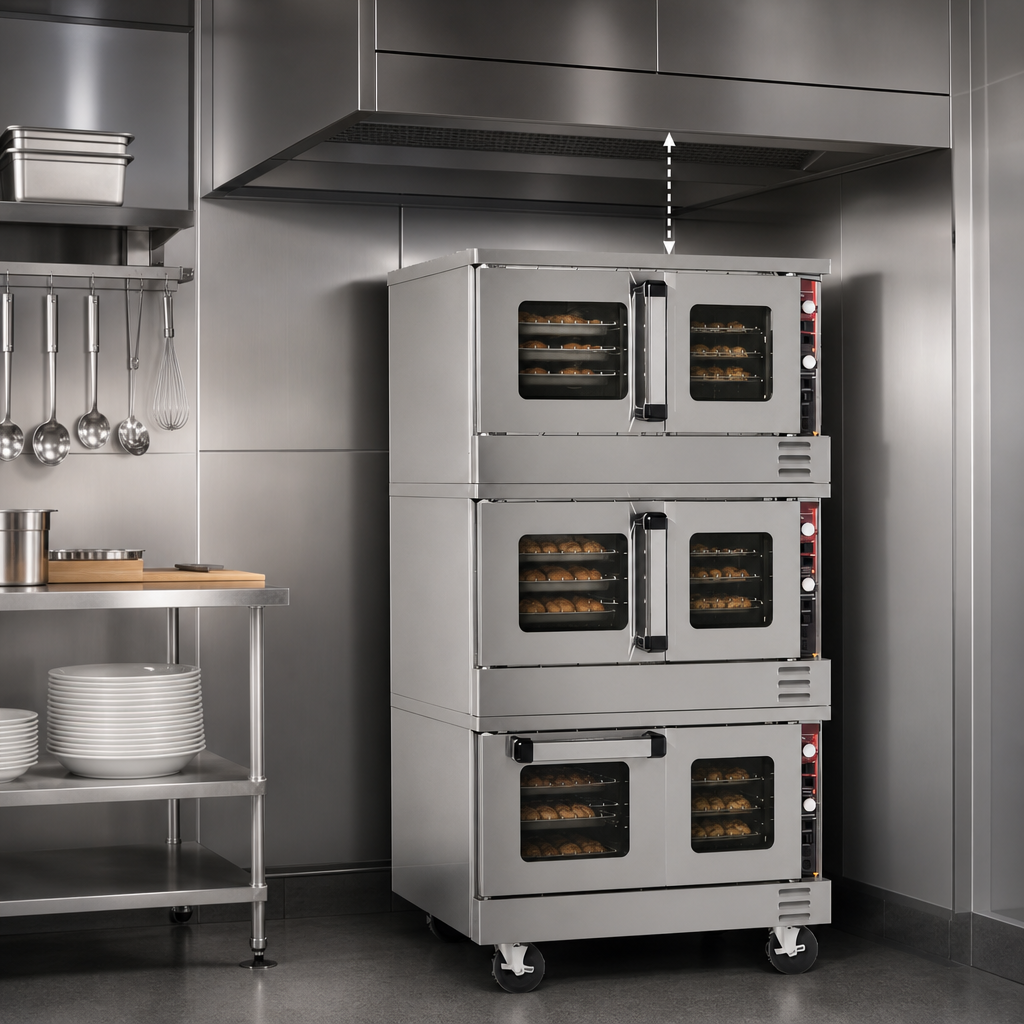

- Low-profile height: 70 in. (72.5 in. with flue) fits neatly under standard hoods.
- Certified to CSA & NSF standards; designed for commercial use only.
At-a-Glance Specifications
| Model | TVES/30SC (TruVection Triple-Deck) |
|---|---|
| Decks / Capacity | 3 independent convection ovens – 5 rack positions per deck |
| Interior (per deck) | 29 W × 21.5 D × 14 H in. (737 × 546 × 356 mm) |
| Temperature Range | 150 – 550 °F (65 – 288 °C) |
| Heat Source | (3) Incoloy sheath elements, 7.5 kW each |
| Fan Motors | (3) ½ HP, two-speed, 1710/1120 RPM |
| Overall Height | 70 in. on 6 in. legs (72.5 in. with flue) |
| Shipping Weight | Approx. 900 lb (408 kg) crated |
| Warranty | 1 year parts & labor |
Voltage & Amp Draw (per deck)
| Voltage | 1-Phase | 3-Phase |
|---|---|---|
| 208 V 60 Hz | 36.1 A | 20.9 A |
| 220/240 V 50 Hz | 28.7 A | 16.6 A |
| 240 V 60 Hz | 31.3 A | 18.1 A |
| 380/220 V 50 Hz | 19.8 A | 11.4 A |
| 415/240 V 50 Hz | 31.3 A (X-Neut.) | 10.5 A |
| 480 V 60 Hz | 15.7 A | 9.1 A |
Add 4.3 A per oven for the control panel. Multiply values by three for total unit requirements.
What’s in the Box
- (9) nickel-plated wire racks
- 6 in. stainless-steel adjustable legs
- Owner’s manual & quick-start guide
- Southbend nationwide 1-year parts & labor warranty
Popular Factory Options (sold separately)
- 4 in. or 6 in. heavy-duty casters
- Stainless-steel interior upgrade
- Marine-edge top or stainless rear jacket
- Additional oven racks
- Ventless (UL-certified) configuration
- Export crating & special voltages
Elevate production, save floor space, and serve more guests—add the Southbend TruVection TVES/30SC to your cookline today.
