Southbend (Middleby) TVES/20SC-V TruVection Convection Ovens
Description

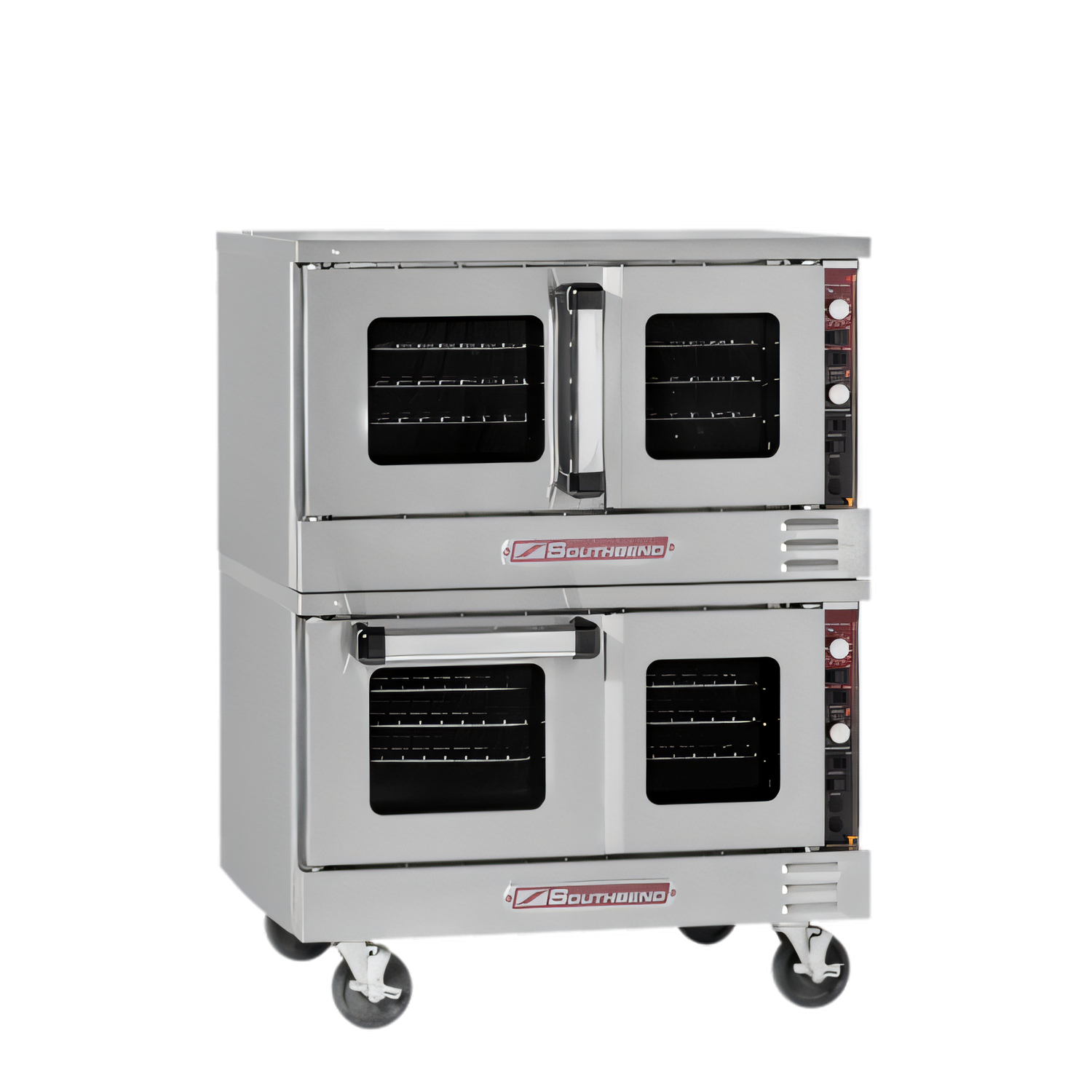

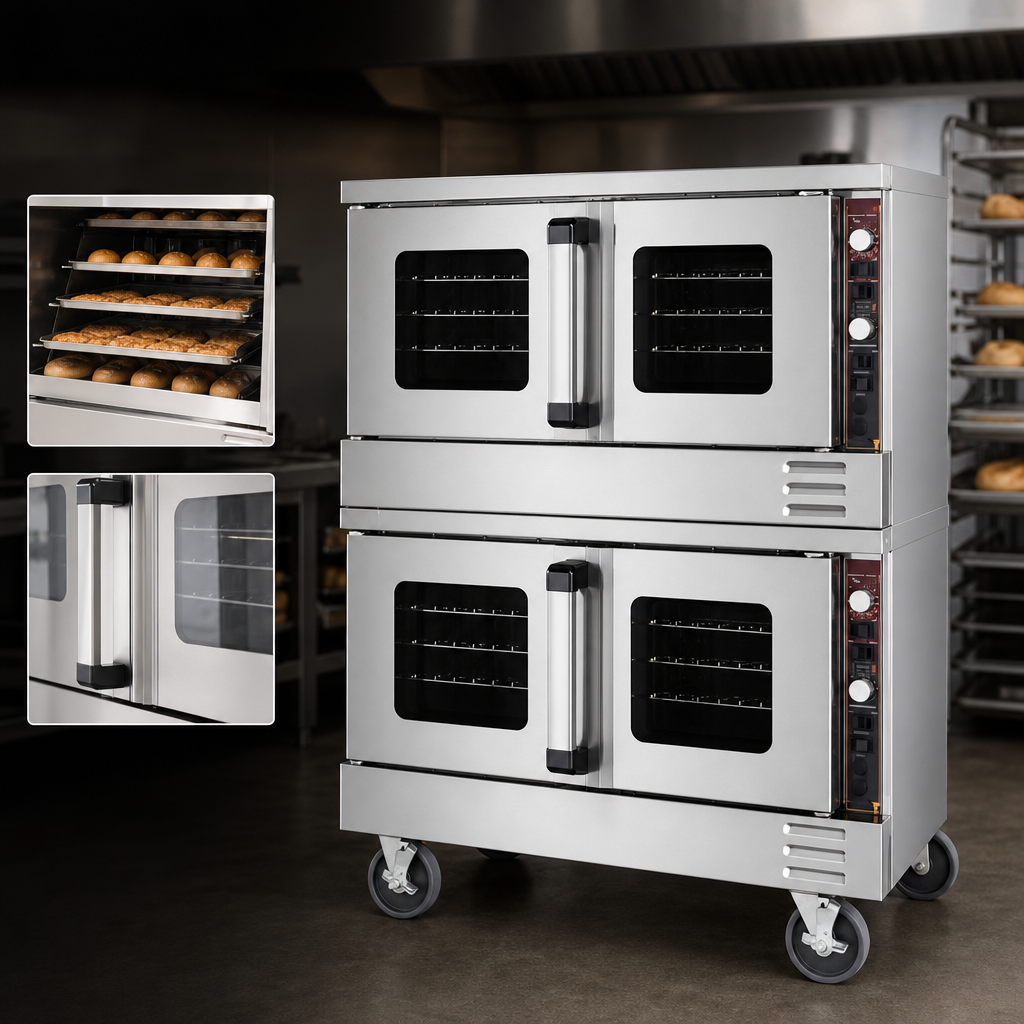

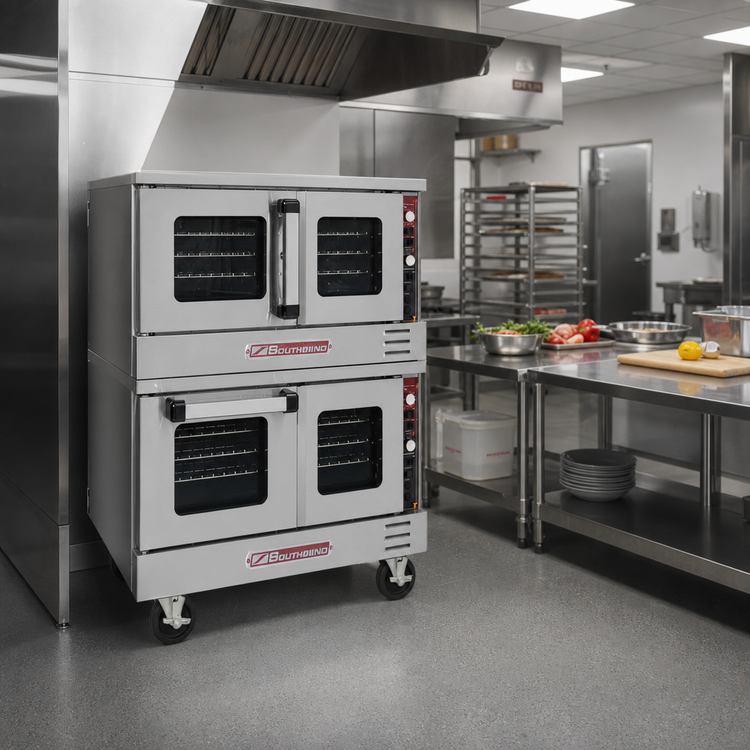

Southbend TruVection Ventless Double-Deck Electric Convection Oven

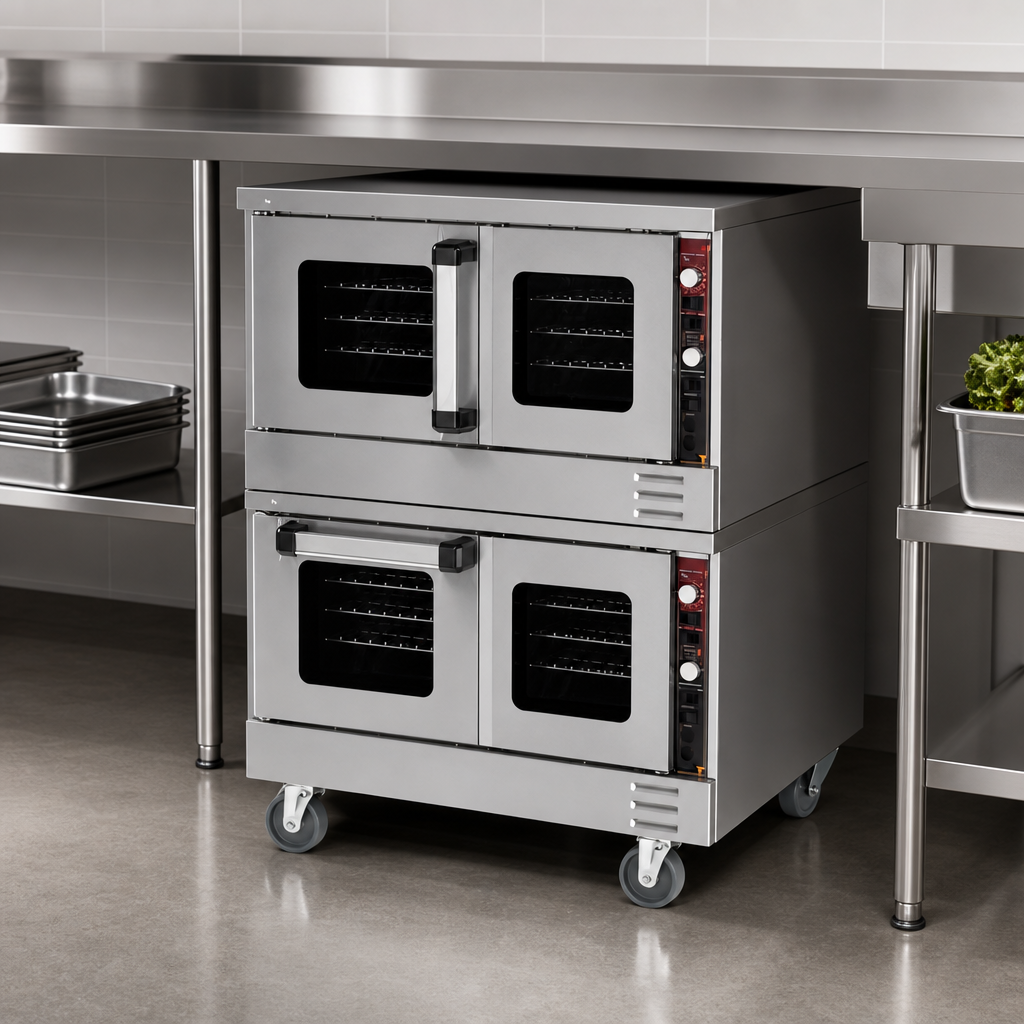

Model TVES/20SC | Low-Profile SeriesGet full-size convection performance in a space-saving footprint. The Southbend TruVection TVES/20SC stacks two high-efficiency electric ovens into a low 47½" (51" with flue) profile, giving chefs reliable, even baking without the need for a traditional vent hood*. From delicate pastries to roasted proteins, TruVection delivers consistent results shift after shift.
Why Choose TruVection?
- UL-listed ventless catalytic system eliminates expensive hood installs*
- Low-profile height keeps the top deck comfortably within reach
- 7.5 kW, two-speed (½ HP) blower in each deck for rapid, even heat
- Energy-saving dual-pane glass doors with 180° opening for safer loading
- Coved porcelain interiors clean up fast and resist corrosion
Key Standard Features
- Temperature range: 150 – 550 °F (65 – 288 °C) solid-state controls
- 60-minute mechanical cook timer with continuous ring
- Forced cool-down fan mode for quick turn-arounds between batches
- (5) rack positions & (3) chrome-plated racks per deck (6 total)
- Interior oven lights and “Heat” cycle indicator
- Stay-cool stainless steel door handles & 6" adjustable legs
- Stainless steel front, sides & top; porcelain oven liners
- Certified NSF & CSA for commercial kitchens
Performance & Capacities
| Decks | 2 (independently controlled) |
|---|---|
| Heating Elements | 7.5 kW per deck | 15 kW total |
| Interior (per deck) | 29" W × 21.5" D × 14" H (737 × 546 × 356 mm) |
| Fan Motor | ½ HP, 2-speed (1710/1120 RPM) per deck |
| Shipping Weight | Approx. 600 lb (272 kg) |
Electrical Connections (per oven)
| Voltage | 1-Phase | 3-Phase |
|---|---|---|
| 208 V / 60 Hz | 36.1 A | 20.9 A |
| 240 V / 60 Hz | 31.3 A | 18.1 A |
| 380 V / 50 Hz | 19.8 A | 11.4 A |
| 480 V / 60 Hz | 15.7 A | 9.1 A |
Add 4.3 amps for the control panel. Phase ships per order.
Popular Options & Accessories
- 4" or 6" heavy-duty swivel casters (field install)
- Stainless steel interior upgrade
- Marine-edge or stainless rear jacket
- Extra wire racks or stainless dirt tray
Peace-of-Mind Warranty
Southbend covers the TruVection oven with a 1-year parts & labor warranty when installed by an authorized service agency. Additional three-month coverage applies on replacement parts installed under warranty.
Ventless Operation: *UL-certified catalytic system may be accepted in place of a Type-I hood. Always confirm compliance with local code authorities before installation.
