Southbend (Middleby) TVES/20SC TruVection Convection Ovens
Description

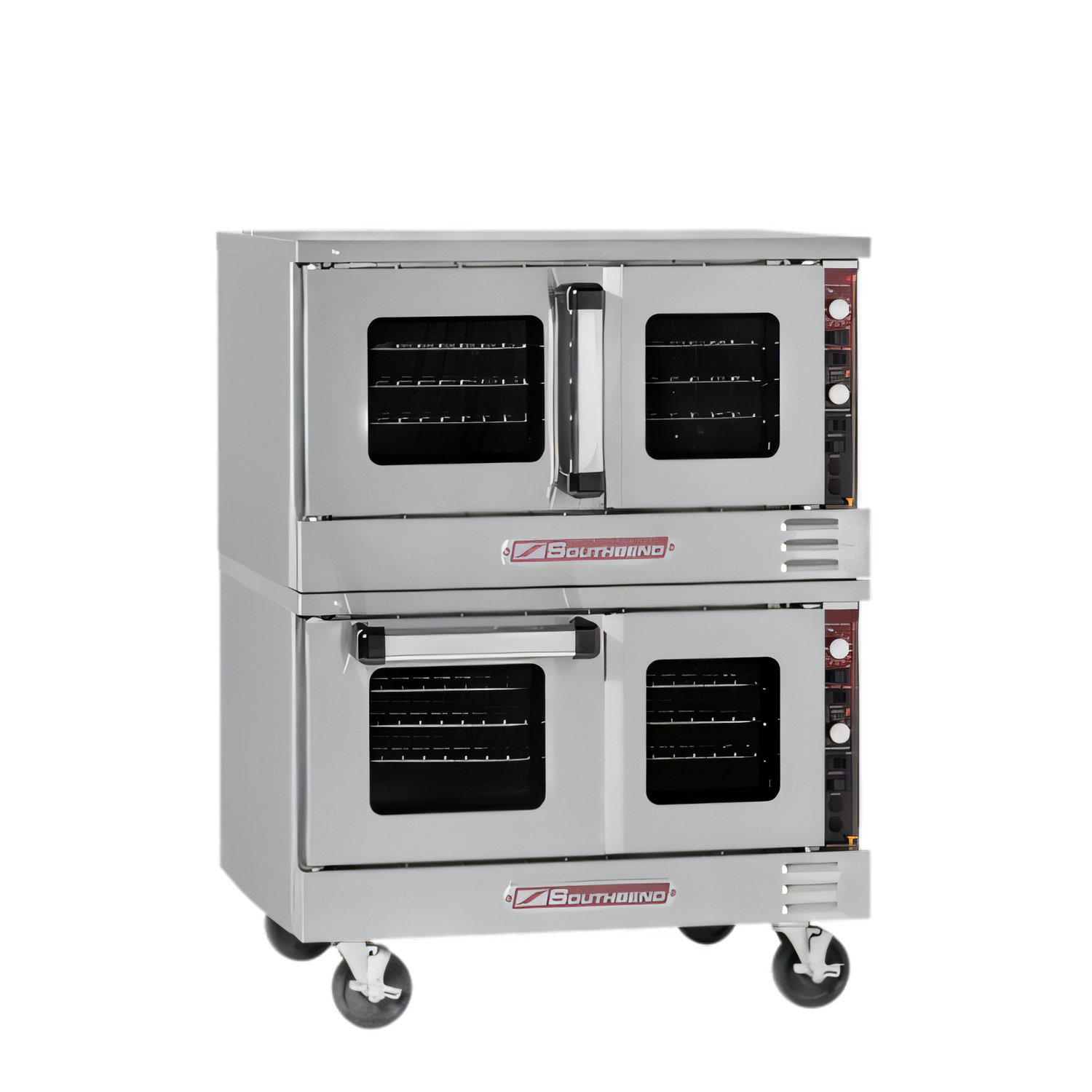

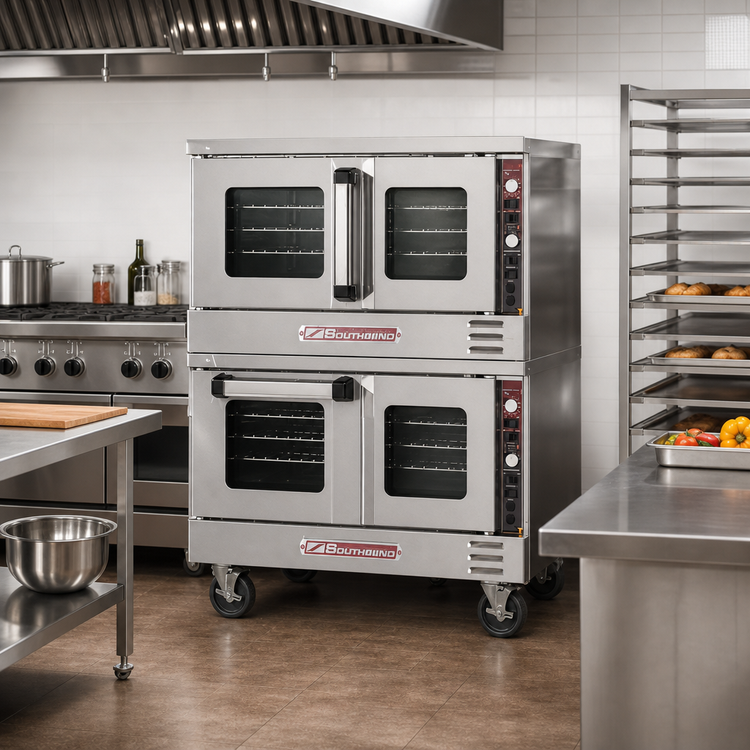

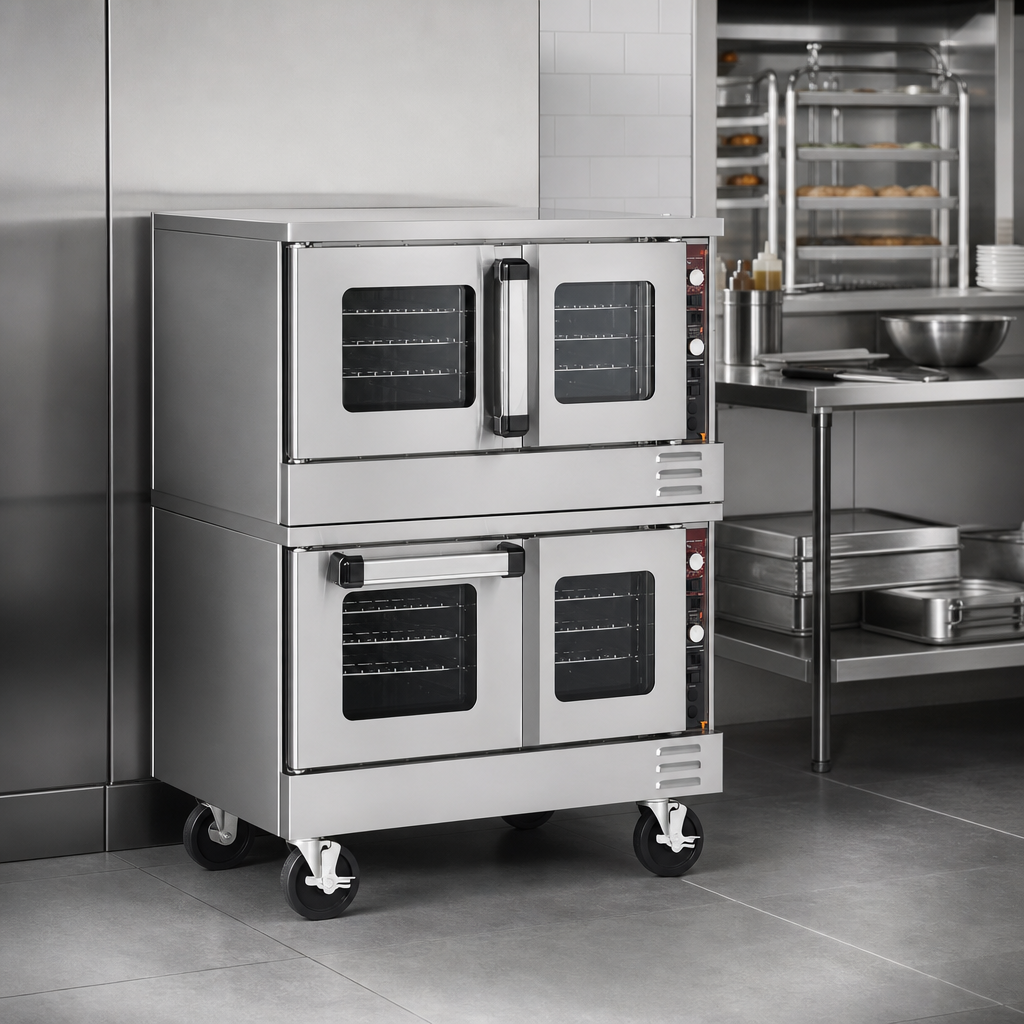

Southbend TruVection Low-Profile Double-Deck Electric Convection Oven
Model TVES/20SC | 15 kW total | CSA & NSF ListedBuilt for kitchens that demand full-size performance without the bulk, the Southbend TruVection double-deck oven stands just 47-1/2" tall yet delivers the even bake, rapid recovery, and rock-solid reliability for which Southbend is renowned.
Key Features
- Two independent 7.5 kW high-efficiency heating elements (15 kW total)

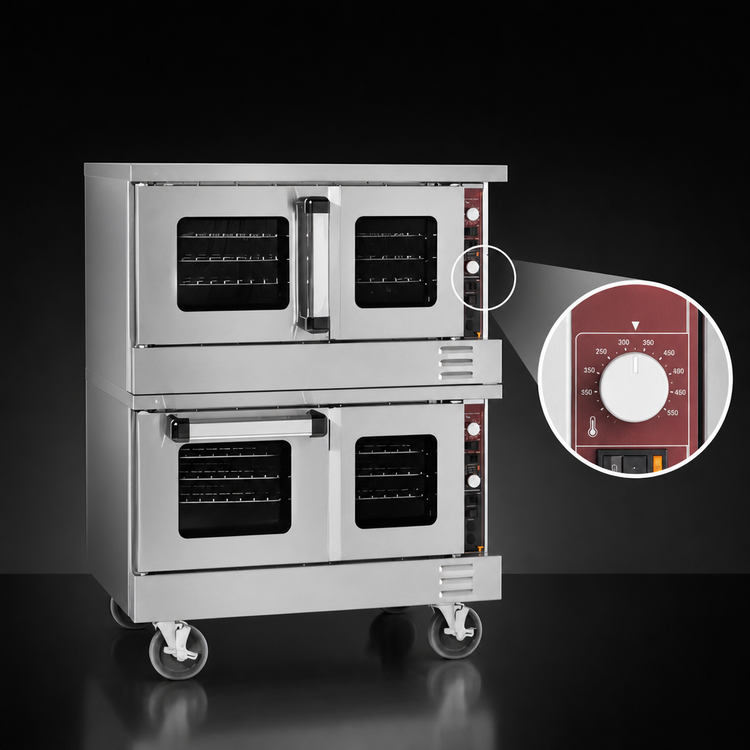

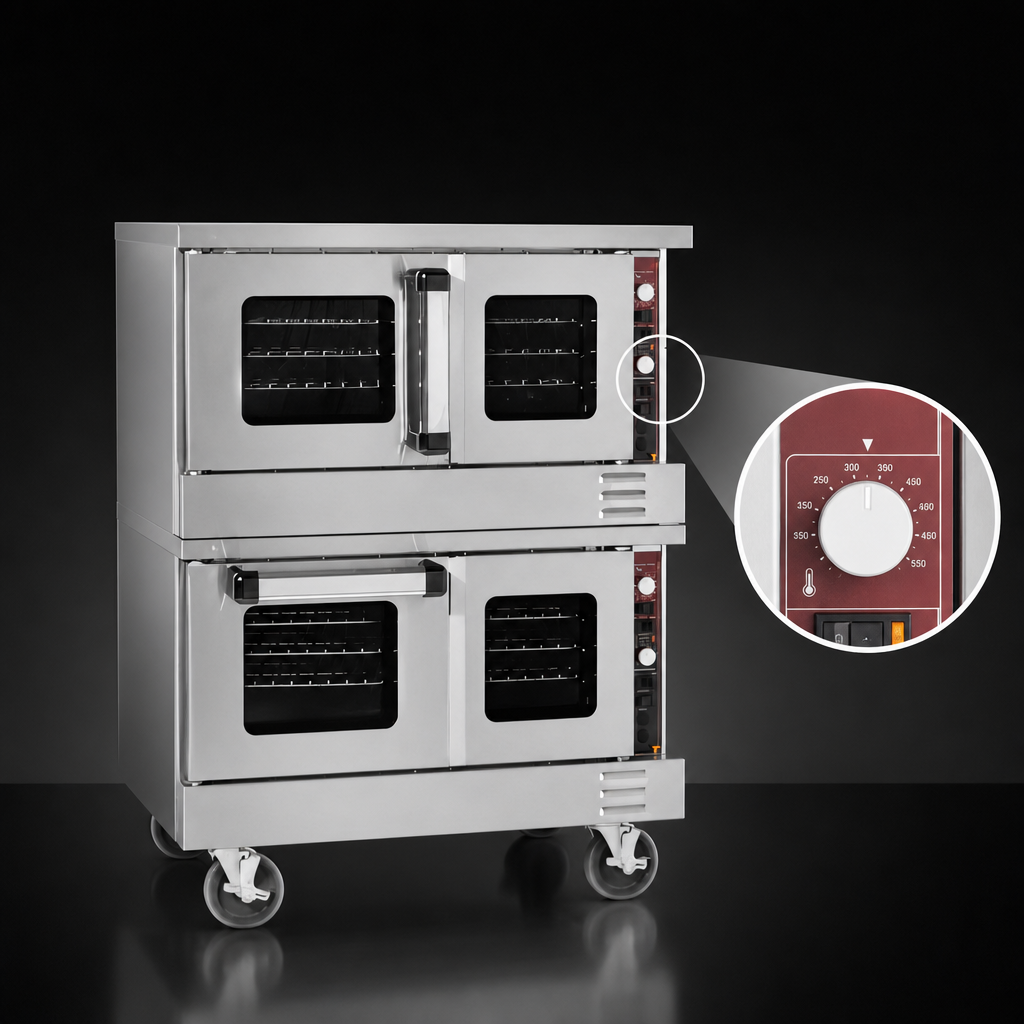

- 150 – 550 °F solid-state thermostats with 60-minute mechanical cook timers
- (2) 1/2 HP two-speed blower motors for uniform air circulation
- Energy-saving dependent glass doors open a full 180° and feature a dual heat-seal system
- Porcelain-enameled, coved interiors wipe clean quickly and resist corrosion
- 5-position rack guides • 3 heavy-duty plated racks included per cavity (6 total)
- Forced cool-down fan mode protects components and speeds between-batch turnover
- Stay-cool stainless steel door handles & 6" adjustable stainless steel legs
- Bright interior lighting for easy product monitoring without opening the door
TruVection Advantage
Southbend’s TruVection system “scrubs” heat across the food surface by combining rear-mounted elements with high-velocity airflow. The result? Faster cook times, exceptional browning, and reduced energy costs compared with traditional deck ovens.
Specifications
| Decks / Capacity | 2 decks • 3 full-size racks per deck (5 positions) |
|---|---|
| Temperature Range | 150 °F – 550 °F (65 °C – 288 °C) |
| Heat Output | 7.5 kW per deck | 15 kW total |
| Blower Motors | (2) 1/2 HP, 2-speed, 1710 / 1120 RPM |
| Controls | Solid-state thermostat, 60-min timer, electronic ignition |
| Interior Dimensions (per deck) | 29" W × 21.5" D × 14" H (737 × 546 × 356 mm) |
| Exterior Dimensions* | 29" W × 29-1/4" D × 47-1/2" H (51" H with flue) |
| Electrical (per deck) | 7.5 kW @ 208, 240, 380, 415 or 480 V; single or 3-phase (36.1 A @ 208 V 1-ph, 20.9 A @ 208 V 3-ph) |
| Shipping Weight | Approx. 600 lb (272 kg) |
| Certifications | CSA | NSF |
*Depth excludes door handle; see spec sheet for detailed drawings.
What’s Included
- (6) plated oven racks – 3 per deck
- 6" stainless steel adjustable legs
- Factory-installed interior lights
- 1-year limited parts & labor warranty
Popular Options (sold separately)
- 4" or 6" heavy-duty casters for mobility
- Ventless design package
- Stainless steel rear jacket or dirt tray
- Additional oven racks
- Marine-edge top or down-draft diverter for direct flue
