Southbend (Middleby) TVES/10SC-V TruVection Convection Ovens
Description

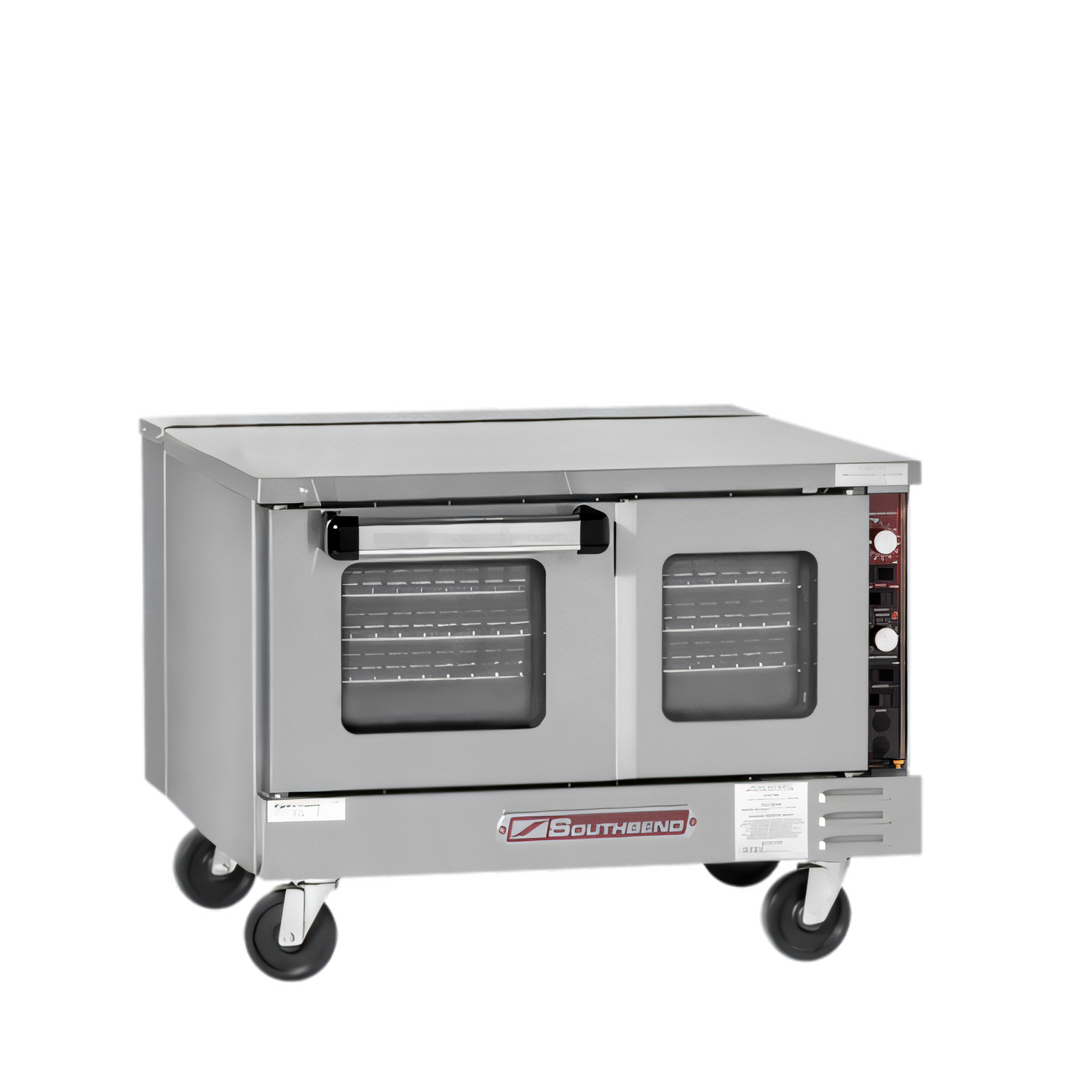

Southbend TruVection Low-Profile Ventless Electric Convection Oven
Model TVES/10SC | 7.5 kW | Single DeckBig-oven performance—compact footprint. The TruVection TVES/10SC delivers even, high-volume convection baking in a body that’s just 27 ¼″ tall, allowing it to slide beneath a counterline range or work as a stand-alone powerhouse without the need for a ventilation hood.*
Key Features

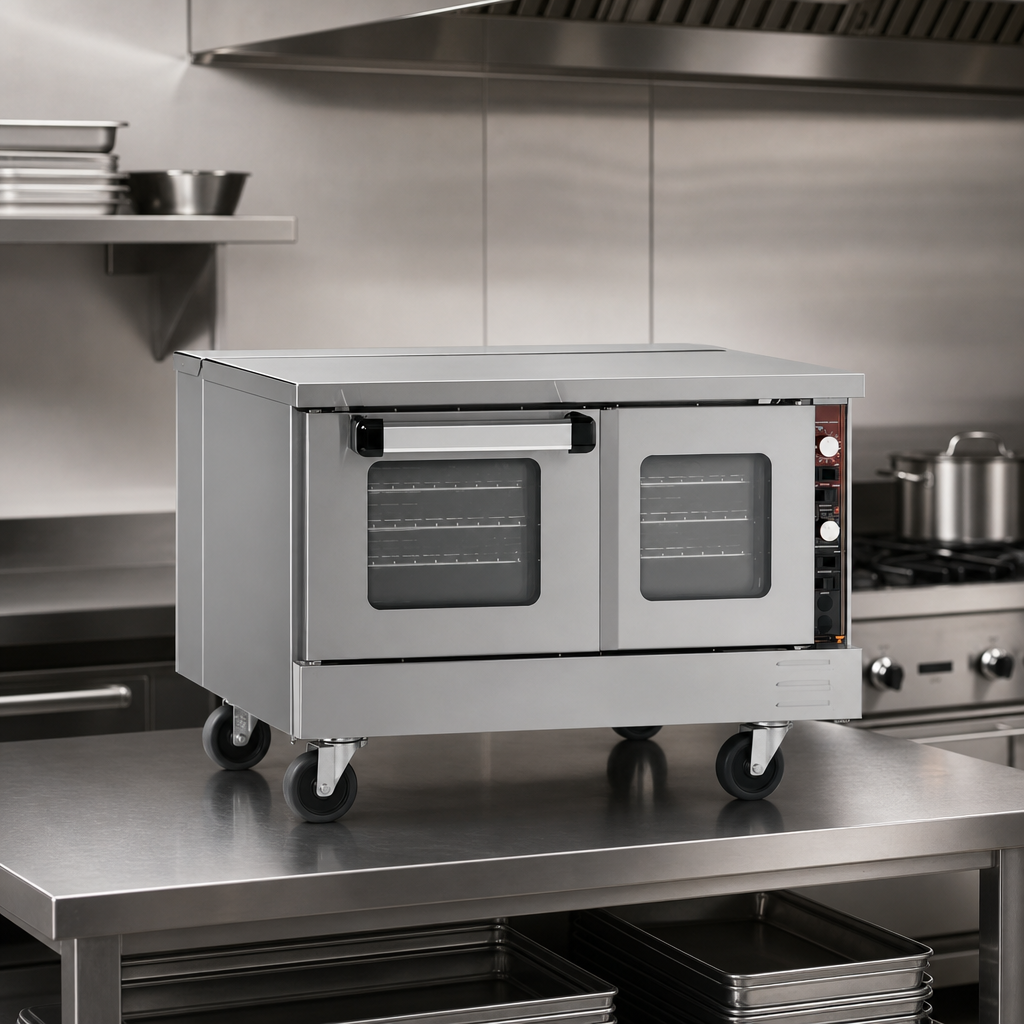

- Ventless, low-profile design (UL certified) saves valuable hood and line space.
- High-efficiency 7.5 kW electric elements paired with a two-speed ½ HP blower for rapid, even heat distribution.

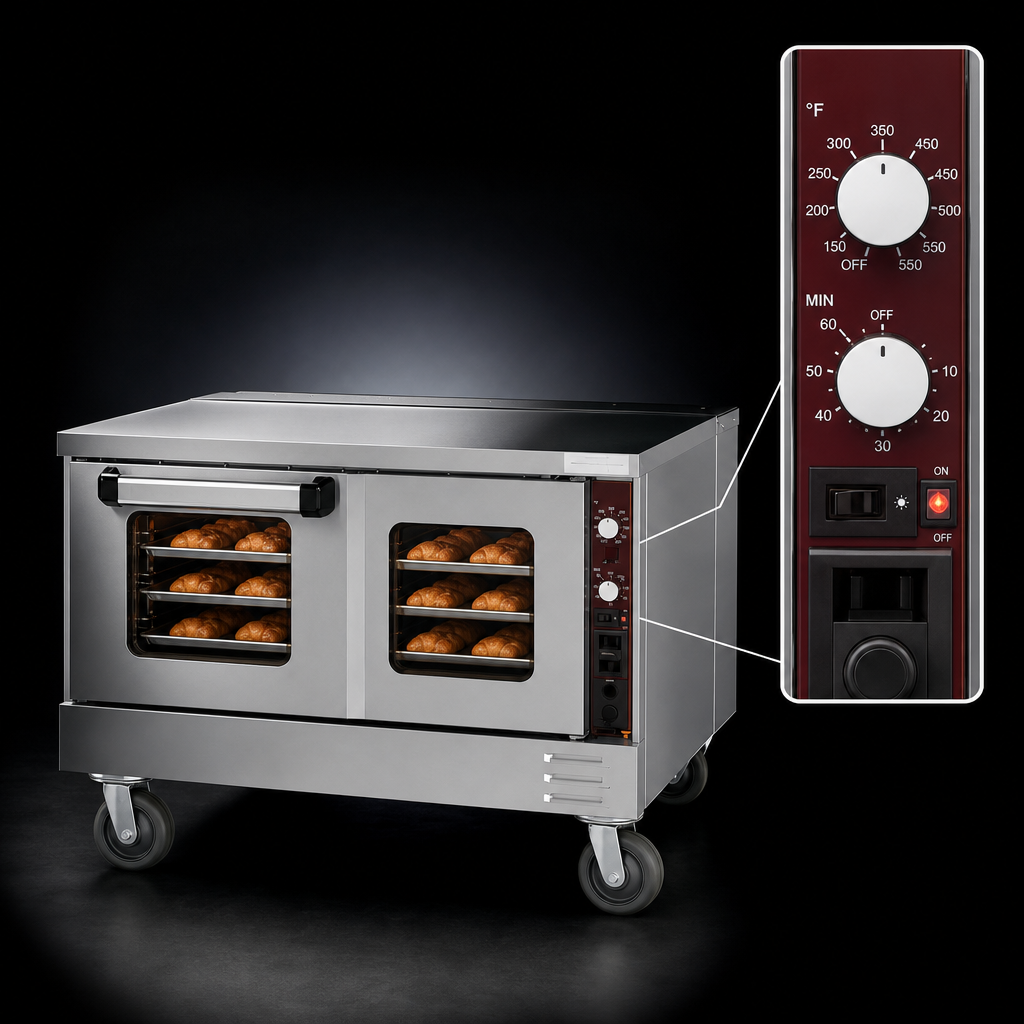

- Solid-state thermostat (150 – 550 °F) and 60-minute mechanical timer for precise, repeatable results.
- Forced cool-down fan mode speeds turn-around between batches.
- Dependent 2-piece glass doors open a full 180°; dual gasket system locks in heat, while low-emissivity windows cut energy loss.
- Coved, porcelain-enameled interior wipes clean fast and resists corrosion.
- Five rack positions on 1 ⅝″ centers; includes three chrome-plated racks.
- Bright twin 40 W interior lights for effortless product checks.
- Stay-cool, heavy-duty stainless door handle plus stainless front, sides, top and 6″ adjustable legs for long-term durability.
- CSA & NSF listed for worry-free code compliance.
At-a-Glance Specs
| Model | TVES/10SC (TruVection Series) |
|---|---|
| Configuration | Single deck, ventless, low profile |
| Capacity | 3 full-size sheet pans on 5 position guides |
| Interior Dimensions | 29″ W × 21.5″ D × 14″ H (737 × 546 × 356 mm) |
| Temperature Range | 150 °F – 550 °F (65 °C – 288 °C) |
| Heating Elements | 7.5 kW sheathed electric |
| Fan Motor | ½ HP, 2-speed (1710 / 1120 RPM) |
| Electrical | 208, 240, 380, 415 or 480 V; 1- or 3-phase (208 V 1-ph 36.1 A / 3-ph 20.9 A – see spec sheet for full ratings) |
| Exterior Construction | Stainless steel front, sides, top & door frame; 6″ stainless legs |
| Overall Height | 27 ¼″ body height + 6″ legs |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor |
What’s Included
- (3) Chrome-plated oven racks
- 6″ stainless steel adjustable legs
- User/installation manual
Need more flexibility? Add-on options include extra racks, 12″ or 26″ legs, 4″ or 6″ casters, stainless interior, export voltages and more—contact us for details.
