Southbend (Middleby) TVES/10SC TruVection Convection Ovens
Description
Southbend TruVection Low-Profile Electric Convection Oven
Model TVES/10SC | Single Deck | 7.5 kWPut high-volume convection power wherever you have 27 inches of clearance. The Southbend TruVection pairs a space-saving footprint with the even baking performance chefs expect from a full-size floor model—making it the perfect match for cafés, kiosks, satellite kitchens, and chef’s counters.
Why You’ll Love It

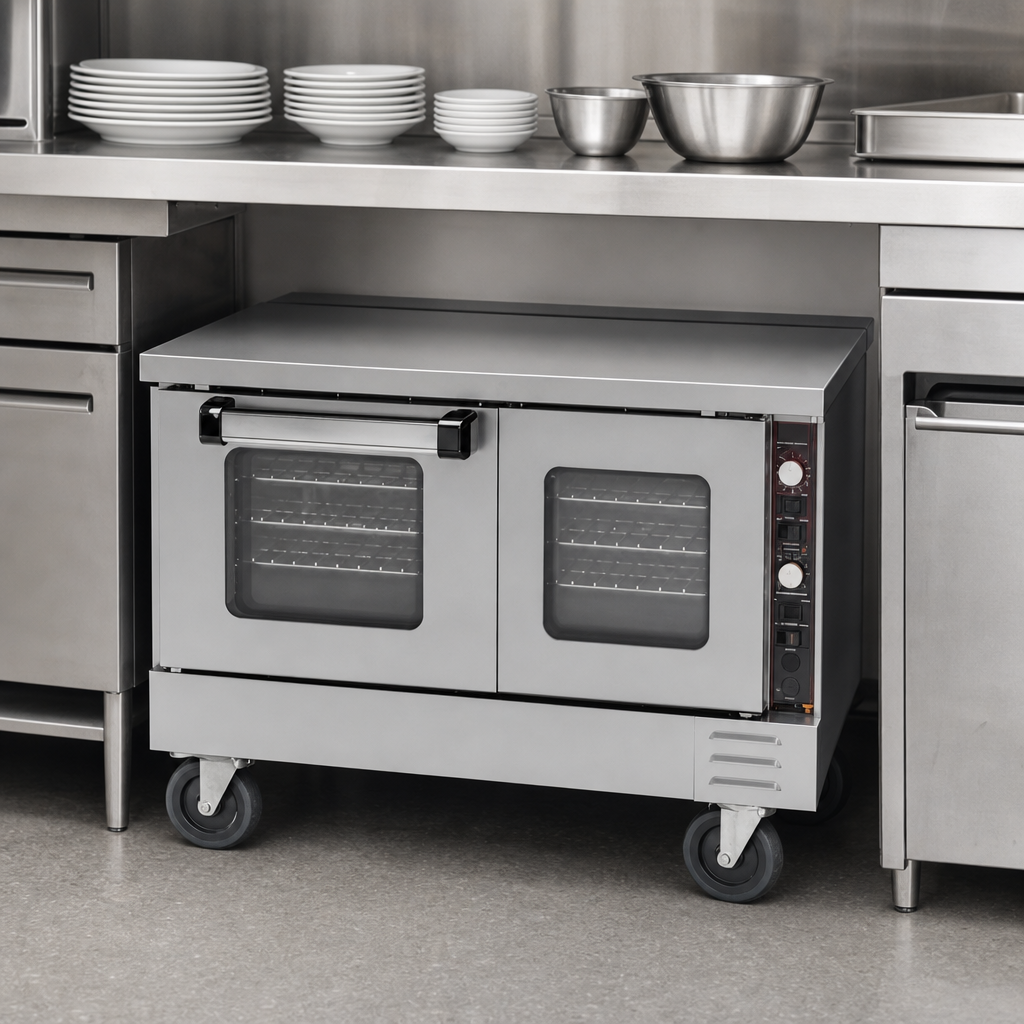

- Low-profile design (only 27-¼" tall) slides under hoods, counters or modular ranges.

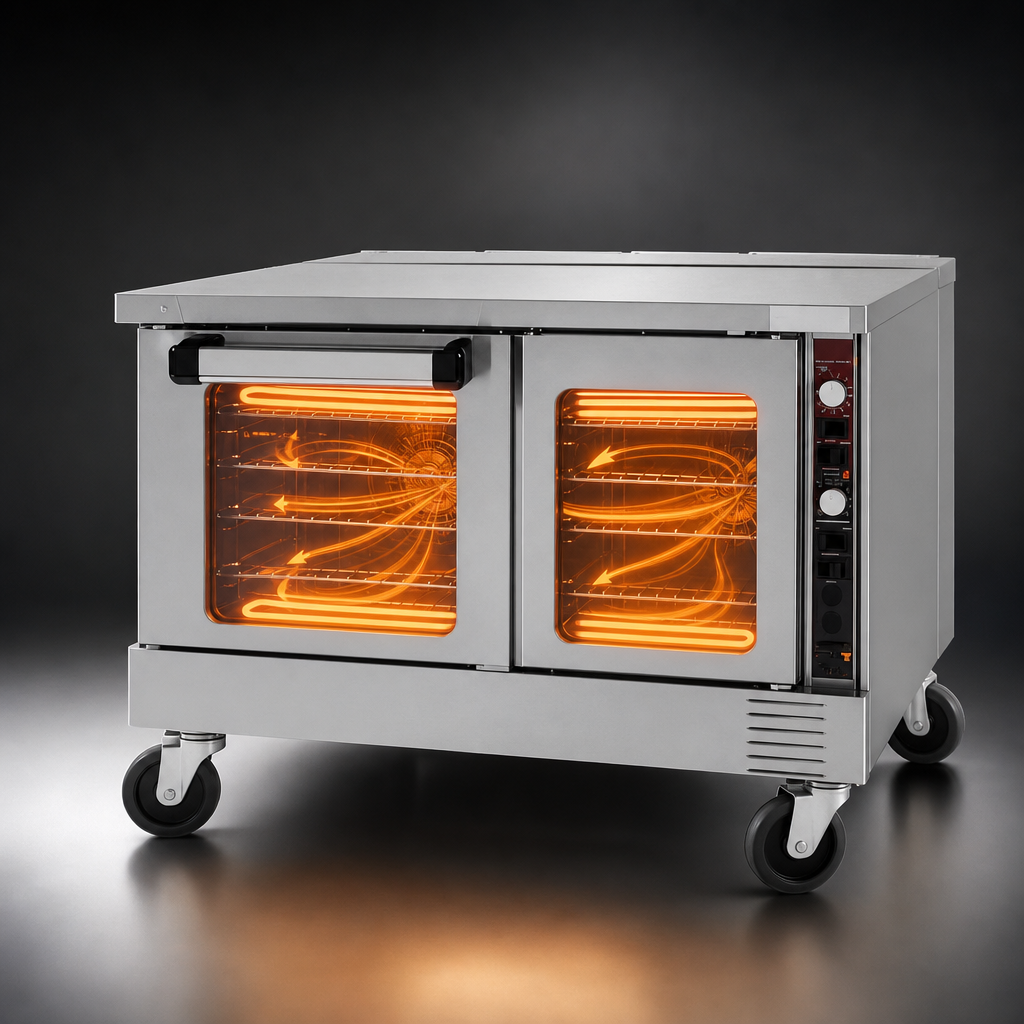

- 7.5 kW high-efficiency heating elements and a ½ HP two-speed fan (1,710/1,120 RPM) deliver rapid, even heat.
- Solid-state thermostat adjusts from 150 °F – 550 °F; 60-minute mechanical timer keeps you on schedule.
- Forced cool-down mode gets the cavity ready for the next batch fast.
- Dependent 2-piece glass doors swing a full 180° and feature dual door seals plus low-E glass to lock in heat and save energy.
- Coved, porcelain-enameled interior with five rack positions; supplied with three chrome racks.
- Bright interior lighting for at-a-glance checks without opening the doors.
- All-stainless front, sides, top, door handle, and 6" legs stand up to the daily grind.
- Field-selectable 208, 240, 380, 415 or 480 VAC, 1- or 3-phase electrical connections.
- CSA & NSF listed; manufactured in Fuquay-Varina, NC, USA.
At-a-Glance Specs
| Overall Height | 27-¼" (692 mm) on 6" legs |
|---|---|
| Interior Cavity | 29" W × 21.5" D × 14" H (737 × 546 × 356 mm) |
| Rack Capacity | 5 positions on 1-5/8" centers • 3 chrome racks included |
| Temperature Range | 150 °F – 550 °F (65 °C – 288 °C) |
| Heating Elements | 7.5 kW sheathed (rear-mounted) |
| Fan Motor | ½ HP, two-speed, 1,710/1,120 RPM |
| Electrical (selectable) |
208 V / 36.1 A (1 Ø) | 240 V / 31.3 A (1 Ø)
208 V / 20.9 A (3 Ø) | 240 V / 18.1 A (3 Ø) Add 4.3 A for control circuit |
| Certifications | CSA • NSF |
| Shipping | 57.5" W × 45.5" D × 45" H crate • Approx. 300 lb (136 kg) |
| Warranty | 1-year parts & labor (commercial use) |
Popular Accessories (sold separately)
- 4" or 6" locking swivel casters
- 12" or 26" stainless steel legs
- Roller-bearing sliding rack or extra chrome racks
- Ventless catalytic hood kit (UL-certified)
- Stainless steel solid doors, interior, or rear jacket
Need flexible payment options? Ask about Middleby Equipment Financing for fast approvals and fixed monthly payments.
