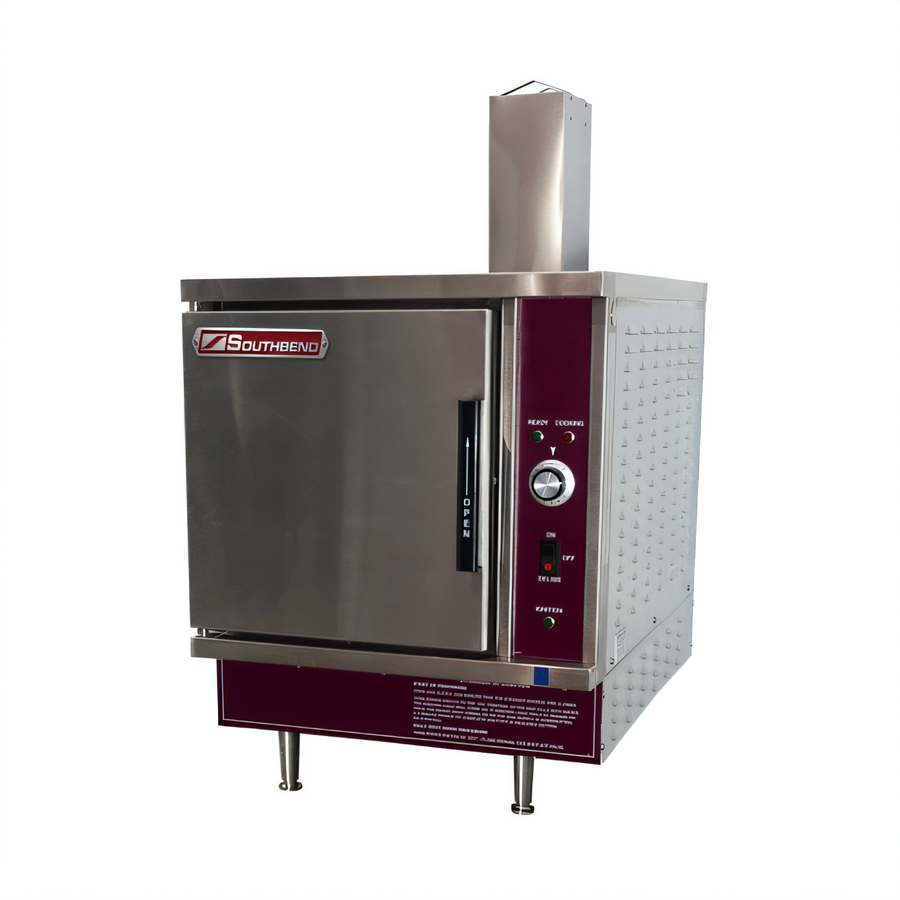

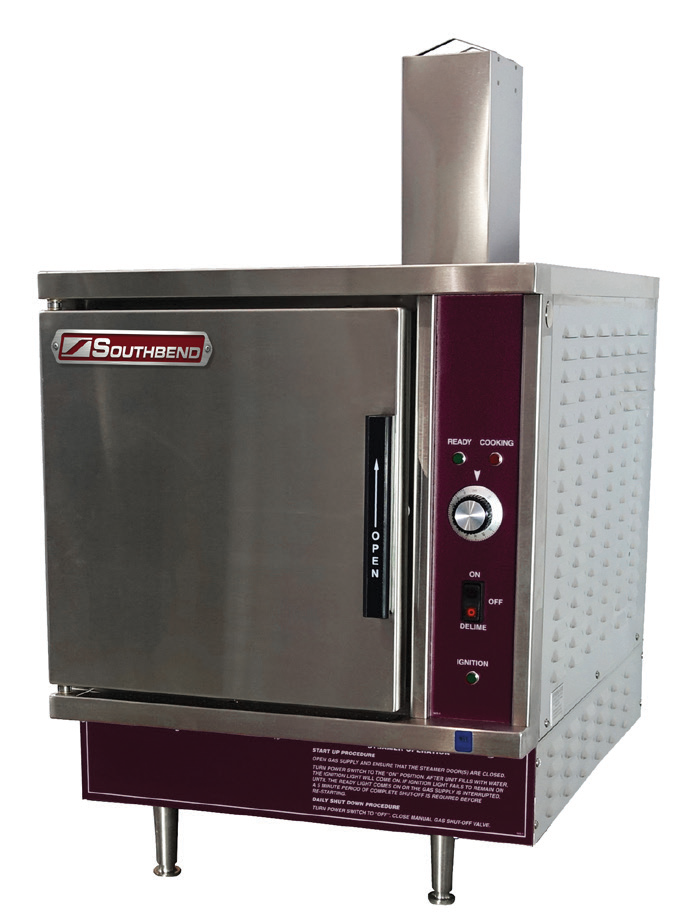

Southbend Steam SX-6G3-SB Gas Countertop Convection Steamer, 6-Pan Capacity, Auto Fill/Auto Drain

12" x 20" Pans, 47,000 BTU, 304/316 Stainless Steel

Auto-fill, auto-drain gas steamer built for fast prep and easy maintenance in busy commercial kitchens.

  • Gas-fired countertop steamer with automatic fill and drain for easier operation.
  • One compartment holds 6 full-size 12" x 20" pans.
  • 47,000 BTU steam generator with electronic ignition and electromechanical controls.
  • 304 stainless steel exterior and 316 stainless steel cooking chamber for durability.
  • Split water connections, spring-release door, and adjustable legs simplify installation and daily use.

Overall Dimensions:

24.0"W x 32.5"D x 39.56"H

Product Weight:

250.0 lb

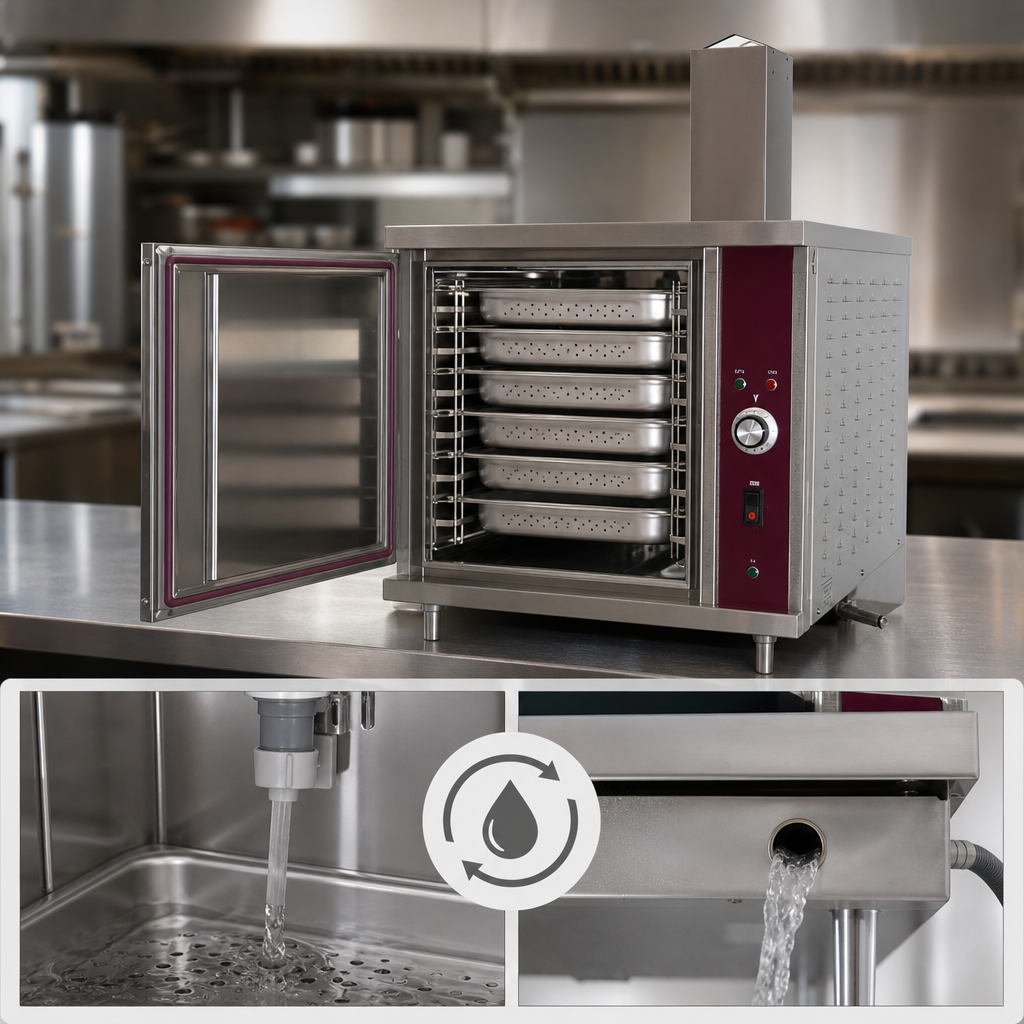

Auto Fill / Auto Drain

Automatically manages water level and drainage to reduce manual intervention.

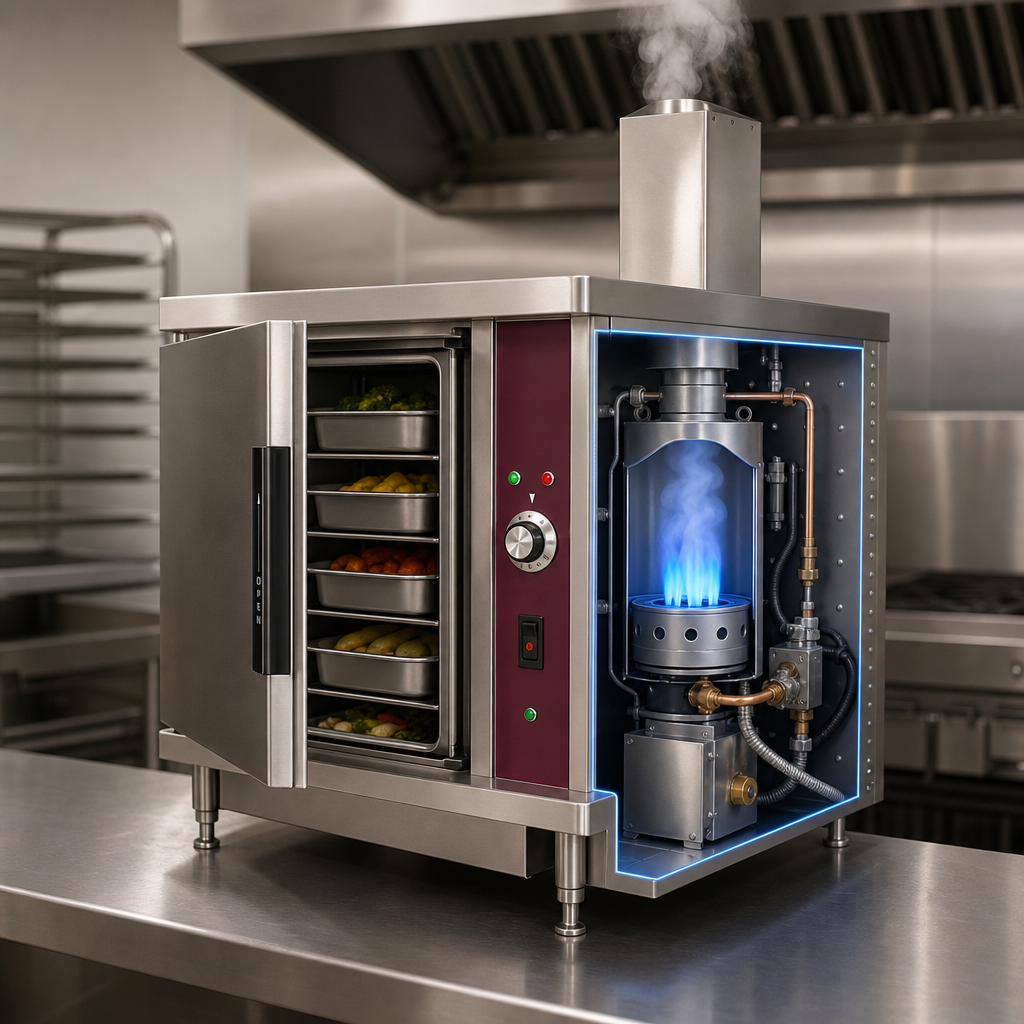

Gas-Fired Steam Generator

Stainless steel steam generator produces 47,000 BTU and uses electronic ignition.

6-Pan Capacity

Single compartment is designed for six 12" x 20" pans.

Electromechanical Controls

Includes a three-way On/Off/De-Lime power switch, ready and cooking lights, and a 60-minute timer with audible alarm.

Spring-Release Door

Positive lock and seal mechanism with a full-perimeter gasket helps retain steam during cooking.

Stainless Steel Construction

Built with a 304 stainless steel exterior and a 316 stainless steel cooking chamber with coved corners.

Water Treatment System

Standard feature helps support proper water quality and performance.

Split Water Connections

Designed for simpler hookup to a water treatment system and steam generator supply.

Safety Steam Interlock

Steam flow stops when the door is opened and resumes when the door is closed.

Adjustable Legs

4-inch adjustable legs help with leveling during installation.

Type Convection Steamer
Style Countertop
Installation Type Countertop
Compartments 1
Pan Capacity 6 Pans
Pan Size 12 Inches x 20 Inches
Controls Electromechanical
BTU 47,000 BTU
Voltage 120 Volts
Amps 2.0 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type 3-Prong Plug
Cord Length 6 Feet
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish Satin Finish
Gas Connection Size 3/4 Inches IPS
Water Inlet Size 3/8 Inches O.D. Tubing
Water Connection Required
Drain Connection Size 1 Inch IPS
Drain Connection Required
Shipping Width 24 Inches
Shipping Depth 33 Inches
Shipping Height 40 Inches
Shipping Weight 250 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has one compartment with a 6-pan capacity for 12" x 20" pans.
Standard control power is 120 VAC, single phase, 50/60 Hz with a 6-foot cord and 3-prong plug; a 220 VAC option is listed.
Yes. The generator can be ordered for Natural Gas or Propane.
Auto fill, auto drain, automatic generator blowdown de-lime mode, and a de-liming port are standard.
Unit dimensions are 24" W x 32.5" D x 39.56" H; shipping dimensions are 24" W x 33" D x 40" H, and shipping weight is 250 lb.
Southbend's limited warranty is 1 year parts and 1 year labor from the date of original purchase; authorized service is required and exclusions apply.
