Southbend (Middleby)  |  SKU: SPR-1J

Southbend (Middleby) SPR-1J Gas Ranges

$1,396.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Commercial Ranges Restaurant Equipment Stock Pot Ranges

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

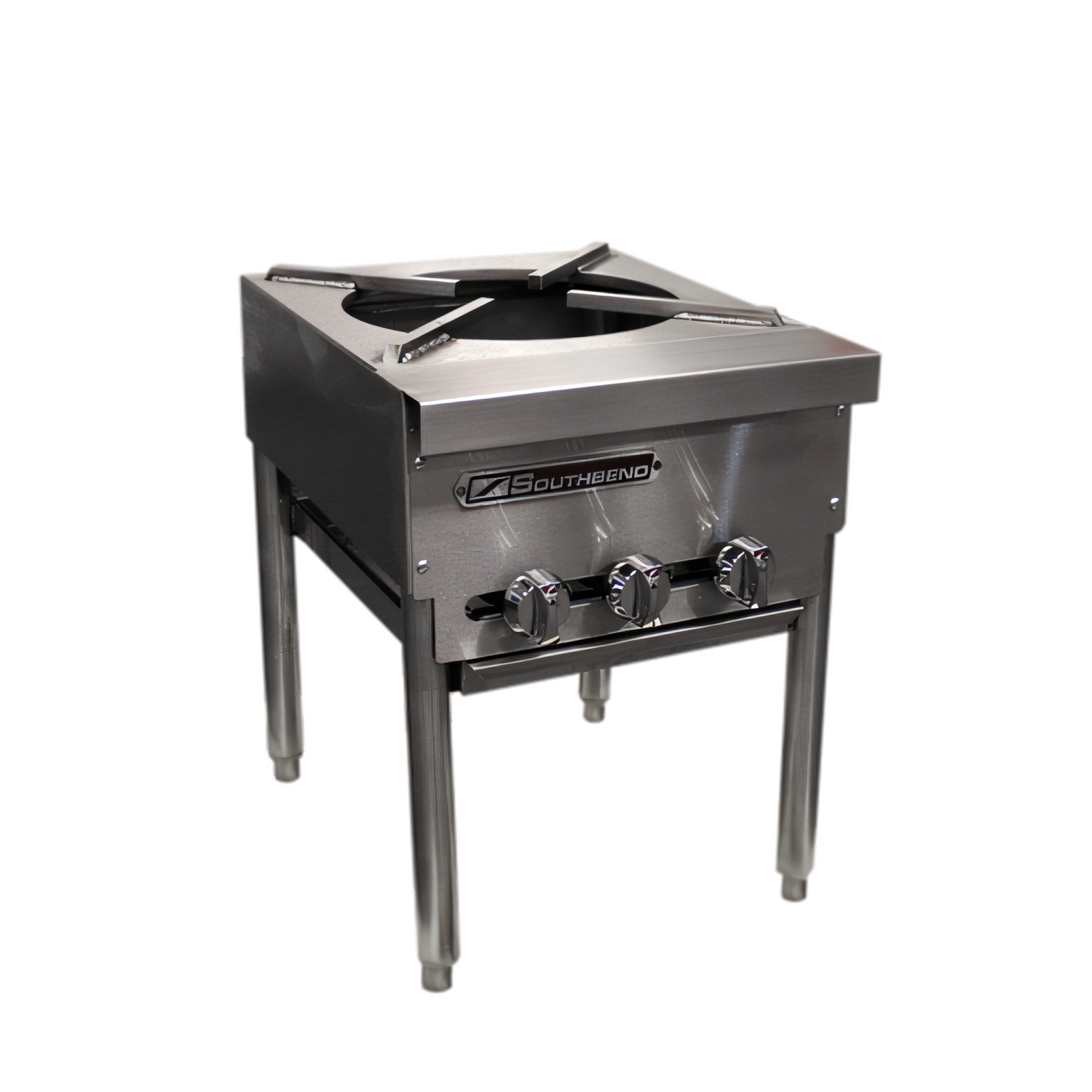

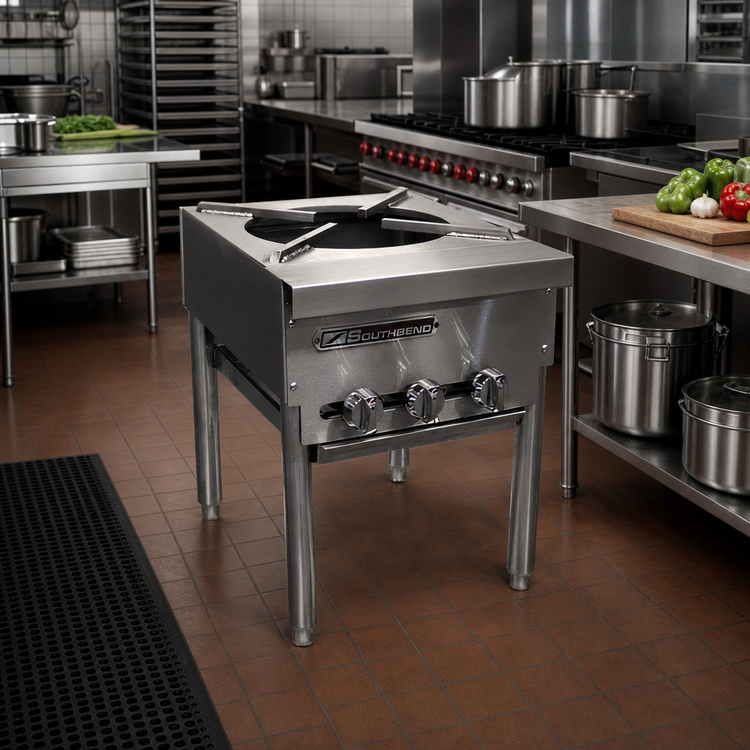

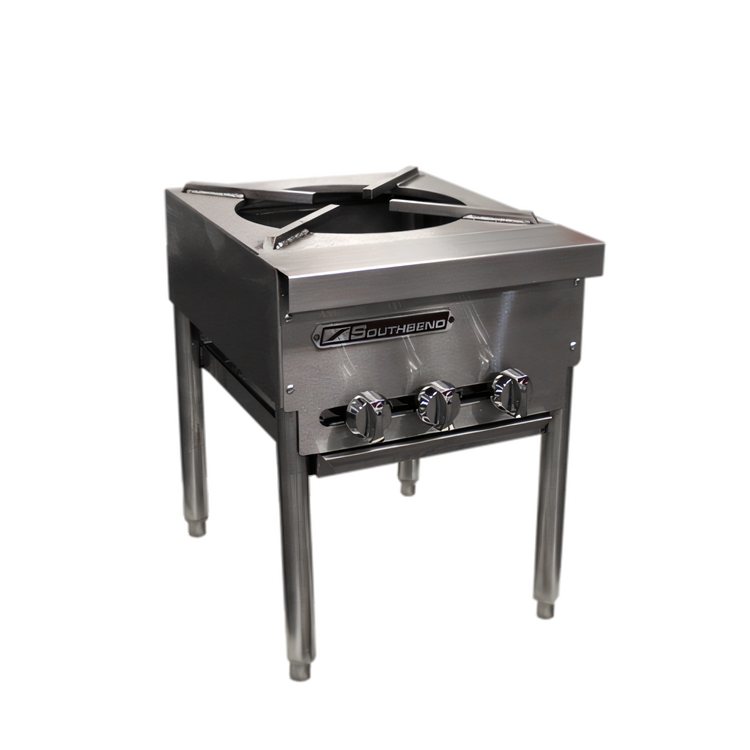

Southbend SPR-1J Stock Pot Range

Single 3-Ring 120,000 BTU Cast Iron Burner

Built for the busiest kitchens, Southbend’s SPR-1J packs a massive 120,000 BTU punch into a low-profile frame that makes handling oversized stock pots effortless. Independent ring controls take you from a delicate simmer to a rapid rolling boil in seconds, while the rugged all-steel body stands up to daily commercial abuse.

Key Features

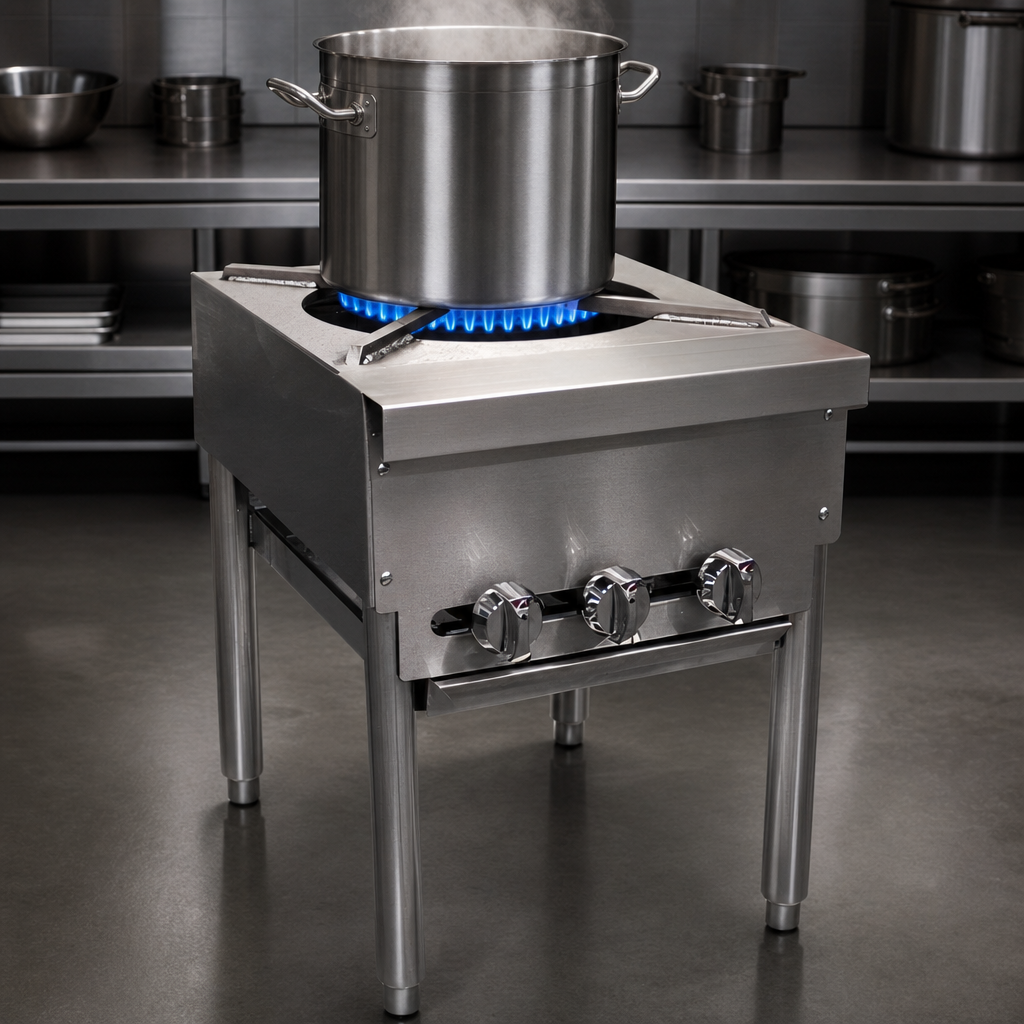

  • Three-ring, non-clog cast iron burner – 15 k, 45 k & 60 k BTU rings combine for 120,000 BTU total.
  • Manual gas valves (one per ring) deliver instant, precision flame control.
  • Stainless steel front, front rail and side panels resist corrosion and wipe clean fast.
  • Removable welded-steel top grate supports heavy stock kettles and woks.
  • One-piece 14-gauge welded drip tray catches spills for a safer, cleaner workspace.
  • Stainless steel standing pilot on each ring for dependable ignition.
  • Heavy-gauge round tube legs with adjustable feet keep the unit level on any surface.
  • ¾" pressure regulator and male gas connection included for quick hook-up.
  • Certified to CSA and NSF standards for commercial operation.

Specifications

Model SPR-1J

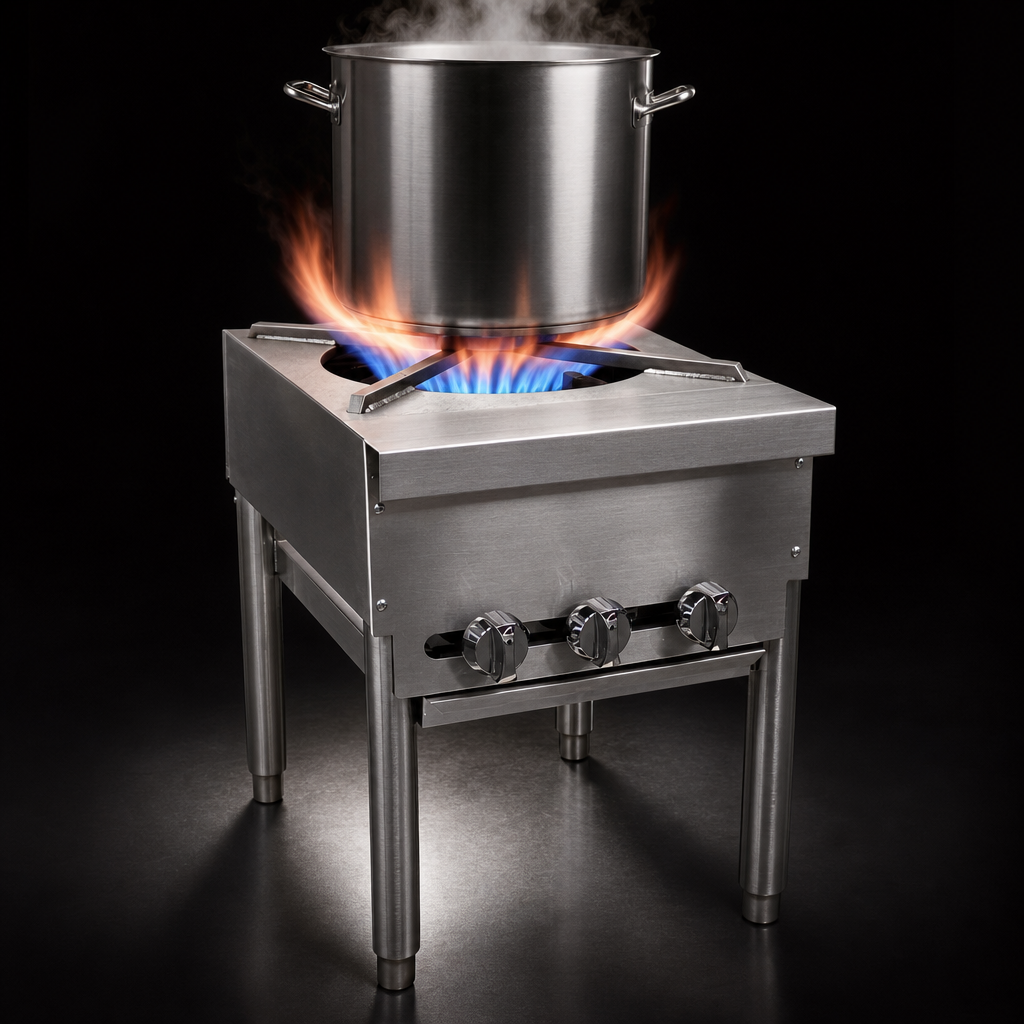

Total BTU 120,000 BTU/hr  (Natural or Propane)
Burner Configuration (1) 3-ring cast iron burner — 15 k / 45 k / 60 k BTU rings
Controls 3 manual gas valves (one per ring)
Gas Connection Single ¾" NPT male (regulator supplied)
Operating Pressure Natural Gas 5" W.C.  |  Propane 10" W.C.
Crated Weight 90 lb  /  40.8 kg
Shipping Volume 5.6 cu ft  /  0.16 m³
Construction 14-gauge welded steel frame with stainless steel front, rail & sides
Certifications CSA, NSF
Warranty 1-year limited parts & labor

Accessories such as gas shutoff valves, side-rail protectors and wok support rings are available at additional cost—ask your sales rep for details.

Installation note: Allow 9" clearance on the sides and 6" at the rear when installing adjacent to combustible surfaces, and always mount the SPR-1J under a properly vented hood. Commercial use only.

Features & Specs

Manufacturer

Southbend (Middleby)

Certifications

NSF, CSA

Height

24.0in

Width

18.0in

Depth

22.5in

Shipping Weight

90.0lbs

Exterior Finish

all stainless steel exterior

Burner Section Qty

(1)

Burner Ring(s) Per Section

(3)

Specifications

Stock Pot Range, (1) 3-ring cast iron burner, single, manual controls, one-piece tray, stainless steel front, front rail sides, legs with adjustable feet, 120,000 BTU, CSA, NSF
