Description

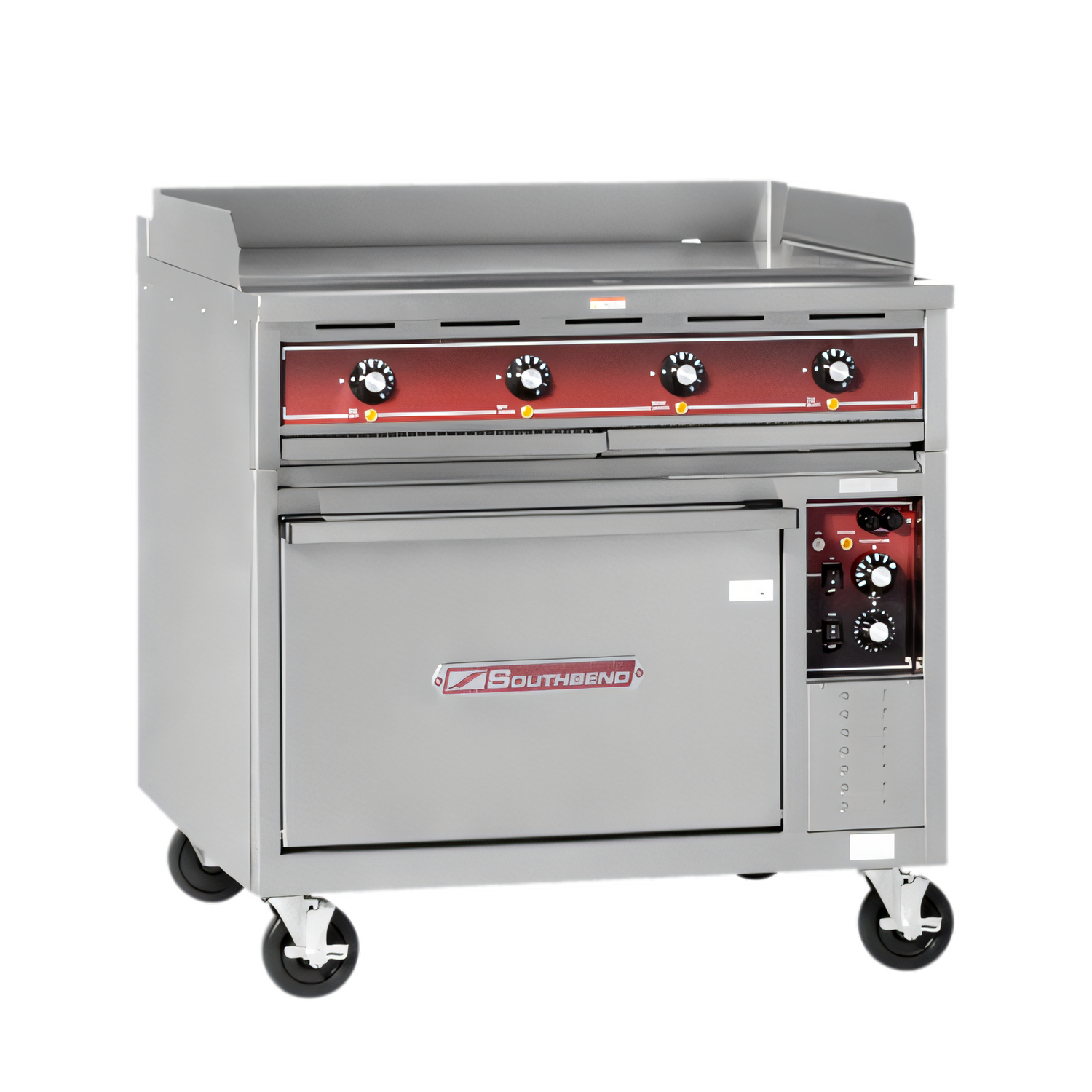

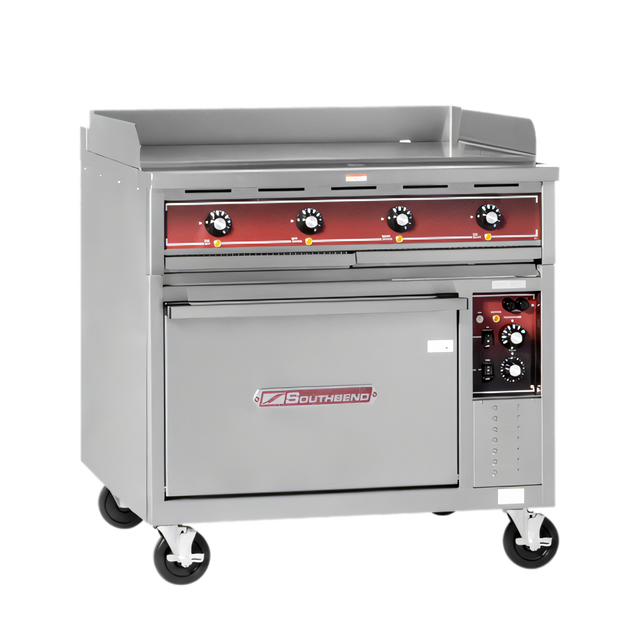

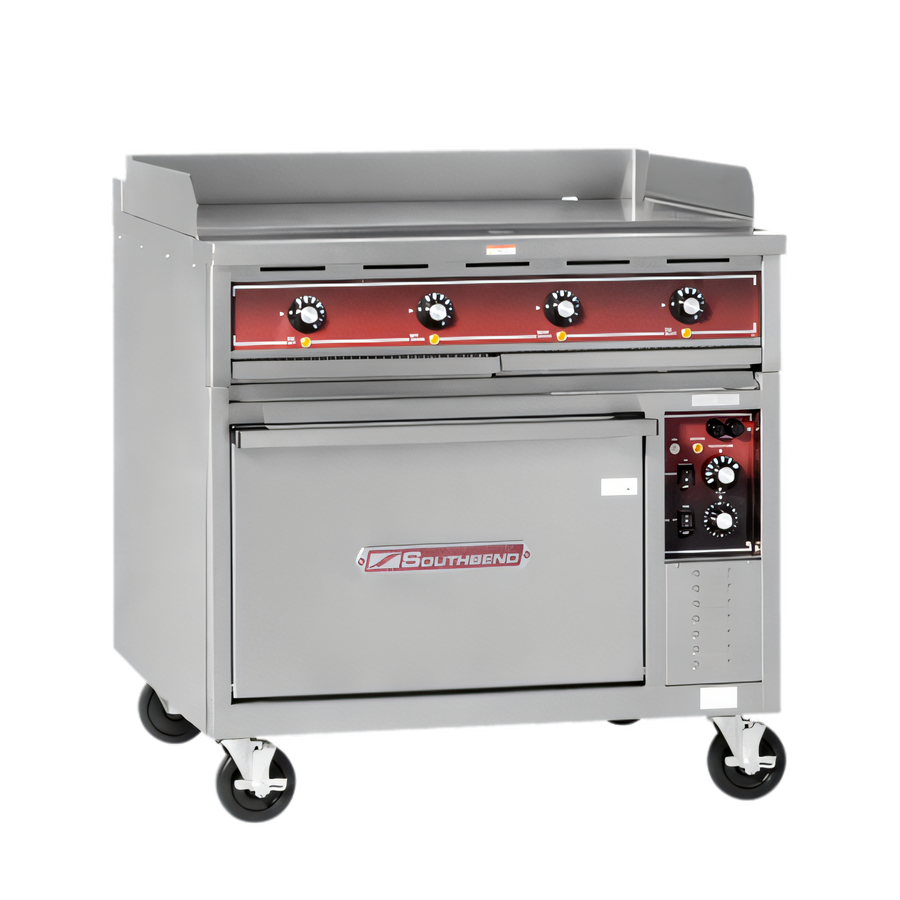

Southbend SE36D-TTB 36" Heavy-Duty Electric Range
24" thermostatic griddle • 2 x 9" round hotplates • Standard oven baseBring maximum versatility to the line with a single piece of equipment. The Southbend SE36D-TTB combines a lightning-fast electric griddle, two powerful solid hotplates and a full-size oven—all packed into a durable, stainless-steel chassis that is 100 % front-serviceable.
Key Features
- 36" heavy-duty electric range designed for continuous commercial use
- One 24" x 24" smooth steel griddle
– Two heating zones (5.3 kW each) with 150 - 450 °F thermostat
– Stainless splash guards and twin drawer-style grease trays - Two 9" diameter solid round hotplates (2.6 kW each) with 3-heat switch (High / Medium / Low / Off) and individual indicator lights
- Standard oven base, 150 - 450 °F thermostat + 6-120 min timer
– Preheats to 450 °F in 20 min
– 12½" interior clearance, includes one removable rack - All-stainless front, sides, top and oven lining on a welded aluminized-steel frame
- Grease troughs front & rear for easy clean-up; range is 100 % front-serviceable
- cETLus & ETL Sanitation listed for safety and hygiene compliance
Built for Performance
- Formed tubular elements tightly clamped to the griddle plate for rapid heat recovery
- Blower-assisted oven “scrubs” heat around the cavity for even baking and roasting
- HIGH / LOW fan speed switch lets you tailor airflow to delicate or dense foods
Specifications
Model | SE36D-TTB |
---|---|
Overall Dimensions (W x D x H) | 36" x 38 1⁄2" x 38 1⁄4" (incl. 6" legs) |
Cooking Surface | 24" x 24" griddle | 2 x 9" round hotplates |
Griddle Heat | 2 x 5.3 kW thermostatically controlled zones |
Hotplate Heat | 2 x 2.6 kW • 3-heat switch (High/Med/Low) |
Oven Interior (W x D x H) | 29" x 21½" x 12½" |
Oven Capacity | 60 lb roast | 1 x 18" x 26" sheet pan | 2 x 12" x 20" hotel pans |
Total Connected Load | 21.8 kW |
Electrical | 208, 240 or 480 V / 3 Phase hard-wire connection |
Shipping Weight | Approx. 660 lb (299 kg) |
Certifications | cETLus • ETL Sanitation |
Warranty
One year parts & labor warranty.
Commercial installation only.
