Southbend (Middleby) | SKU:
SE36A-TTB
Southbend (Middleby) SE36A-TTB Electric Ranges
$16,644.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) SE36A-TTB Electric Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) SE36A-TTB Electric Ranges
$16,644.00
Unit price
/
Unavailable
Description

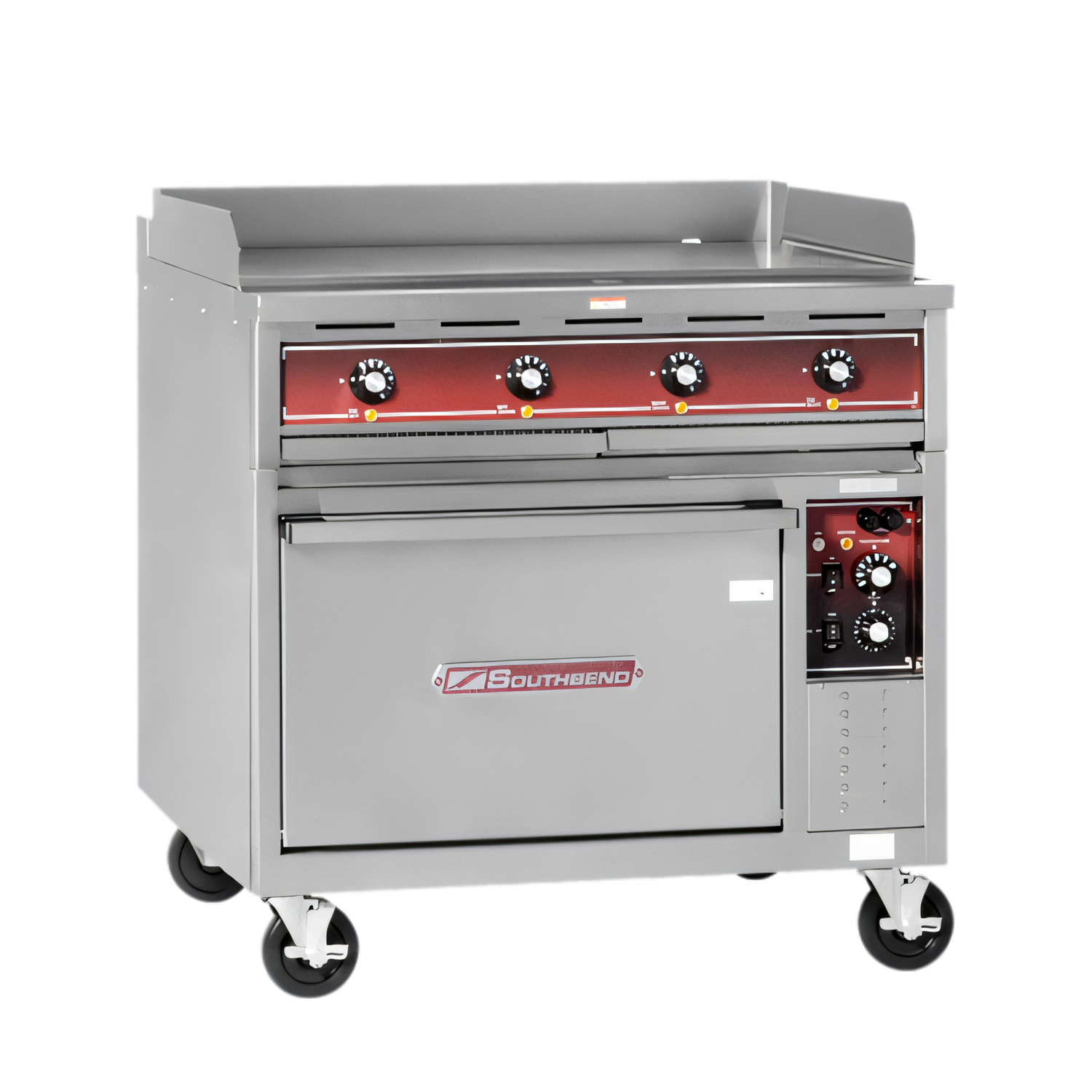

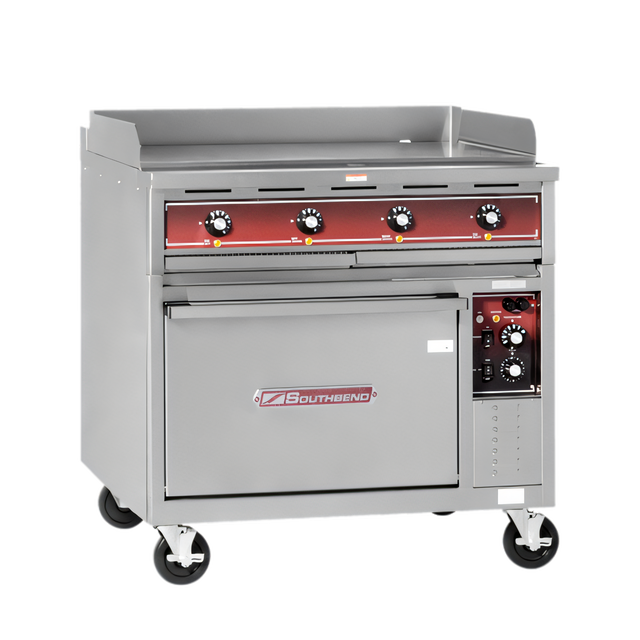

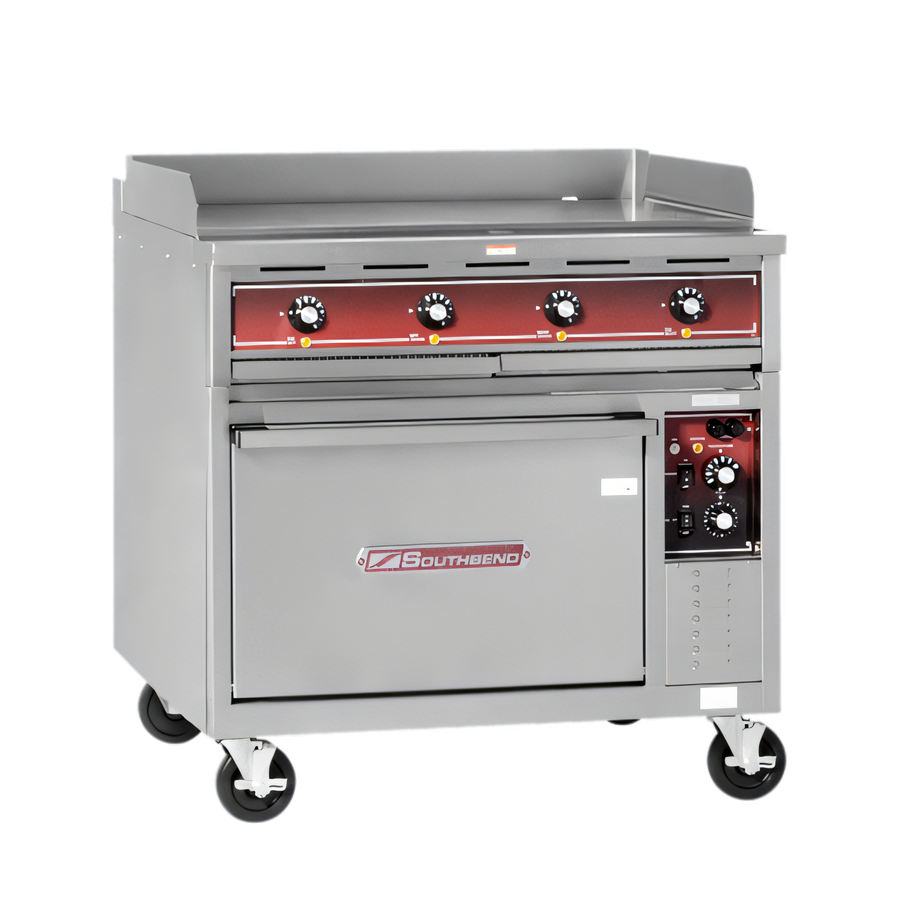

Southbend SE36 Series 36" Heavy-Duty Electric Range
2 Round Hotplates • 24" Thermostatic Griddle • Convection Oven BasePower, versatility and rugged construction come together in this 36" Southbend SE36 heavy-duty electric range. Ideal for high-volume kitchens that need to sauté, griddle, boil, bake and roast from one compact footprint.
Why You’ll Love It
- Two 9" solid round hotplates with 3-heat switch (High / Medium / Low / Off) for quick, precise surface cooking.
- One 24" wide thermostatic griddle, 150 °F–450 °F, perfect for breakfast items, burgers and more.
- Full-size convection oven base (150 °F–450 °F) with powerful blower fan for even baking and roasting.
- Includes 3 chrome-plated oven racks; interior guides accept up to 6 racks on 1-5/8" centers.
- Fast preheat — reaches 450 °F in about 20 minutes.
- 2-hour adjustable timer with audible bell keeps you on schedule.
- High / Low fan-speed switch lets you match airflow to delicate or dense products.
- 100 % front-serviceable design for simplified maintenance in a cook-line.
Range-Top Performance
| Cooking Surfaces | 2 × 9" round hotplates & 1 × 24" thermostatic griddle |
|---|---|
| Hotplate Control | 4-position, 3-heat switch (High / Med / Low / Off) |
| Griddle Control | Thermostat, 150 °F – 450 °F |
| Grease Management | Front & rear troughs with extra-wide slide-out drawers |
Convection Oven Details
| Temperature Range | 150 °F – 450 °F (adjustable thermostat) |
|---|---|
| Cavity Dimensions | 29" W × 21.5" D × 13.25" H |
| Rack Capacity | Holds up to 6 full-size racks (3 supplied) |
| Fan Motor | Sealed, ball-bearing motor with “High / Low” speed selector |
| Door Style | Shelf-type, stainless-steel-lined door with positive stop |
Construction & Durability
- Welded aluminized-steel frame with stainless steel front, sides, top and oven lining.
- Griddle surrounded by high splash guards to protect adjacent equipment.
- Heavy-duty, replaceable tubular elements beneath every hotplate and griddle section.
- Adjustable 6" legs keep the unit level on uneven floors.
Utilities & Certifications
| Electric | 208, 240 or 480 V / 3-phase field connection (terminal block provided) |
|---|---|
| Overall Size | 36" W × 38.5" D × 38.25" H (with legs) |
| Certifications | cETLus & ETL-Sanitation listed; NSF compliant |
| Warranty | 1-year parts & labor (commercial use) |
Included with Your Range
- (3) chrome oven racks
- Set of 6" adjustable legs (factory installed)
- User & installation manual
- Manufacturer’s limited warranty documentation
Important: This equipment is engineered for commercial kitchens and is
not intended for household use.
Need a different top configuration or voltage? Contact us—Southbend offers multiple SE36 layouts and power options to fit any workflow.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Certifications
cETLus, ETL-Sanitation
Height
38.25in
Width
36.0in
Depth
38.5in
Shipping Weight
660.0lbs
Exterior Finish
stainless steel front & sides
Base
(1) convection oven
Top
(2) hotplates / french plates, (1) 24" griddle
Specifications
Heavy Duty Range, electric, 36", (2) round hotplates, (1) 24" griddle, thermostatic controls, 3-heat switch, (1) convection oven, includes (3) racks, stainless steel front, sides, top & oven lining, cETLus, ETL-Sanitation
