Southbend (Middleby) S60DD S-Series Gas Ranges
Description

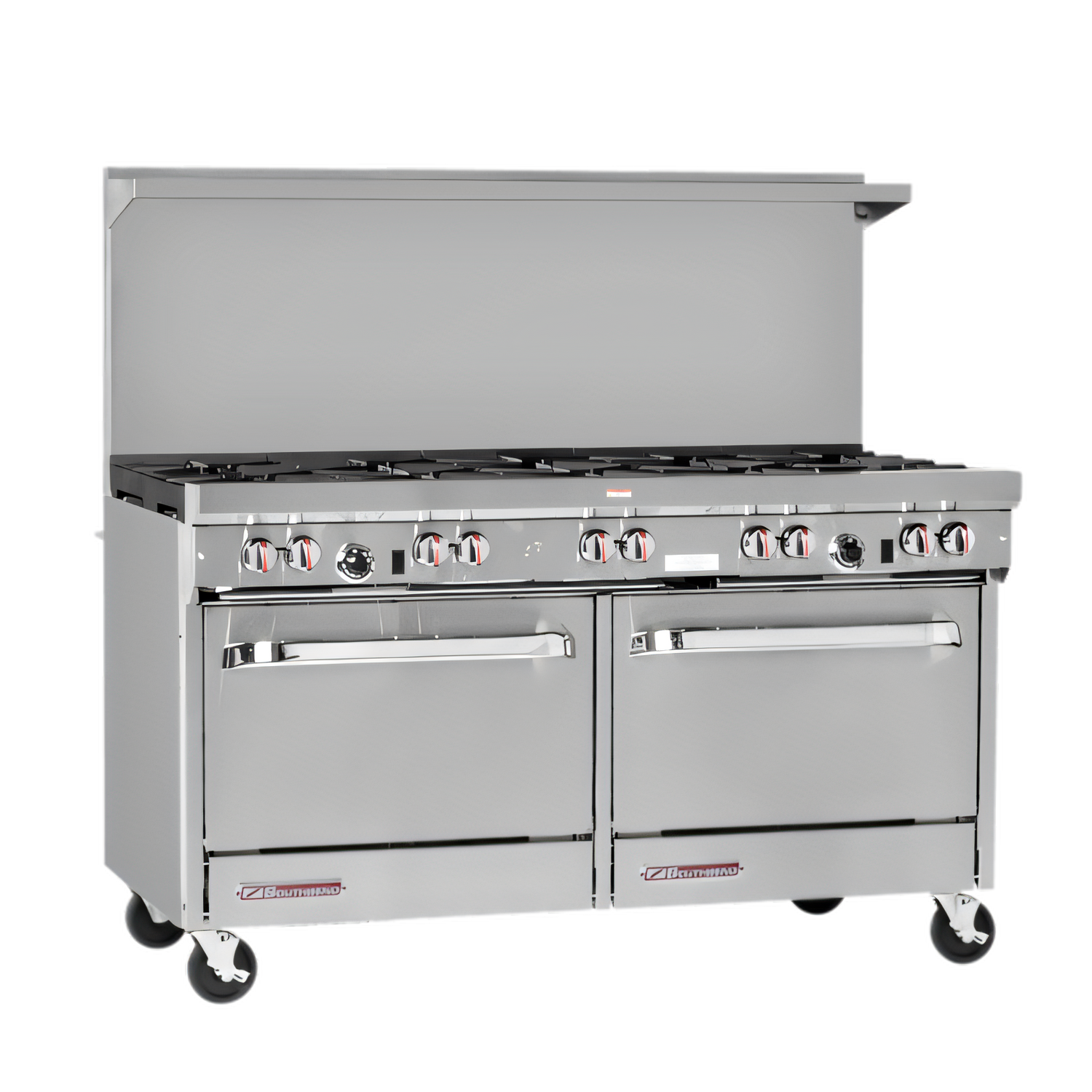

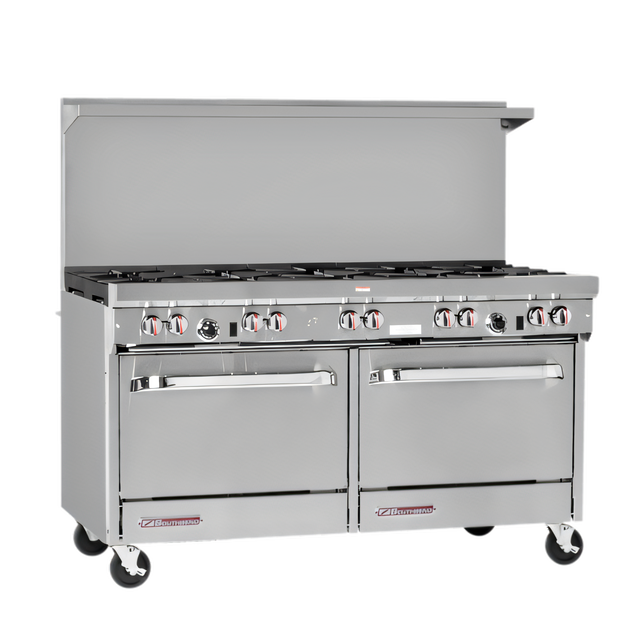

Southbend S-Series 60" Gas Restaurant Range – 10 Burners / 2 Standard Ovens
Model S60DD | Quick-Ship Middleby Essentials ItemBuilt for busy commercial kitchens that demand power and reliability, the Southbend S-Series S60DD delivers a full 350,000 BTU of cooking performance in a space-saving 60-inch footprint. Ten patented, lifetime-warranty cast-iron burners sit above two spacious standard ovens, giving chefs the flexibility to sauté, simmer, boil and bake on one heavy-duty platform.
Why You’ll Love It

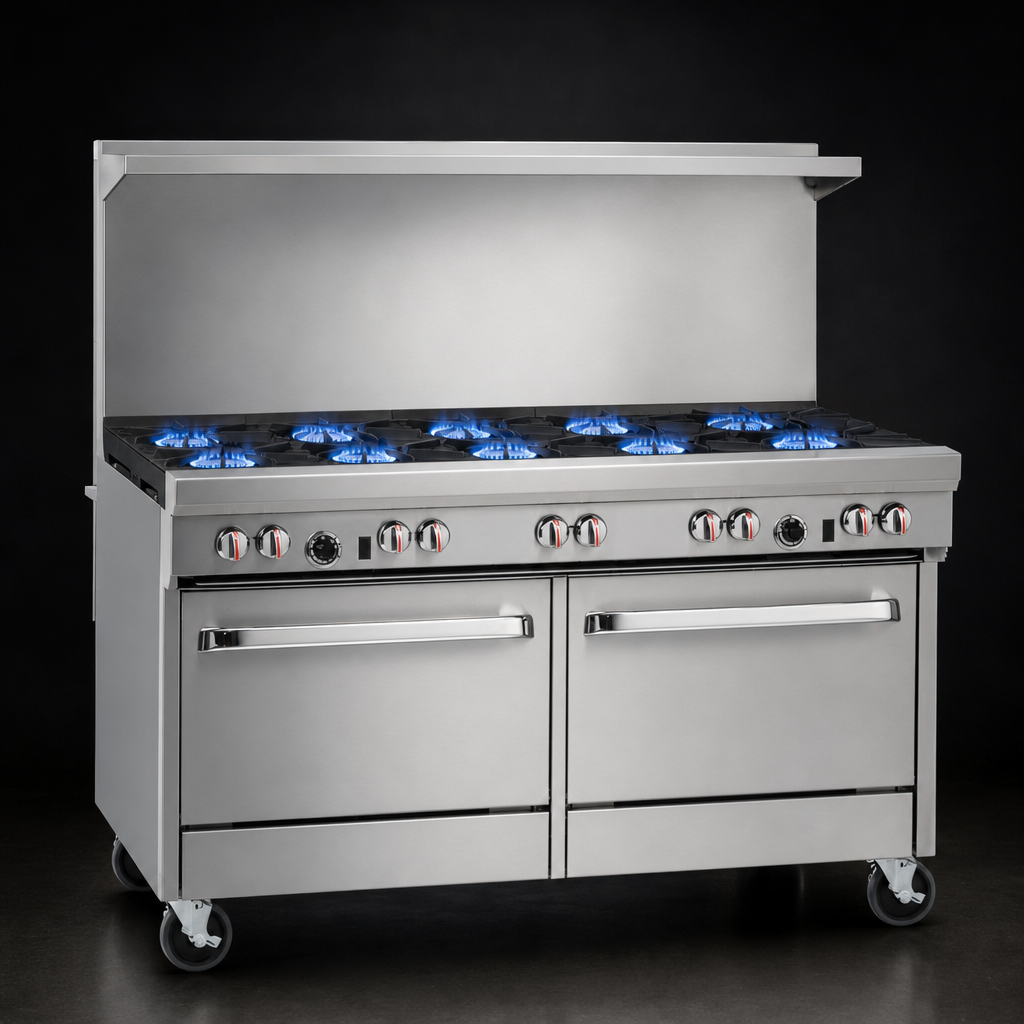

- Ten (10) open burners – 28,000 BTU each (Natural gas; 24,000 BTU LP)

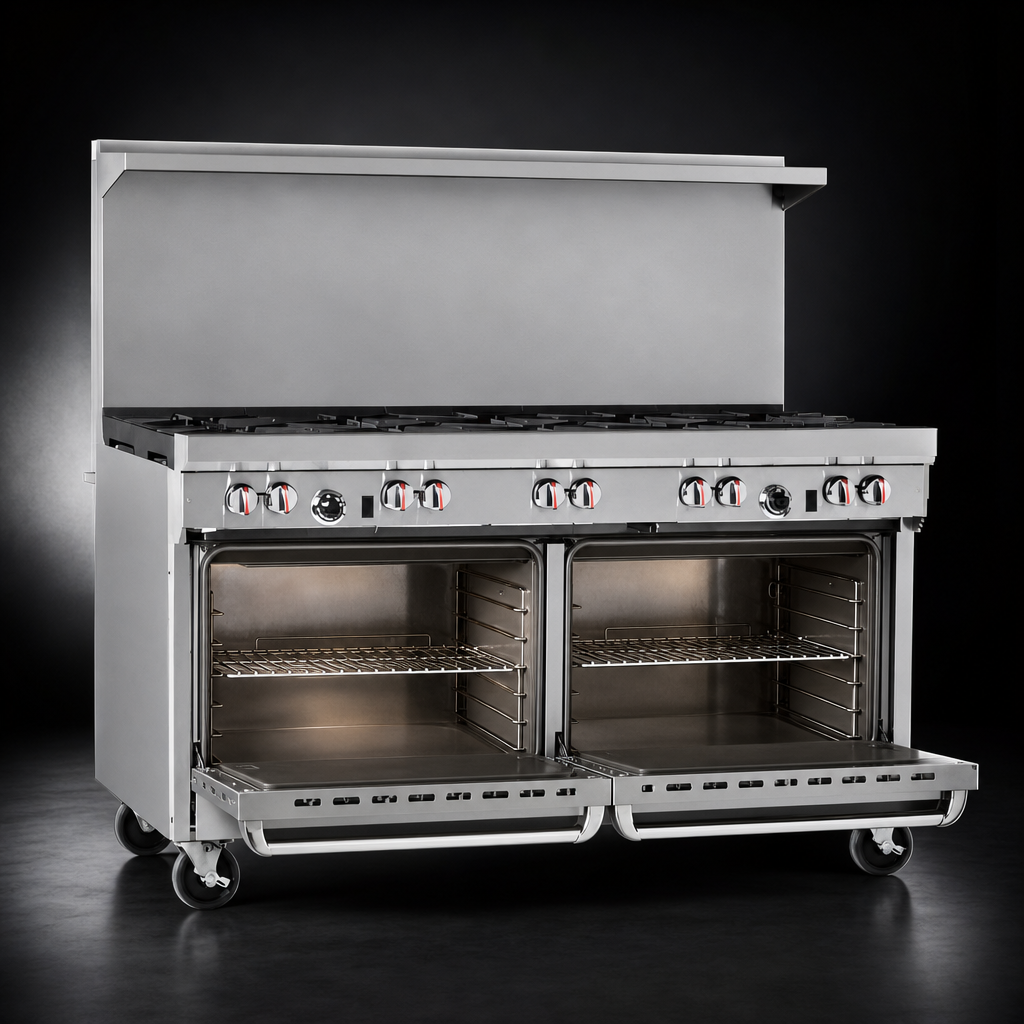

- Two 35,000 BTU standard ovens with snap-action thermostats (175 – 550°F)
- U-shaped oven burners with flame-failure safety devices
- 26" W × 26-1/2" D × 14" H enameled oven cavities, each supplied with one rack & 2-position guides
- Removable cast-iron grate tops – rear grates accept up to 14" stock pots
- Dual one-piece crumb drawers and hinged lower valve panel for effortless cleanup & servicing
- All stainless front, sides, high-shelf & 4" rail; rugged metal knobs with red stripe
- 6" stainless steel adjustable legs and 22-1/2" flue riser/shelf (factory installed)
- CSA & NSF approved – ready for commercial installation
- Backed by a 1-year parts & labor warranty
Technical Specifications
| Width | 60-3/4" (1,543 mm) |
|---|---|
| Depth (incl. rail) | 34" (864 mm) |
| Height (w/ flue) | 59-5/8" (1,517 mm) |
| Total BTU | 350,000 BTU/hr |
| Burners | 10 × 28,000 BTU open top |
| Ovens | 2 × 35,000 BTU standard ovens |
| Oven Interior (each) | 26" W × 26-1/2" D × 14" H |
| Gas Connection | 3/4" NPT (rear) – regulator included |
| Minimum Inlet Pressure | 7" W.C. Natural | 11" W.C. LP |
| Shipping Weight | ≈ 860 lb (390 kg) |
| Certifications | CSA, NSF |
Popular Options (Add-On)
- All-swivel casters with front locks
- Extra oven racks
- 10" flue riser or salamander / cheesemelter mounting kits
- ¾" quick-disconnect gas hose with restraining device (3 ft, 4 ft or 5 ft)
- No-charge cabinet doors (contact factory)
Avoid placing oversized cookware (> 12") over the front rail to prevent heat damage. Full warranty details available upon request.
