Southbend (Middleby) S60DD-4TR S-Series Gas Ranges
Description

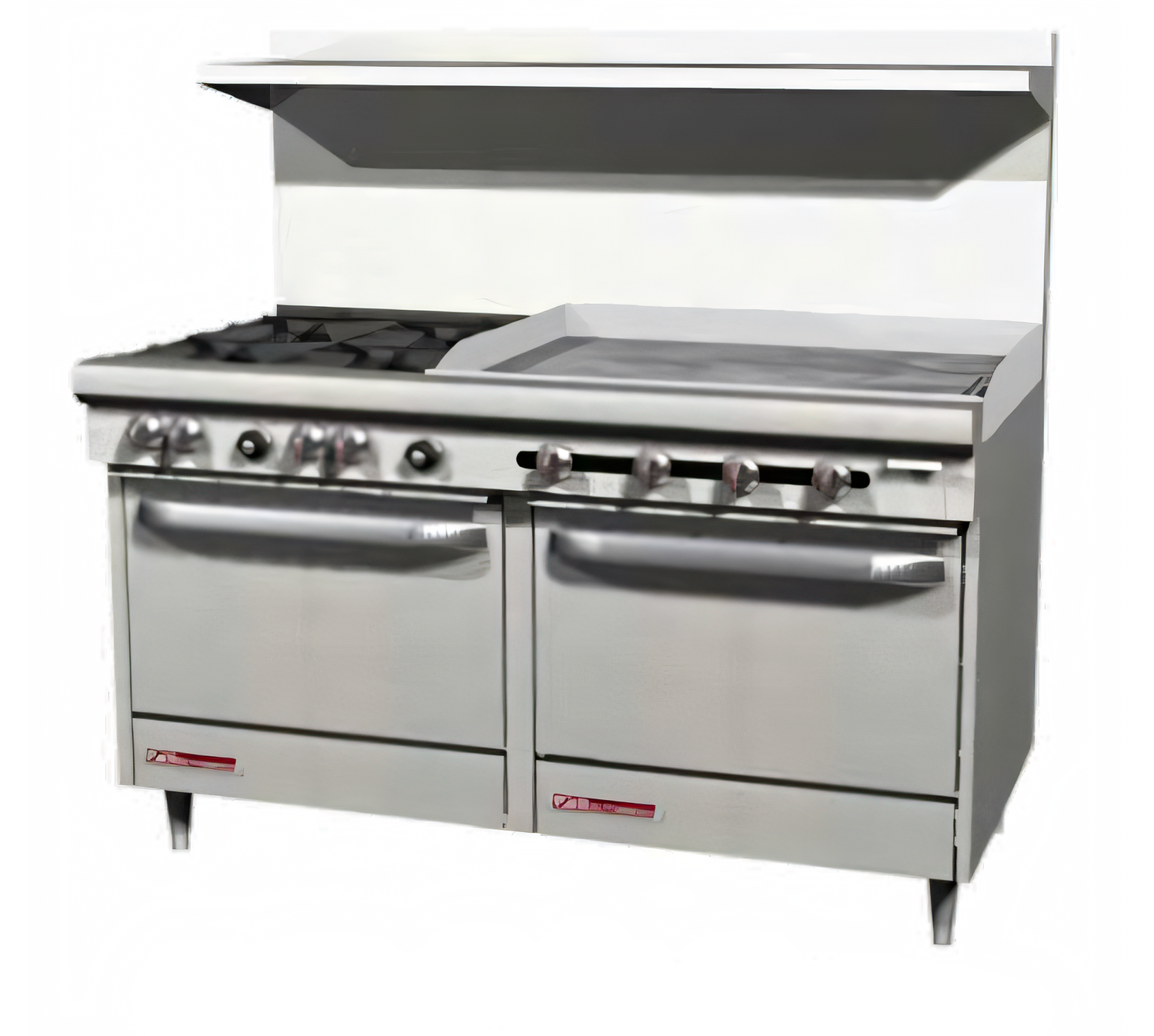

Southbend S-Series 60" Gas Restaurant Range
S60DD-4G/T
48" Thermostatic Griddle • 2 Open Burners • 2 Standard Ovens • 190,000 BTU
Built for busy diners, hotels, and culinary schools, the Southbend S-Series S60DD-4G/T unites powerful open-top cooking, a full-size griddle, and dual ovens in one 60-inch footprint. Heavy-duty stainless construction, lifetime-warranty cast-iron burners, and operator-friendly service features make this range a long-term cornerstone for any commercial kitchen.
Why Choose the S60DD-4G/T

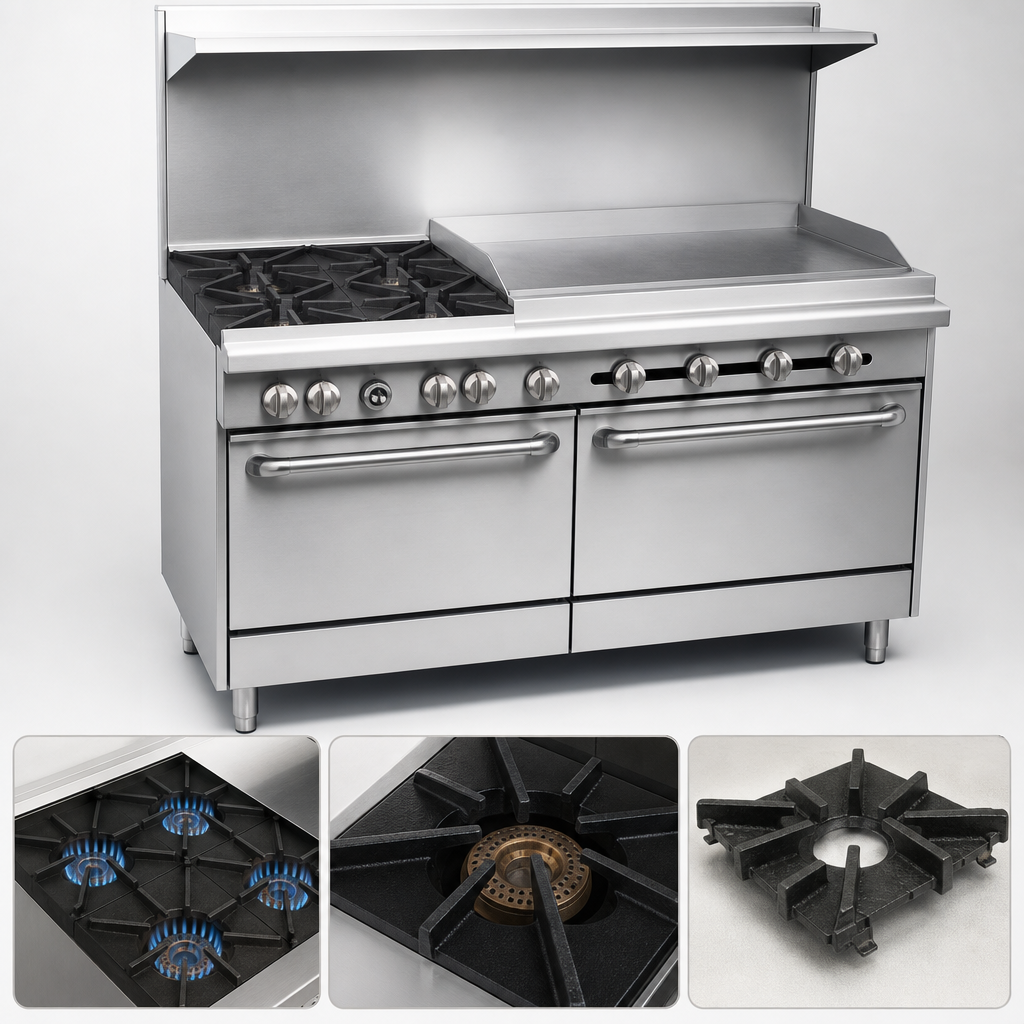

- Two 28,000 BTU open burners with patented, non-clog cast-iron heads (lifetime warranty).

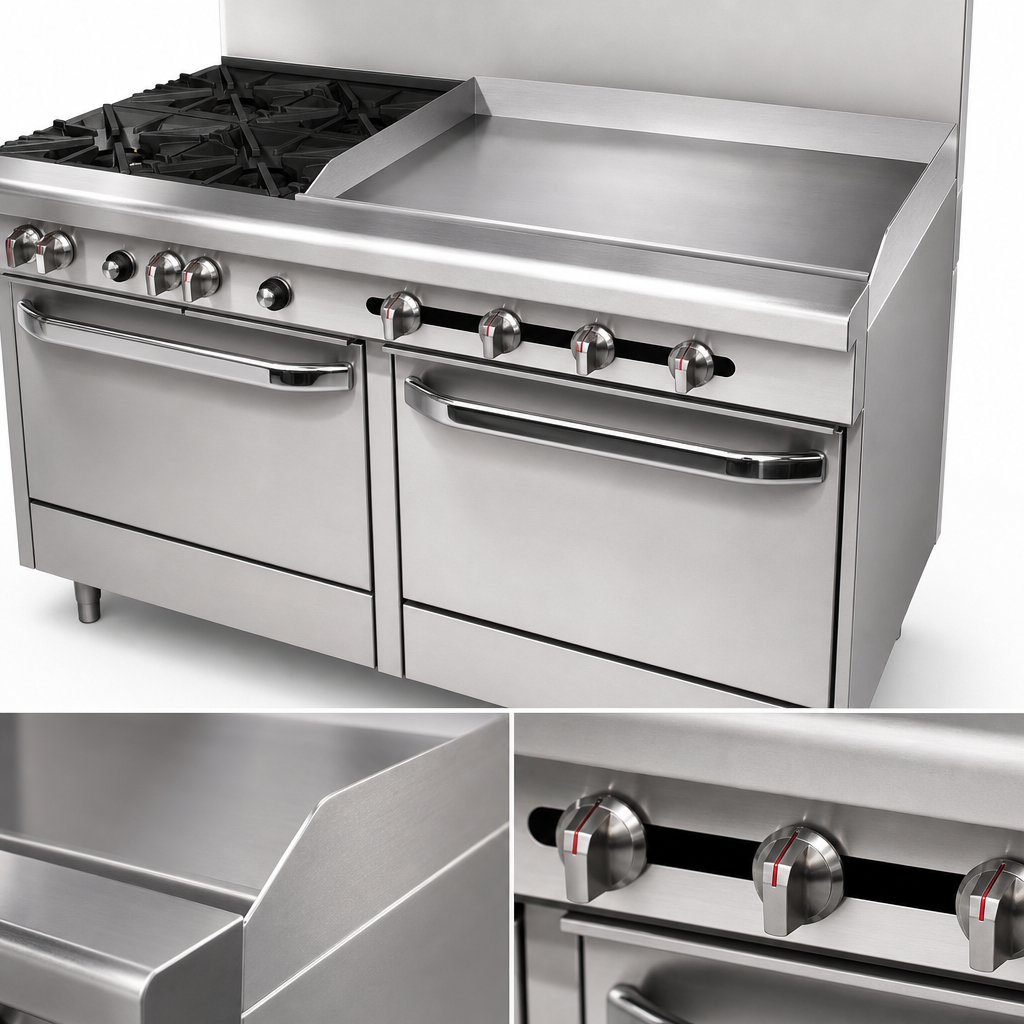

- 48" right-side griddle – 1" thick polished steel plate with raised sides and snap-action thermostatic controls for consistent searing across the entire surface.
- Dual 35,000 BTU standard ovens (snap-action 175 °F – 550 °F) with U-shaped burners, enameled interiors, and one rack per oven.
- Removable cast-iron top grates (rear section holds up to a 14" stock pot).
- Two full-width crumb drawers plus a 22.5" flue riser shelf for extra staging space.
- Hinged lower valve panel and factory-installed ¾" pressure regulator for quick servicing.
- 4" deep front rail and six 6" stainless steel adjustable legs for a clean, ergonomic setup.
- Certified: cCSAus, CSA Flame, CSA Star & NSF — proudly made in the USA.
Key Specifications
| Model | S60DD-4G/T |
|---|---|
| Gas Type | Natural or Propane (3/4" rear connection, factory regulator supplied) |
| Total Input | 190,000 BTU/hr |
| Open Burners | (2) × 28,000 BTU cast-iron |
| Griddle Plate | 48" W × 22" D, 1" thick polished steel, right-mounted, thermostatic |
| Griddle Burners | (5) × 16,000 BTU (80,000 BTU total) |
| Ovens | (2) Standard; 35,000 BTU each |
| Oven Interior | 26" W × 26.5" D × 14" H, 2-position rack guides, 1 rack included per oven |
| Overall Dimensions (W × D × H) | 60.75" × 41.75" × 59.5" (to top of flue shelf) |
| Shipping Weight | Approx. 860 lb |
| Electrical | None required (ovens are gas) |
| Warranty | 1 year parts & labor • Lifetime on open-top burners |
Popular Options (sold separately)
- Swivel or rigid casters (front locking)
- 10" flue riser
- Extra oven racks
- 3 ft, 4 ft or 5 ft quick-disconnect gas hose & restraining device (ANSI Z21.69)
- Low-profile salamander or cheesemelter mounts
Need documents? Full spec sheet, CAD blocks, and installation manuals are available upon request.
