Southbend (Middleby)  |  S-Series  |  SKU: S60DD-3GR

Southbend (Middleby) S60DD-3GR S-Series Gas Ranges

$8,614.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

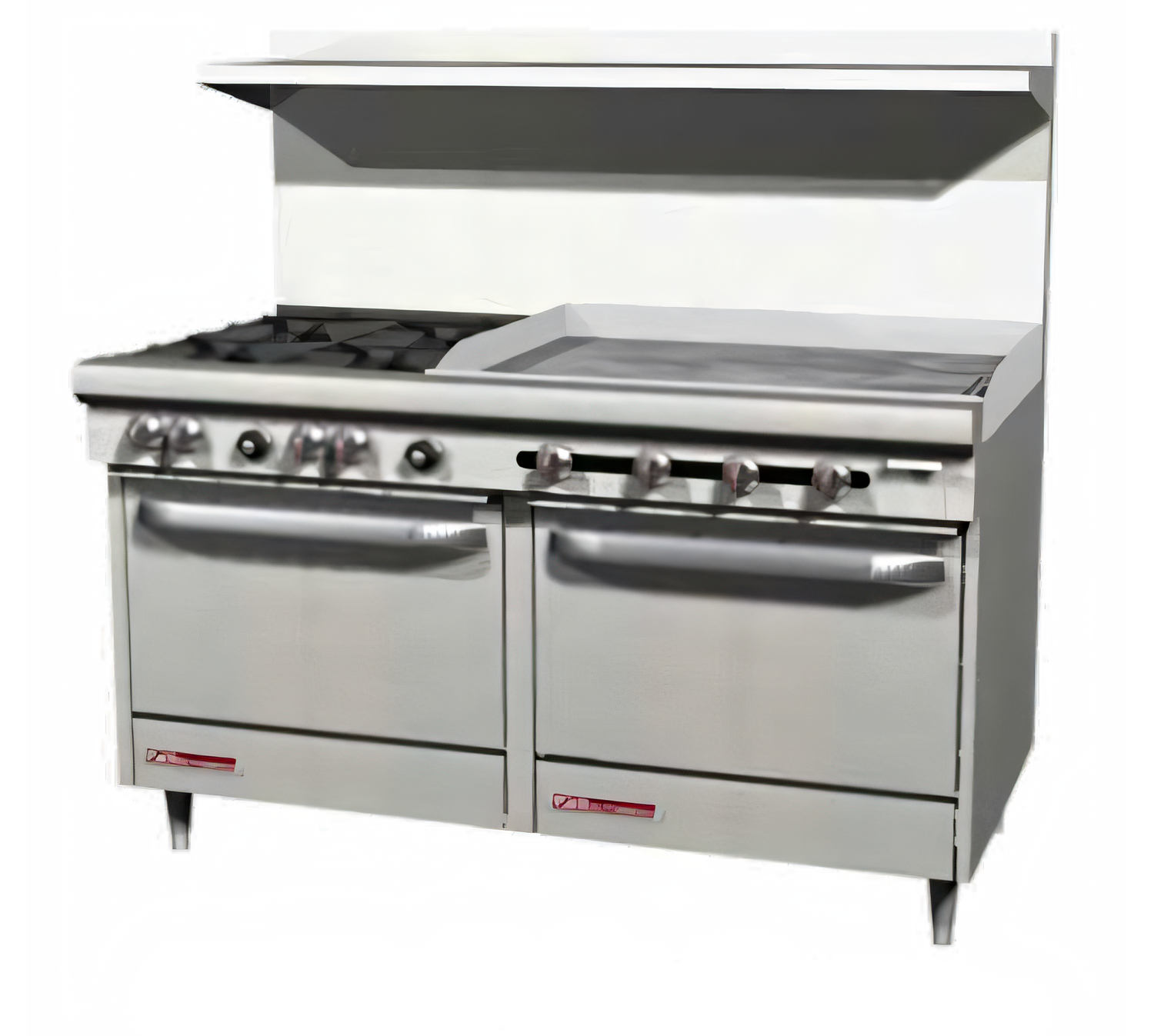

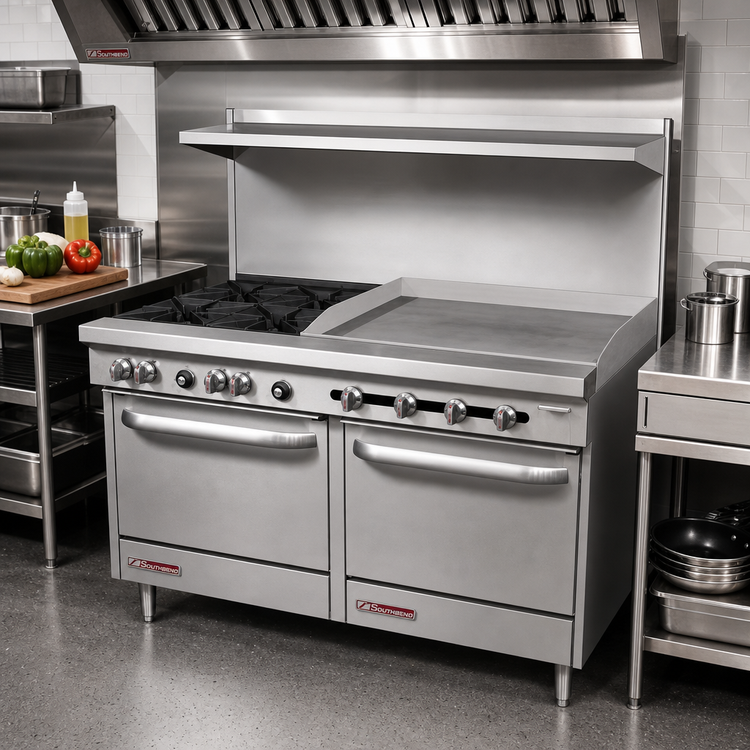

Southbend S-Series 60″ Gas Restaurant Range w/ 36″ Right-Side Griddle & 4 Open Burners

Model S60DD-3GR • 246,000 BTU

Built for bustling kitchens that refuse to compromise, the Southbend S-Series S60DD-3GR unites high-powered open burners, a full 36″ griddle and two space-saving ovens in a single, rock-solid 60″ lineup. From breakfast rush to late-night service, this range delivers the cooking muscle and reliability chefs expect from a name that’s been trusted since 1898.

Key Features

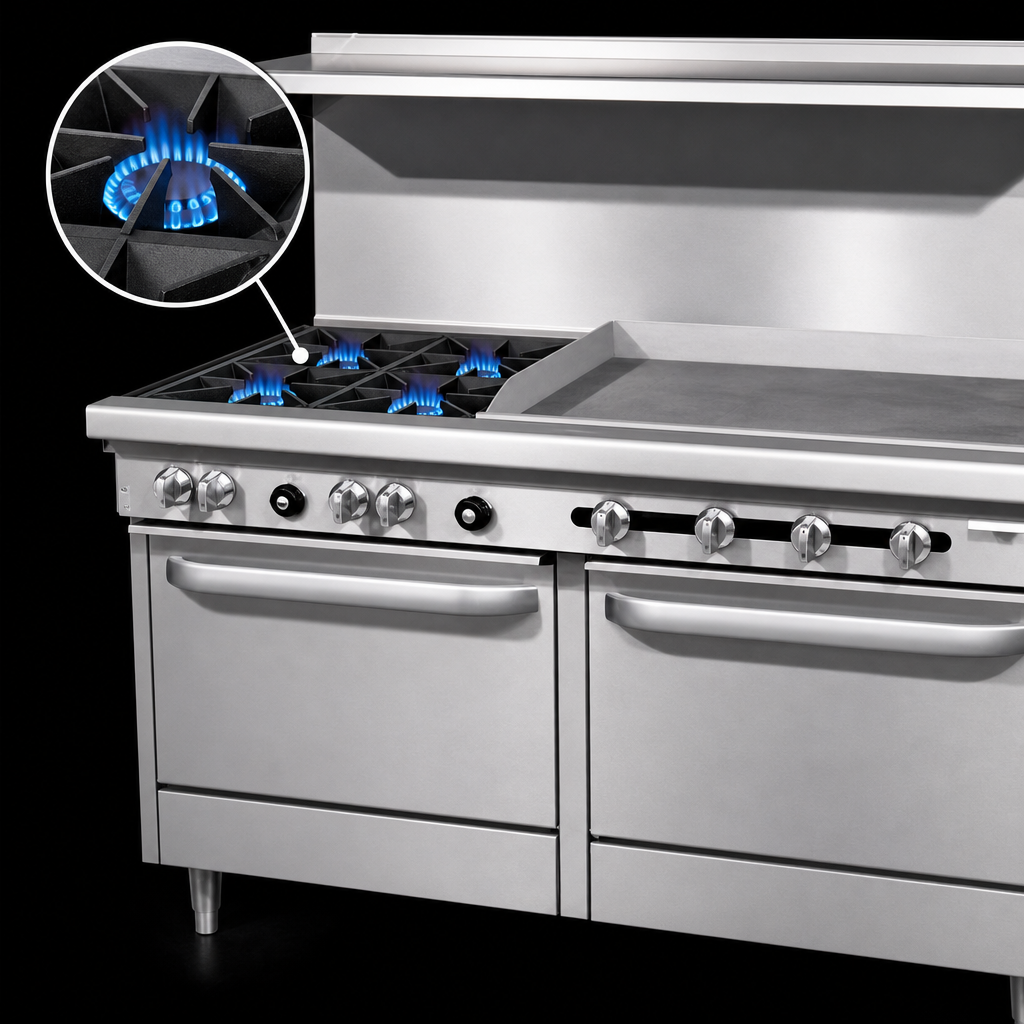

  • (4) patented 28,000 BTU non-clog cast-iron burners with lifetime warranty

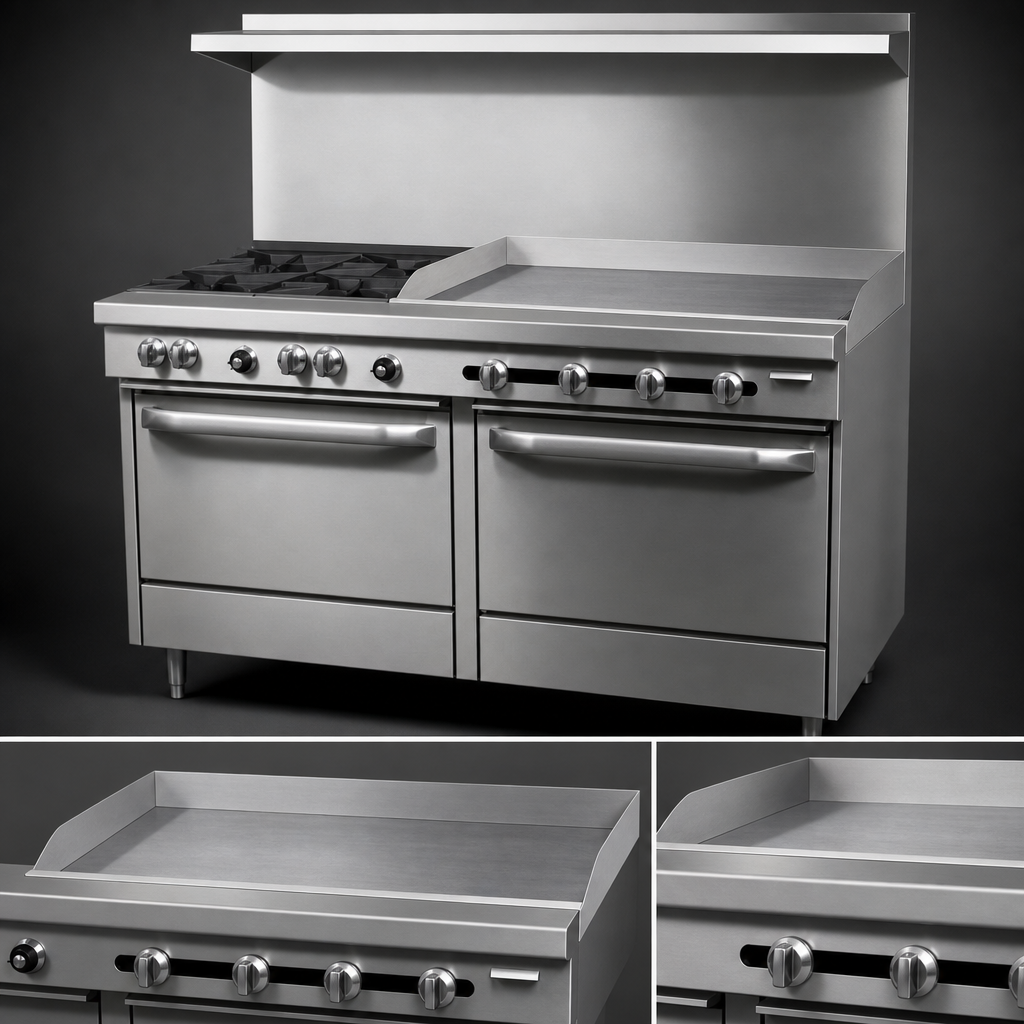

  • 36″ smooth ½″-thick polished steel griddle (right-side) with manual valve controls & raised splash sides
  • (2) 35,000 BTU standard ovens with snap-action thermostats adjustable 175 – 550 °F
  • U-shaped heavy-duty oven burners plus flame-failure safety devices
  • Removable cast-iron grate tops handle stock pots up to 14″
  • (2) one-piece crumb drawers under the burner box for quick clean-up
  • Includes (1) chrome-plated rack per oven on 2-position guides
  • Stainless steel front, sides, 4″ front rail, high shelf & 6″ adjustable stainless legs
  • Hinged lower valve panel for fast, front-side service access
  • Certified cCSAus, CSA Flame, CSA Star & NSF

Performance at a Glance

Cooktop Configuration (4) 28,000 BTU open burners + 36″ manual griddle (right)
Total BTU Input 246,000 BTU/hr
Griddle Burners 4 × 16,000 BTU (64,000 BTU total)
Ovens (2) Standard ovens, 35,000 BTU each
Oven Interior (W×D×H) 26″ × 26.5″ × 14″
Thermostat Range 175 – 550 °F
Gas Connection ¾″ NPT rear; natural (7″ W.C.) or LP (11″ W.C.)
Overall Dimensions (W×D×H) 60.75″ × 34″ × 59.5″ (with flue)
Shipping Weight ≈ 860 lb
Warranty 1 year parts & labor

Popular Options & Accessories (sold separately)

  • All-swivel casters (front locking)
  • 10″ flue riser
  • ¾″ quick-disconnect gas hose (3′, 4′ or 5′)
  • Extra oven racks
  • Restraining device
  • Over-shelf salamander or cheesemelter mounts
Installation Note: Provide a vented exhaust hood and maintain 10″ clearance to combustible construction when using legs or casters. If casters are fitted, a secure restraining device must be installed. Follow all local codes for gas & ventilation.

Looking for flexible payments? Ask about Middleby Equipment Financing and turn this purchase into predictable monthly installments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Control Type

manual controls

Top

(4) open burners, (1) 36" griddle

Plate Thickness

.500" = 1/2"

Base

(2) standard ovens

Specifications

S-Series Restaurant Range, gas, 60", (4) 28,000 BTU open burners, (1) 36" griddle right, manual controls, (2) standard ovens, snap action thermostat, removable cast iron grates, (2) crumb drawers & shelf, hinged lower valve panel, includes (1) rack per oven, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 246,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
