Southbend (Middleby) S60DD-2TR S-Series Gas Ranges
Southbend (Middleby) S60DD-2TR S-Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) S60DD-2TR S-Series Gas Ranges
Description
Southbend S-Series 60" Gas Restaurant Range
6 Open Burners • 24" Thermostatic Griddle (Right) • 2 Standard Ovens — Model S60DD-2G/TBuilt for high-volume kitchens that refuse to compromise on flexibility, the Southbend S-Series 60" range unites powerful open-top cooking, an operator-friendly thermostatic griddle and two full-size ovens in one compact, all-stainless platform.
Key Performance Features

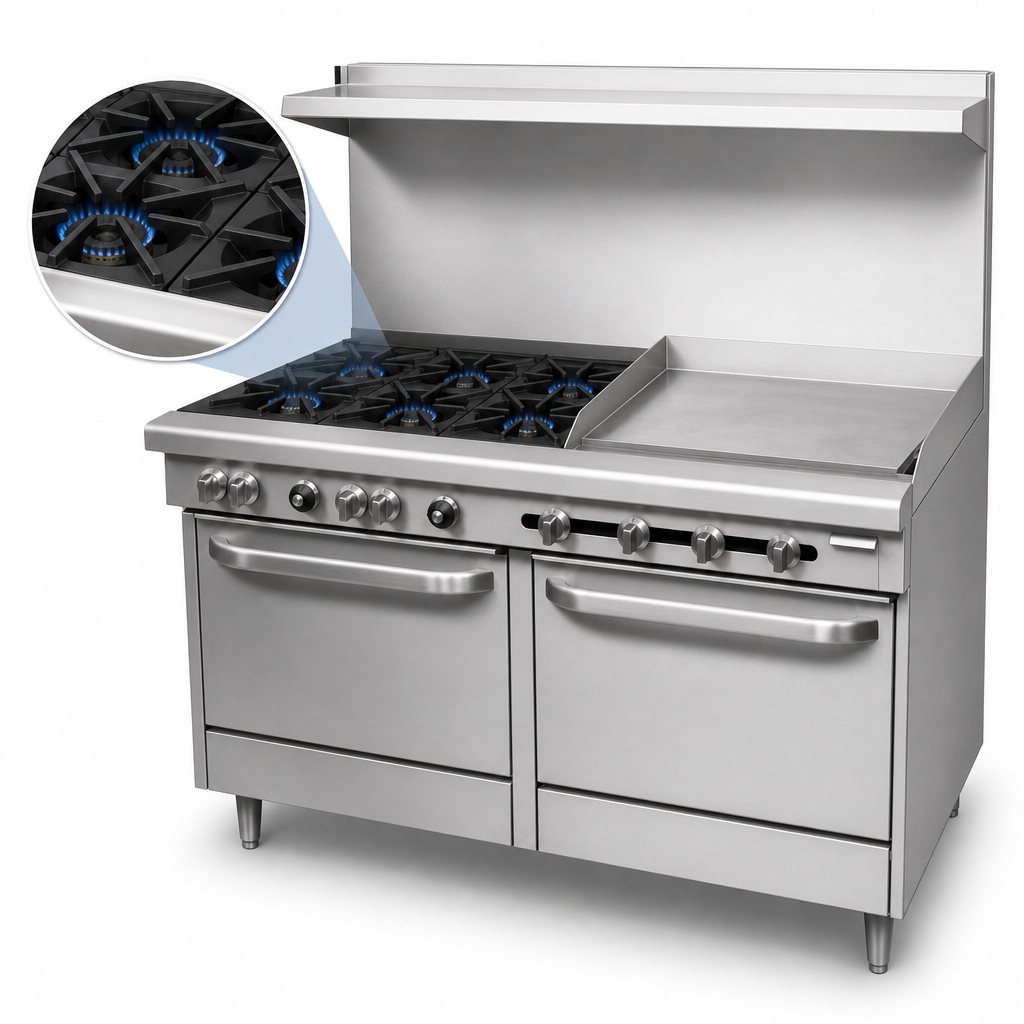

- Six 28,000 BTU patented, non-clog cast-iron burners with lifetime warranty
- Individual, removable cast-iron grates — rear positions accommodate up to 14" stock pots

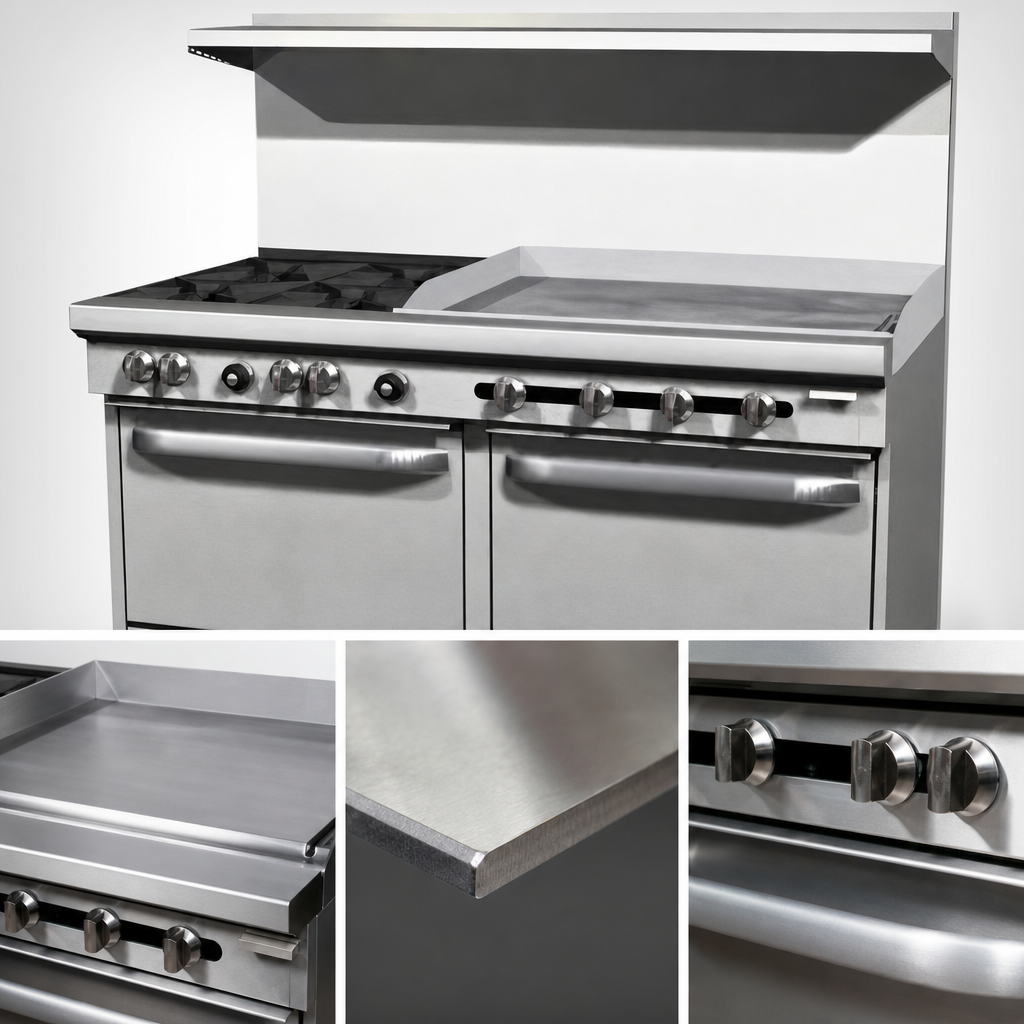

- 24" × ½" polished steel griddle (right side) with snap-action thermostat, 175 – 550 °F
- Two 35,000 BTU standard ovens with U-shaped burners & flame-failure safety valves
- Spacious 26" W × 26.5" D × 14" H oven cavities, each supplied with 1 heavy-duty rack
- Dual removable crumb drawers and hinged lower valve panel for fast clean-up & service
- 4" stainless front rail, metal control knobs with red orientation stripe & quadrant spring doors
- 6" adjustable stainless steel legs and factory-installed ¾" regulator
- 286,000 BTU total input; cCSAus, CSA Flame, CSA Star & NSF certified
Technical Specifications
| Model | S60DD-2G/T (Right-side griddle) |
|---|---|
| Overall Width | 60 ¾" |
| Depth (with handles) | 41 ¾" |
| Height – cook surface / flue top | 36" / 57" |
| Open Burners | 6 × 28,000 BTU (natural gas) |
| Griddle Plate | 24" polished steel, ½" thick, thermostatic |
| Griddle Input | 3 × 16,000 BTU (48,000 BTU) |
| Ovens | 2 × 35,000 BTU standard ovens |
| Oven Interior (each) | 26" W × 26.5" D × 14" H |
| Total Gas Input | 286,000 BTU/hr |
| Gas Connection | ¾" NPT rear (opposite griddle side) |
| Clearances | 0" sides & back to non-combustible; 10" to combustible |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor (commercial use) |
Install under a properly sized vent hood and supply 7" W.C. natural gas (11" W.C. LP). For best results, limit cookware larger than 12" in diameter to the rear burners.
