Southbend (Middleby)  |  S-Series  |  SKU: S60DD-2RR

Southbend (Middleby) S60DD-2RR S-Series Gas Ranges

$10,457.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

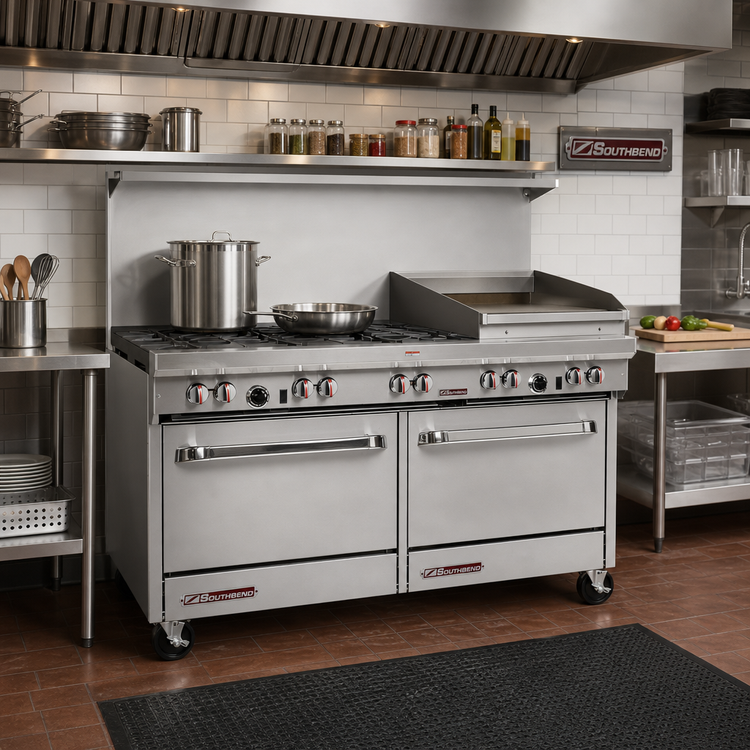

Southbend S-Series 60" Gas Range - 6 Burners, 24" Raised Griddle/Broiler & (2) Standard Ovens (Model S60DD-2RR)

271,500 BTU of dependable, all-in-one cooking power for busy commercial kitchens

Engineered for volume, built to last. Southbend’s S-Series 60" restaurant range combines a high-output open top, a space-saving raised griddle/broiler, and two full-size standard ovens—everything you need on a single piece of equipment that stands up to daily punishment in diners, cafés and institutional kitchens.

Key Performance Features

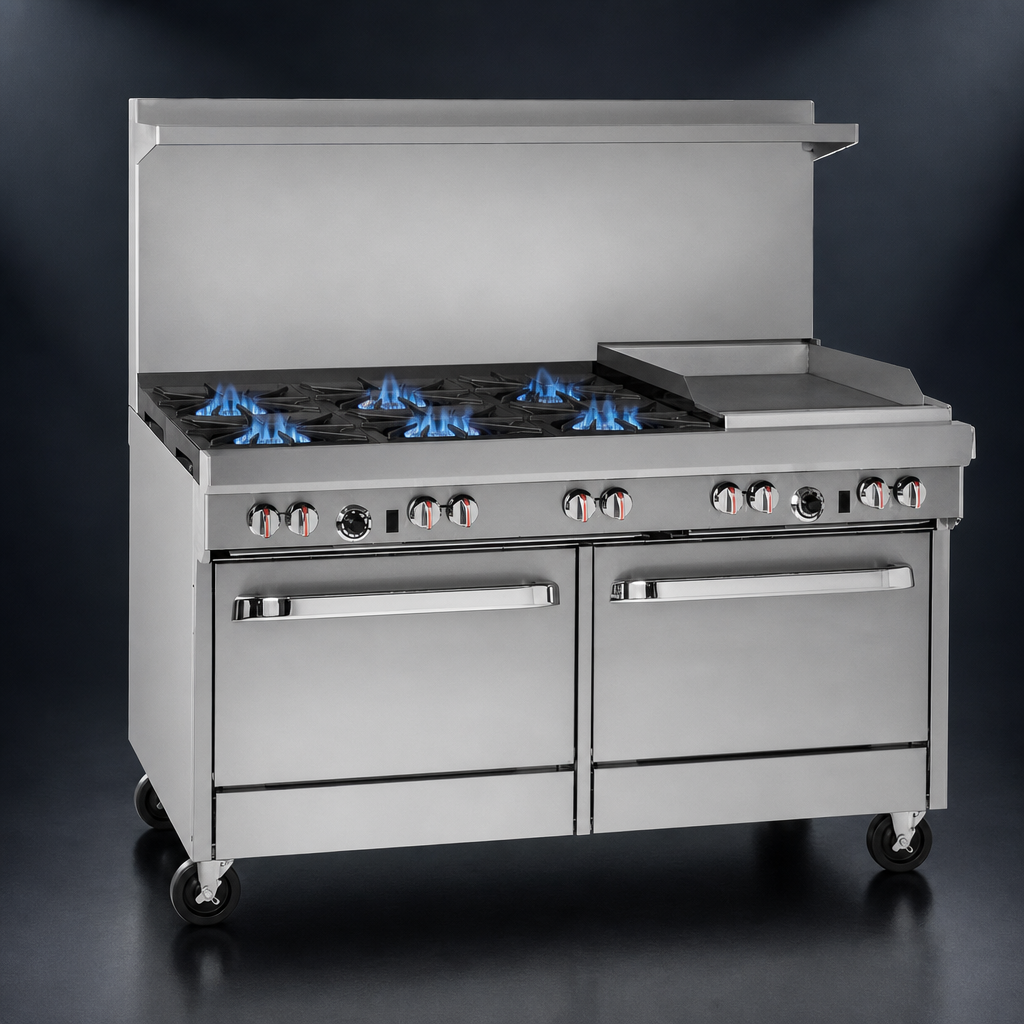

  • (6) 28,000 BTU patented cast-iron non-clog open burners with lifetime warranty
  • (6) heavy cast-iron grate tops—rear positions accept stock pots up to 14"
  • One-piece removable crumb drawer for fast clean-up

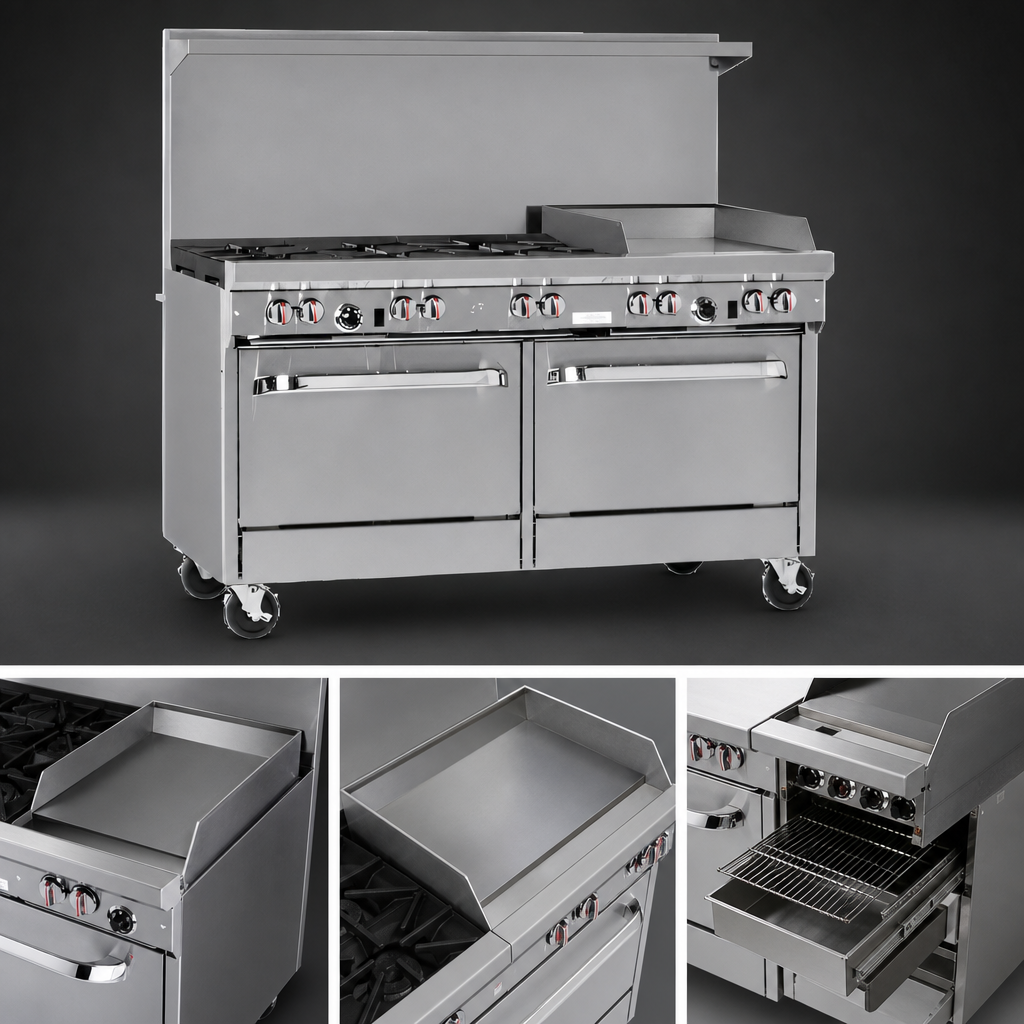

  • 24" raised, polished ½" steel griddle (2 × 12,000 BTU + 1 × 9,500 BTU burners) with broiler rack underneath—ideal for breakfast rush and finishing steaks
  • (2) 35,000 BTU snap-action standard ovens:
    • 175 – 550 °F temperature range
    • U-shaped burner & flame-failure safety device
    • 26" W × 26.5" D × 14" H porcelain-enameled cavity
    • Includes 1 rack per oven; 2-position guides
  • Total input: 271,500 BTU/hr
Built for the Line
  • All-stainless front, sides, high-shelf & 4" front rail for easy wipe-downs
  • 6" stainless steel adjustable legs for cleaning under the unit or leveling on uneven floors
  • Hinged lower valve panel provides quick service access
  • Metal control knobs with red stripes—easy to spot, hard to break
  • Factory-installed 3/4" regulator; rear 3/4" NPT gas connection
Certifications & Warranty
  • cCSAus, CSA Flame & CSA Star certified
  • NSF listed for sanitation
  • 1-year parts & labor warranty backed by Southbend’s nationwide service network
Specifications
Overall width 60 3/4" / 1543 mm
Depth (front-to-back) 34" / 864 mm
Height to cook surface 45 1/4" / 1149 mm
Height w/ rear shelf 59 1/2" / 1511 mm
Open burners (6) × 28,000 BTU
Griddle burners (2) × 12,000 BTU + (1) × 9,500 BTU
Ovens (2) Standard, 35,000 BTU each
Total input 271,500 BTU/hr (Natural Gas)
Gas connection 3/4" NPT rear; 7" W.C. min. Natural / 11" W.C. Propane
Oven interior (each) 26" W × 26.5" D × 14" H
Legs 6" stainless, adjustable
Shipping weight ≈ 860 lb / 390 kg

Need casters, extra racks or a quick-disconnect hose? Factory-approved accessories are available—ask your sales rep when ordering.

For commercial use only. Install under a properly ventilated hood and follow all local codes. A restraining device is required when the unit is mounted on casters.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Base

(2) standard ovens

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Top

(6) open burners, (1) 24" griddle/broiler

Exterior Finish

stainless steel front & sides

Control Type

manual controls

Specifications

S-Series Restaurant Range, gas, 60", (6) 28,000 BTU open burners, (1) 24" raised griddle/broiler, manual controls, (2) standard ovens, snap action thermostat, (6) removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (1) rack per oven, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 271,500 BTU, cCSAus, CSA Flame, CSA Star, NSF
