Southbend (Middleby)  |  S-Series  |  SKU: S60DD-2GR

Southbend (Middleby) S60DD-2GR S-Series Gas Ranges

$8,940.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

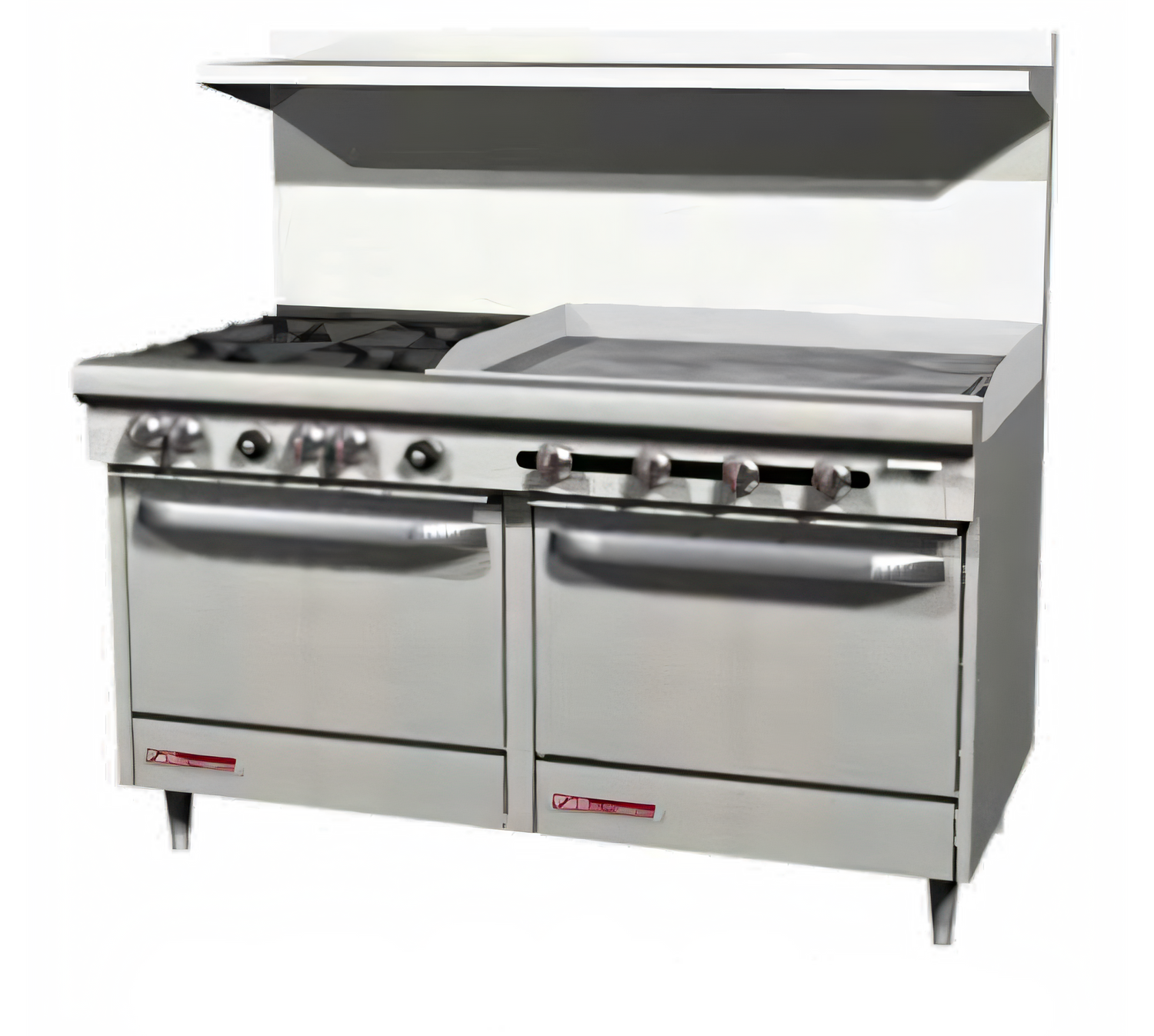

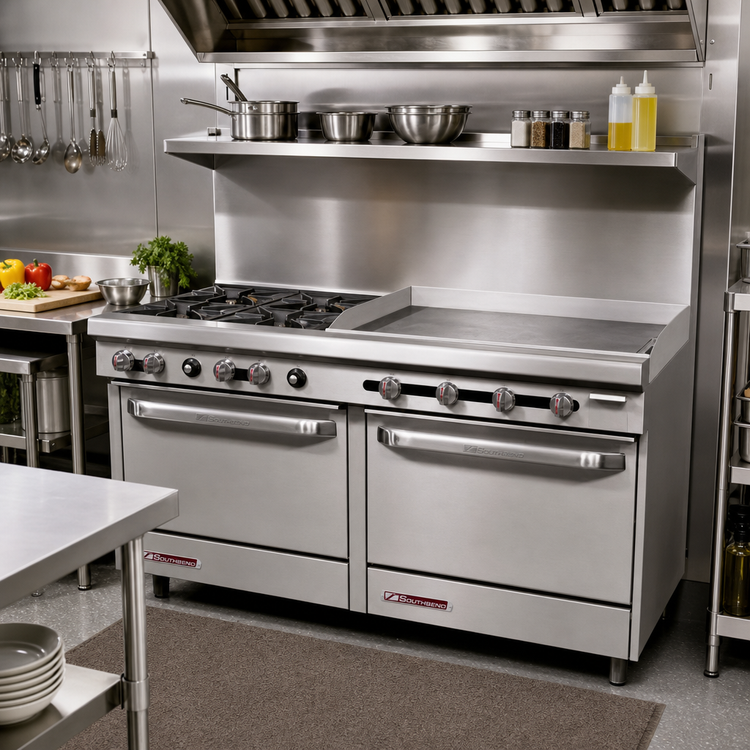

Southbend S-Series 60″ Gas Restaurant Range

6 Open Burners • 24″ Right-Side Griddle • Dual Standard Ovens • 286,000 BTU

Built for busy kitchens that demand rock-solid dependability, the Southbend S-Series 60″ range (model S60DD-2GR) combines powerful open-top cooking, a spacious steel griddle and two full-size ovens in one Space-Saver footprint. Heavy-duty from the inside out, this range delivers the cooking horsepower you need today— and the durability you’ll rely on for years to come.

Key Performance Features

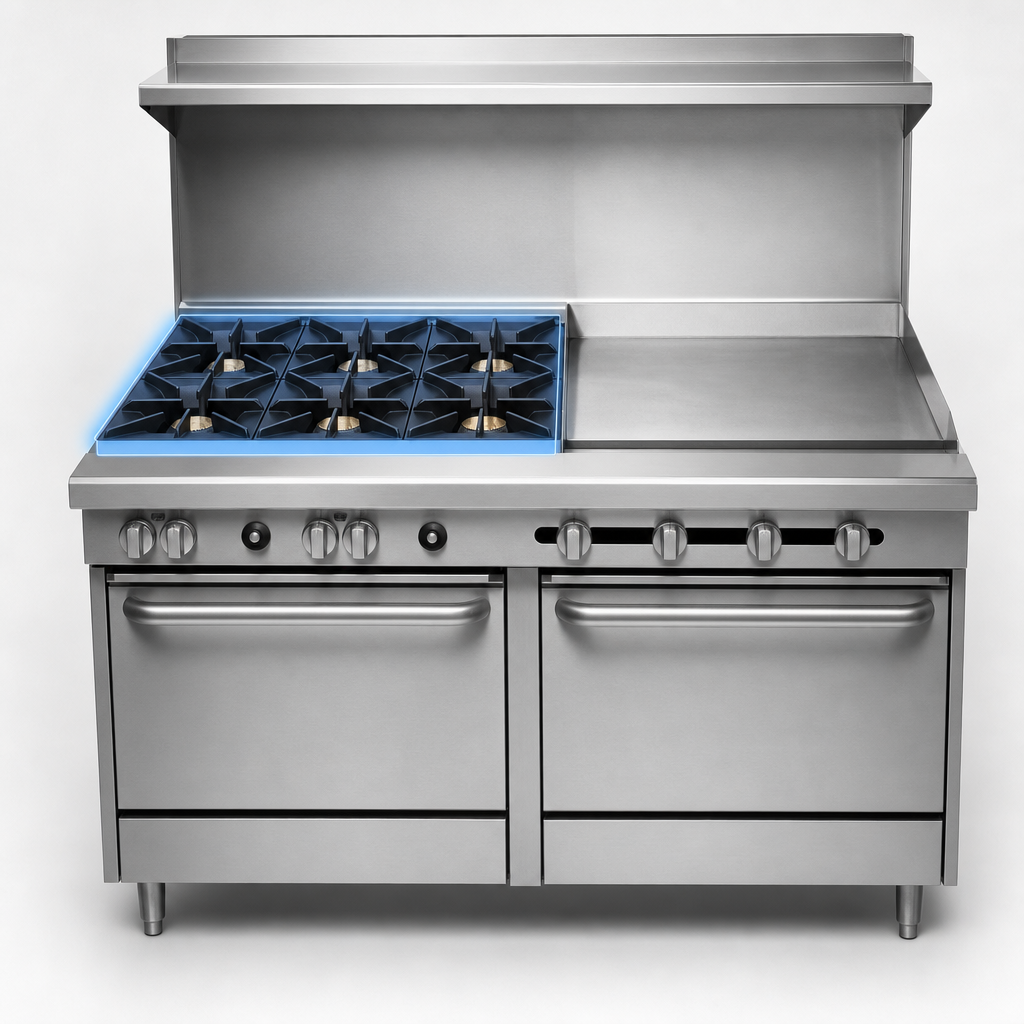

  • (6) 28,000 BTU open burners with one-piece, clog-resistant cast-iron heads (lifetime warranty)

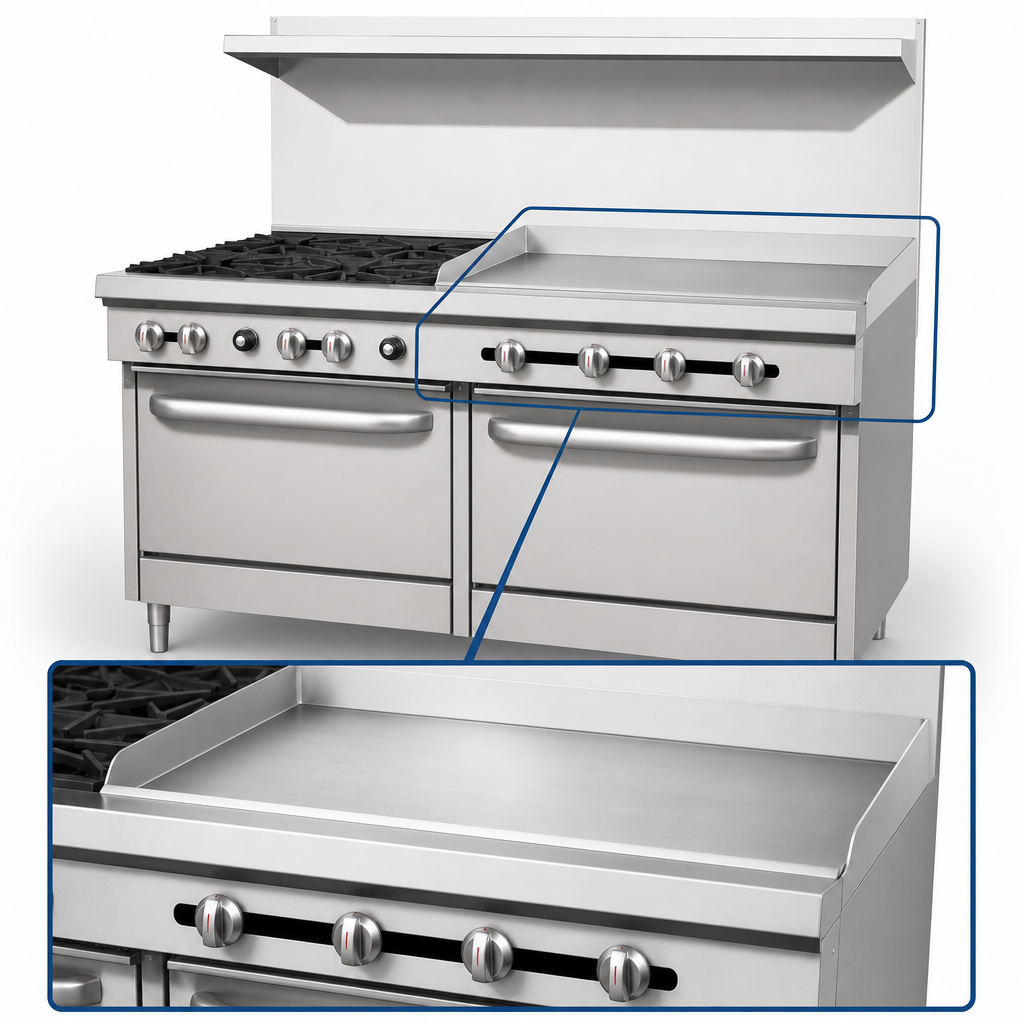

  • 24″ smooth, ½″ thick polished steel griddle (right-hand) with manual controls
  • (2) 35,000 BTU standard ovens with snap-action thermostats adjustable 175 °F – 550 °F
  • Total output: 286,000 BTU/hr
  • Individual cast-iron grates accept up to 14″ stock pots
  • Twin removable crumb drawers speed daily clean-up
  • Hinged lower valve panel for fast service access

Built to Last

  • All-stainless front, sides, 4″ front rail & high-shelf
  • 6″ stainless, adjustable legs (optional locking casters)
  • Quadrant-spring oven doors with cool-touch chrome handles
  • Heavy block-type rock-wool insulation on all four oven sides & top

Spacious Double Ovens

  • Interior: 26″ W × 26 ½″ D × 14″ H (each)
  • U-shaped burner design ensures even baking & roasting
  • 2-position rack guides; 1 rack included per oven

Specifications

Model S60DD-2GR (Right-Side Griddle)
Exterior Dimensions 60 ¾″ W × 41 ¾″ D × 59 ½″ H (to shelf)
Open Burners 6 × 28,000 BTU (natural gas)
Griddle 24″ × ½″ steel plate, 3 × 16,000 BTU
Ovens 2 Standard • 35,000 BTU each • Snap-action thermostats
Total Gas Input 286,000 BTU/hr
Gas Connection ¾″ NPT rear, min. 7″ W.C. NG (11″ W.C. LP)
Shipping Weight Approx. 860 lb
Certifications cCSAus, CSA Flame, CSA Star, NSF

Popular Options & Accessories (sold separately)

  • All-swivel locking casters
  • 10″ flue riser
  • Quick-disconnect gas hose assemblies (3′, 4′, 5′)
  • Extra oven racks
  • Restraining device for caster installations
  • Cheesemelter or salamander broiler mounts

Peace-of-Mind Warranty

1-year parts & labor coverage provided by Southbend. Open-top burners carry a lifetime warranty against clogging. Commercial installation & proper maintenance required.

Installation Notice: For combustible floors and walls allow a minimum 10″ clearance (when using legs or casters). Unit must be installed beneath a properly sized, ventilated hood in accordance with local codes.

For commercial use only – not intended for household installation.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

S-Series

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Control Type

manual controls

Base

(2) standard ovens

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Top

(6) open burners, (1) 24" griddle

Exterior Finish

stainless steel front & sides

Specifications

(MIDDLEBY ESSENTIALS ITEM) S-Series Restaurant Range, gas, 60", (6) 28,000 BTU open burners, (1) 24" griddle right, manual controls, (2) standard ovens, snap action thermostat, removable cast iron grates, (2) crumb drawers & shelf, hinged lower valve panel, includes (1) rack per oven, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 286,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
