Southbend (Middleby) S60DC-3TR S-Series Gas Ranges
Description
Southbend S-Series 60" Gas Restaurant Range
4 Burners • 36" Thermostatic Griddle (Right) • Standard Oven & Cabinet BaseBuilt for the busy kitchen that needs flexible cooking power in a single footprint, the Southbend S-Series combines heavy-duty performance, easy service access, and the durability operators have trusted for over a century.
Why You’ll Love It

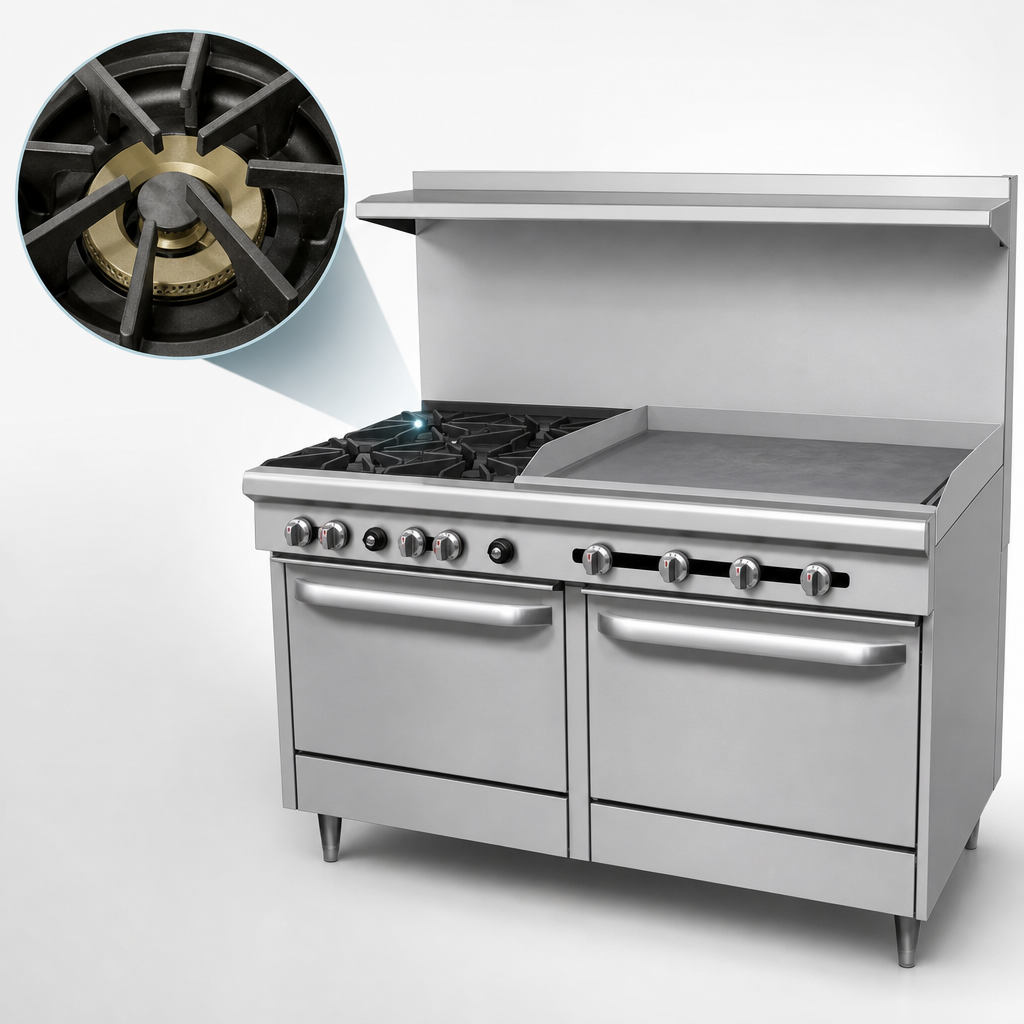

- Serious heat on demand – (4) 28,000 BTU open burners plus a 36" griddle with four 16,000 BTU burners deliver a total 211,000 BTU.
- Thermostatic ½" steel griddle holds set temps from breakfast to dinner; raised side splashes keep mess contained.
- Space-saver standard oven (35,000 BTU) with snap-action thermostat, porcelain enamel cavity, and 1 included rack.
- Extra storage thanks to an aluminized cabinet base positioned under the griddle section.
- Lifetime-warranty cast-iron burners with removable grates; rear grates accept up to a 14" stock pot.
- Quick clean-ups – two full-width crumb drawers, smooth polished griddle plate, and hinged lower valve panel.

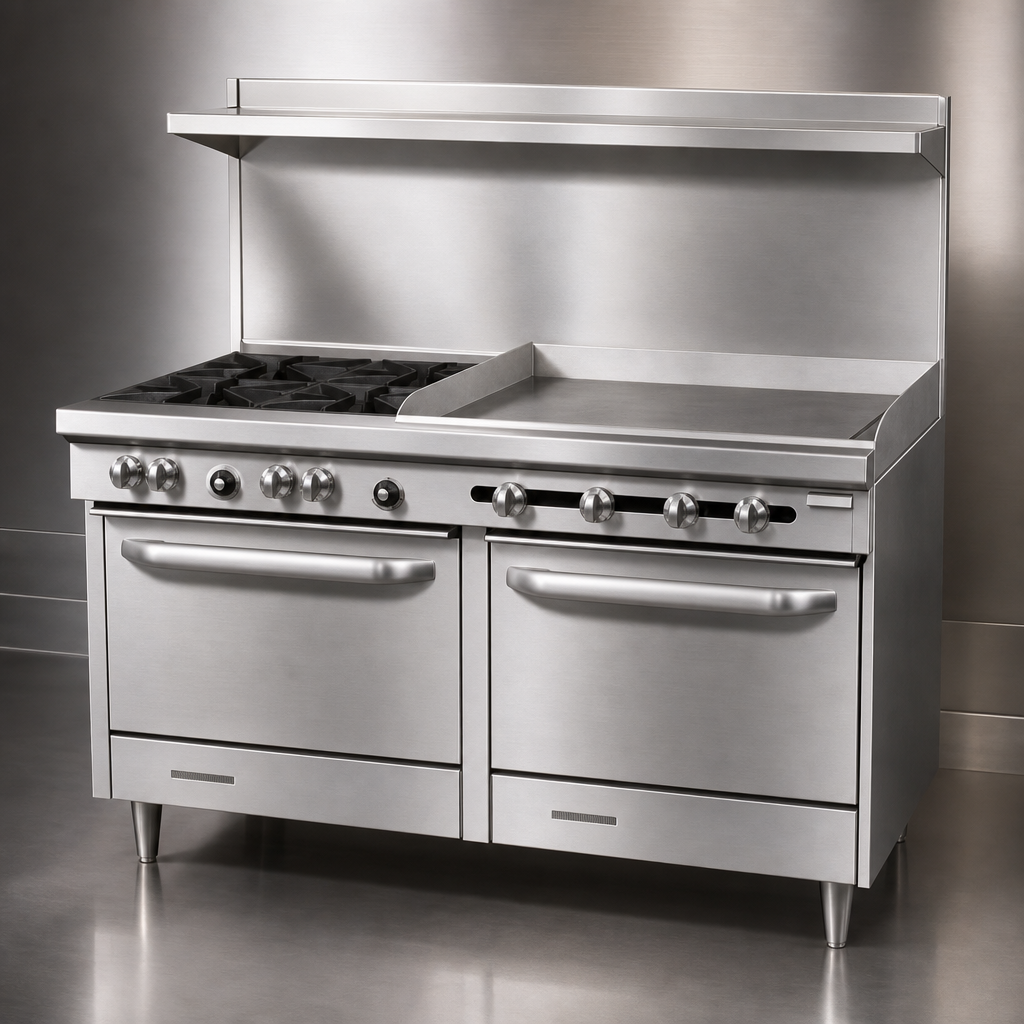

- Built to last – stainless steel front, sides, high-shelf, and 4" front rail seated on 6" adjustable stainless legs.
- Certified & compliant – cCSAus, CSA Flame, CSA Star and NSF listed for commercial kitchens.
Specification Highlights
| Model | S-Series S60DC-3G/T-R |
|---|---|
| Total BTU | 211,000 BTU/hr (Natural or LP) |
| Open Burners | (4) 28,000 BTU non-clog cast iron, individual lift-off grates |
| Griddle | 36" W × 24" D, ½" smooth polished steel, right-side, thermostatic control (175 °F – 550 °F) |
| Oven | Standard; 35,000 BTU U-shaped burner, 26" W × 26.5" D × 14" H cavity, 1 rack / 2 positions |
| Base | Full cabinet with shelf (doors optional at no charge) |
| Exterior Dimensions | 60.75" W × 41.75" D × 59.5" H (to top of flue) |
| Cooking Height | 36" on 6" adjustable legs |
| Gas Connection | ¾" NPT rear; Natural Gas 7" W.C. / Propane 11" W.C. |
| Electrical | None required |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (See warranty statement) |
What’s Included
- (1) Chrome oven rack
- 22.5" stainless flue riser with single shelf
- Factory-installed gas pressure regulator
- Two removable crumb drawers
Popular Accessories (Sold Separately)
- Swivel locking caster set
- Quick-disconnect gas hose kits (3', 4', or 5')
- Additional oven or cabinet doors
- Salamander & cheesemelter mounts
- Extra oven racks
Installation Notes
• Provide 10" clearance from combustible walls when installed on legs or casters.
• Install under a vented hood in accordance with local codes.
• For non-quarry tile floors, contact the factory for approved installation methods.
