Southbend (Middleby) S60DC-2GR S-Series Gas Ranges
Description

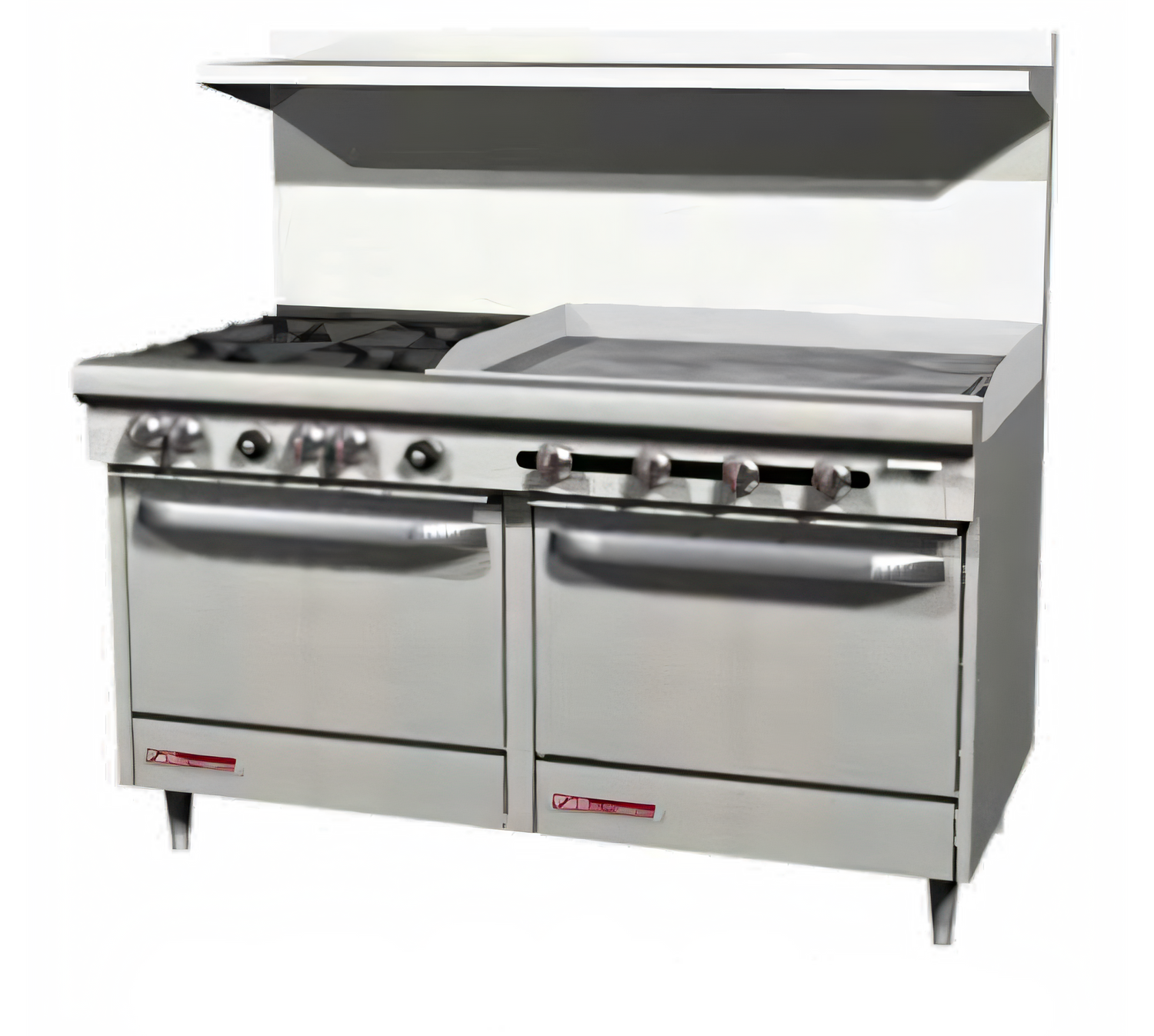

Southbend S-Series 60" Gas Restaurant Range
6 Open Burners • 24" Right-Side Griddle • Standard Oven & Cabinet Base • 251,000 BTUGive your kitchen a true workhorse that sautés, sears, grills, bakes and stores in one 60-inch footprint. Southbend’s S-Series range delivers heavy-duty performance with six 28,000 BTU non-clog burners, a 24" smooth steel griddle, a full-size standard oven and a convenient cabinet base—all wrapped in easy-to-clean stainless steel.
Why You’ll Love It

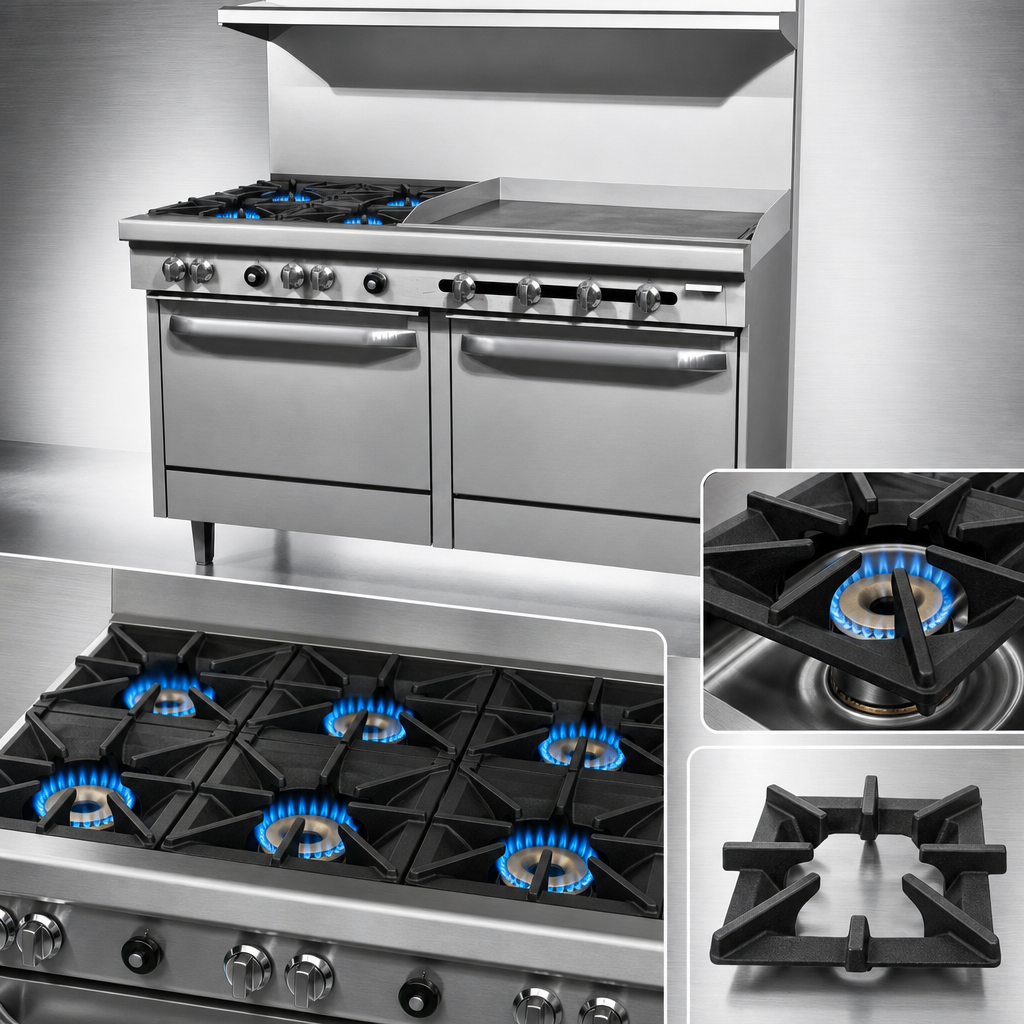

- Six patented, one-piece cast-iron burners with a lifetime warranty.

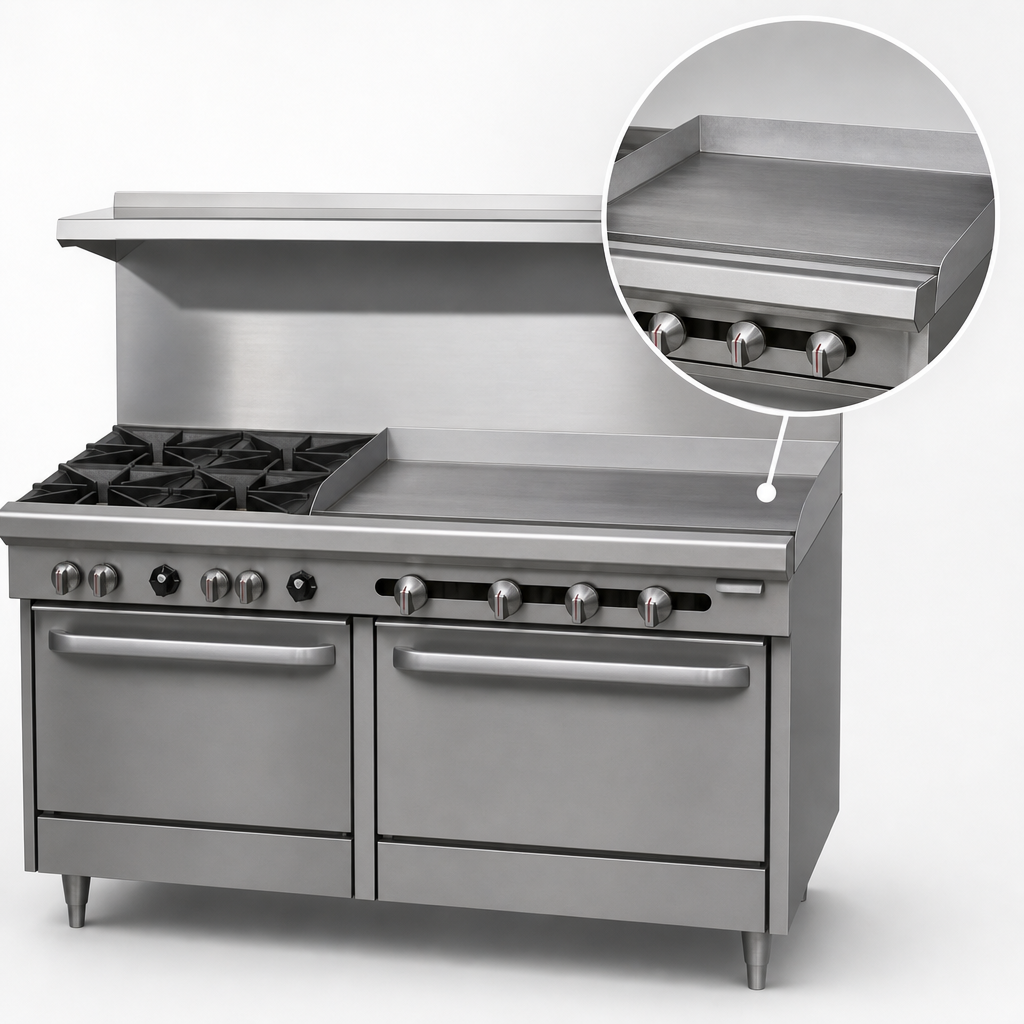

- 1/2" polished steel griddle (right-side) handles breakfast to burgers with ease.
- 35,000 BTU standard oven with snap-action thermostat adjustable 175-550 °F.
- U-shaped oven burner & rock-wool insulation for even baking and roasting.
- Removable cast-iron grate tops—rear sections accept 14" stock pots.
- Two one-piece crumb drawers slide out for quick end-of-shift clean-up.
- Hinged lower valve panel provides fast service access.
- 4" stainless front rail, quadrant-spring door with chrome handle & 6" adjustable legs.
- Certified cCSAus, CSA Flame, CSA Star & NSF for North-American code compliance.
Performance at a Glance
| Total Input | 251,000 BTU/hr (Natural) | 219,000 BTU/hr (LP) |
|---|---|
| Open Burners | 6 × 28,000 BTU cast-iron, non-clog, lift-off grates |
| Griddle | 24" W × 27" D, 1/2" thick polished steel, 3 × 16,000 BTU burners, manual controls |
| Oven Type | Standard; 35,000 BTU U-shaped burner |
| Oven Cavity | 26" W × 26.5" D × 14" H, 2-position rack guides, 1 rack included |
| Cabinet Base | Aluminized, open storage (doors available at no charge) |
| Gas Connection | 3/4" NPT rear connection; min. inlet 7" W.C. (Nat) / 11" W.C. (LP) |
| Overall Dimensions | 60.75" W × 41.75" D × 59.5" H (to flue) |
| Shipping Weight | Approx. 860 lb |
| Construction | Stainless steel front, sides, high-shelf & 4" front rail |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor; lifetime on open burners |
Popular Factory Options
- Swivel casters (front locking)
- Quick-disconnect gas hose (3 ft, 4 ft or 5 ft)
- Extra oven racks
- Center-opening cabinet doors (no charge)
- 10" or 22.5" flue riser for salamander/cheesemelter mounting
Minimum 10" clearance to combustible side walls when installed on legs or casters. Must be installed under an appropriate vent hood. Not for residential use.
