Southbend (Middleby) S60CC S-Series Gas Ranges
Southbend (Middleby) S60CC S-Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

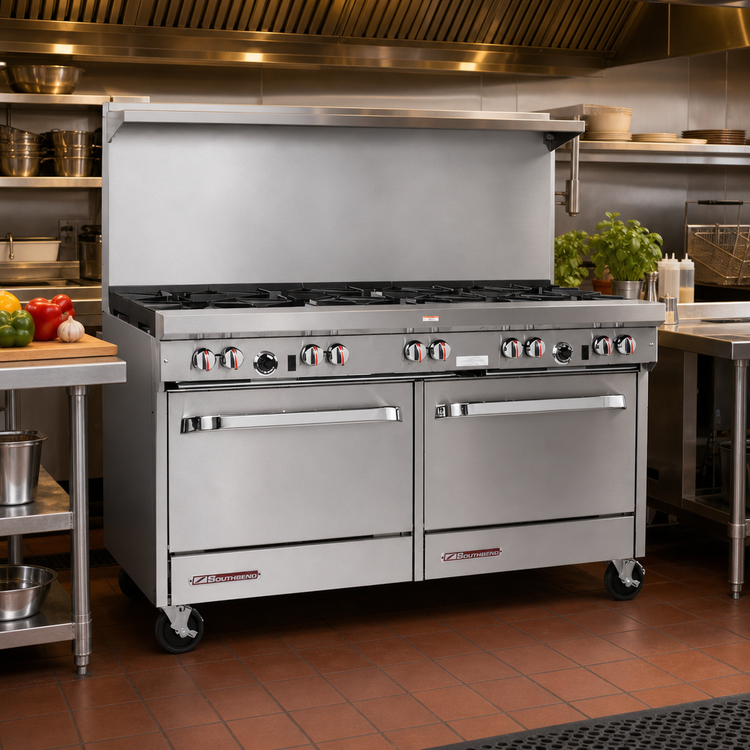

Southbend S-Series 60" Gas Restaurant Range – 10 Burners & Dual Cabinets
Model S60CC | 280,000 BTU | CSA & NSF ListedWhen the rush hits, the Southbend S-Series keeps pace. Ten rugged open burners deliver searing heat while two full-size storage cabinets keep hotel pans, sheet pans and utensils right where you need them. Built entirely for commercial duty, this 60" range blends powerhouse performance, lifetime-warranty burners and easy-clean design to anchor any cookline.
Key Features

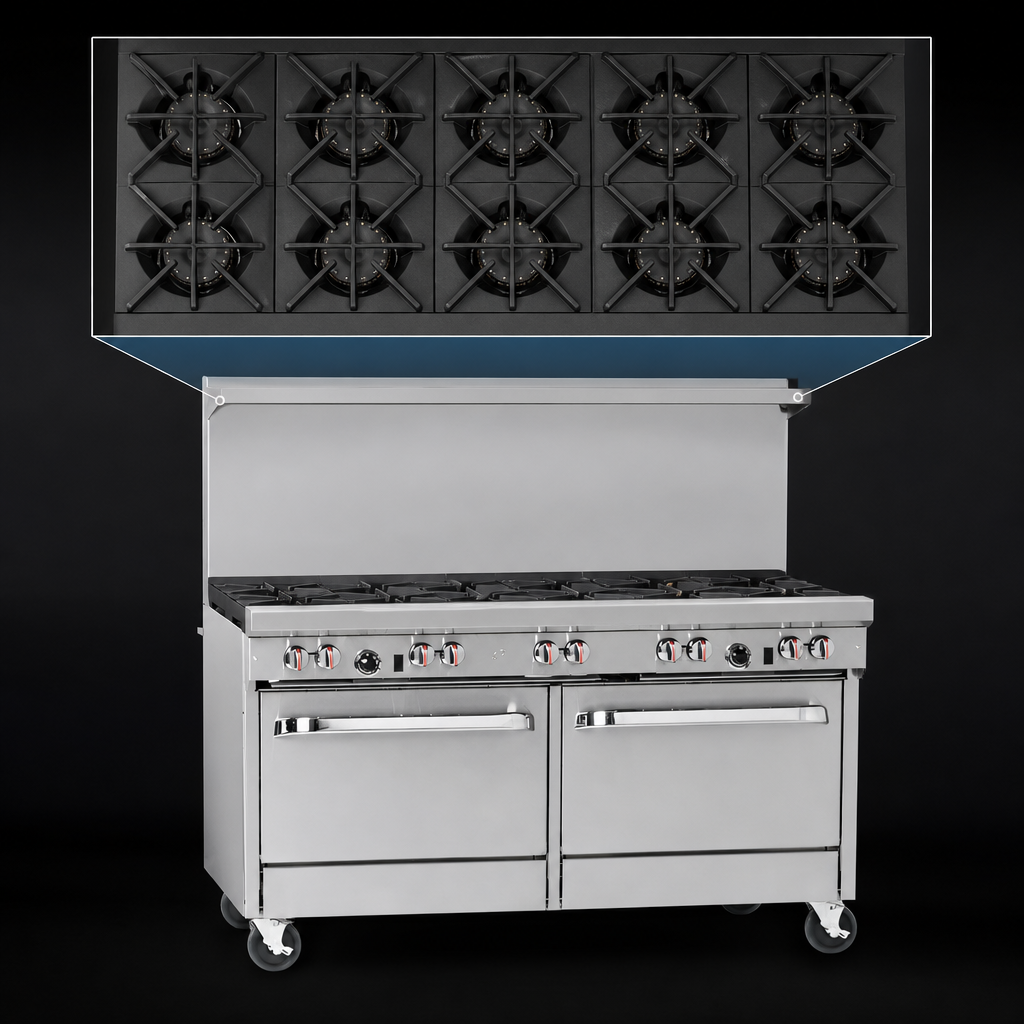

- Ten 28,000 BTU patented, one-piece cast-iron burners (lifetime warranty).
- Total output: 280,000 BTU Natural / 240,000 BTU LP.

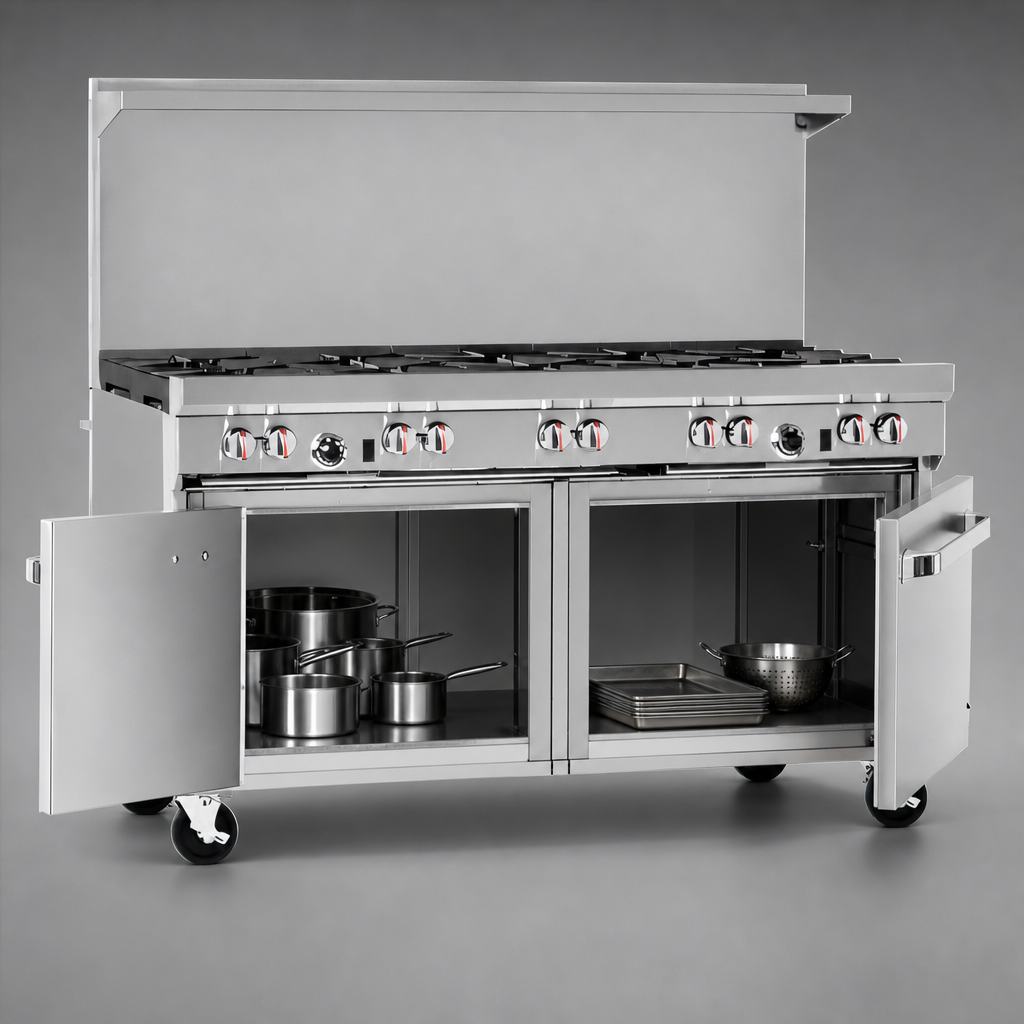

- Dual aluminized cabinet bases for dry storage (center-opening doors available at no charge).
- Ten removable, cast-iron grate tops; rear grates hold stock pots up to 14".
- Full-width, one-piece crumb drawers simplify nightly clean-up.
- Stainless steel front, sides, shelf and 4" front rail with welded end caps.
- 22.5" stainless flue riser with single shelf ships installed.
- 6" adjustable stainless steel legs; optional all-swivel, locking casters.
- Factory-installed 3/4" gas pressure regulator; no electrical connection required.
Built for the Line, Engineered for the Long Haul
- Heavy-gauge stainless chassis stands up to continuous high-heat cycles.
- Ergonomic chrome handles and metal control knobs with red stripes resist abuse.
- Hinged lower valve panel provides fast front-side service access.
- Zero-inch clearance to non-combustible construction maximizes hood space.
Specifications
Model | S60CC |
---|---|
Fuel | Natural gas (field convertible to LP) |
Total BTU Input | 280,000 BTU/hr Natural | 240,000 BTU/hr LP |
Open Burners | 10 × 28,000 BTU (Natural) / 24,000 BTU (LP) |
Bases | 2 × open storage cabinets (doors optional) |
Cooking Surface | 60 3/4" W × 27" D |
Overall Dimensions | 60 3/4" W × 34" D × 59 1/2" H (to top of flue) |
Gas Connection | 3/4" NPT male (rear) |
Min. Inlet Pressure | Natural – 7" W.C. | LP – 11" W.C. |
Clearances | 0" sides/back to non-combustible | 10" to combustibles |
Certifications | CSA, NSF |
Warranty | 1-year parts & labor; lifetime on open burners |
Popular Accessories (Sold Separately)
- All-swivel locking caster kit
- Gas quick-disconnect hose (3', 4' or 5') & restraining device
- Center-opening cabinet doors
- 10" flue riser, salamander & cheesemelter mounts
