Description

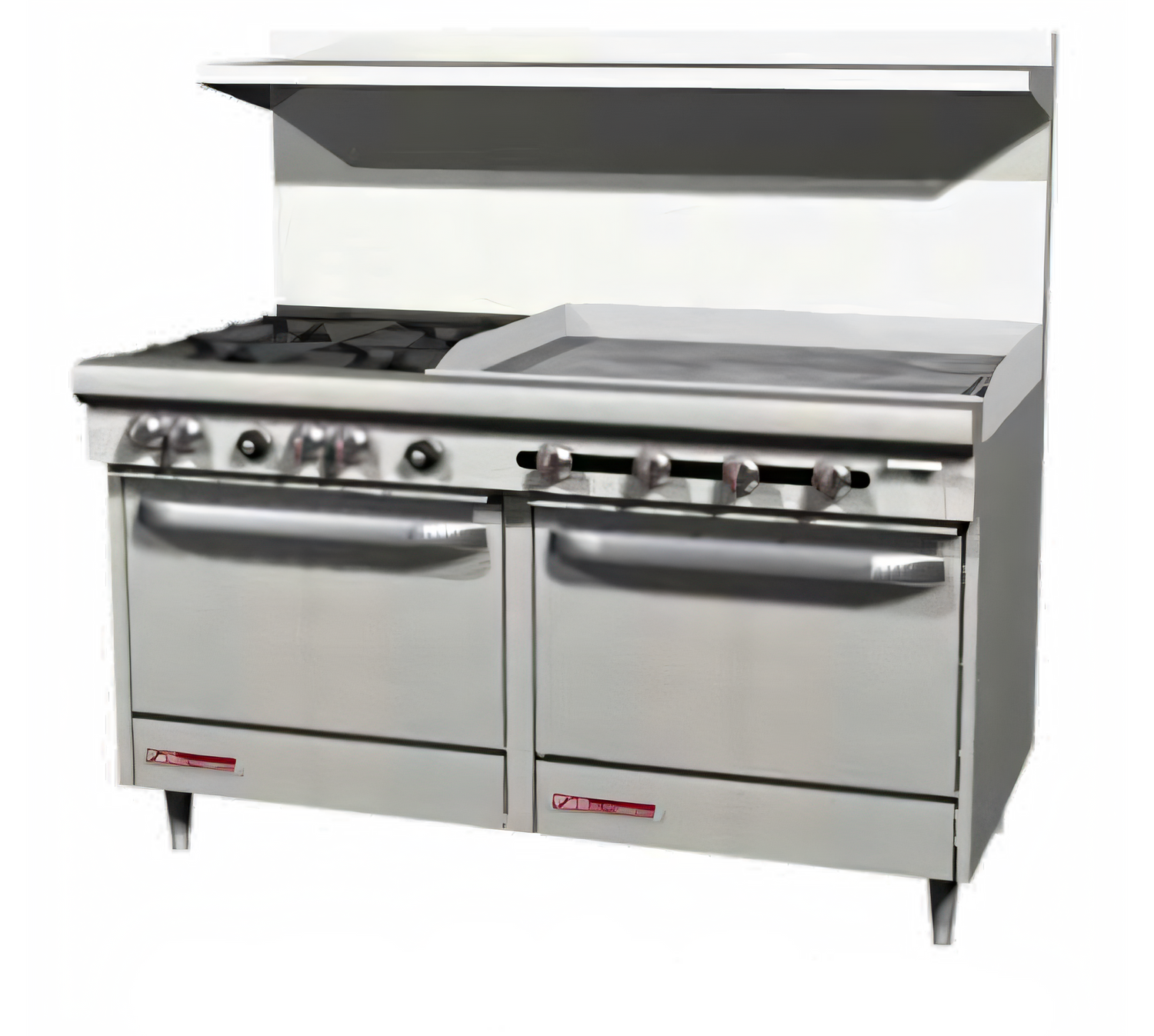

Southbend S-Series 60" Gas Range with 48" Thermostatic Griddle & 2 Open Burners
Model S60CC-4G/T | 136,000 BTU | cCSAus, CSA Flame, CSA Star, NSFGet the versatility of a full-size griddle, the speed of two high-output open burners, and the convenience of built-in storage— all in just five feet of line space. Southbend’s S-Series is engineered for the daily punishment of busy diners, food trucks, and restaurant kitchens that need rock-solid performance shift after shift.
Why this range belongs in your kitchen

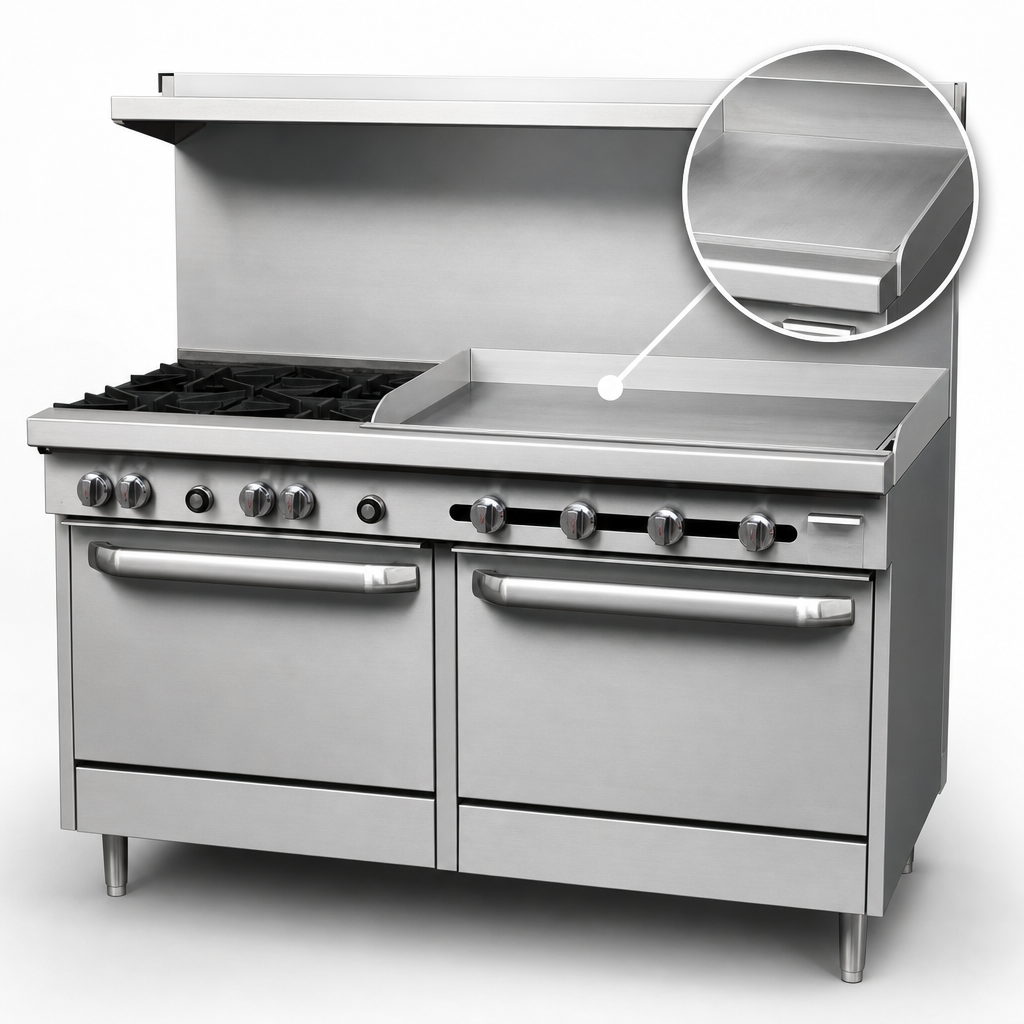

- 48" thermostatic griddle (right-side) – 1" thick polished steel plate with raised sides and precise snap-action controls for perfect pancakes, burgers, or sauté prep.
- (2) 28,000 BTU open burners – one-piece, non-clog cast-iron tops covered by Southbend’s lifetime warranty.
- Dual cabinet bases – aluminized storage compartments keep sheet pans, utensils, and dry goods within arm’s reach; optional doors available at no charge.
- Heavy-duty construction – stainless steel front, sides, removable shelf, 4" front rail with welded end caps, and 6" adjustable stainless legs.
- Easy clean-up – two removable crumb drawers below the burners plus lift-off cast-iron grates that accept up to a 14" stock pot.
- Hinged lower valve panel – fast service access keeps downtime to a minimum.
- Factory-installed regulator & pressure test point – simplifies installation and start-up.
- Certified & warrantied – cCSAus / CSA Flame & Star / NSF listed; backed by a 1-year parts & labor warranty.
At-a-glance specs
Cooktop configuration | (2) open burners + 48" thermostatic griddle (right) |
---|---|
Total input | 136,000 BTU/hr (Natural or LP) |
Open burner rating | 28,000 BTU each | cast-iron, non-clog |
Griddle burners | (5) × 16,000 BTU steel tube burners |
Griddle plate | 48" W × 24" D × 1" T polished steel, raised sides |
Overall dimensions | 60.75" W × 41.75" D × 59.5" H (with 22.5" flue/shelf) |
Gas connection | 3/4" NPT male (rear, opposite griddle side) |
Required inlet pressure | Natural 7" W.C. | LP 11" W.C. |
Clearance – combustibles | 10" sides & rear (when on 6" legs or casters) |
Warranty | 1 year parts & labor; lifetime on open-top burners |
Popular accessories (sold separately)
- Swivel casters (front locking)
- Center-opening cabinet doors
- Quick-disconnect gas hose kits (3 ft, 4 ft, or 5 ft)
- 10" flue riser
- Cheesemelter or salamander broiler mounts
